Generators & Regulators: Overhaul

When assembling front and rear sections, insert a stiff wire into hole in rear cover to hold brushes in raised position. Use exploded view for overhaul reference. See Fig 1 -Fig 3 . Ensure brushes are not worn beyond limit line, or measure brush length. See STANDARD & MINIMUM BRUSH LENGTH table. If brush length is less than specified, replace brush and brush holder.

STANDARD & MINIMUM BRUSH LENGTH

Application

Standard Length - Inches (mm)

Minimum Length - Inches (mm)

Passport, Rodeo & Rodeo Sport 2.2L

.20 (5.0)

⁽¹⁾

Passport, Rodeo & Rodeo Sport 3.2L

.71 (18.0)

.22 (5.5)

Trooper & VehiCROSS

.41 (10)

.33 (8.4)

⁽¹⁾	Information is not available from manufacturer.

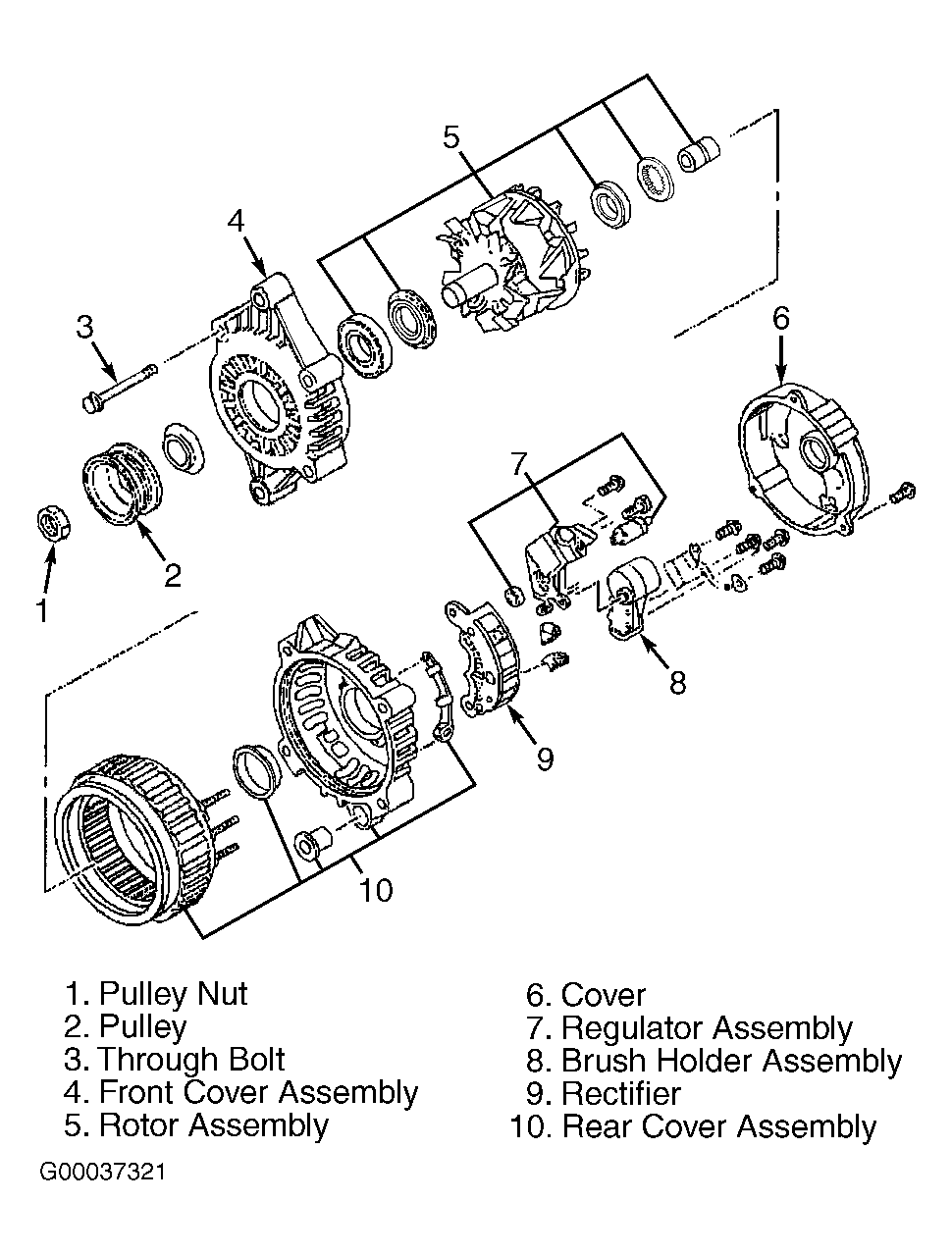

Fig 1: Exploded View Of Generator (Passport, Rodeo & Rodeo Sport 2.2L)

Courtesy of ISUZU MOTOR CO.

Fig 2: Exploded View Of Generator (Passport, Rodeo & Rodeo Sport 3.2L)

Courtesy of ISUZU MOTOR CO.

Fig 3: Exploded View Of Generator (Trooper & VehiCROSS)

Courtesy of ISUZU MOTOR CO.
