Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

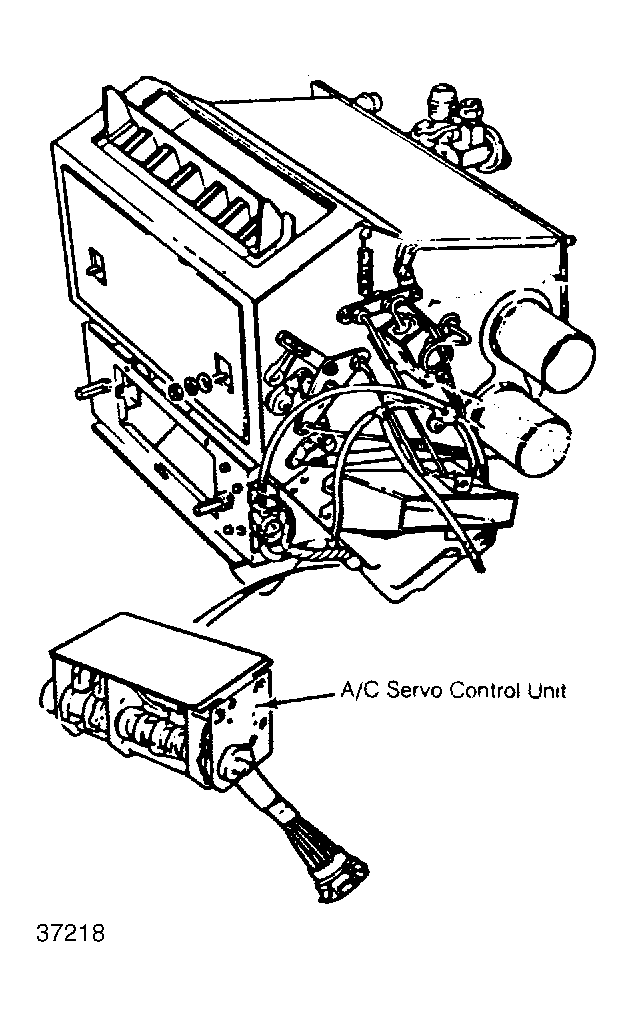

| A/C Servo Control Unit | On lower left corner of A/C assembly. See Figure . |
| Audio Warning Control Unit | Under right side of dash, behind glove box. |
| Bulb Check Unit | Under left side of dash. |

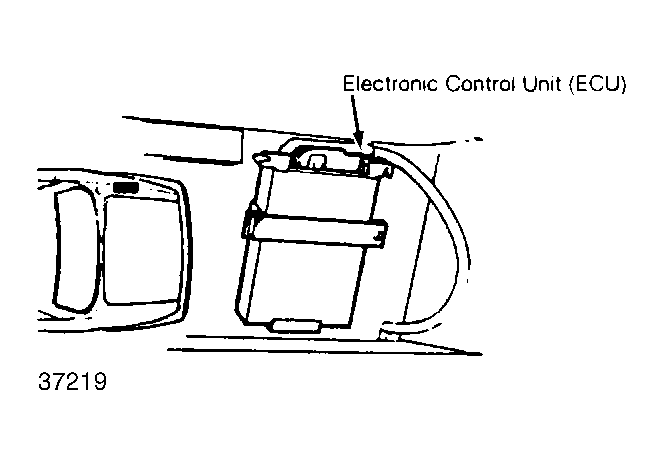

| Electronic Control Unit (ECU) | In right front corner of luggage compartment. See Figure & Figure . |
| Fuel Injection Control Unit | On right side of luggage compartment. |
| Overvoltage Indicator Unit | Under right side of dash. |
