F5: Check For O2 Sensor Failure

  1. With the conditions held as F4, suddenly decelerate to idle

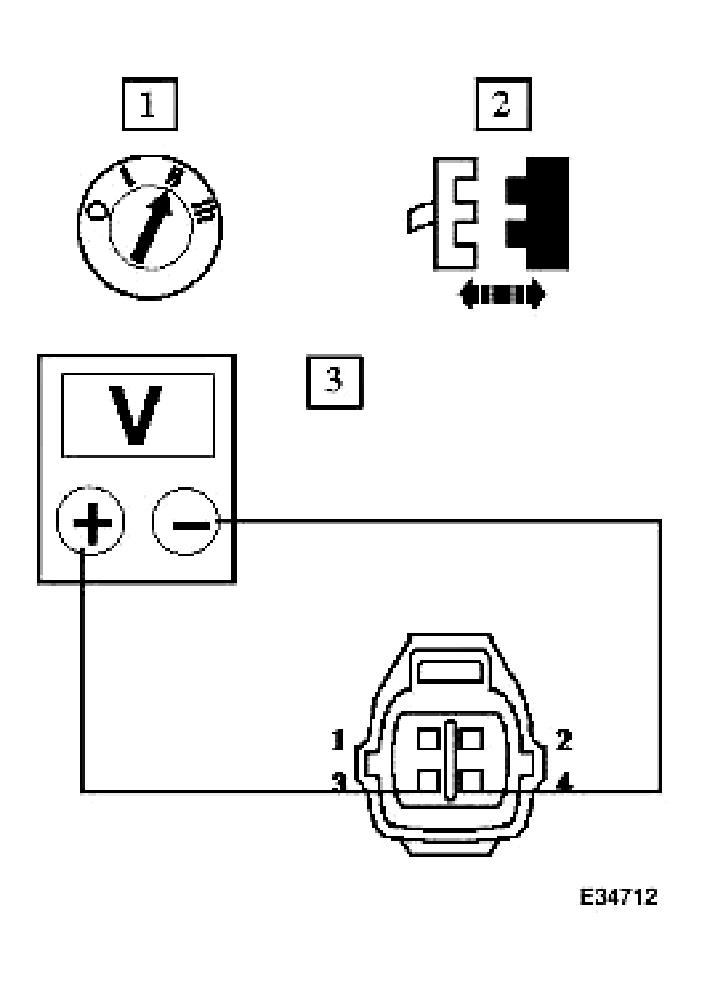

    Fig 1: Checking For O2 Sensor Failure (With Conditions Held as F4)
    G04355513Courtesy of JAGUAR CARS, INC.
    • Has the voltage dropped to 400mV or less ?

    Yes  : GO to F6

    No  : Renew O2 sensor, reconnect plug(s)

    GO to F8
