Component Locations

COMPONENT LOCATIONS

Component Location
Battery In Right Rear Of Luggage Compartment. See Fig 1.
Engine Control Module In Right Rear Of Engine Compartment. See Fig 2.
Front Power Distribution Fuse Box In Right Front Of Engine Compartment. See Fig 3.
Ignition Switch On Steering Column, Behind Ignition Key Cylinder. See Fig 4
Primary Junction Fuse Box In Right Front Foot Well, Behind Trim Panel. See Fig 5.
Starter Motor Lower Right Rear Of Engine. See Fig 3
Starter Relay In Front Power Distribution Fuse Box, In Engine Compartment. Fig 6.
Transmission Range Sensor On Left Side Of Transmission. Fig 7.
Trunk Fuse Box In Right Rear Of Luggage Compartment, Next To Battery. See Fig 1.

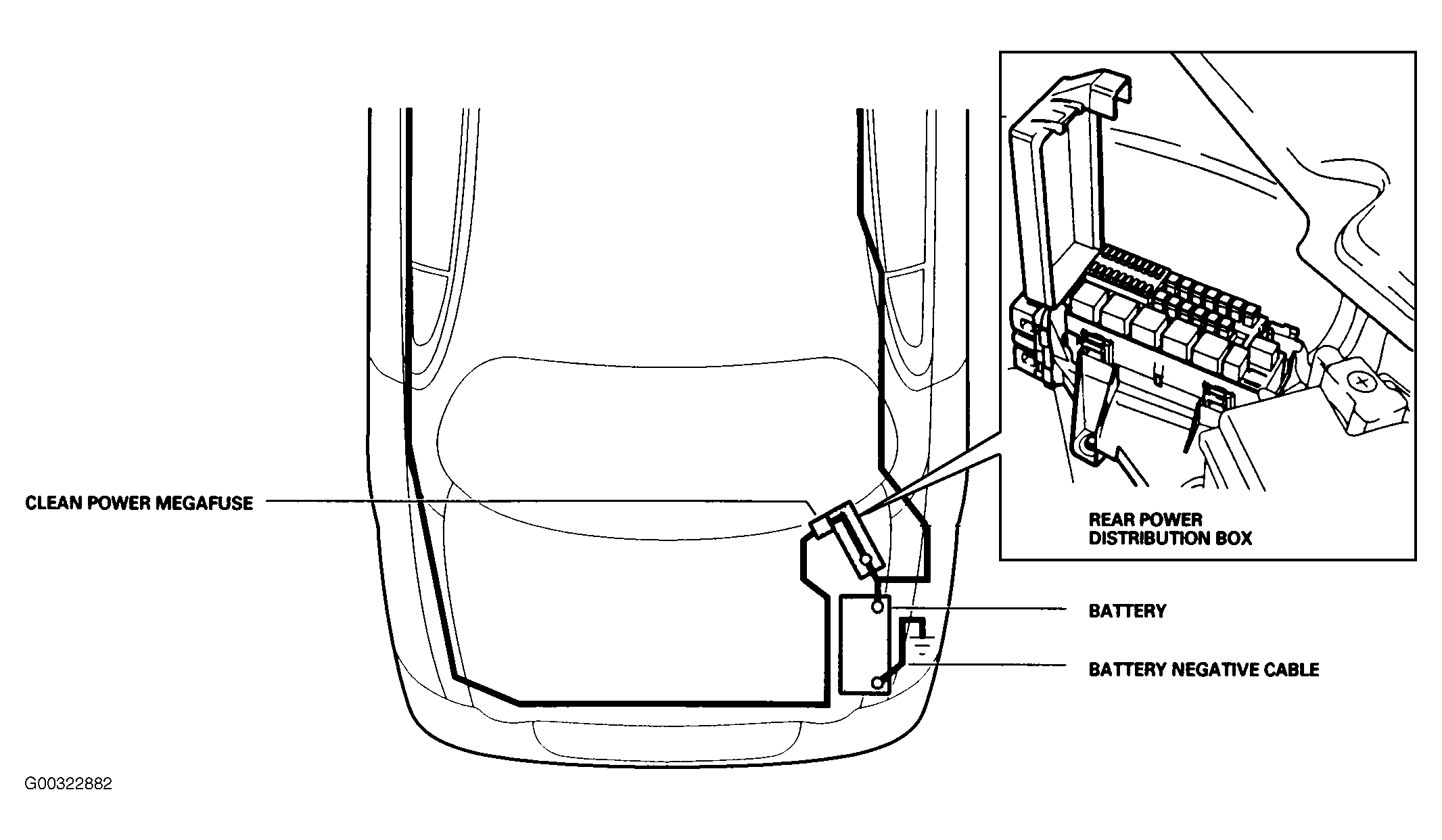

Fig 1: Locating Battery & Rear Power Distribution Fuse Box
G00322882Courtesy of JAGUAR CARS, INC.

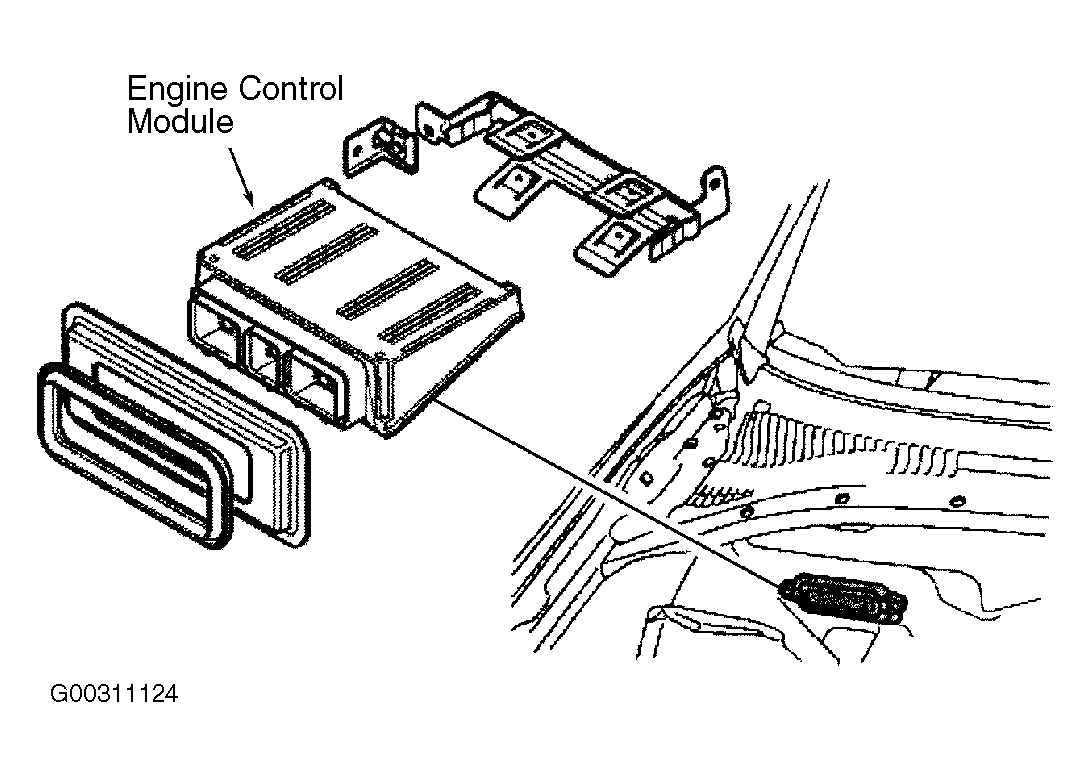

Fig 2: Locating Engine Control Module (ECM)
G00311124Courtesy of JAGUAR CARS, INC.

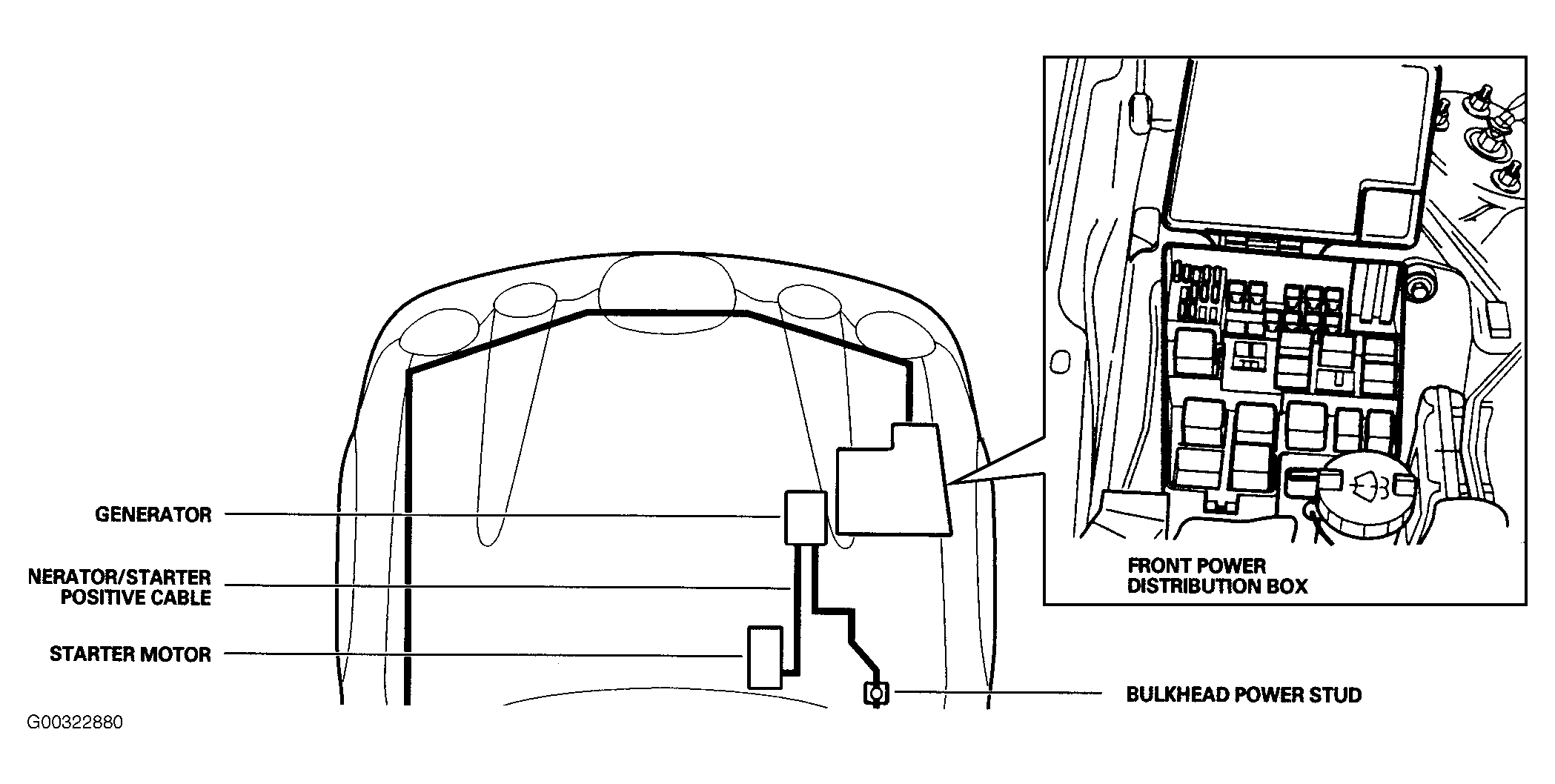

Fig 3: Locating Front Power Distribution Fuse Box & Starter Motor
G00322880Courtesy of JAGUAR CARS, INC.

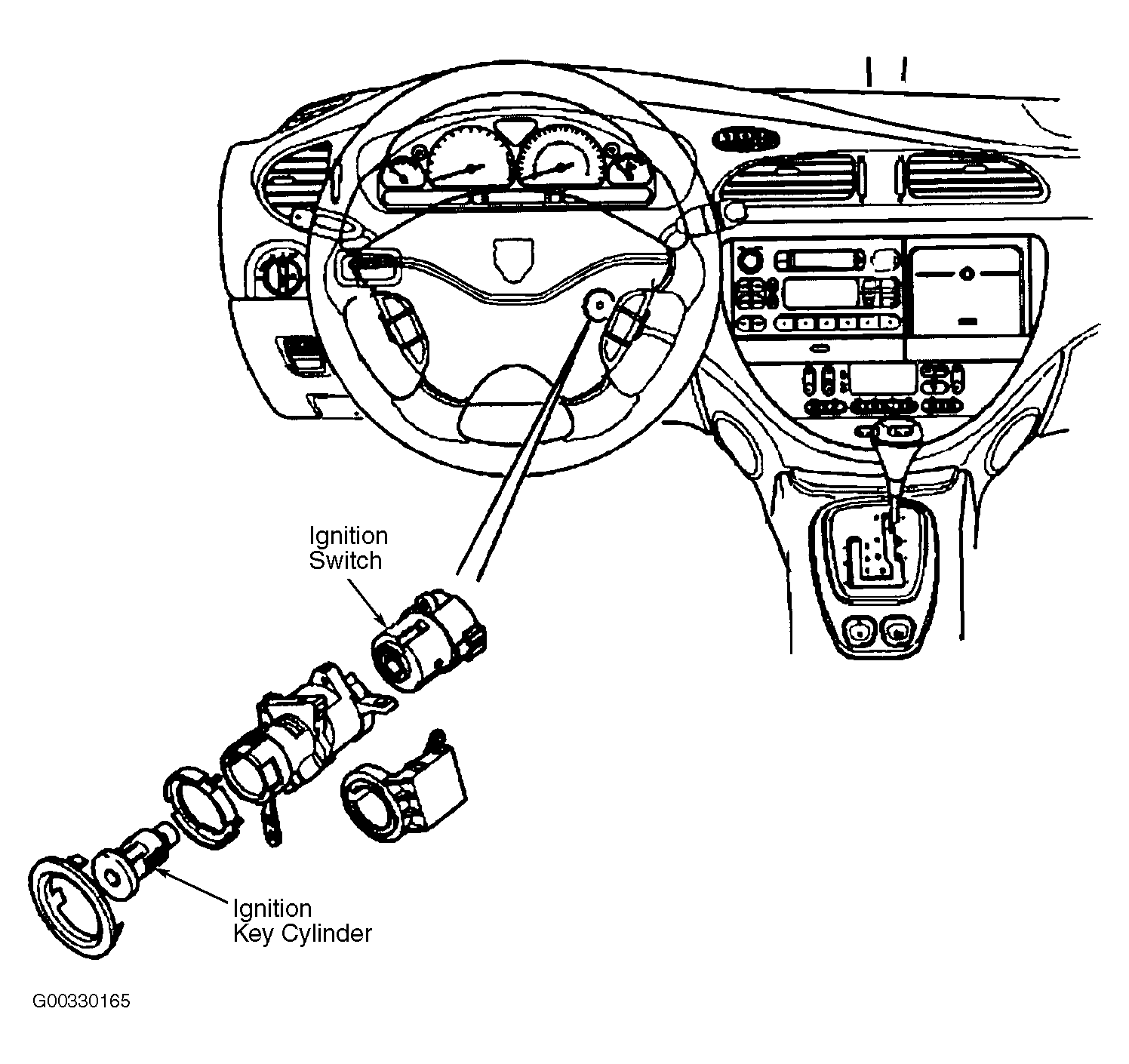

Fig 4: Locating Ignition Key Cylinder & Switch
G00330165Courtesy of JAGUAR CARS, INC.

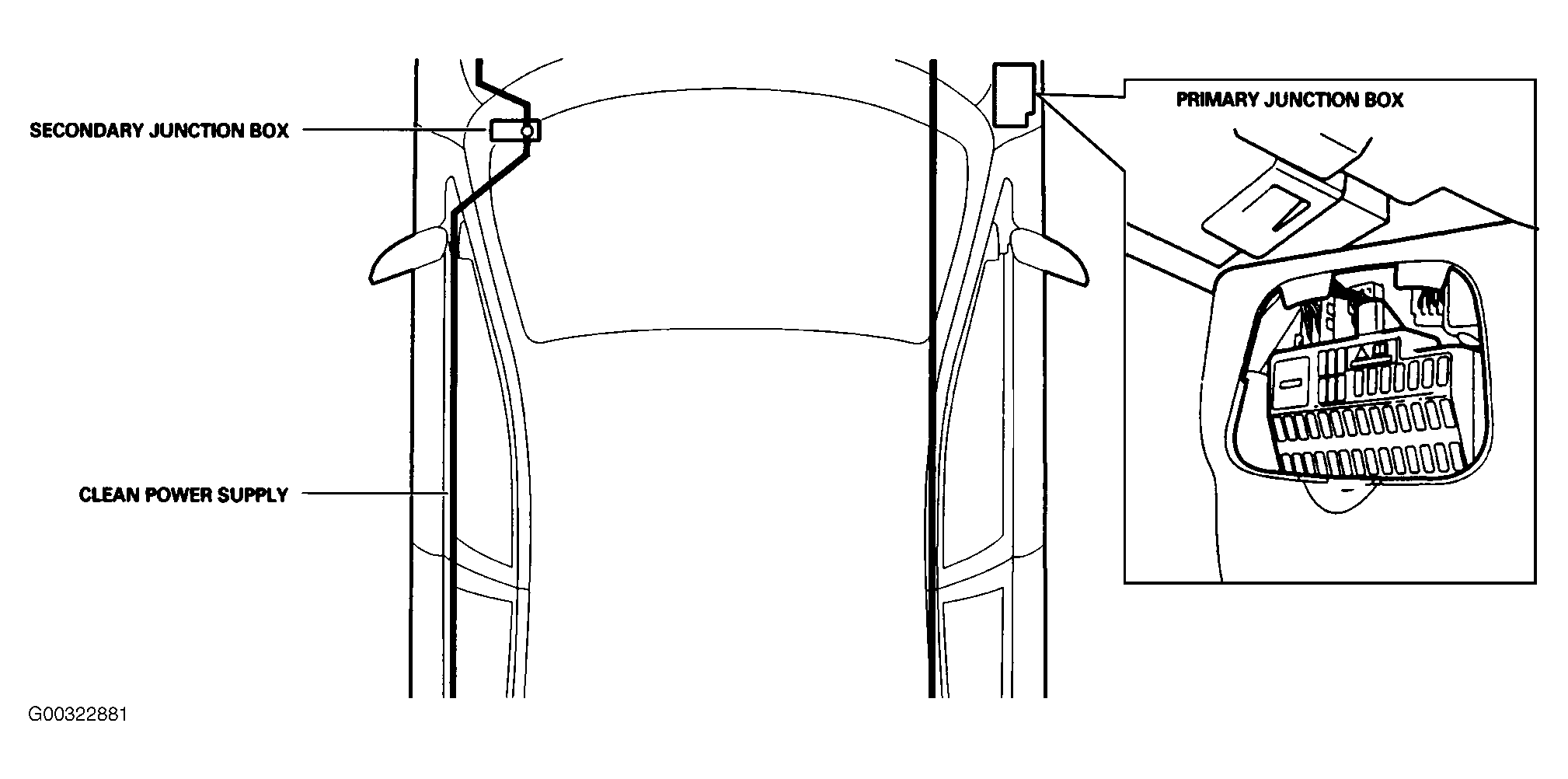

Fig 5: Locating Primary Junction Fuse Box
G00322881Courtesy of JAGUAR CARS, INC.

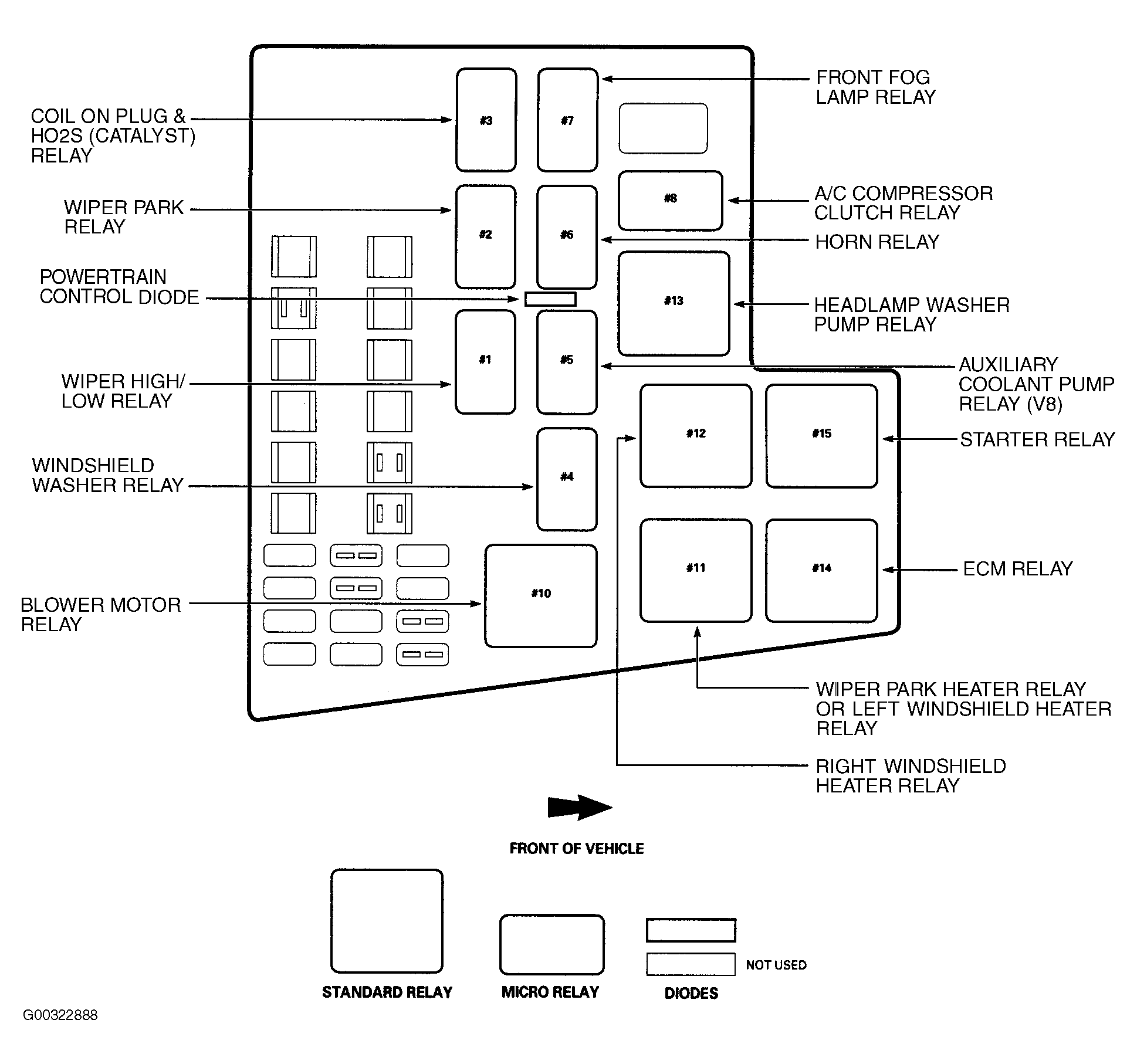

Fig 6: Locating Starter Relay
G00322888Courtesy of JAGUAR CARS, INC.

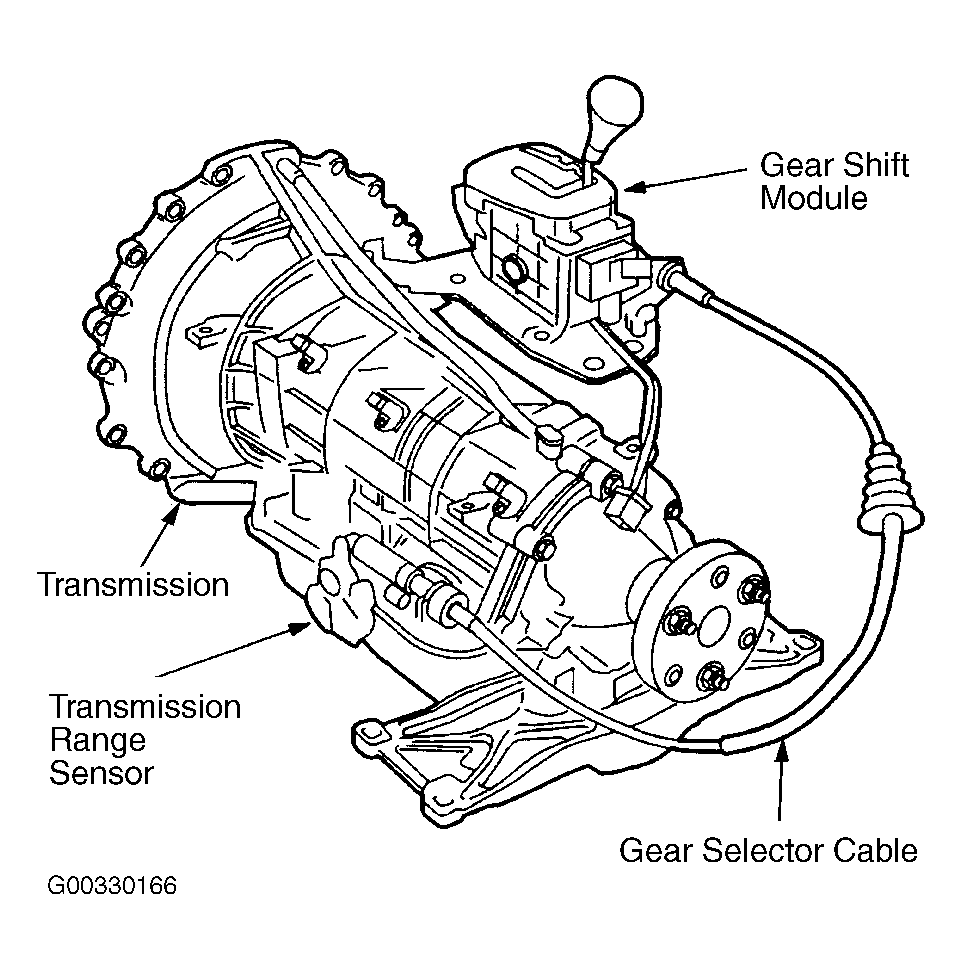

Fig 7: Locating Transmission Range Sensor
G00330166Courtesy of JAGUAR CARS, INC.
