Toe-In Adjustment
- Center front wheels straight ahead. Measure toe and compare to specifications. See ALIGNMENT SPECIFICATIONS
.

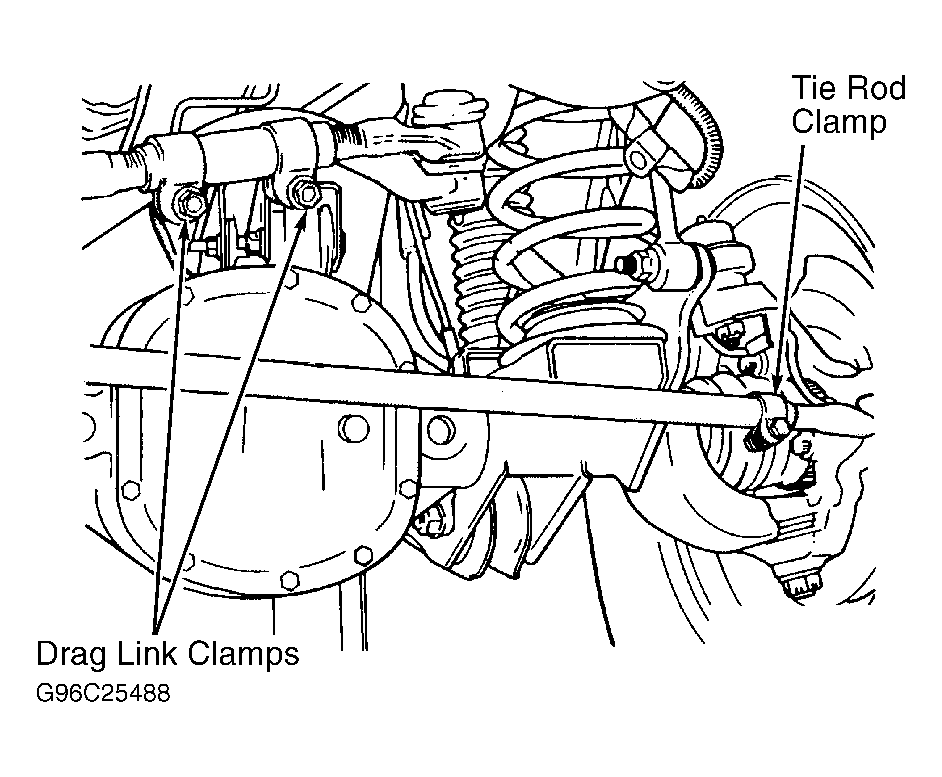

- Center steering wheel by counting the turns required to hit left and right steering stops. Center steering wheel midway between stops. Loosen drag link adjustment sleeve clamp bolts. See Fig 1
.
- Rotate adjustment sleeve to adjust right wheel toe to specification. See ALIGNMENT SPECIFICATIONS
. Position clamp bolts so threaded bolt ends face slightly upward and to rear of vehicle. Tighten drag link drag link adjustment sleeve clamp bolts to specification. See TORQUE SPECIFICATIONS
.
- Loosen tie rod adjustment sleeve clamp bolts at each end of tie rod. See Fig 1
. Rotate tie rod adjustment sleeve to adjust left wheel to toe specification. See ALIGNMENT SPECIFICATIONS
. When adjustment is complete, position sleeve as described earlier and tighten bolts to specifications. See TORQUE SPECIFICATIONS
.
