Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Air Bag Control Module | Front of floor pan tunnel. |
| Controller Anti-Lock Brake | Top left of dash panel. See Figure . |

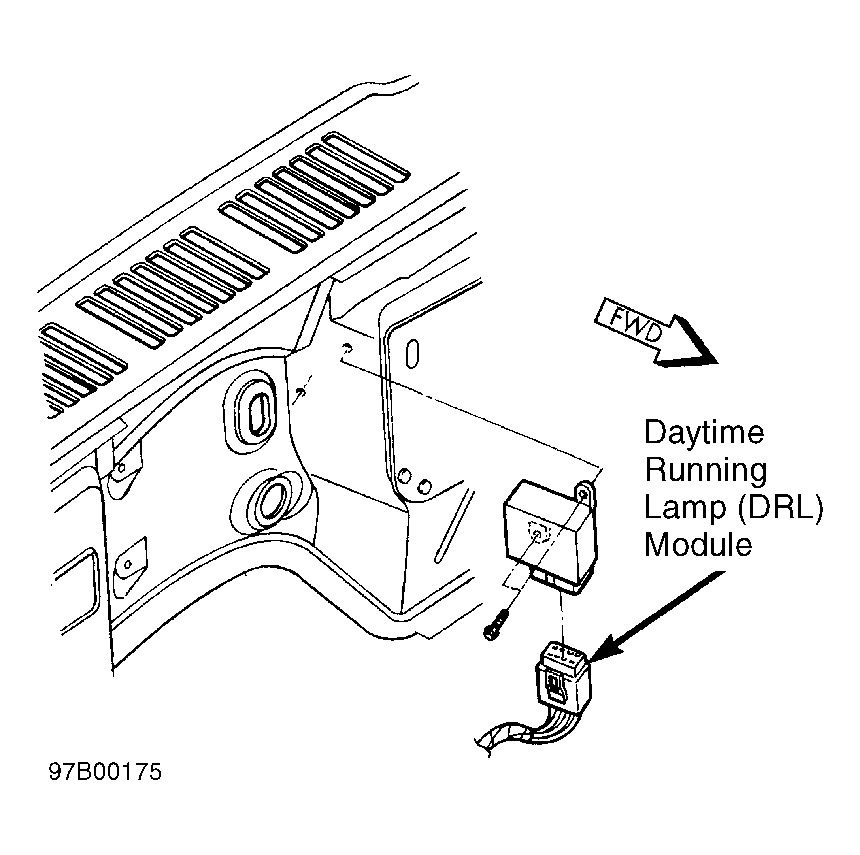

| Daytime Running Lamp (DRL) Module | In rear of engine compartment, on firewall. See Figure . |
| Fuel Pump Module | On fuel tank. |
| Hydraulic Control Unit | On bracket, near master cylinder. |

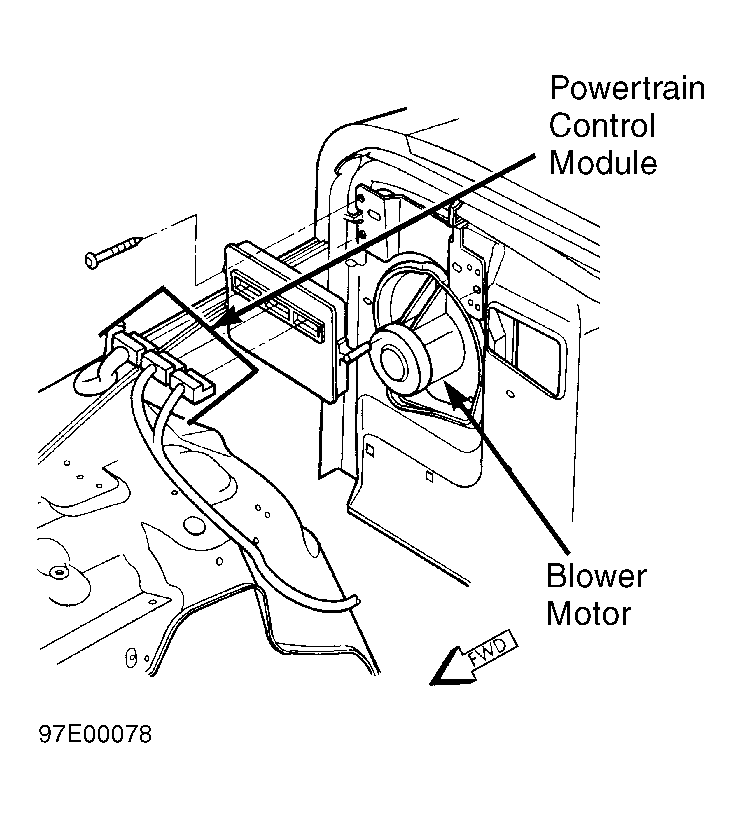

| Powertrain Control Module | In right rear of engine compartment, on firewall. See Figure . |
| Sentry Key Immobilizer Module (SKIM) | On steering column, near ignition lock cylinder. |
