Fuel Pump Module: Removal

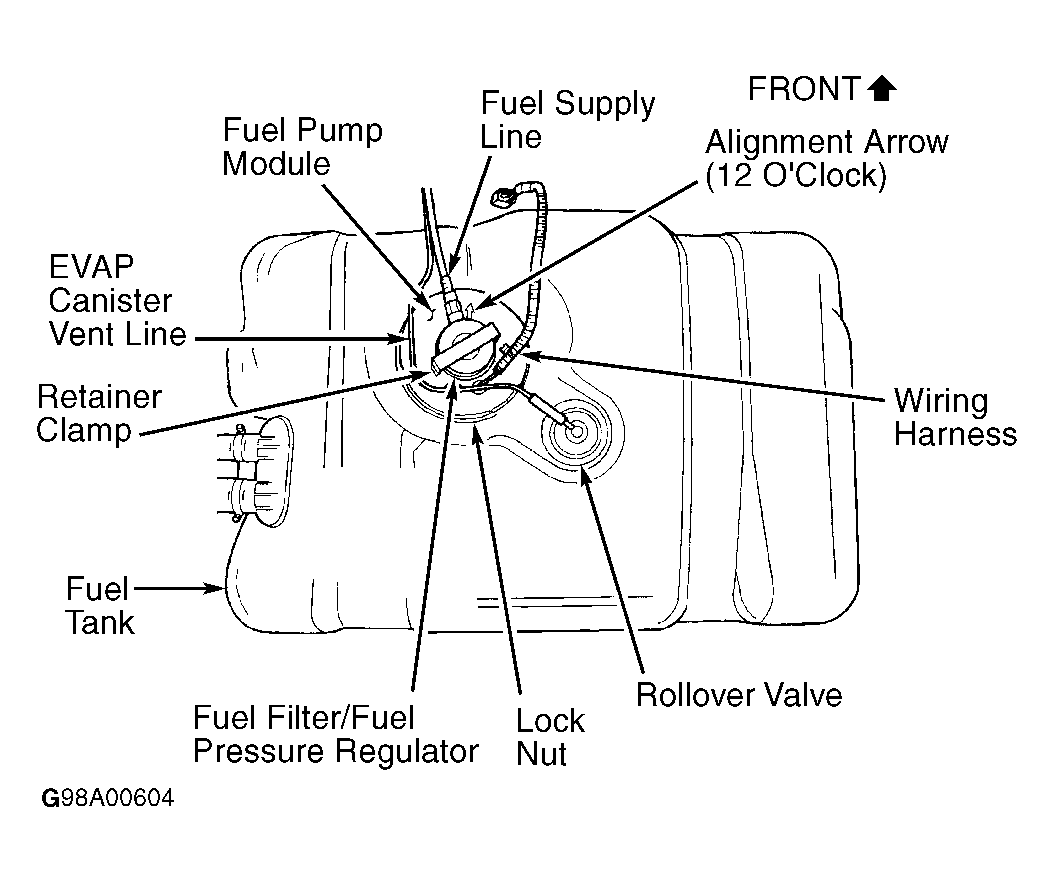

  1. Fuel pump module is located on top of fuel tank. See Figure. Fuel tank must be removed for servicing of fuel pump module. Remove fuel tank. See FUEL TANK .
  2. Ensure area around fuel pump module is clean. Using fuel pump module Lock Nut Spanner Wrench (6856), remove fuel pump module lock nut. See Fig 1. Remove fuel pump module with rubber gasket from fuel tank.
Fig 1: Removing Fuel Pump Module Lock Nut (Typical)
G98I00610Courtesy of DAIMLERCHRYSLER CORPORATION
