Anti-Lock Brake System Components: G-Switch: Removal

  1. Fold the rear seat bottom assembly up for access to the switch.
  2. Lift up the carpeting and disconnect the switch harness (Fig 1 ).
  3. Remove the switch mounting bolts and remove the switch

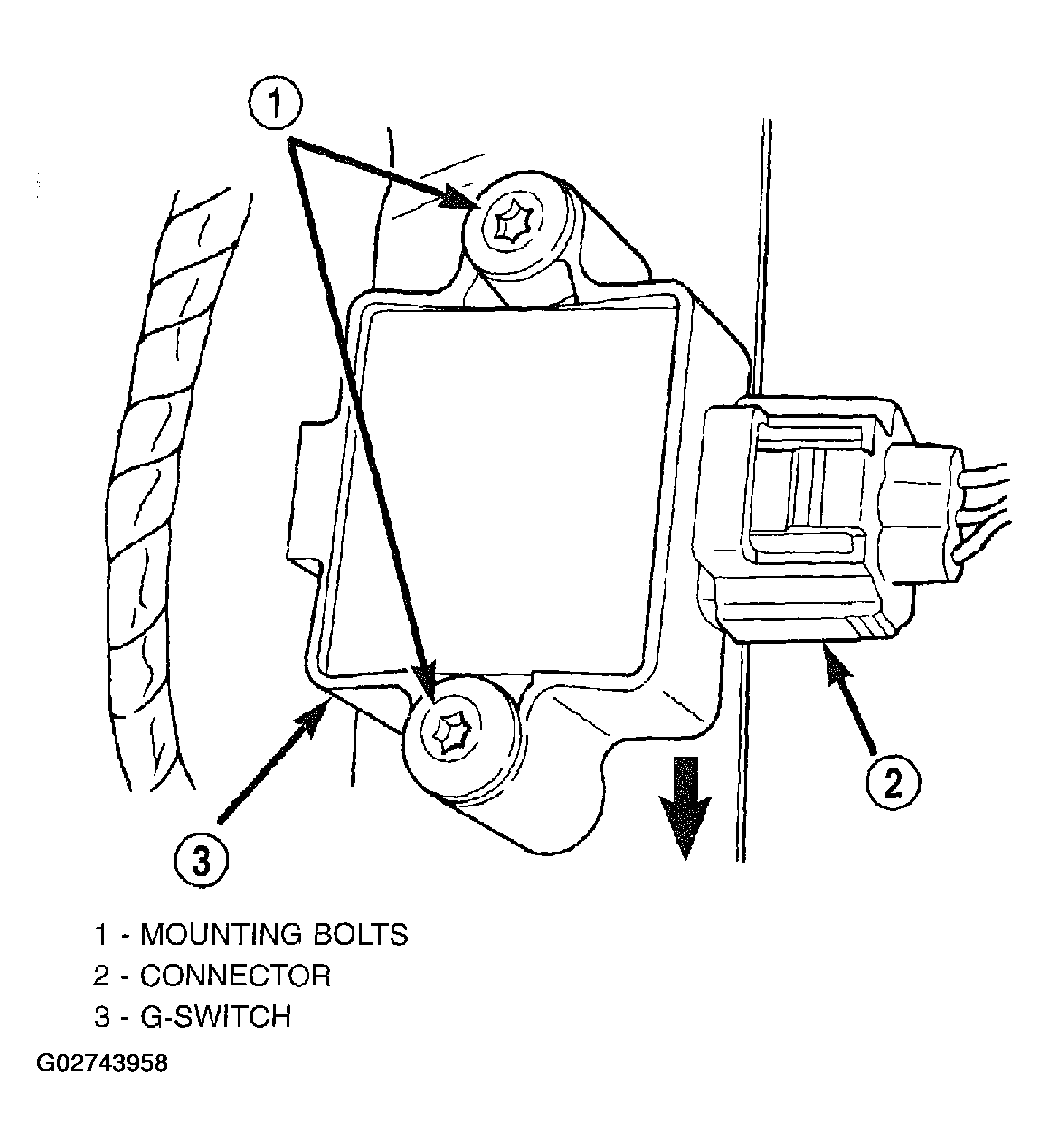

    Fig 1: Identifying G-Switch Mounting And Harness Connector
    G02743958Courtesy of DAIMLERCHRYSLER CORP.
