Ignition Coil: Removal

An individual ignition coil is used for each spark plug (Fig 1 ). The coil fits into machined holes in the cylinder head. A mounting stud/nut secures each coil to the top of the intake manifold (Fig 2 ). The bottom of the coil is equipped with a rubber boot to seal the spark plug to the coil. Inside each rubber boot is a spring. The spring is used for a mechanical contact between the coil and the top of the spark plug. These rubber boots and springs are a permanent part of the coil and are not serviced separately. An O-ring (Fig 1 ) is used to seal the coil at the opening into the cylinder head.

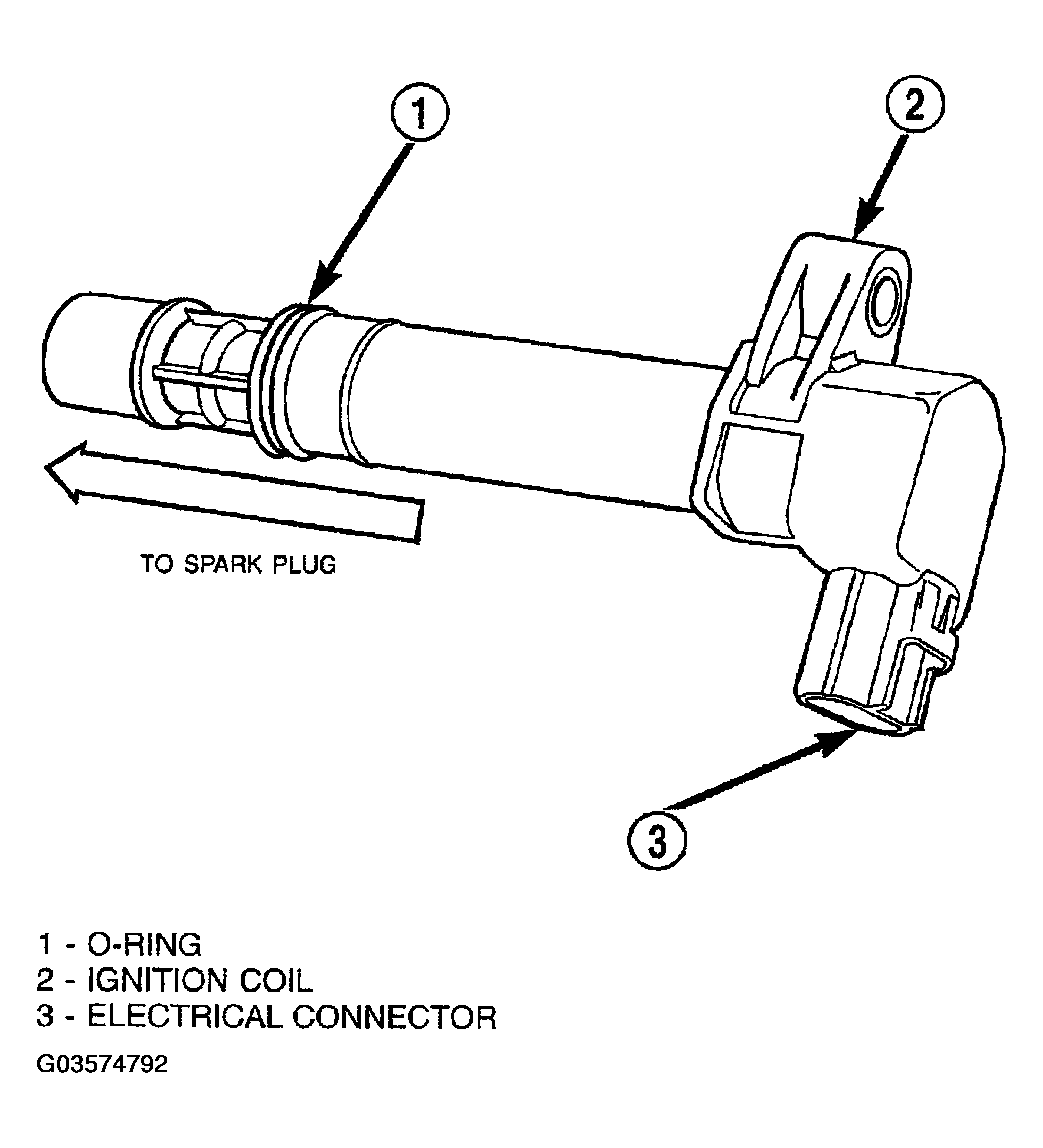

Fig 1: Ignition Coil - 4.7L V-8

Courtesy of DAIMLERCHRYSLER CORP.

1. Depending on which coil is being removed, the throttle body air intake tube or intake box may need to be removed to gain access to coil.
2. Disconnect electrical connector (Fig 2 ) from coil by pushing downward on release lock on top of connector and pull connector from coil.
3. Clean area at base of coil with compressed air before removal.
4. Remove coil mounting nut from mounting stud (Fig 2 ).

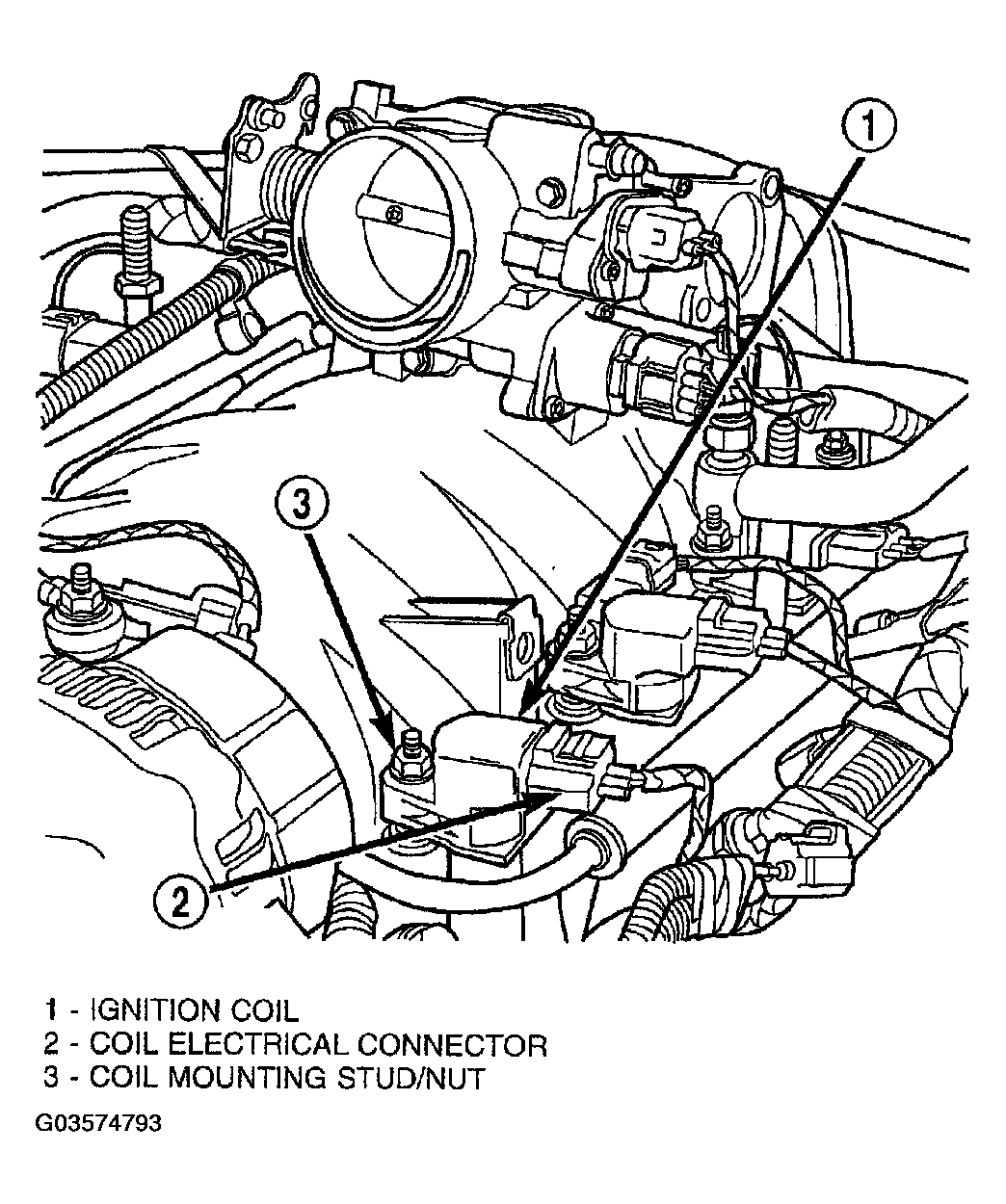

   Fig 2: Removing Ignition Coil

   Courtesy of DAIMLERCHRYSLER CORP.
5. Carefully pull up coil from cylinder head opening with a slight twisting action.
6. Remove coil from vehicle.
