Door Module: Installation
WARNING: This page is about a different car, the 2004 Jeep Grand Cherokee. However, it is still accessible from the selected car via links, so may be relevant.
- Position the door module onto the front door trim panel.

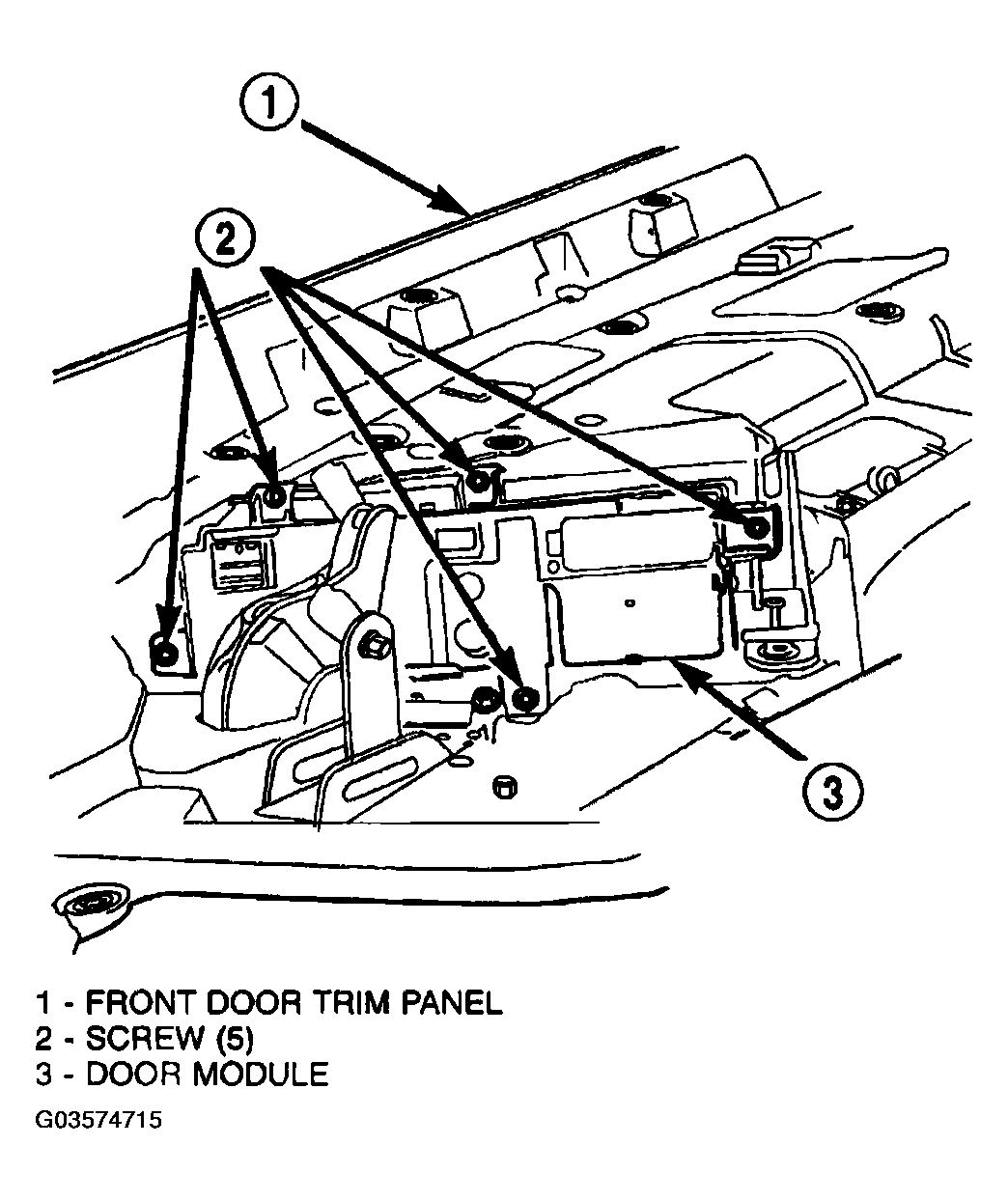

- Install the door module to the back of the front door trim panel (Figure ). Tighten the screws to 2.2 N.m (20 in. lbs.).
- Reinstall the trim panel onto the front door. (Refer to TRIM PANEL ).
- Reconnect the battery negative cable.
