Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|
| FAM (Front Area Module) (1) | Left front of engine compartment.Figure. |
| ICM (Integrated Circuit Module) (4) | Behind center of dash.Figure. |
| IMP (Instrument Panel Module) (2) | Behind left side of dash.Figure. |
| RAM (Rear Area Module) (3) | Left rear corner of vehicle. See Figure. |

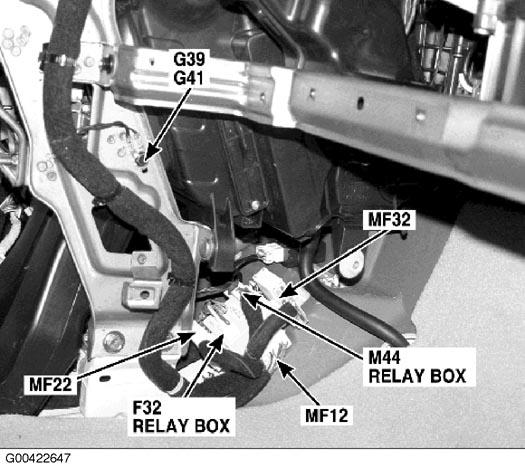

| Relay Box | Behind right front of center console. See Figure. |
