Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver airbag module.

    (Refer to Restraint - "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")

  3. Remove the steering wheel.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  4. Disengage the steering wheel remote control switch assembly. (Refer to Steering System - "DISASSEMBLY ")

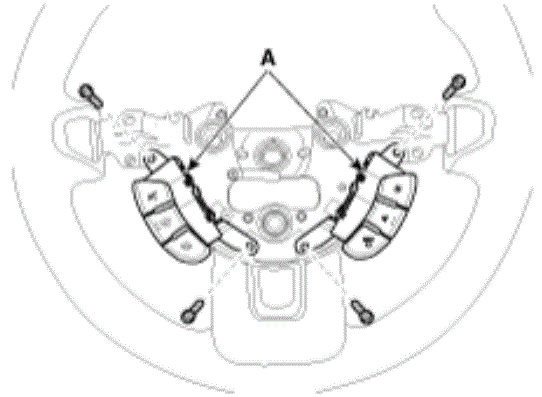

  5. Loosen the screw and then remote control switch assembly (A) from the steering wheel body.
    G12818286Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
