Repair Procedures: Inspection
- Check the diagnostic trouble codes (DTC) using KDS.
- Check that "N" range setting matches.
(Refer to position sensor - "INSTALLATION ")
- Check the condition of connector.
- Inspect connector thoroughly for looseness, poor connection, bending, corrosion, contamination, deformation, or damage.
- Turn ignition key "ON" and engine "OFF" and measure the voltage between the power supplied to inhibitor switch circuit and ground.
Specification: Approx. 12 V
- Inspect the ground of rear combination lamp circuit.

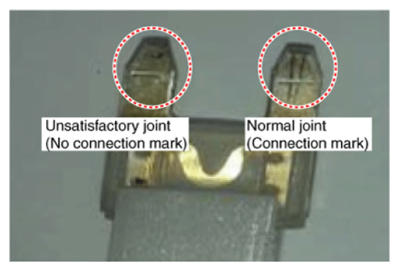

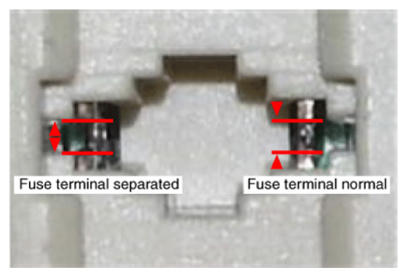

- Inspect the wiring connection of junction box power terminal and fuse lamp.
- Check the position sensor circuit signal.
- Turn Ignition "ON", and engine "OFF".
- Measure the PWM output at each range (P, R, N, D).
Specification: Refer to table below
Signal (Pin) PWM output value (%) P R N D S1 (1) 15.3 - 21.3 (18.3) 44.5 - 50.5 (47.5) 61.6 - 67.6 (64.6) 78.7 - 84.7 (81.7) S2 (4) 78.7 - 84.7 (81.7) 49.5 - 55.5 (52.5) 32.4 - 38.4 (35.4) 15.3 - 21.3 (18.3)
