Engine Compartment Fuse/Relay Box

NOTE: Engine compartment fuse box is located on passenger's side of engine compartment. See Fig 1.

Fig 1: Locating Vehicle Electrical Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

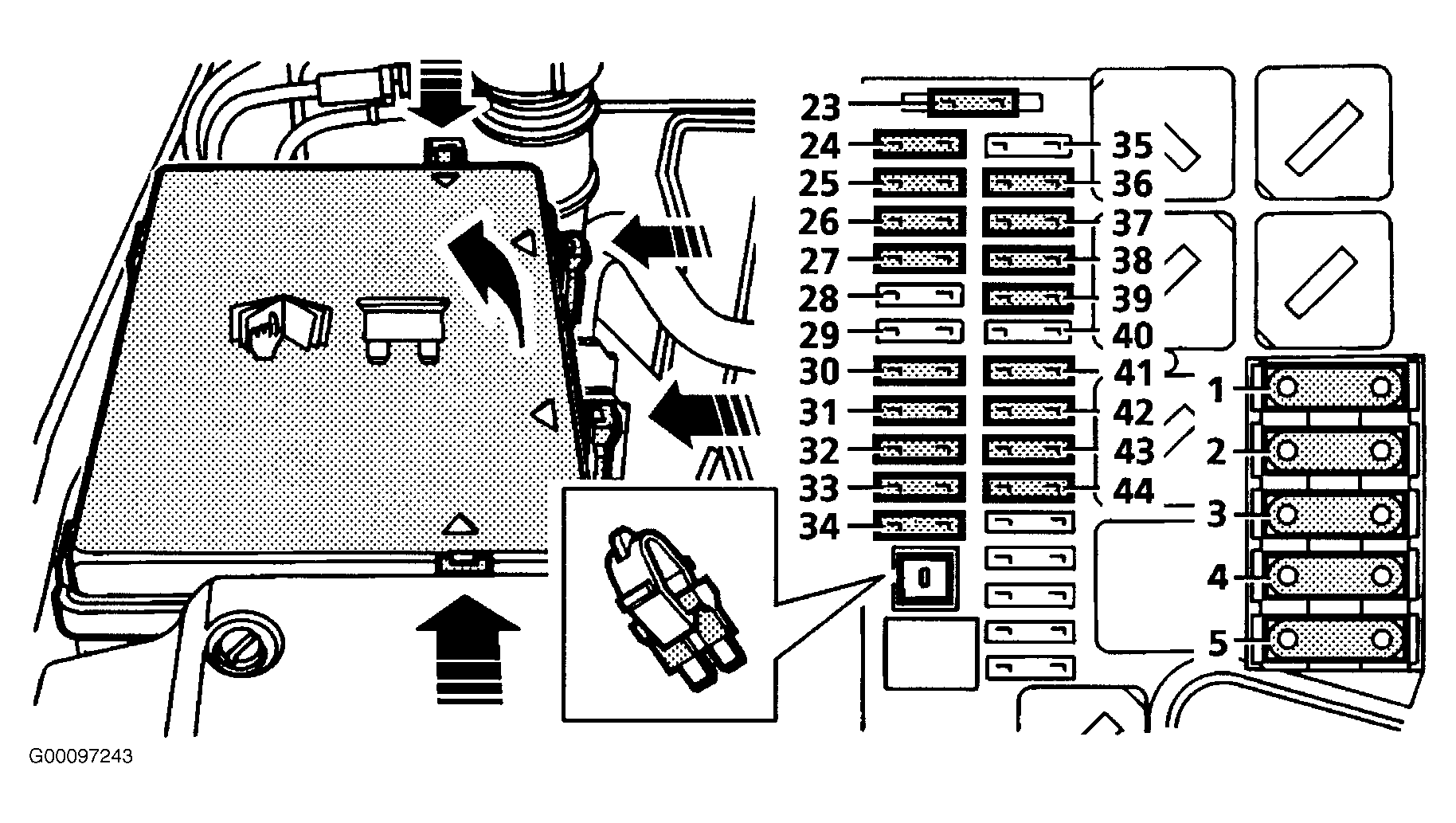

Fig 2: Identifying Engine Compartment Fuse Box Components

Courtesy of LAND ROVER NORTH AMERICA, INC.

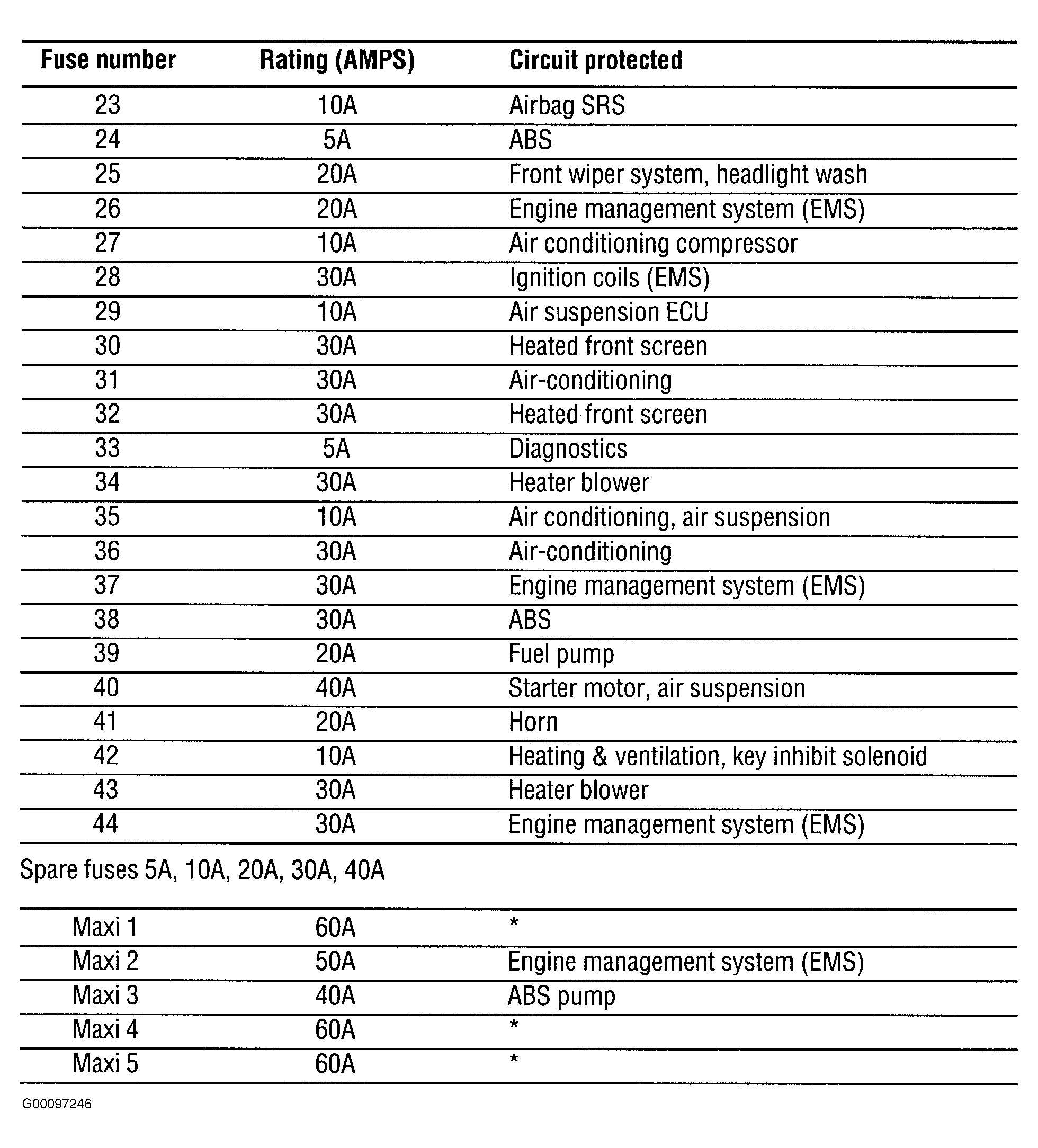

Fig 3: Engine Compartment Fuse Box Legend

Courtesy of LAND ROVER NORTH AMERICA, INC.

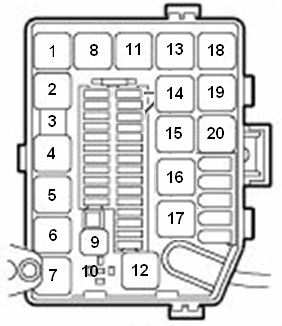

Fig 4: Identifying Engine Compartment Relays

Courtesy of LAND ROVER NORTH AMERICA, INC.

ENGINE COMPARTMENT RELAY IDENTIFICATION LEGEND
