Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|

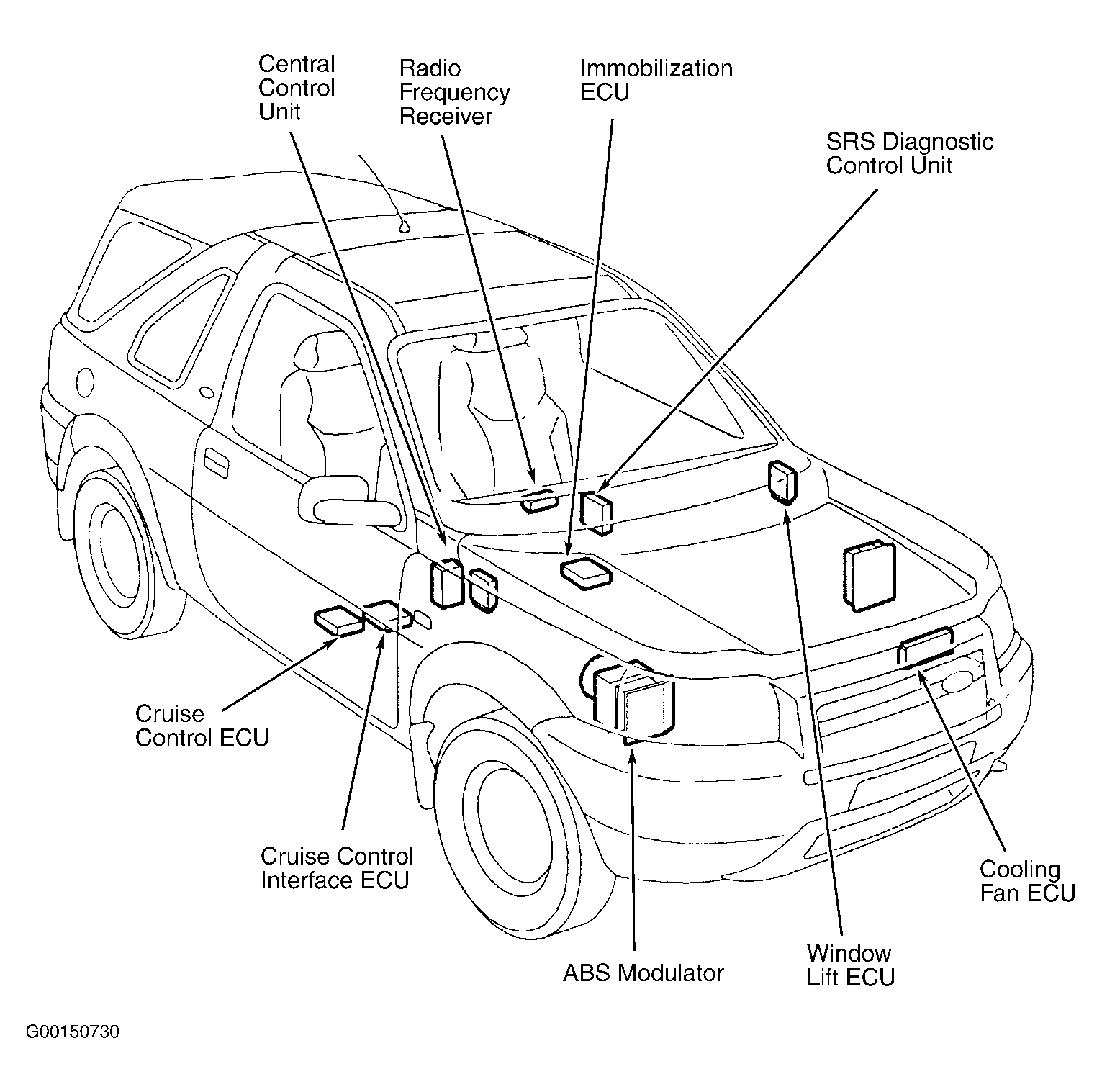

| Central Control Unit | Behind passenger compartment fuse box. See Figure . |
| Cooling Fan ECU | On top left corner of cooling fan assembly. See Figure . |
| Cruise Control ECU | Under passenger seat. See Figure . |
| Cruise Control Interface ECU | Under passenger seat. See Figure . |
| Electronic Automatic Transmission ECU | Inside E-box. |

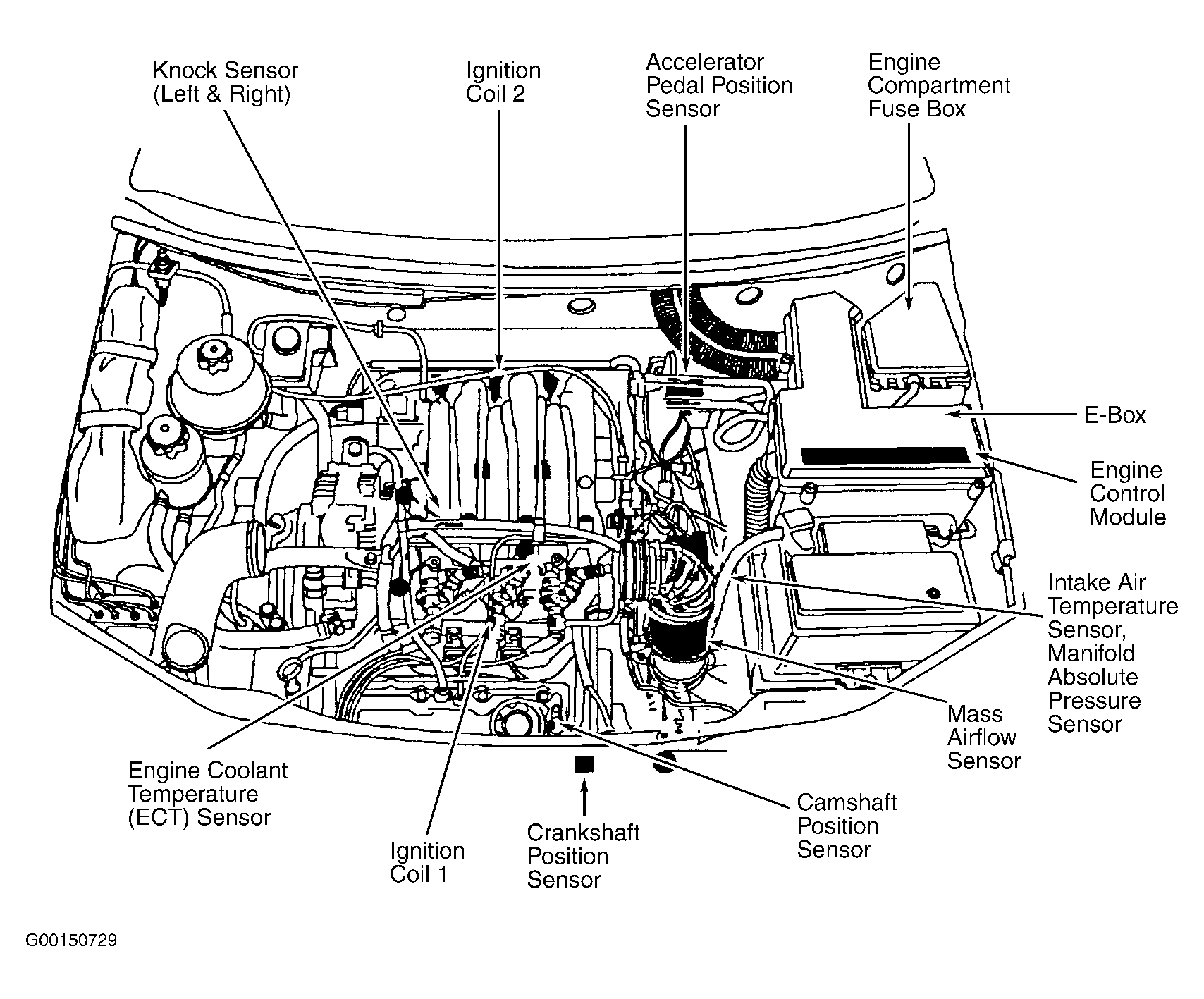

| Engine Control Module | Inside E-box. See Figure . |
| Folding Door Mirror ECU | At base of left "A" pillar. |
| Immobilization ECU | Behind center of dash. See Figure . |
| Remote Control Interface Unit | Under center console, forward of gear selector lever. |
| SRS Diagnostic Control Unit | On transmission tunnel, below heater assembly. See Figure . |
| Window Lift ECU | At left kick panel. See Figure . |
