Inspection Procedure

WARNING: This page is about a different car, the 2005 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CAN BUS LINE (MAIN BUS LINE FOR DISCONNECTION, BUS LINES FOR SHORT CIRCUIT)
1. Measure the resistance according to the value (s) in the table below.

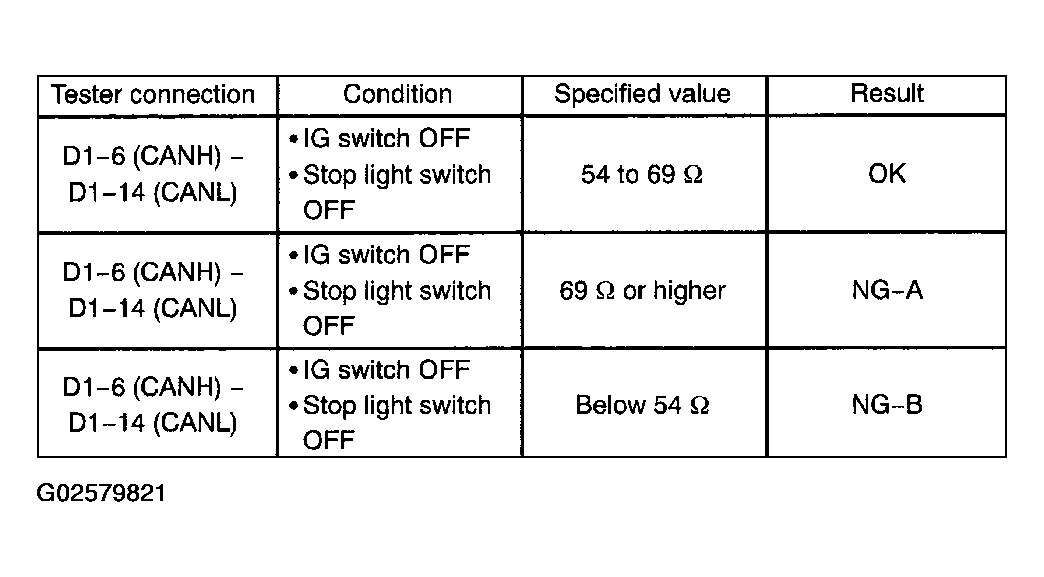

  Fig 1: DLC3 Connector Terminals Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 2: Identifying DLC3 Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG-A: CHECK CAN MAIN BUS LINE FOR DISCONNECTION
2. NG-B: CHECK CAN BUS LINES FOR SHORT CIRCUIT
OK: Go to next step.
CHECK CAN BUS LINE FOR SHORT TO +B
1. Measure the resistance according to the value (s) in the table below.

  Fig 3: DLC3 Connector Terminals Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 4: Identifying DLC3 Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CHECK CAN BUS LINE FOR SHORT TO +B
OK: Go to next step.
CHECK CAN BUS LINE FOR SHORT TO GND
1. Measure the resistance according to the value (s) in the table below.

  Fig 5: DLC3 Connector Terminals Resistance Specifications
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 6: Identifying DLC3 Connector Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. NG: CHECK CAN BUS LINE FOR SHORT TO GND
OK: Go to next step.

GO TO HOW TO PROCEED WITH TROUBLESHOOTING
