Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Anti-Lock Brake Control Module | Lower left front of engine compartment, near cooling fan. See Figure. |
| Blower Motor Speed Controller | Behind right side of dash, on A/C-heater plenum. See Figure. |

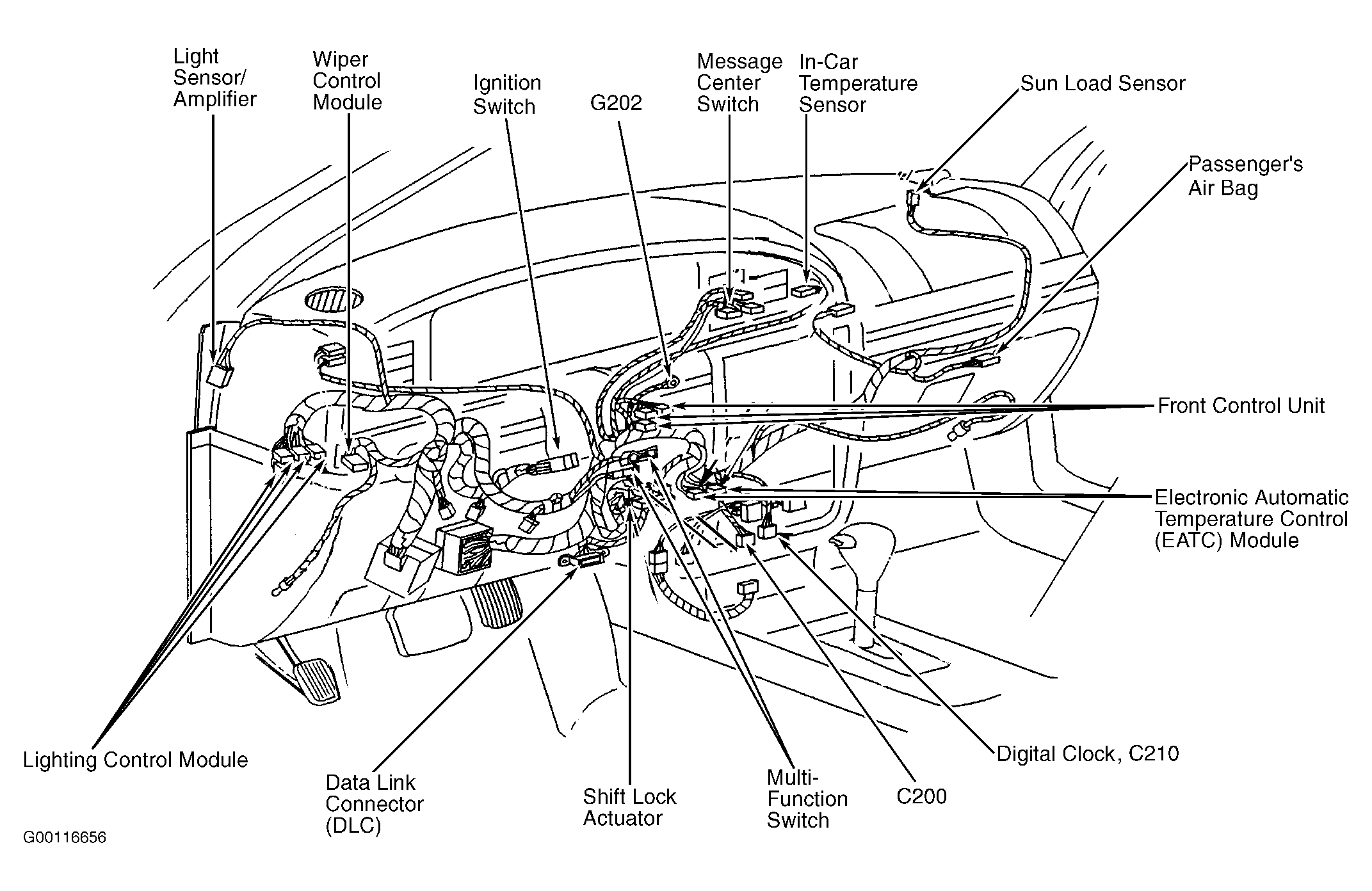

| Electronic Automatic Temperature Control (EATC) Module | At center of dash. See Figure. |
| Front Control Unit | At center of dash. See Figure. |
| Fuel Pump Module | In trunk, at right front corner. See Figure. |
| Heated Seat Module (Left Front) | Under left front seat. |
| Heated Seat Module (Right Front) | Under right front seat. |

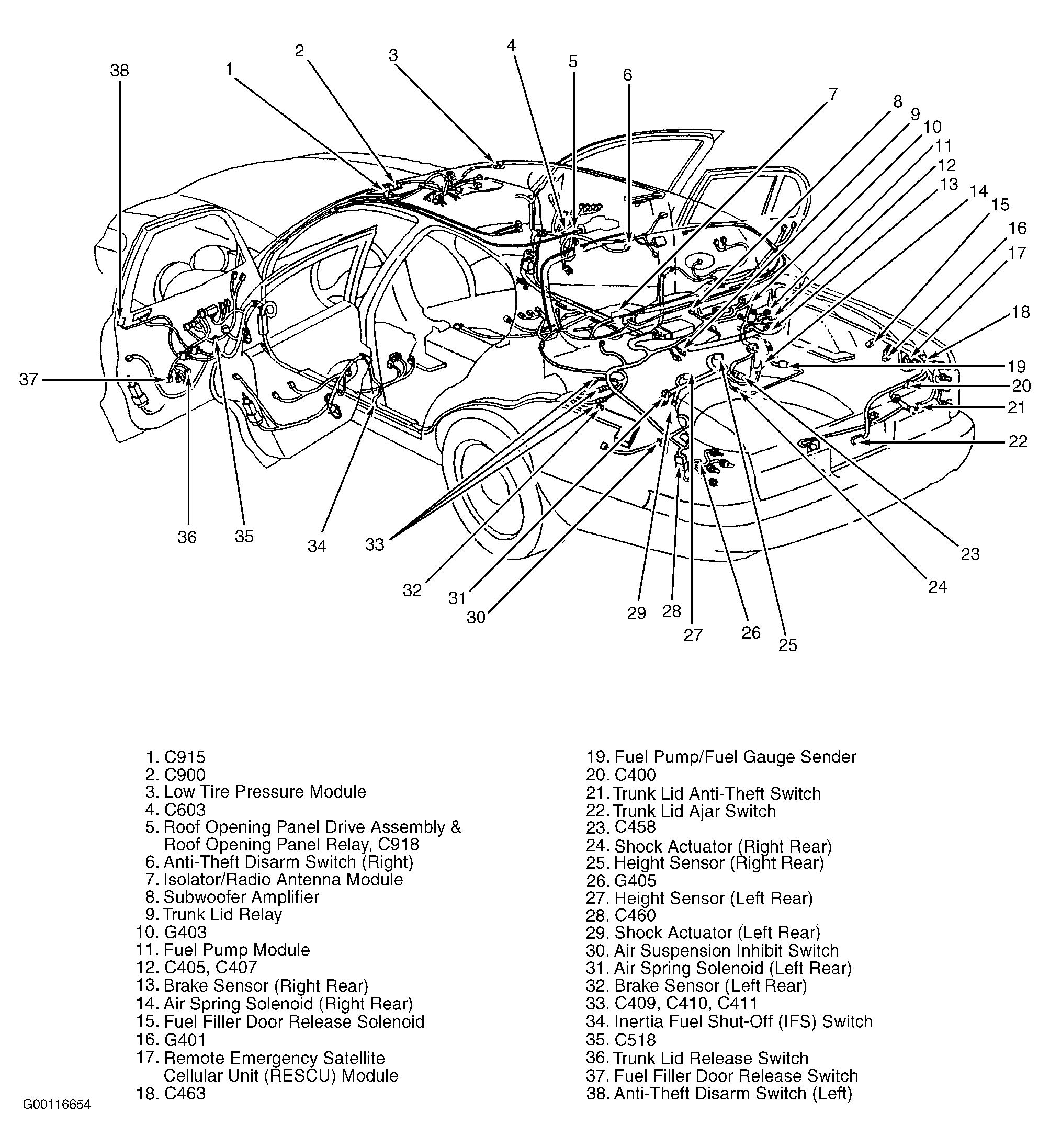

| Isolator/Radio Antenna Module | In trunk, on package tray. See Figure. |
| Lighting Control Module (LCM) | On left side of dash. See Figure. |
| Low Tire Pressure Module | In front headliner, near center of vehicle. See Figure. |
| Passive Anti-Theft Transceiver (PATS) Module | Behind center of dash. |
| Phone Support Electronics (PSE) Module | At center front of trunk, under rear package tray. |
| Powertrain Control Module (PCM) | On top right side of firewall, under splash shield. See Figure. |
| Remote Emergency Satellite Cellular Unit (RESCU) Module | In right rear of trunk. See Figure. |
| Restraints Control Module (RCM) | Between seats, below center console. |
| Seat Module (Left Front) | Under left front seat. |
| Seat Module (Right Front) | Under right front seat. |
| Speed Control Servo | On left shock tower. See Figure. |
| Vehicle Dynamic Module (VDM) | In rear of trunk, on package tray. |
| Wiper Control Module | Behind lower left side of dash. See Figure. |
