Engine - 3.0L ECOBOOST: Assembly: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle

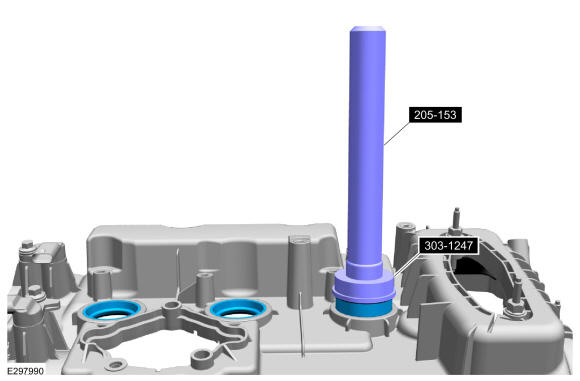

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar | TKIT-2006UF-FLM | TKIT-2006UF-ROW

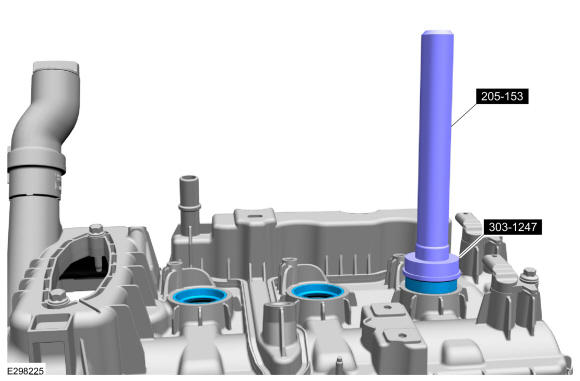

Courtesy of FORD MOTOR COMPANY	303-1247 VCT Spark Plug Tube Seal Remover and Installer | TKIT-2006UF-FLM | TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1248 Camshaft holding tools | TKIT-2006UF-FLM | TKIT-2006UF-ROW

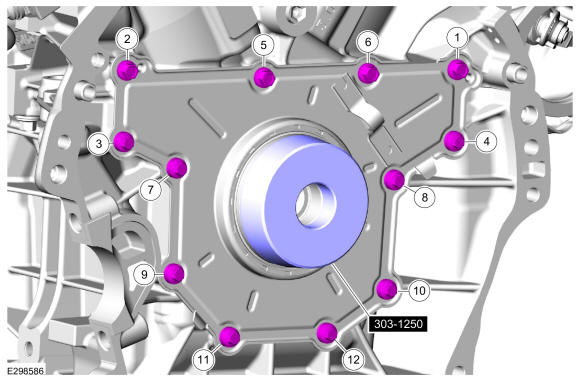

Courtesy of FORD MOTOR COMPANY	303-1250 Seal Installer, Rear Main | TKIT-2006UFFLM
Courtesy of FORD MOTOR COMPANY	303-1531 Installer, Front Crank Seal and Damper

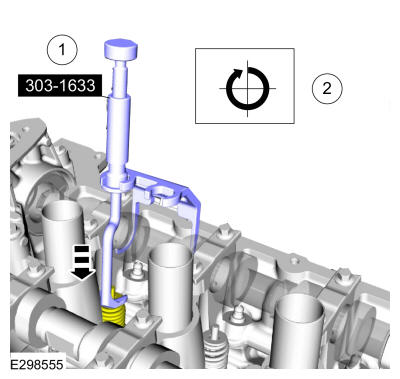

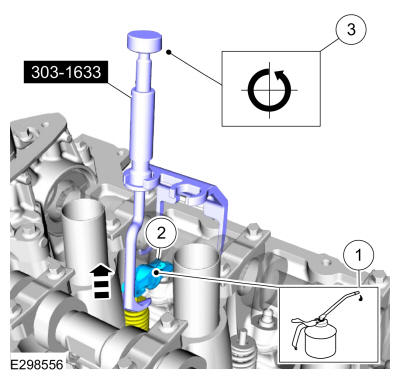

Courtesy of FORD MOTOR COMPANY	303-1633 Remover, Roller Rocker Follower | TKIT-2014D-ROW3 | TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) | TKIT-2014D-ROW3 | TKIT-2014D-FL_ROW
Courtesy of FORD MOTOR COMPANY	303-1696 Cam Comb Tool Study

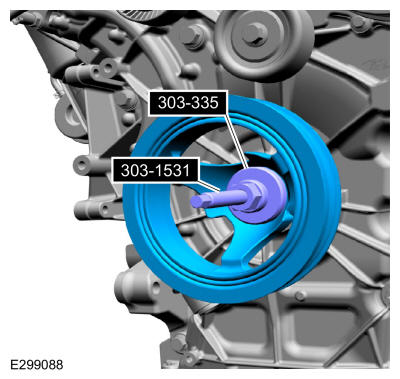

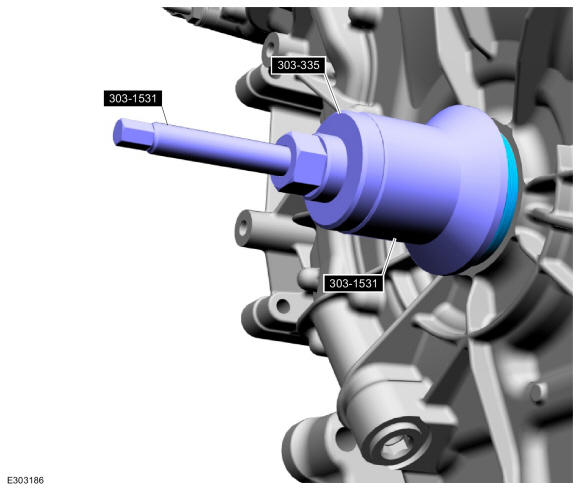

Courtesy of FORD MOTOR COMPANY	303-335 (T88T-6701-A) Installer, Front Cover Oil Seal | TKIT-1988-FLM | TKIT-1988-F
Floor Crane
Mounting Stand
Plastic Scraper
Flat-Bladed Screwdriver
Piston Ring Compressor
Vise
Vise Jaw Protectors

Materials

LHD AWD/LHD RWD

1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

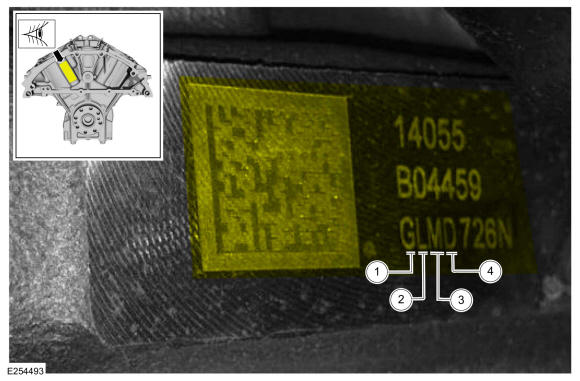

2. Read and record the four character code on the cylinder block. The first letter is the code for main No. 1, the second letter for main No. 2, the third letter for main No. 3 and the fourth letter for main No. 4.

   Courtesy of FORD MOTOR COMPANY

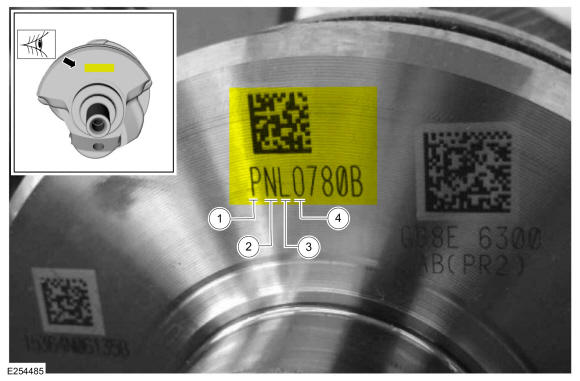

3. Read and record the four character code on the crankshaft face. The first letter is the code for main No. 1, the second letter for main No. 2, the third letter for main No. 3 and the fourth letter for main No. 4.

   Courtesy of FORD MOTOR COMPANY

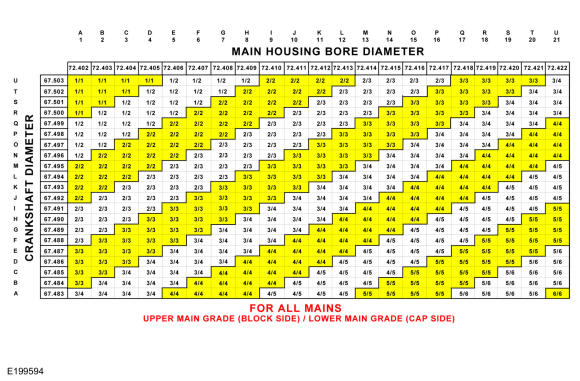

4. Using the data recorded earlier and the Bearing Select Fit Chart, determine the required bearing grade for the main bearings.
   1. Look at the bearing select fit chart and for each main, match the block and crankshaft code with its corresponding column or row by reading across the crankshaft row and down the block column to select the proper grade bearings for each main.
   2. For example, if the block code is GLMD and the crankshaft code is PNLO, main No. 1 should be assembled with grade 2 upper and lower bearings, as determined by the intersection of the

      G  block column and the

      P  crankshaft row. Main No. 2 should be assembled with grade 3 upper and lower bearings. Main No. 3 should be assembled with grade 3 upper and grade 4 lower bearings. Main No. 4 should be assembled with grade 2 upper and lower bearings.

   Courtesy of FORD MOTOR COMPANY

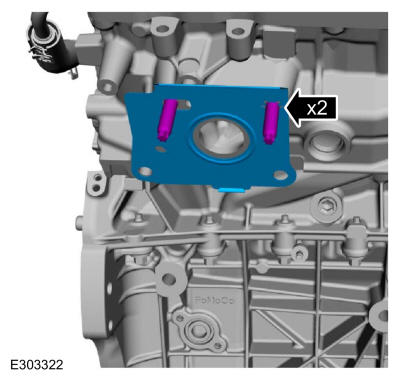

5. Install the piston cooling jets and bolts into the cylinder block.

   Torque: 89 lb. in (10 Nm)

   Courtesy of FORD MOTOR COMPANY

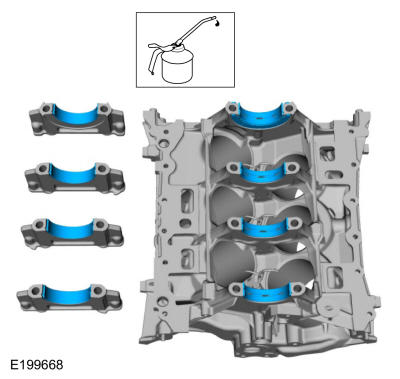

6. Install the crankshaft main bearings.
   • Install the crankshaft upper main bearings and thrust bearing into the cylinder block.
   • Install the crankshaft lower main bearings into the bearing caps.
   • Make sure all oil passages are aligned.
   • Lubricate all main bearings with clean engine oil.

   Courtesy of FORD MOTOR COMPANY

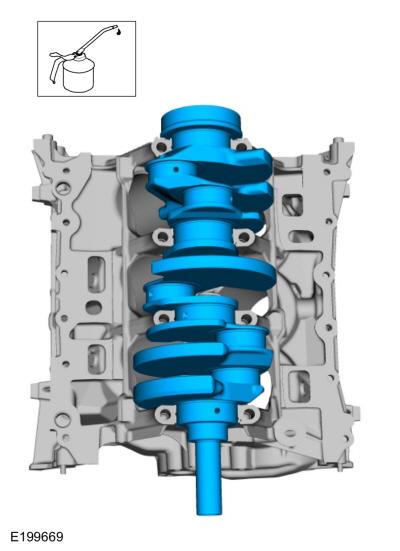

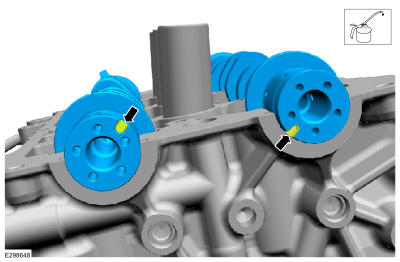

7. 1. Lubricate the crankshaft bearing journals with clean engine oil.
   2. Install the crankshaft into the cylinder block.

   Courtesy of FORD MOTOR COMPANY

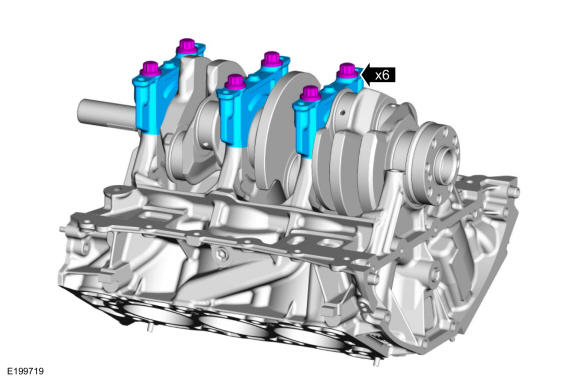

8. Install the No. 1, 2 and 3 main bearing caps and bolts on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the cap bolts.

   Courtesy of FORD MOTOR COMPANY

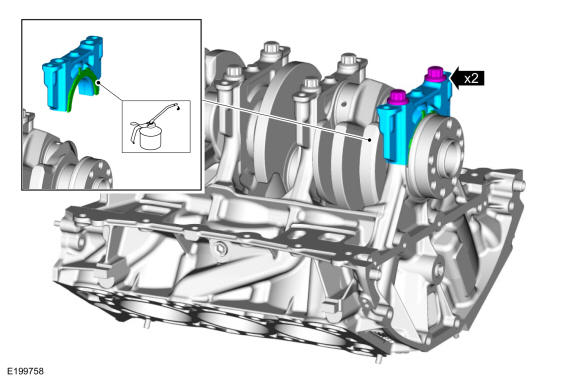

9. • Lubricate the lower thrust washer with clean engine oil.
   • Install the lower thrust washer and the No. 4 main bearing cap and, keeping the cap as square as possible, alternately draw the cap down evenly using the cap bolts.

   Courtesy of FORD MOTOR COMPANY

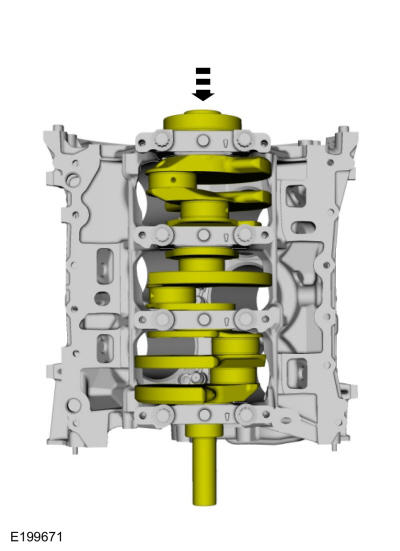

10. Push the crankshaft forward to seat the crankshaft thrust washer.

    Courtesy of FORD MOTOR COMPANY

11. Tighten the main bearing cap bolts.

    Torque: Stage 1: 30 lb. ft (40 Nm) Stage 2: Loosen: 360°Stage 3: 26 lb. ft (35 Nm) Stage 4: 180°

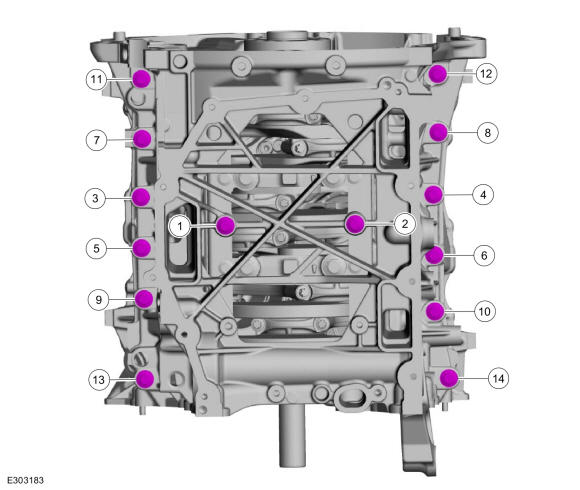

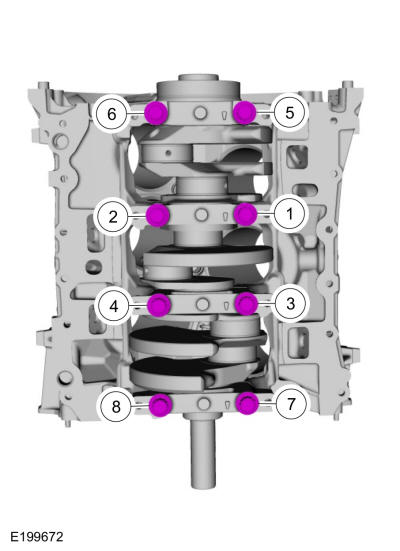

    Fig 1: Main Bearing Tightening Sequence

    Courtesy of FORD MOTOR COMPANY
12. • Check the crankshaft end play. Refer to: Specifications .
    • Check the piston-to-cylinder block and piston ring clearances. Refer to: Specifications .
    • Assemble the pistons and position the piston ring gaps. Refer to: Piston .

13. Lubricate with clean engine oil and install the connecting rod bearings.

    Courtesy of FORD MOTOR COMPANY

14. Courtesy of FORD MOTOR COMPANY

    1. For assembly purposes the bump on the connecting rod will face the same way as the bump on the connecting rod cap.

15. 1. For assembly purposes the bowl on the dome of the piston should be facing toward the intake of the engine.
    2. On the RH bank the bump on the connecting rod should face the front of the engine.
    3. On the LH bank the bump on the connecting rod should face the rear of the engine.

    Courtesy of FORD MOTOR COMPANY

16. NOTE: Do not scratch the cylinder walls or crankshaft journals with the connecting rod or engine damage may occur.
    NOTE: Do not allow the piston connecting rods to come in contact with the piston cooling jets or engine damage may occur.
    • Lubricate the piston with clean engine oil.

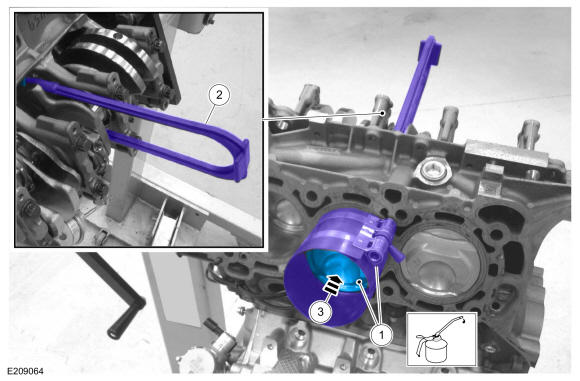

    • Position the piston assembly and piston ring installer into the cylinder. Use the General Equipment: Piston Ring Compressor
    • NOTE: A commercially available piston rod installer must be used to prevent damage to the crankshaft journal.

      Install a piston rod installer over the crankshaft journal and into the bolt holes of the connecting rod.

    • Push the piston into the cylinder bore and guide the connecting rod onto the crankshaft journal.

    Courtesy of FORD MOTOR COMPANY

17. NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
    NOTE: The connecting rod caps are of the "cracked" design and must mate with the connecting rod ends. Excessive bearing clearance will result if not mated correctly.

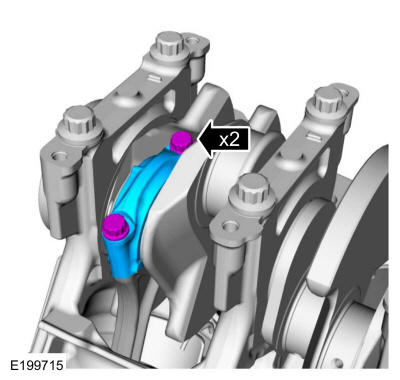

    1. Install the connecting rod cap and bearing.

       Torque: Stage 1: 24 lb. ft (32 Nm) Stage 2: Loosen: 180° Stage 3: 24 lb. ft (32 Nm) Stage 4: 90°

    2. Repeat the steps for each of the remaining pistons.

    Courtesy of FORD MOTOR COMPANY

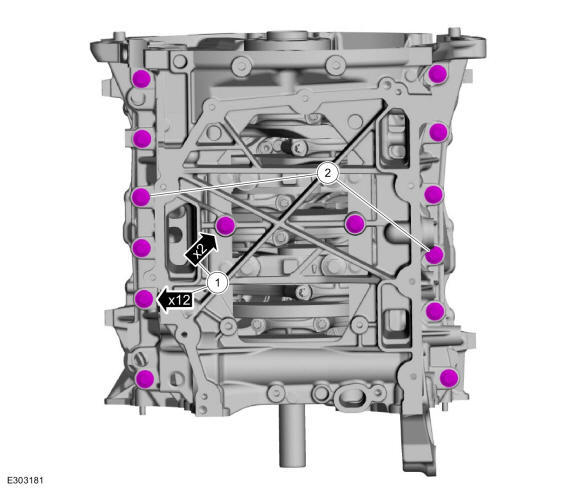

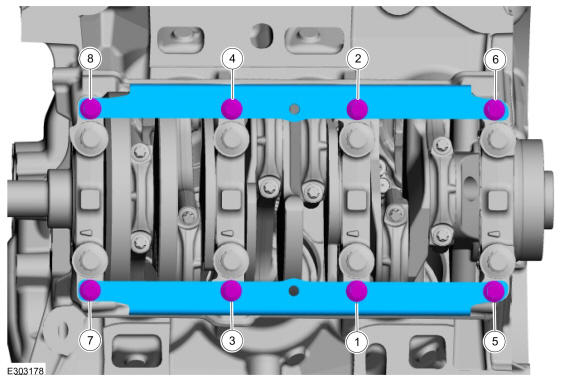

18. Install the main bearing cap support braces and the bolts.

    Torque: Stage 1: 18 lb. ft (24 Nm) Stage 2: Loosen: 360°Stage 3: 22 lb. ft (30 Nm) Stage 4: 40°

    Fig 2: Main Bearing Cap Support Brace Tightening Sequence

    Courtesy of FORD MOTOR COMPANY

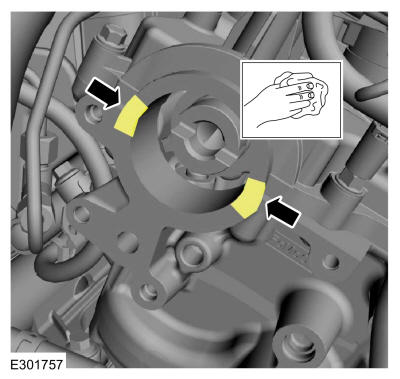

19. NOTE: If the engine block skirt stiffener is not installed, aligned and the bolts tightened to minimum specification within 10 minutes, the sealant must be removed and the sealing area cleaned.

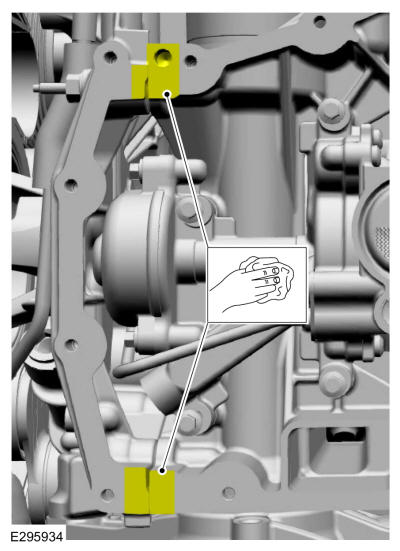

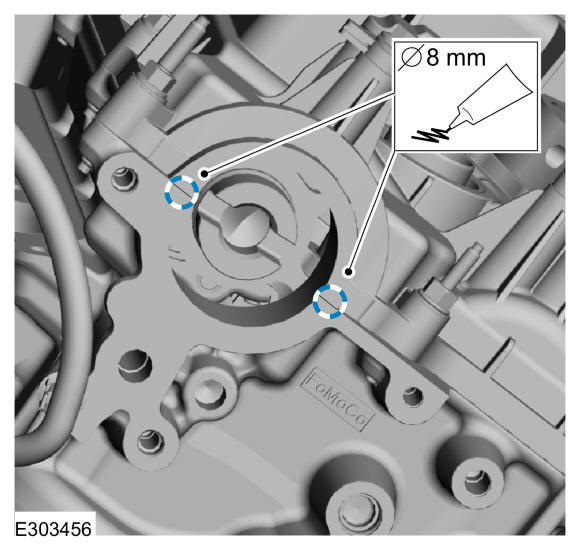

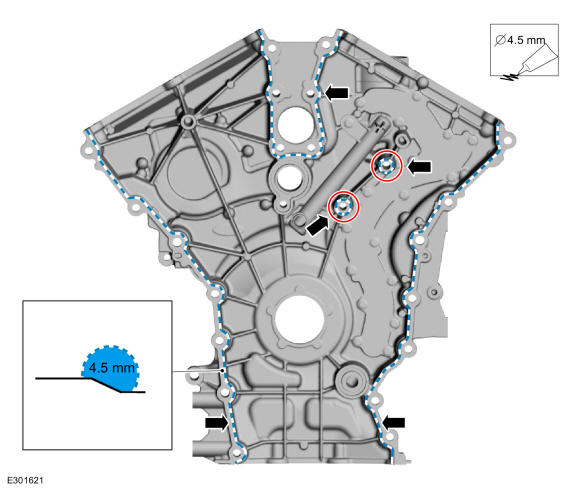

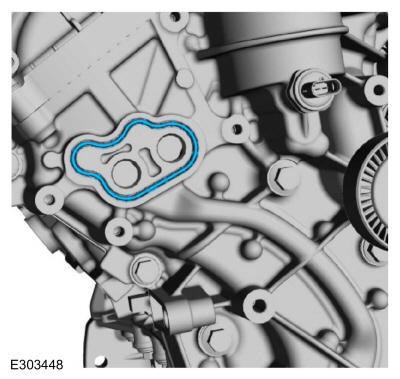

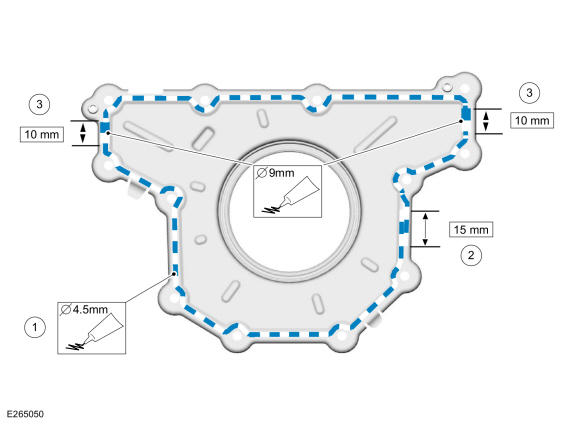

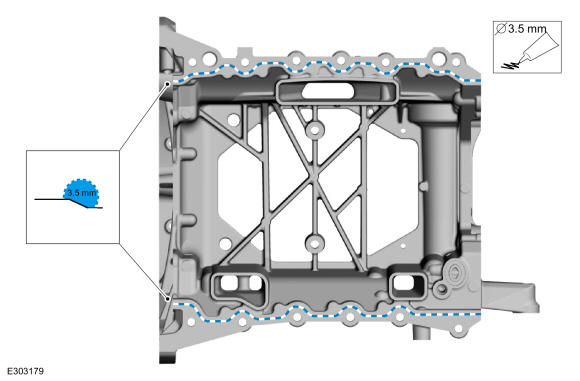

    Apply a 3. 5 mm (0. 14 in) bead of Motorcraft® High Performance Engine RTV Silicone to the chamfer of the engine block skirt stiffener.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

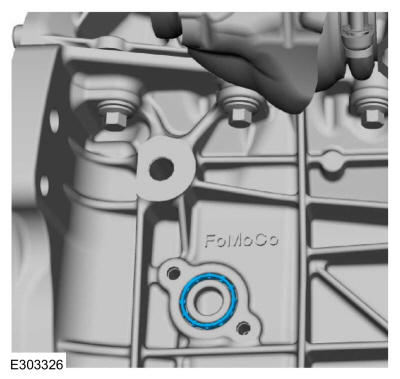

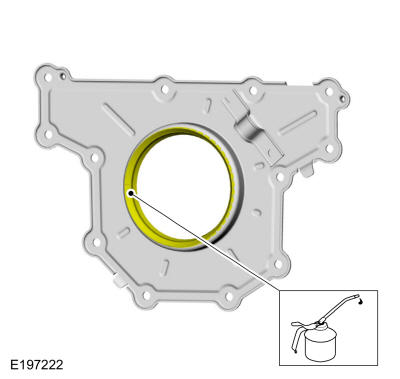

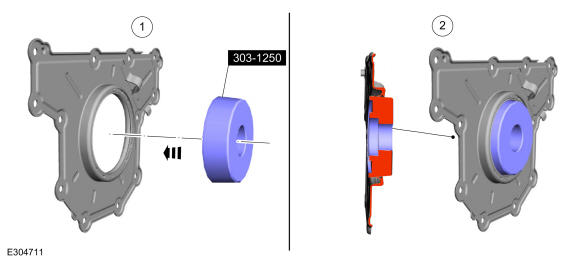

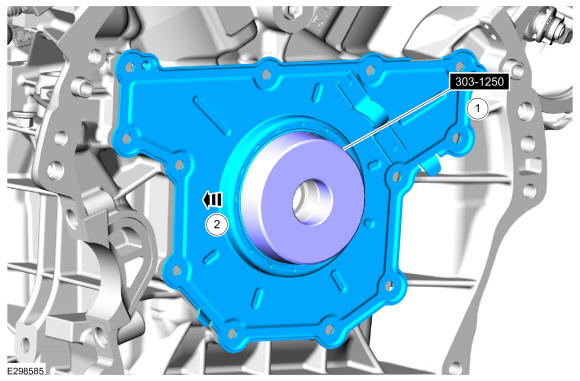

20. 1. Position the oil seal.
    2. Install the engine block skirt stiffener.

    Courtesy of FORD MOTOR COMPANY

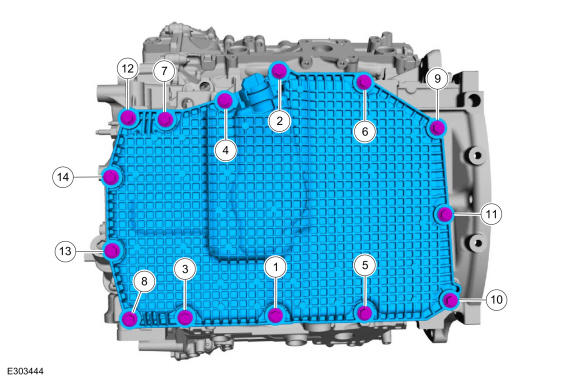

21. 1. Install the bolts finger tight.
    2. Tighten the 2 bolts.

       Torque: Stage 1: 35 lb. in (4 Nm) Stage 2: Loosen: 360°

    Courtesy of FORD MOTOR COMPANY

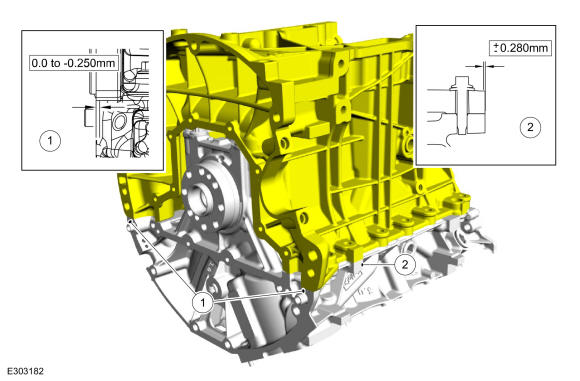

22. 1. Using a straight edge, align the rear face of the engine block skirt stiffener to the rear face of the engine block, flush or up to 0. 250 mm (0. 01 in) underflush.
    2. Using a straight edge, align the machined boss on the left side of the engine block skirt stiffener to the machined boss on the left side of the engine block flush or within 0. 280 mm (0. 011 in) of flush.

    Courtesy of FORD MOTOR COMPANY

23. NOTE: If the engine block skirt stiffener bolts minimal torque is not completed within 10 minutes of sealant application, or if final torque is not met within 60 minutes of sealant application the parts must be removed and the sealant must be removed and the sealing area cleaned.

    Tighten the engine block skirt stiffener bolts.

    Torque: Stage 1: 35 lb. in (4 Nm) Stage 2: 18 lb. ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

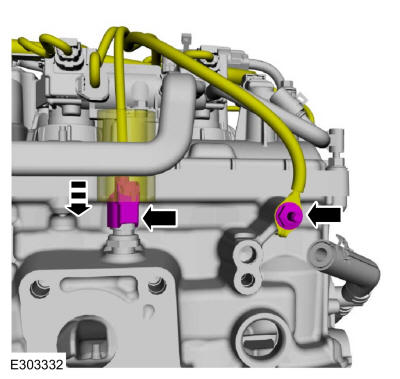

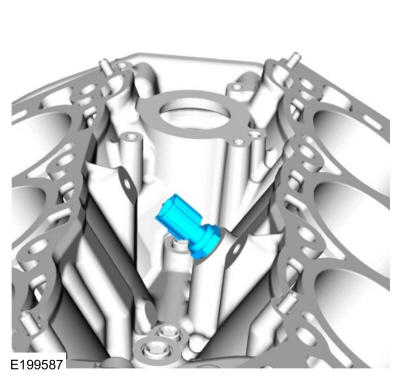

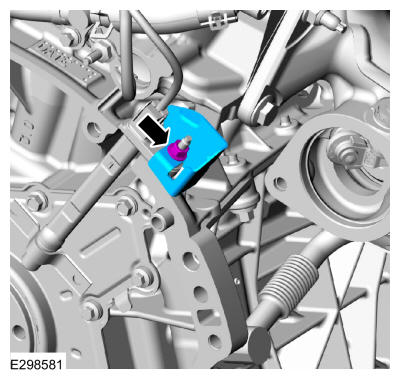

24. NOTE: Do not reuse the ECT sensor, install a new sensor.

    Install a new ECT sensor.

    Torque: 20 lb. ft (27 Nm)

    Courtesy of FORD MOTOR COMPANY

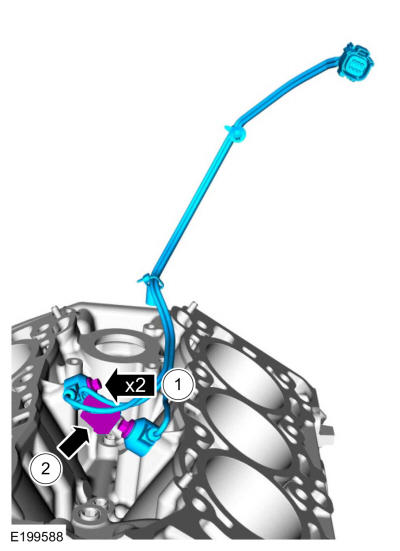

25. 1. Install the KS assembly and the bolts.

       Torque: 97 lb. in (11 Nm)

    2. Connect the ECT sensor electrical connector.

    Courtesy of FORD MOTOR COMPANY

26. Install a new coolant outlet connector pipe gasket.

    Courtesy of FORD MOTOR COMPANY

27. 1. Install the coolant outlet connector pipe, the bolts and the stud bolt.

       Torque: 89 lb. in (10 Nm)

    2. Attach the wiring harness retainer to the stud bolt.

    Courtesy of FORD MOTOR COMPANY

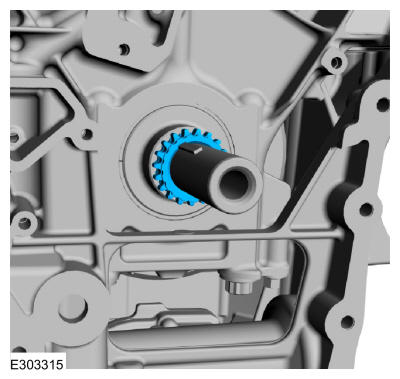

28. NOTE: A timing mark is stamped on both faces of the crankshaft sprocket. The sprocket can be installed with either of the faces positioned outward.

    Install the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

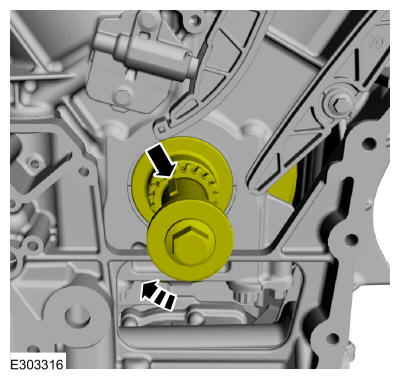

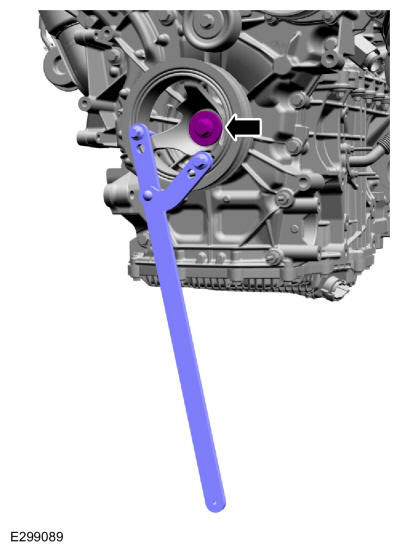

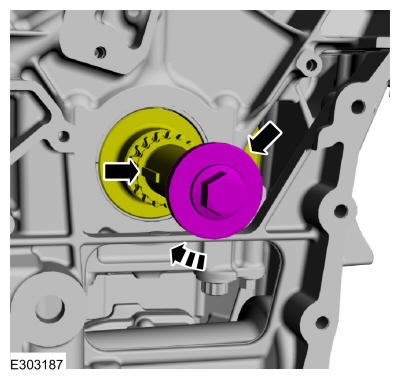

29. NOTE: Rotate the crankshaft utilizing only the original crankshaft pulley bolt. Failure to follow this direction may cause damage to the crankshaft and result in engine failure.

    Install the original crankshaft pulley bolt and rotate the crankshaft clockwise until the keyway is at the 9 o'clock position.

    Courtesy of FORD MOTOR COMPANY

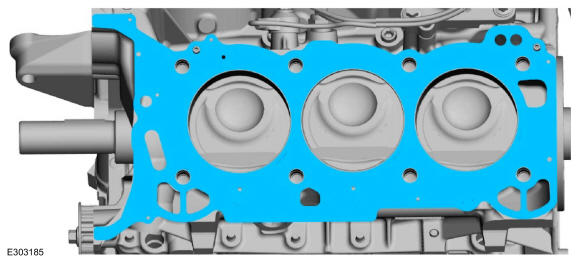

30. Install a new LH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

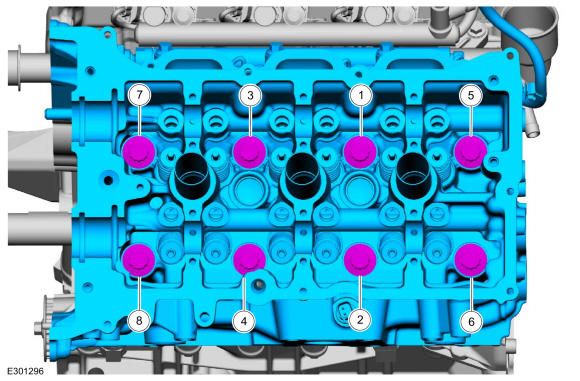

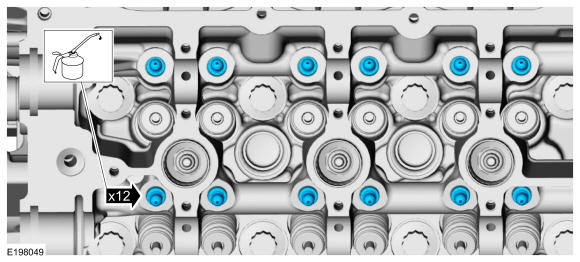

31. • Install the cylinder head.
    • Install new cylinder head bolts.

      Torque: Stage 1: 177 lb. in (20 Nm) Stage 2: Loosen: 2 turn(s) Stage 3: 37 lb. ft (50 Nm) Stage 4: 180°

    Courtesy of FORD MOTOR COMPANY

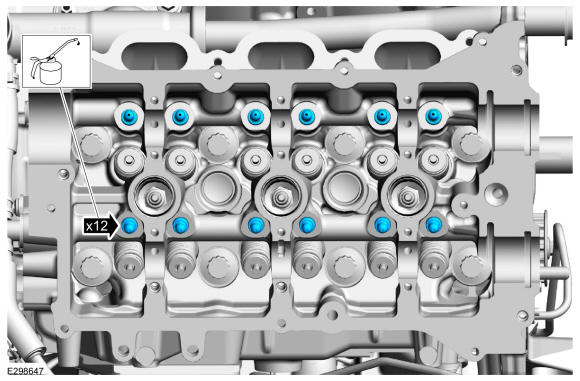

32. NOTE: Do

    not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.

    NOTE: If the original hydraulic lash adjusters are to be reinstalled, they must be installed in their original locations.
    1. Lubricate the hydraulic lash adjusters with clean engine oil.
    2. Install the hydraulic lash adjusters.

    Courtesy of FORD MOTOR COMPANY

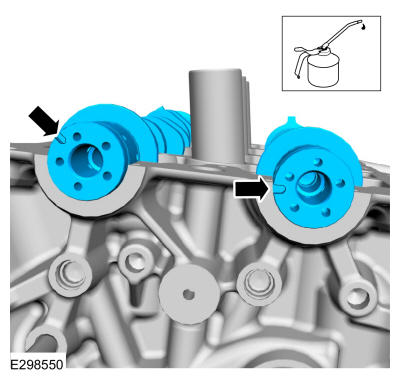

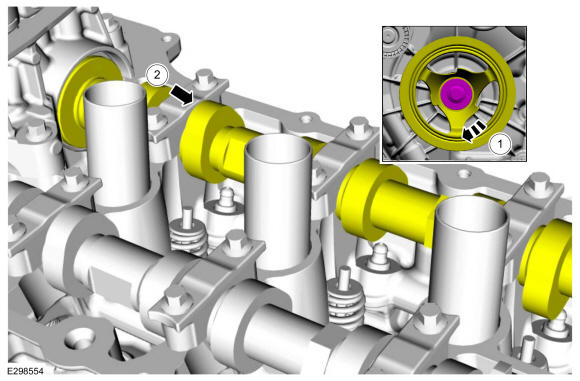

33. • Lubricate the camshafts with clean engine oil.
    • Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

    Courtesy of FORD MOTOR COMPANY

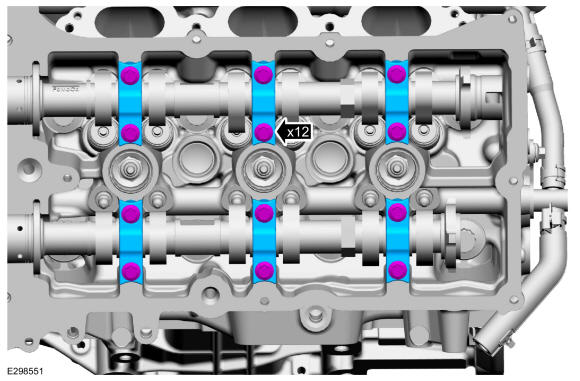

34. Install the camshaft bearing caps and the bolts. Do not tighten at this time.

    Courtesy of FORD MOTOR COMPANY

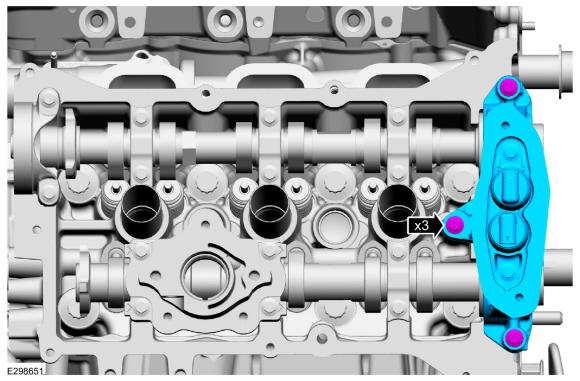

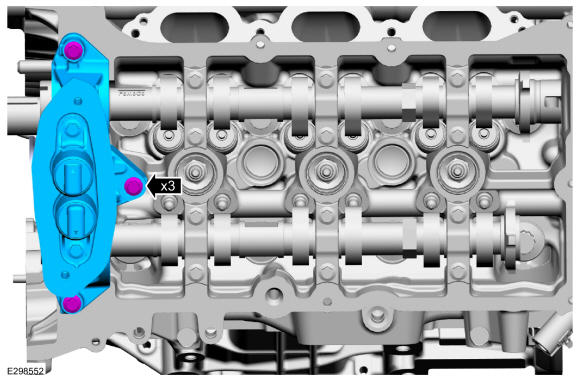

35. Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.

    Courtesy of FORD MOTOR COMPANY

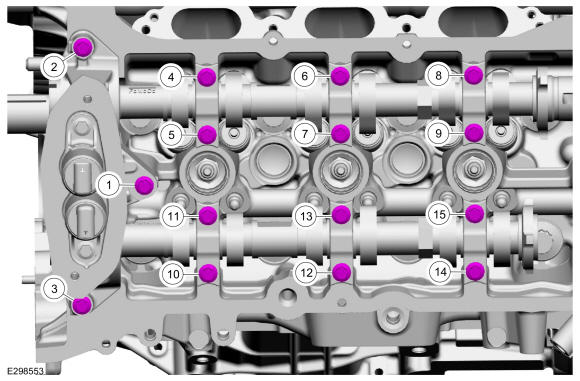

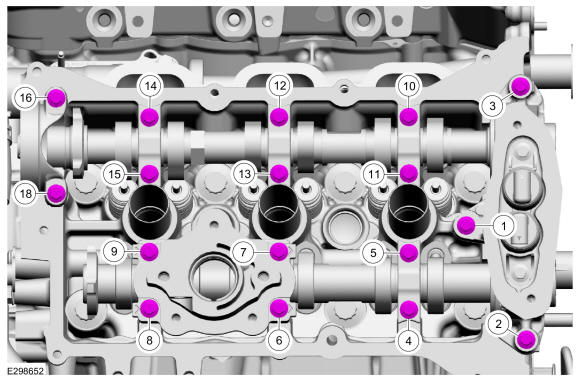

36. Tighten the bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

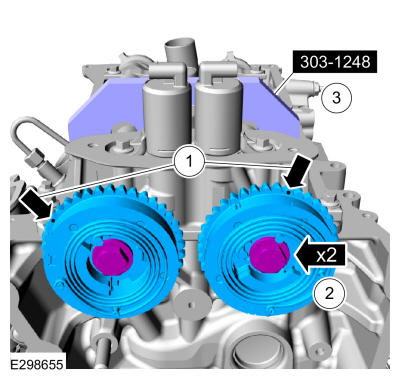

37. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the LH side the circle marks are used.
    1. Install the VCT units. The circle  timing marks on the VCT units will be at the 10 o'clock (intake) and 12: 30 (exhaust) positions as shown in the illustration. Install Special Service Tool: 303-1248 Camshaft holding tools.
    2. Install the new VCT unit bolts.

       Torque: Stage 1: 30 lb. ft (40 Nm) Stage 2: Loosen: 360°Stage 3: 37 lb. ft (50 Nm) Stage 4: 90°

    3. Remove Special Service Tool: 303-1248 Camshaft holding tools.

    Courtesy of FORD MOTOR COMPANY

38. Install a new RH cylinder head gasket.

    Courtesy of FORD MOTOR COMPANY

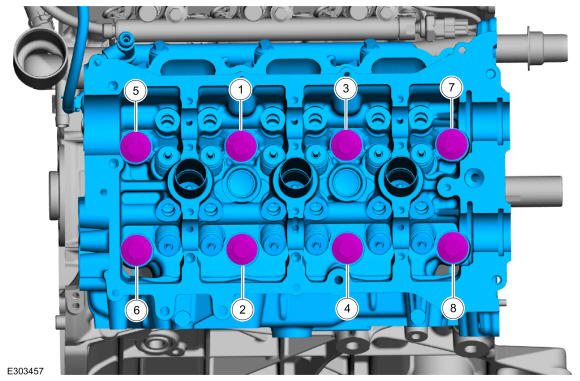

39. • Install the cylinder head.
    • Install new cylinder head bolts.

      Torque: Stage 1: 177 lb. in (20 Nm) Stage 2: Loosen: 2 turn(s) Stage 3: 37 lb. ft (50 Nm) Stage 4: 180°

    Courtesy of FORD MOTOR COMPANY

40. NOTE: Do

    not install the camshaft roller followers at this time. The roller followers will be installed later in the procedure. If the roller followers are installed prior to the camshafts, the camshaft caps can become distorted during the camshaft tightening process and result in upper end engine noise or severe damage to the engine.

    NOTE: If the original components are to be reinstalled, they must be installed in their original locations.
    1. Lubricate the hydraulic lash adjusters with clean engine oil.
    2. Install the hydraulic lash adjusters.

    Courtesy of FORD MOTOR COMPANY

41. • Lubricate the camshafts with clean engine oil.
    • Install the intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

    Courtesy of FORD MOTOR COMPANY

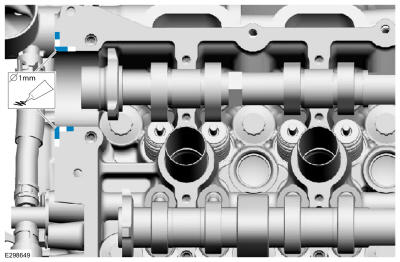

42. Apply a 1 mm bead of sealant to the rear camshaft cap mounting surface of the cylinder head.

    Material: Flange Sealant / CU7Z-19B508-A (WSS-M2G348-A11)

    Courtesy of FORD MOTOR COMPANY

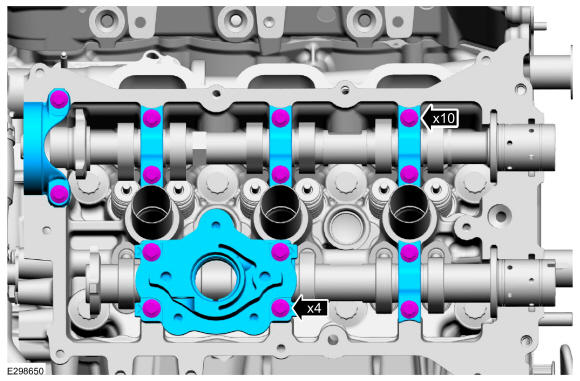

43. Install the camshaft bearing caps and the bolts. Do not tighten at this time.

    Courtesy of FORD MOTOR COMPANY

44. Install the front camshaft bearing mega cap and the bolts. Do not tighten at this time.

    Courtesy of FORD MOTOR COMPANY

45. Tighten the bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

46. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For installation of the RH side the triangle marks are used.

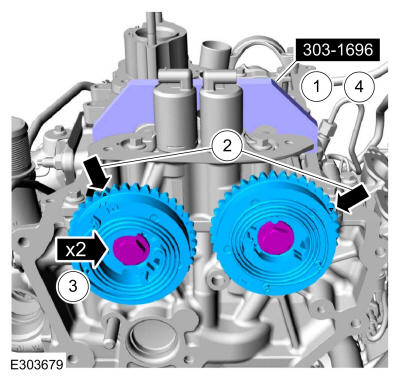

    1. Install Special Service Tool: 303-1696 Cam Comb Tool Study.
    2. Install the VCT units. The triangle  timing marks on the VCT units will be at the 2 o'clock (intake) and 11 o'clock (exhaust) positions as shown in the illustration.
    3. Install the new VCT unit bolts.

       Torque: Stage 1: 30 lb. ft (40 Nm) Stage 2: Loosen: 360°Stage 3: 37 lb. ft (50 Nm) Stage 4: 90°

    4. Remove Special Service Tool: 303-1696 Cam Comb Tool Study.

    Courtesy of FORD MOTOR COMPANY

47. Using the original crankshaft pulley bolt, rotate the crankshaft clockwise until the keyway is at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

48. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the LH side the circle marks are used.

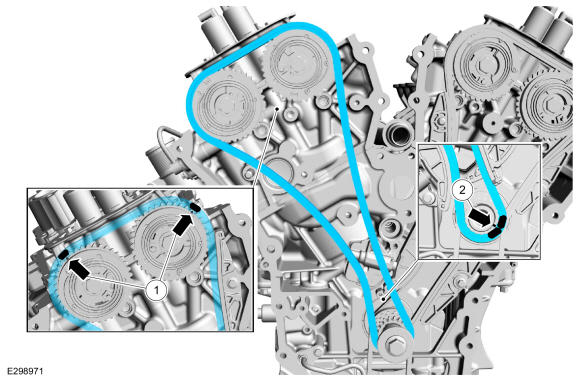

    1. Install the LH timing chain with the single colored links aligned with the circle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

49. Install the LH timing chain guide and bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

50. Install the LH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

51. Slide the tensioner cylinder out of the LH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

52. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

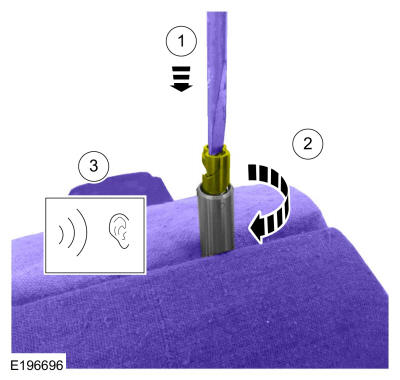

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

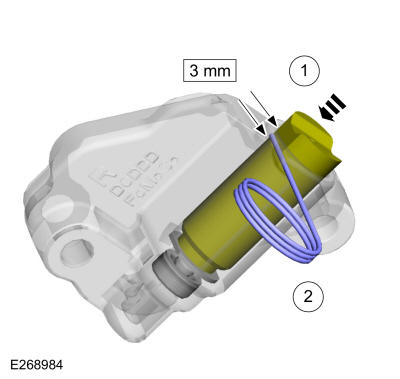

53. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

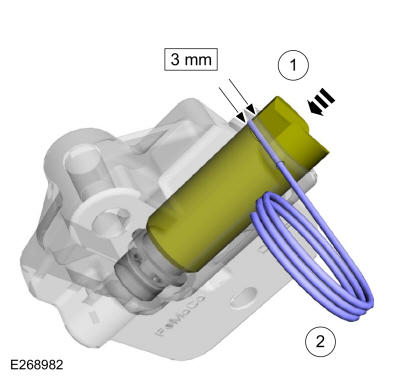

54. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0. 125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

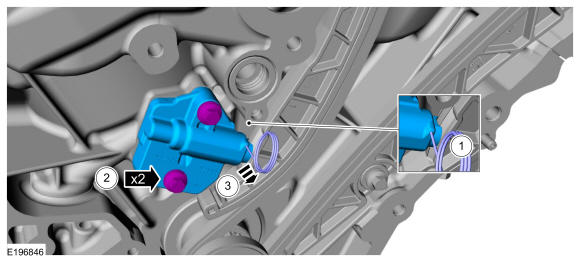

55. 1. Position the LH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb. in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

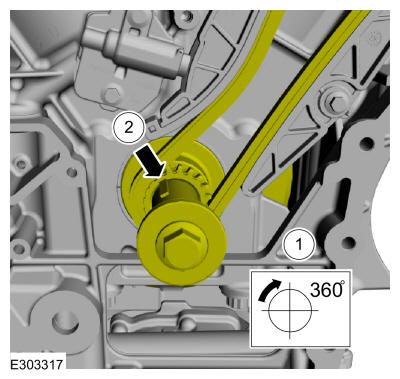

56. NOTE: The crankshaft must be rotated clockwise one revolution (360 degrees). Failure to do so will result in incorrect camshaft timing.
    1. Rotate the crankshaft clockwise one revolution (360 degrees).
    2. Position the crankshaft sprocket keyway at the 11 o'clock position.

    Courtesy of FORD MOTOR COMPANY

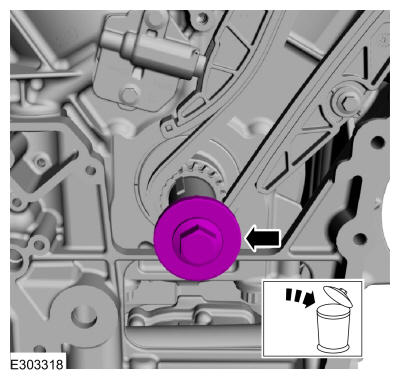

57. Remove and discard the original crankshaft pulley bolt.

    Courtesy of FORD MOTOR COMPANY

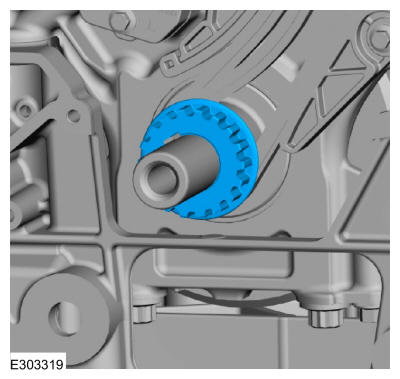

58. Install the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

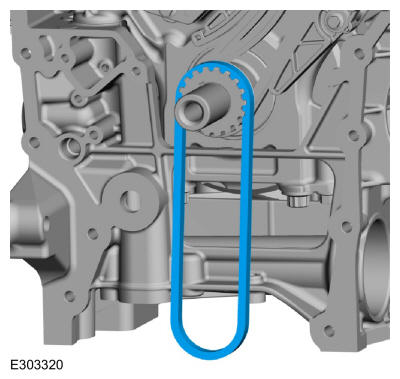

59. Install the oil pump drive belt onto the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

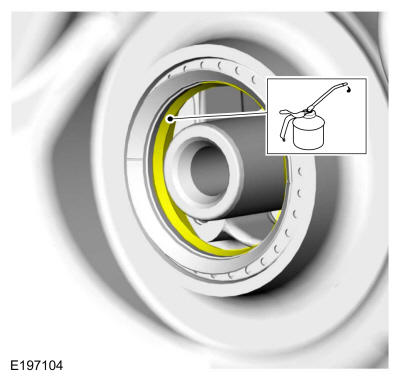

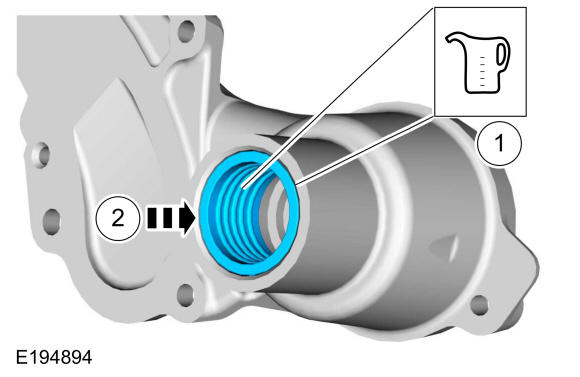

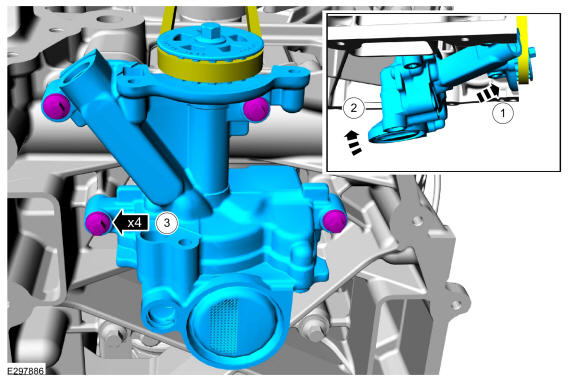

60. Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
61. NOTE: Make sure the oil pump drive belt teeth are engaged in the crankshaft sprocket prior to installing the oil pump.
    1. Install the oil pump sprocket into the oil pump drive belt.
    2. Raise the rear of the oil pump assembly into the installed position.
    3. Install the oil pump bolts.

       Torque: Stage 1: 89 lb. in (10 Nm) Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

62. 1. Install new O-ring seals.
    2. Lubricate the O-ring seals with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

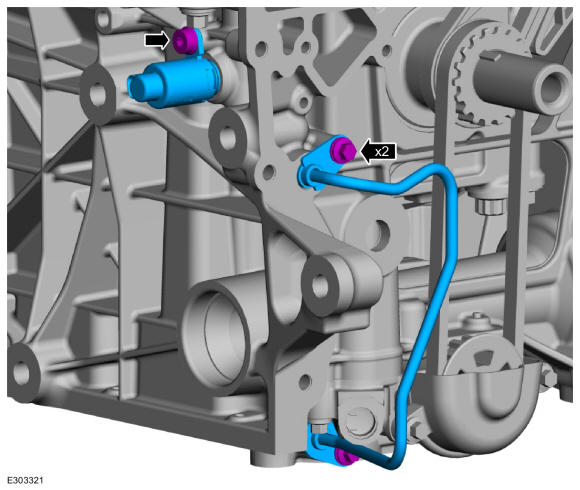

63. • Install the oil return tube and the bolts.

      Torque: 89 lb. in (10 Nm)

    • Install the oil control solenoid and the bolt.

      Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

64. Install the splash shield and the bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

65. Install the timing chain sprocket.

    Courtesy of FORD MOTOR COMPANY

66. NOTE: The VCT units have 2 timing marks on them, a triangle and a circle. For removal and installation of the RH side the triangle marks are used.

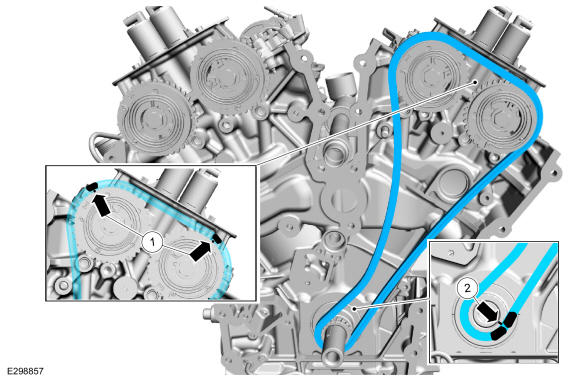

    1. Install the RH timing chain with the single colored links aligned with the triangle  timing marks on the VCT units.
    2. Install the double colored links so they straddle the timing mark on the crankshaft sprocket.

    Courtesy of FORD MOTOR COMPANY

67. Install the RH timing chain guide and bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

68. Install the RH timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

69. Slide the tensioner cylinder out of the RH timing chain tensioner housing.

    Courtesy of FORD MOTOR COMPANY

70. NOTE: Use vise jaw protectors or cover the jaws of the vise with clean shop towels to prevent damage to the surface of the tensioner ratchet mechanism.

    Mount the flat machined surfaces on the end of the tensioner cylinder into a vise.

    1. Using a flat-bladed screwdriver apply light downward pressure on the end of the tensioner ratchet mechanism. Use the General Equipment: Vise Use the General Equipment: Vise Jaw Protectors Use the General Equipment: Flat-Bladed Screwdriver
    2. Rotate the screwdriver clockwise approximately one turn.
    3. An audible click will be heard when the tensioner ratchet mechanism locks into place.

    Courtesy of FORD MOTOR COMPANY

71. Slide the tensioner cylinder into the tensioner housing until it contacts the bottom of the bore. The shoulder of the tensioner cylinder will be flush with the top of the housing.

    Courtesy of FORD MOTOR COMPANY

72. 1. Firmly press the tensioner cylinder into the tensioner housing until the shoulder of the tensioner cylinder is approximately 3 mm (0. 125 in) below the top of the housing.
    2. Install a retaining pin into the hole in the housing to lock the tensioner cylinder in the retracted position.

    Courtesy of FORD MOTOR COMPANY

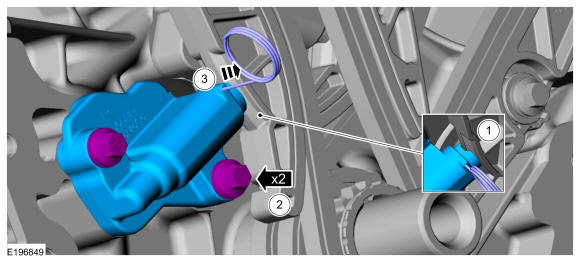

73. 1. Position the RH timing chain tensioner with the end of the tensioner correctly engaged to the tensioner arm.
    2. Install the bolts.

       Torque: 89 lb. in (10 Nm)

    3. Remove the pin to allow the tensioner cylinder to extend and press against the timing chain tensioner arm.

    Courtesy of FORD MOTOR COMPANY

74. Install new engine front cover gaskets.

    Courtesy of FORD MOTOR COMPANY

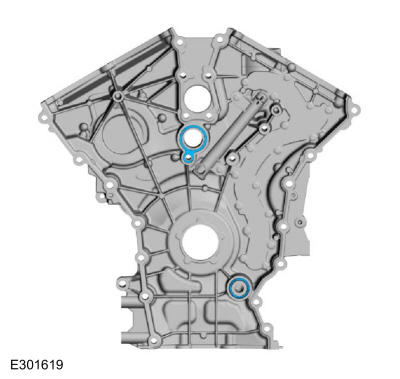

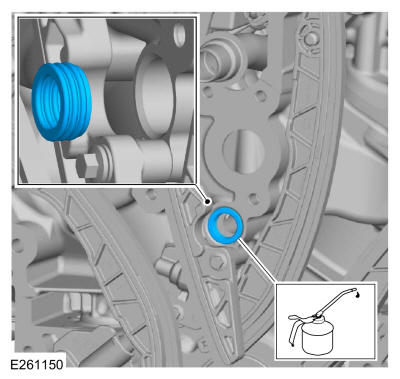

75. 1. Lubricate a new oil gallery seal (6G068) with clean engine oil.
    2. Install the new oil gallery seal (6G068).

    Courtesy of FORD MOTOR COMPANY

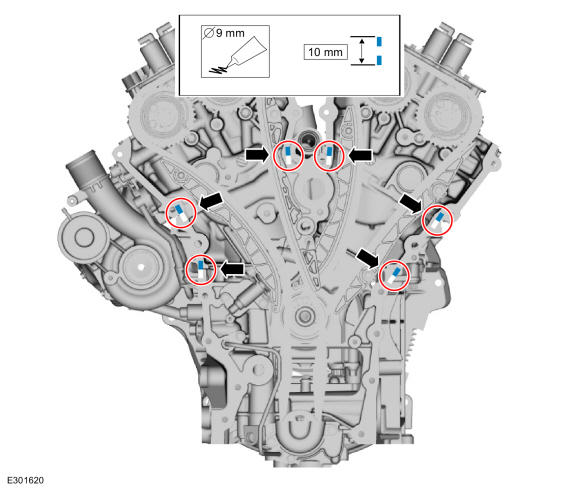

76. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.

    Apply 9 mm (0. 35 in) beads of Motorcraft® High Performance Engine RTV Silicone 10 mm (0. 40 in) in length to the cylinder block skirt-to-cylinder block joints and the cylinder head-to-cylinder block joints as indicated.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

77. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The engine front cover must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
    1. Apply a 4. 5 mm (0. 18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover sealing surfaces of the inner bolt bosses.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    2. Apply a 4. 5 mm (0. 18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the chamfer of the engine front cover sealing surfaces.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

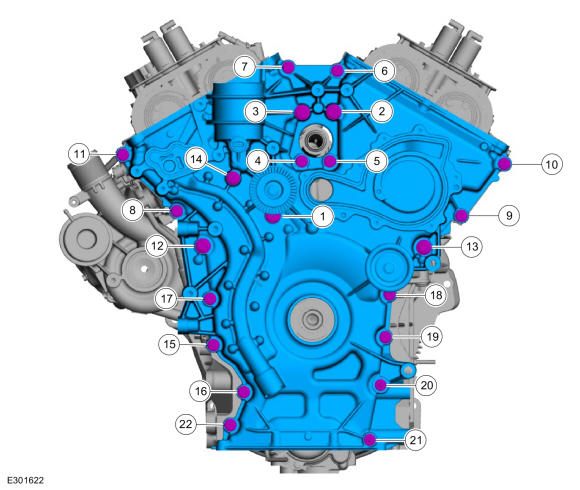

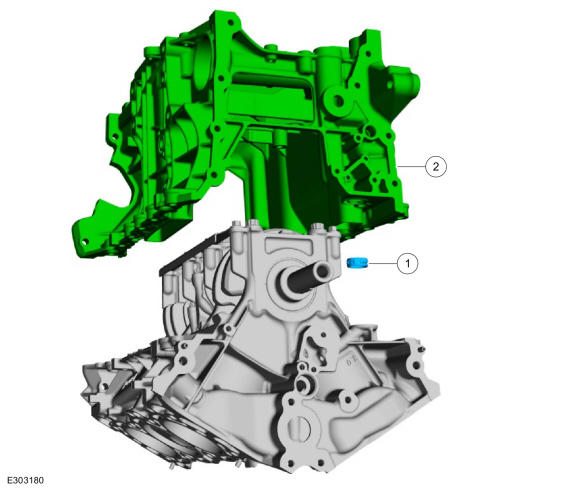

78. Install the engine front cover and the fasteners.

    Torque: Stage 1: Tighten bolts 1 through 11 to: 18 lb. ft (24 Nm) Stage 2: Tighten bolts 12 through 13 to: 35 lb. ft (48 Nm) Stage 3: Tighten bolts 14 through 20 to: 18 lb. ft (24 Nm)

    Courtesy of FORD MOTOR COMPANY

79. Refer to: RTV Sealing Surface Cleaning and Preparation .

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

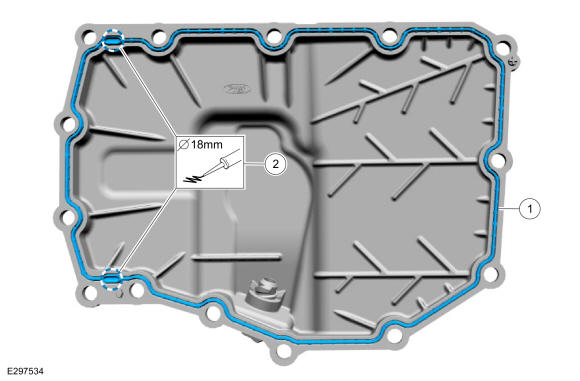

80. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
    NOTE: The oil pan must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
    1. Install a new gasket.
    2. Apply 18 mm (0. 7 in) drops of sealant.

       Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

81. Tighten the bolts in 2 stages.

    Torque: Stage 1: 89 lb. in (10 Nm) Stage 2: 45°

    Courtesy of FORD MOTOR COMPANY

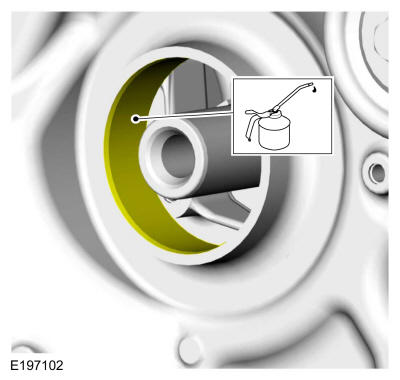

82. Lubricate the engine front cover bore with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

83. Using the special tools, install the new crankshaft front oil seal. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

84. Lubricate the crankshaft front seal inner lip with clean engine oil.

    Courtesy of FORD MOTOR COMPANY

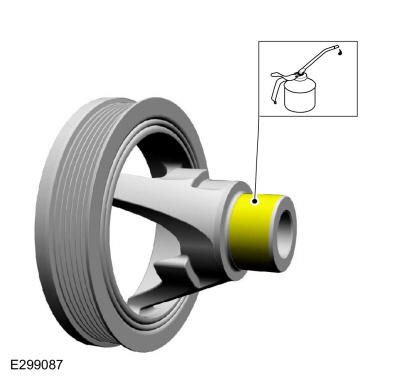

85. Lubricate the crankshaft pulley sealing surface with clean engine oil prior to installation.

    Courtesy of FORD MOTOR COMPANY

86. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal., 303-1531 Installer, Front Crank Seal and Damper.

    Courtesy of FORD MOTOR COMPANY

87. NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

    Using a universal pulley holder, install and tighten a new crankshaft pulley bolt.

    Torque: Stage 1: 166 lb. ft (225 Nm) Stage 2: Loosen: 360°Stage 3: 26 lb. ft (35 Nm) Stage 4: 270°

    Courtesy of FORD MOTOR COMPANY

88. Rotate the crankshaft pulley bolt clockwise to position the camshaft lobe upward for the camshaft roller follower to be installed.

    Courtesy of FORD MOTOR COMPANY

89. NOTE: Do not allow the valve keepers to fall off the valve or the valve may drop into the cylinder. If a valve drops into the cylinder, the cylinder head must be removed.
    NOTE: It may be necessary to push the valve down while compressing the spring.
    1. Install Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    2. Turn the knob on the special tool clockwise to depress the valve and spring.

    Courtesy of FORD MOTOR COMPANY

90. 1. Lubricate the camshaft roller follower with clean engine oil.
    2. Install the camshaft roller follower.
    3. Turn the knob on the special tool counterclockwise to raise the valve and spring. Remove Special Service Tool: 303-1633 Remover, Roller Rocker Follower.
    • Repeat steps for the remaining camshaft roller followers.

    Courtesy of FORD MOTOR COMPANY

91. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

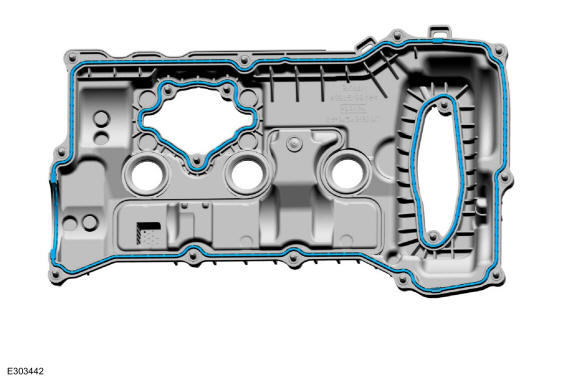

92. Install new gaskets.

    Courtesy of FORD MOTOR COMPANY

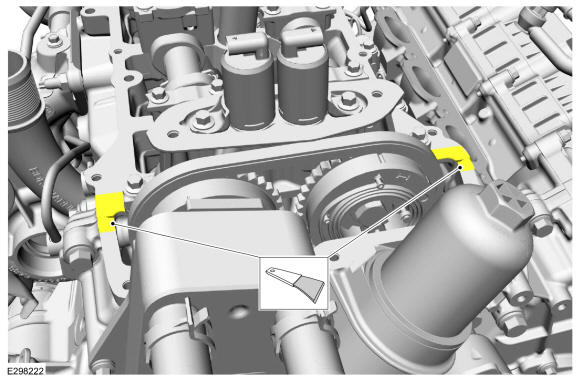

93. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

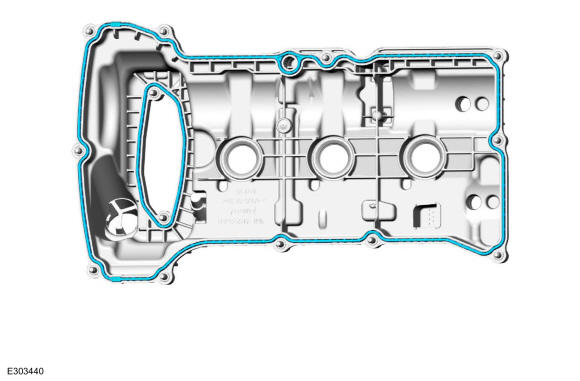

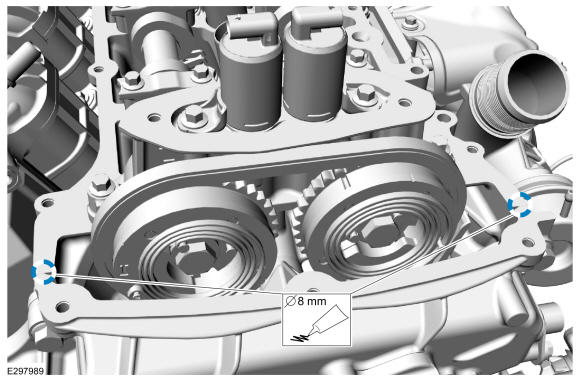

94. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0. 31 in) diameter drop of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

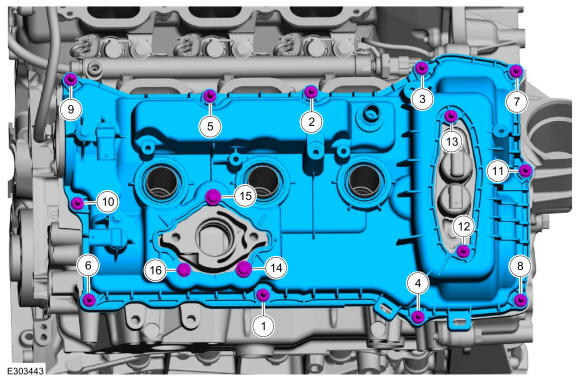

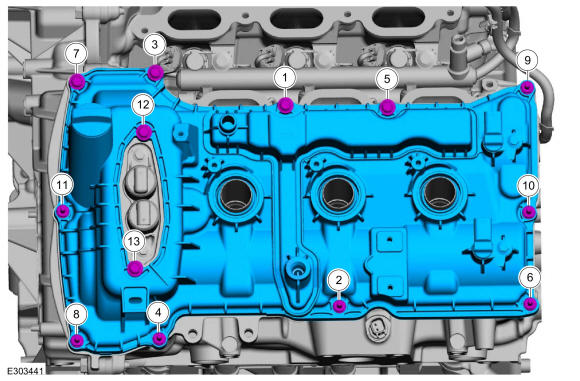

95. Install the valve cover and tighten the bolts in sequence.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

96. NOTE: Installation of new seals is only required if damaged seals were removed.

    Using the special tools, install new spark plug tube seals. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 303-1247 VCT Spark Plug Tube Seal Remover and Installer.

    Courtesy of FORD MOTOR COMPANY

97. Install new gaskets

    Courtesy of FORD MOTOR COMPANY

98. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

    Clean the valve cover mating surface of the cylinder head and engine front cover. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

    Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

    Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

    Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

    Courtesy of FORD MOTOR COMPANY

99. NOTE: If the valve cover is not installed and the fasteners tightened within 10 minutes, the sealant must be removed and the sealing area cleaned.

    Apply an 8 mm (0. 31 in) diameter drop of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-cylinder head joints.

    Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

    Courtesy of FORD MOTOR COMPANY

100. Install the valve cover and tighten the bolts in sequence.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

101. Install the bracket and the nuts.

     Torque: 53 lb. in (6 Nm)

     Courtesy of FORD MOTOR COMPANY

102. Inspect and replace any ignition coil-on-plugs that have rubber boots with cracks, rips or tears.

     Courtesy of FORD MOTOR COMPANY

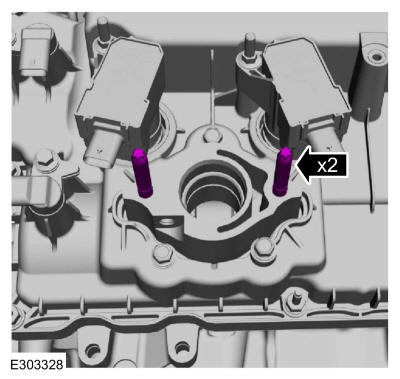

103. Install the RH ignition coil-on-plugs and stud bolts.

     Torque: 53 lb. in (6 Nm)

     Courtesy of FORD MOTOR COMPANY

104. Install the LH ignition coil-on-plugs and stud bolts.

     Torque: 53 lb. in (6 Nm)

     Courtesy of FORD MOTOR COMPANY

105. • Lubricate the inside and the outside diameter of the grommet with clean engine coolant.
     • Install the grommet so it is flush with the rear of the coolant pump housing.

     Courtesy of FORD MOTOR COMPANY

106. Install a new coolant pump gasket.

     Courtesy of FORD MOTOR COMPANY

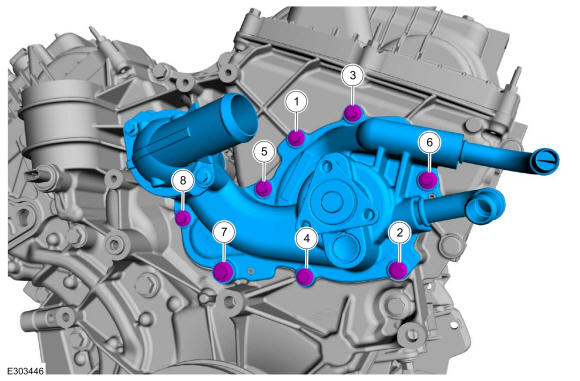

107. NOTE: Verify the front cover dowel pins are aligned to the coolant pump and that the coolant pump is fully seated prior to installing the fasteners.
     • Install the coolant pump and the fasteners.

       Torque: Fasteners 1-6: Stage 1: 89 lb. in (10 Nm) Stage 2: 45°

     • Torque:

       Fastener 7: 18 lb. ft (24 Nm)

     • Torque:

       Fasteners 8: Stage 1: 89 lb. in (10 Nm) Stage 2: 45°

     Courtesy of FORD MOTOR COMPANY

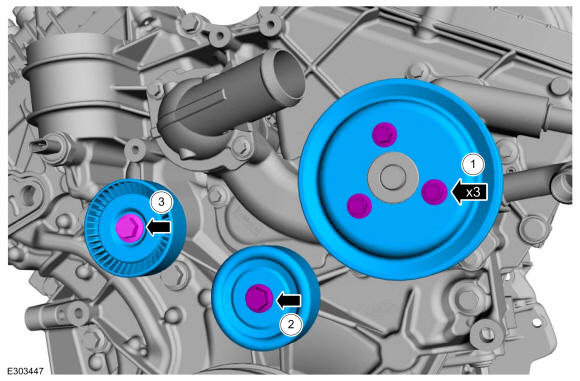

108. 1. Install the coolant pump pulley and the bolts.

        Torque: 18 lb. ft (24 Nm)

     2. Install the idler pulley and the bolt.

        Torque: 35 lb. ft (48 Nm)

     3. Install the idler pulley and the bolt.

        Torque: 18 lb. ft (24 Nm)

     Courtesy of FORD MOTOR COMPANY

109. Install a new oil cooler gasket.

     Courtesy of FORD MOTOR COMPANY

110. Install the oil cooler and the fasteners.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

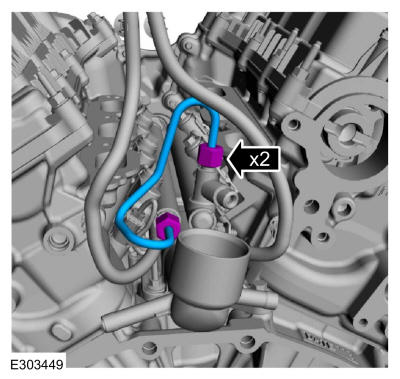

111. Install a new fuel rail-to-fuel rail high-pressure fuel tube and finger tighten the flare nuts.
     • Final tighten the flare nuts.

       Torque: Stage 1: 62 lb. in (7 Nm) Stage 2: 89 lb. in (10 Nm) Stage 3: 25°

     Courtesy of FORD MOTOR COMPANY

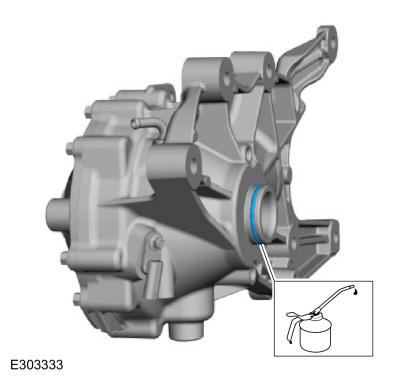

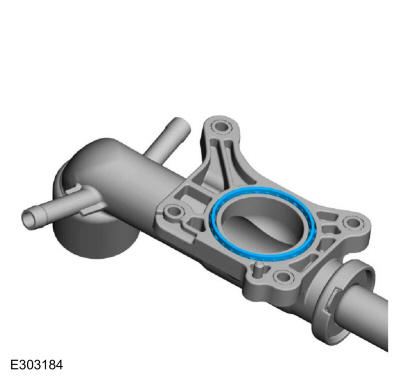

112. Install a new O-ring seal and lubricate with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

113. • Install the TC coolant return tube and clamp.
     • Install the bolt.

       Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

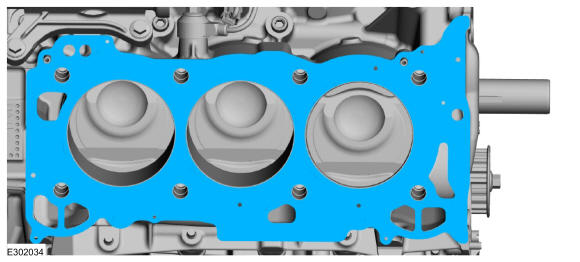

114. Inspect the gaskets and install new gaskets as necessary.

     Courtesy of FORD MOTOR COMPANY

115. NOTE: Do not use wire brushes, power abrasive discs or 3M™ Roloc® Bristle Disk (2-in white part number 07528) to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. They also cause contamination that will cause premature engine failure. Remove all traces of the sealant.

     Make sure that the mating faces of the engine are clean and free of foreign material. Refer to: RTV Sealing Surface Cleaning and Preparation . Use the General Equipment: Plastic Scraper

     Material: Motorcraft® Silicone Gasket Remover / ZC-30-A

     Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

     Material: Motorcraft® Metal Surface Prep Wipes / ZC-31-B

     Courtesy of FORD MOTOR COMPANY

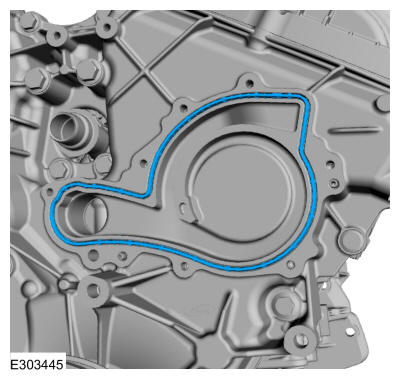

116. NOTE: Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
     NOTE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned. Failure to follow this procedure can cause future oil leakage.

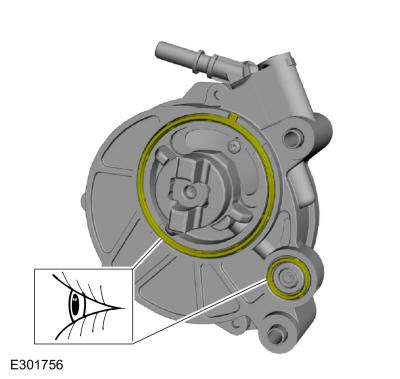

     Apply 8 mm (0. 31 in) beads of Motorcraft® High Performance Engine RTV Silicone in the locations shown.

     Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

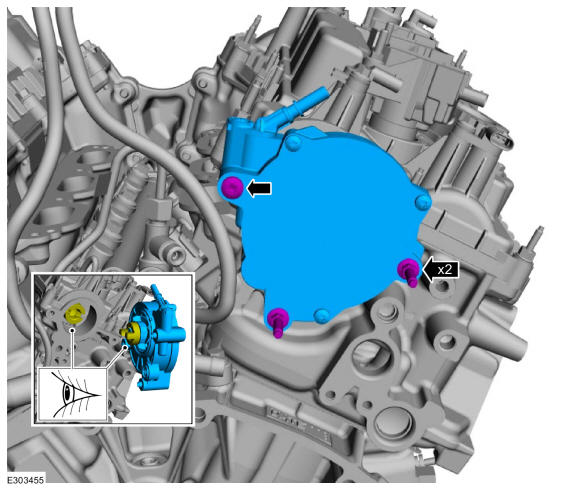

117. NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.

     Position the vacuum pump and install the fasteners.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

118. Install new O-ring seals and lubricate with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

119. • Install the TC coolant return tube and clamp.
     • Install the bolt.

       Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

120. • If removed, install new TC mounting studs.

       Torque: 102 lb. in (11. 5 Nm)

     • Install a new TC gasket.

     Courtesy of FORD MOTOR COMPANY

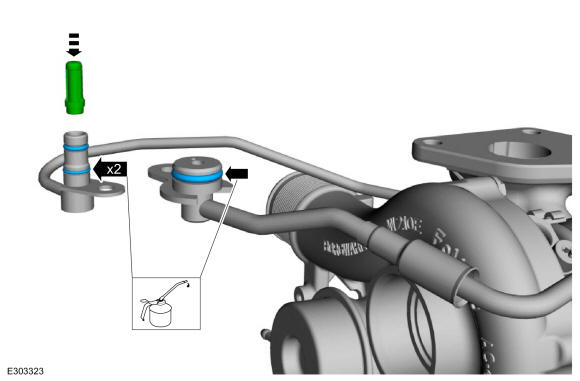

121. 1. Install new TC oil supply tube O-ring seals and a new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
     2. Install a new TC coolant supply tube O-ring seal. Lubricate the new TC coolant supply tube O-ring seal with clean engine coolant.

     Courtesy of FORD MOTOR COMPANY

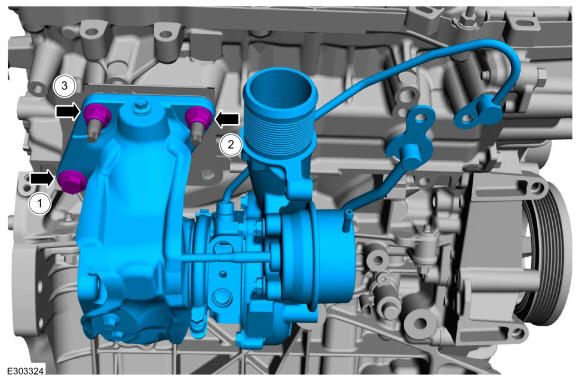

122. 1. NOTE: Install the coolant supply tube and the oil supply tube to the engine block while installing the TC.

        Install the TC and loosely install the new fasteners.

     2. Tighten the fasteners in sequence.

        Torque: Fastener 1: 44 lb. ft (60 Nm) Fastener 2: 44 lb. ft (60 Nm) Fastener 3: 27 lb. ft (37 Nm) Re-tighten fastener 1: 44 lb. ft (60 Nm) Re-tighten fastener 2: 44 lb. ft (60 Nm) Re-tighten fastener 3: 27 lb. ft (37 Nm)

     Courtesy of FORD MOTOR COMPANY

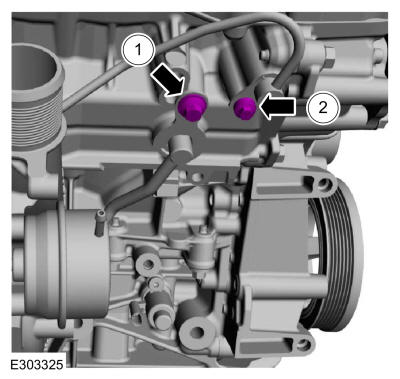

123. 1. Install the TC oil supply tube bolt.

        Torque: 18 lb. ft (24 Nm)

     2. Install the TC coolant supply tube bolt.

        Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

124. Install the TC coolant return tube and the bolt.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

125. Install a new TC oil return tube-to-engine block gasket.

     Courtesy of FORD MOTOR COMPANY

126. Install a new TC oil return tube O-ring seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

127. Install the TC oil return tube and the fasteners.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

128. If removed, install and tighten the high-pressure fuel pump mounting studs.

     Torque: 106 lb. in (12 Nm)

     Courtesy of FORD MOTOR COMPANY

129. NOTE: Only rotate the crankshaft Clockwise (CW) or damage to the engine may occur.
     NOTE: The drive lobe for the high-pressure fuel pump must be at BDC (bottom dead center) for the high-pressure fuel pump installation.

     Using the crankshaft pulley bolt, turn the crankshaft until the high-pressure fuel pump drive lobe is at BDC (bottom dead center).

     Courtesy of FORD MOTOR COMPANY

130. Apply clean engine oil to the high-pressure fuel pump mounting pedestal bore, the drive lobe and the roller tappet.

     Courtesy of FORD MOTOR COMPANY

131. Install the high-pressure fuel pump roller tappet.

     Courtesy of FORD MOTOR COMPANY

132. NOTE: Apply clean engine oil to the high-pressure fuel pump O-ring seals.

     Install a new high-pressure fuel pump O-ring seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

133. Install the high-pressure fuel pump, then install the mounting nuts finger tight. Alternately tighten each high-pressure fuel pump nut one complete revolution until seated. Tighten the fuel high-pressure fuel pump nuts in the following 2 stages.

     Torque: Stage 1: 177 lb. in (20 Nm) Stage 2: 45°

     Courtesy of FORD MOTOR COMPANY

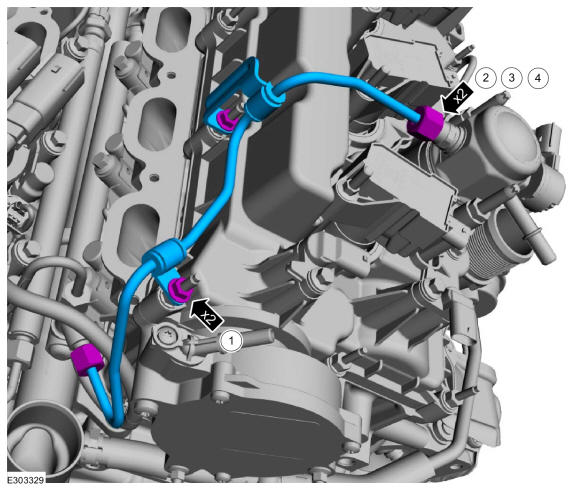

134. NOTE: In stage 4, if the torque required to tighten any flare nut on the new high-pressure fuel tube reaches or exceeds 37 lb ft (50 Nm), then that high pressure fuel tube must be discarded and replaced with another new high-pressure fuel tube.
     NOTE: Calculate the correct torque wrench setting for the following torque using the Torque Wrench Adapter Formulas.

     Courtesy of FORD MOTOR COMPANY

     NOTE: Make sure that a new high-pressure fuel tube is installed.

     Install the high-pressure fuel tube and bracket nuts, tighten the high-pressure fuel tube flare nuts and bracket nuts finger tight.

     Torque: Stage 1: Tighten the high-pressure fuel tube bracket nuts to : 89 lb. in (10 Nm) Stage 2: Tighten the high-pressure fuel tube flare nuts to : 62 lb. in (7 Nm) Stage 3: Tighten the high-pressure fuel tube flare nuts to : 89 lb. in (10 Nm) Stage 4: Tighten the high-pressure fuel tube flare nuts an additional : 25°

     Courtesy of FORD MOTOR COMPANY

135. • Install the gaskets.
     • Install the insulator.

     Courtesy of FORD MOTOR COMPANY

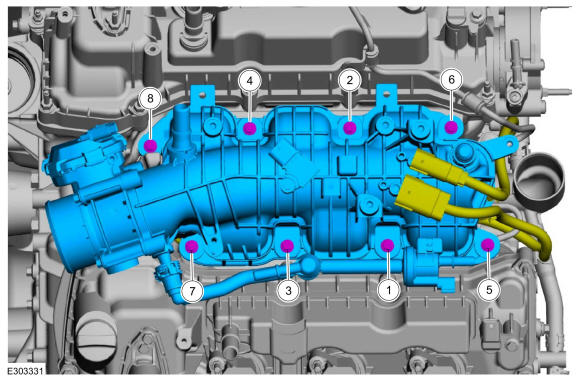

136. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

     Install the intake manifold and tighten the bolts.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

137. Install the coolant pipe and the bolts.

     Torque: 97 lb. in (11 Nm)

     Courtesy of FORD MOTOR COMPANY

138. • Install the vacuum harness onto the engine.
     • Attach the vacuum harness retainers.
     • Install the bolts.

       Torque: 62 lb. in (7 Nm)

     Courtesy of FORD MOTOR COMPANY

139. • Connect the vacuum harness quick release coupling. Refer to: Quick Release Coupling .
     • Attach the vacuum harness retainer.
     • Install the vacuum hose and clamp.

     Courtesy of FORD MOTOR COMPANY

140. • Install the wiring harness onto the engine.
     • Connect the wiring harness electrical connectors.
     • Attach the wiring harness retainers.

     Courtesy of FORD MOTOR COMPANY

141. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

142. • Attach the wiring harness retainer.
     • Install the ground wire and stud bolt to the rear of the RH cylinder head.

       Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

143. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

144. • Attach the wiring harness retainers.
     • Connect the wiring harness electrical connectors.

     Courtesy of FORD MOTOR COMPANY

145. • Connect the CHT electrical connector.
     • Slide the wiring harness insulator down.
     • Install the ground wire and the stud bolt.

       Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

146. Install the crankcase vent tube and connect the quick release couplings. Refer to: Quick Release Coupling .

     Courtesy of FORD MOTOR COMPANY

147. • Install the CAC inlet pipe and tighten the clamp.

       Torque: 42 lb. in (4. 8 Nm)

     • Install the bolt.

       Torque: 93 lb. in (10. 5 Nm)

     • Attach the wiring harness retainer.

     Courtesy of FORD MOTOR COMPANY

148. Install the air cleaner outlet pipe and the bolts.

     Torque: 93 lb. in (10. 5 Nm)

     Courtesy of FORD MOTOR COMPANY

149. Install the A/C compressor and the bolts.

     Torque: 18 lb. ft (25 Nm)

     Courtesy of FORD MOTOR COMPANY

150. • Install the EVAP tube and connect the quick release coupling. Refer to: Quick Release Coupling .
     • Install the fuel tube assembly and connect the quick release coupling. Refer to: Quick Release Coupling .
     • Attach the fuel tube retainer.

     Courtesy of FORD MOTOR COMPANY

151. Install the oil level indicator.

     Courtesy of FORD MOTOR COMPANY

     LHD AWD

152. Install a new front axle assembly seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

153. 1. Clean the front axle assembly-to-cylinder block mating surfaces of any dirt or foreign material prior to installation.
     2. Install the front axle assembly and the bolts.

        Torque: Stage 1: 66 lb. ft (90 Nm) Stage 2: 90°

     Courtesy of FORD MOTOR COMPANY

154. Install a new axle connector seal and lubricate with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

155. Install the front axle disconnect actuator and the bolts.

     Torque: 26 lb. ft (35 Nm)

     Courtesy of FORD MOTOR COMPANY

     LHD RWD

156. Install the engine mount spacer and the bolt.

     Torque: Stage 1: 66 lb. ft (90 Nm) Stage 2: 90°

     Courtesy of FORD MOTOR COMPANY

     LHD AWD/LHD RWD

157. NOTE: AWD shown, RWD similar.
     NOTE: Early build shown, late build similar.

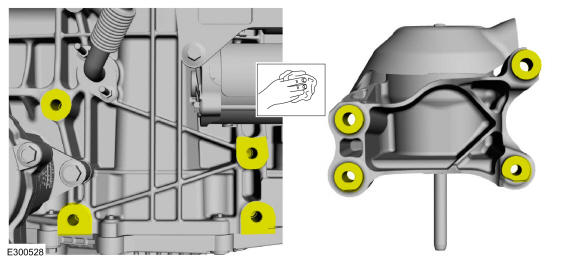

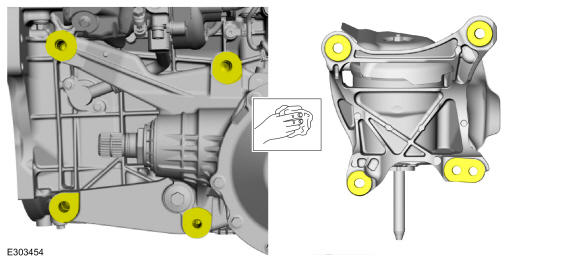

     Clean the engine mount mating surfaces of any dirt or foreign material prior to installation.

     Courtesy of FORD MOTOR COMPANY

158. NOTE: AWD shown, RWD similar.
     NOTE: Early build shown, late build similar.

     Position the RH engine mount and install the new studs.

     Torque: 35 lb. ft (48 Nm)

     Courtesy of FORD MOTOR COMPANY

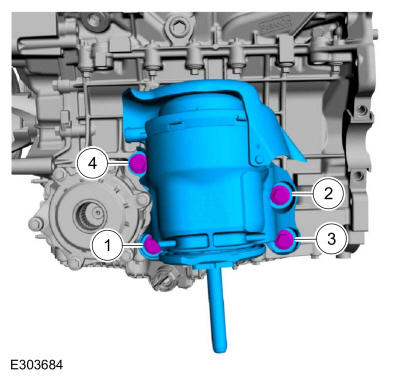

159. NOTE: AWD shown, RWD similar.
     NOTE: Early build shown, late build similar.

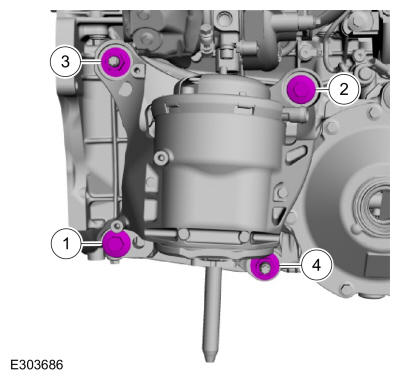

     Install the new bolts and nuts finger-tight and then tighten in sequence.

     Torque: Stage 1: 66 lb. ft (90 Nm) Stage 2: 90°

     Courtesy of FORD MOTOR COMPANY

160. NOTE: Early build shown, late build similar.

     Clean the engine mount mating surfaces of any dirt or foreign material prior to installation.

     Courtesy of FORD MOTOR COMPANY

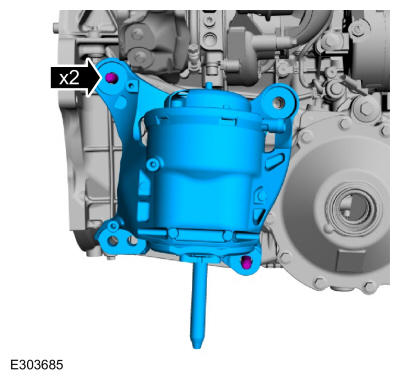

161. NOTE: Early build shown, late build similar.

     Install the LH engine mount, the new bolts finger-tight and then tighten in sequence.

     Torque: 46 lb. ft (63 Nm)

     Courtesy of FORD MOTOR COMPANY

162. Using a floor crane, remove the engine from the mounting stand. Install Special Service Tool: 303-1634 Lift Eyes (2)., 303-1246 Engine Spreader Bar. Use the General Equipment: Floor Crane. Use the General Equipment: Mounting Stand

     Courtesy of FORD MOTOR COMPANY

163. Lubricate the crankshaft rear seal lips with clean engine oil.

     Courtesy of FORD MOTOR COMPANY

164. NOTE: The crankshaft rear seal and retainer plate must be installed within 10 minutes of applying the sealer and the bolts must be installed and tightened to 2-5 Nm (18-44 lb-in) within 15 of applying the sealer. Final tightening of the bolts must be completed within 60 minutes of applying the sealer. Failure to follow this procedure can cause future oil leakage.
     1. Apply a 4. 5 mm (0. 18 in) bead of Motorcraft® High Performance Engine RTV Silicone to the crankshaft rear seal and retainer plate.

        Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     2. Overlap the beginning and ending of the sealant bead 15 mm (0. 59 in).

        Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     3. Apply 9 mm (0. 35 in) beads of Motorcraft® High Performance Engine RTV Silicone that are 10 mm (0. 40 in) in length as indicated in the graphic.

        Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)

     Courtesy of FORD MOTOR COMPANY

165. NOTE: The special tool must be inserted into the rear of the crankshaft seal to prevent the seal lip from rolling backwards.
     1. Insert the magnetic base of the special tool into the rear opening of the crankshaft seal. Install Special Service Tool: 303-1250 Seal Installer, Rear Main.
     2. The magnetic base of the special tool should protrude slightly from the front of the seal plate

     Courtesy of FORD MOTOR COMPANY

166. • Position the special tool and seal plate onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main.
     • Slide the new crankshaft rear seal and retainer plate onto the crankshaft and into the installed position.

     Courtesy of FORD MOTOR COMPANY

167. Install the crankshaft rear seal retainer plate bolts. Remove Special Service Tool: 303-1250 Seal Installer, Rear Main.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

168. 1. Install the CKP sensor and the stud bolt.

        Torque: 89 lb. in (10 Nm)

     2. Connect the CKP sensor electrical connector.

     Courtesy of FORD MOTOR COMPANY

169. Install the heat shield and the nut.

     Torque: 89 lb. in (10 Nm)

     Courtesy of FORD MOTOR COMPANY

170. Install the crankshaft sensor ring.

     Courtesy of FORD MOTOR COMPANY

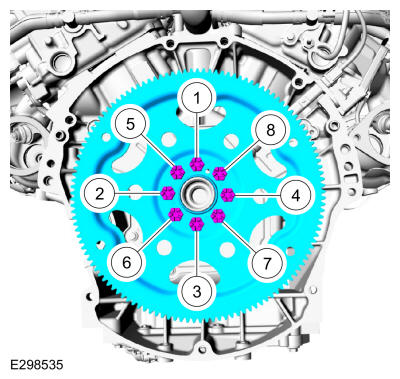

171. 1. Position the flexplate on the crankshaft.
     2. Install the bolts then rundown the bolts one turn at a time in sequence shown until the flexplate is snug against the rear face of the crankshaft.
     3. Final tighten the bolts in sequence shown.

        Torque: 59 lb. ft (80 Nm)

Courtesy of FORD MOTOR COMPANY
