Engine - 3.0L ECOBOOST: Installation: Engine

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	303-1246 Engine Spreader Bar | TKIT-2006UF-FLM | TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1634 Lift Eyes (2) | TKIT-2014D-ROW3 | TKIT-2014D-FL_ROW
Adjustable Mounting Arm
Wooden Block

Materials

LHD AWD/LHD RWD

1. Inspect the turbocharger or engine air intake system components and clean, if necessary.

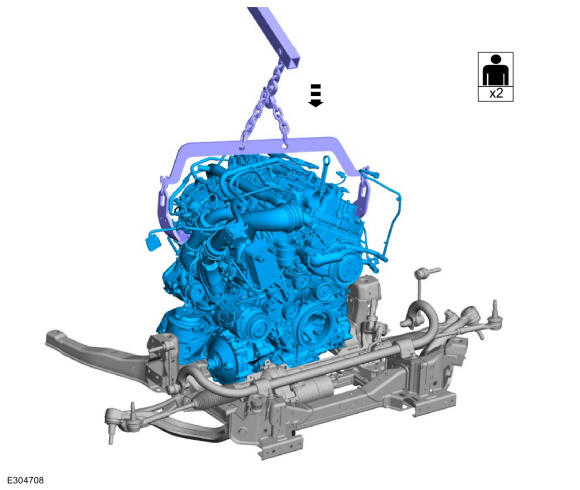

2. With the aid of an assistant and using the floor crane and chain, install the engine on the subframe.

   Courtesy of FORD MOTOR COMPANY

3. Install and adjust and tighten the adjustable mounting arm bolts. Use the General Equipment: Adjustable Mounting Arm

   Courtesy of FORD MOTOR COMPANY

4. Remove the floor crane and chain.

   Courtesy of FORD MOTOR COMPANY

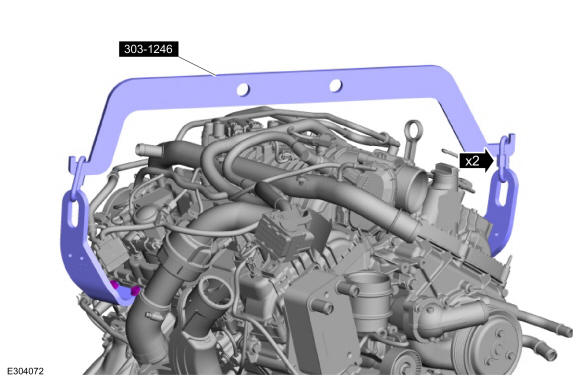

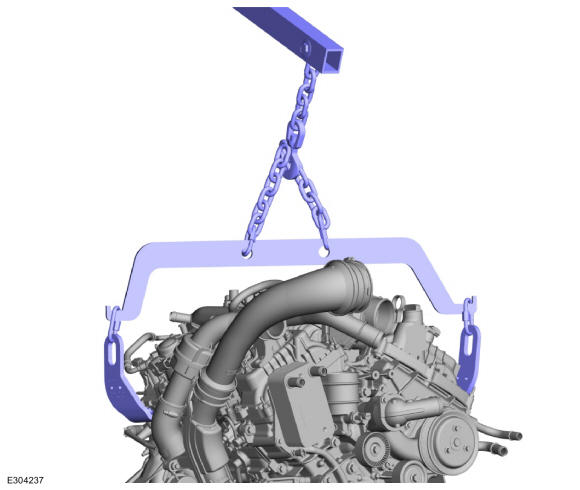

5. Remove the spreader bar and quick links. Remove Special Service Tool: 303-1246 Engine Spreader Bar.

   Courtesy of FORD MOTOR COMPANY

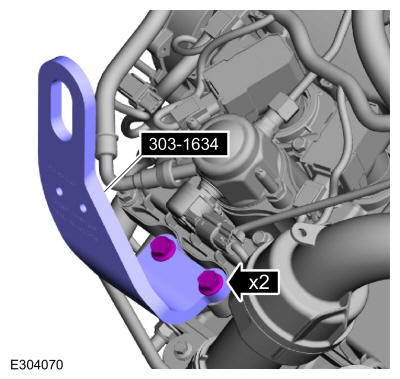

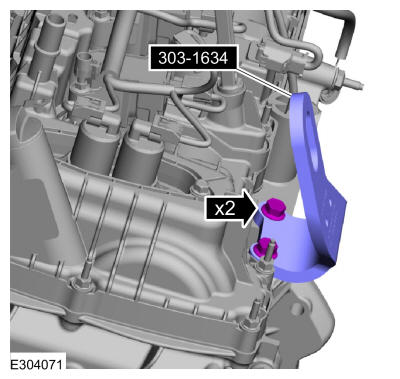

6. Remove Special Service Tool: 303-1634 Lift Eyes (2).

   Courtesy of FORD MOTOR COMPANY

7. Remove Special Service Tool: 303-1634 Lift Eyes (2).

   Courtesy of FORD MOTOR COMPANY

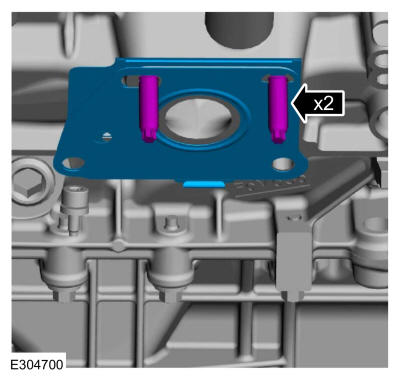

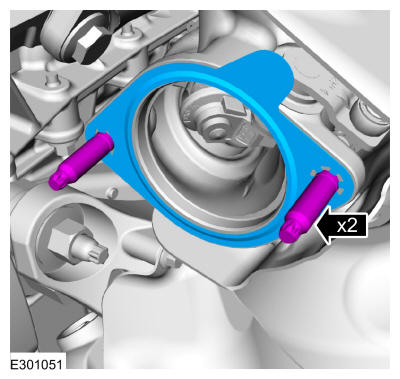

8. • If removed, install new TC mounting studs.

     Torque: 102 lb. in (11. 5 Nm)

   • Install a new TC gasket.

   Courtesy of FORD MOTOR COMPANY

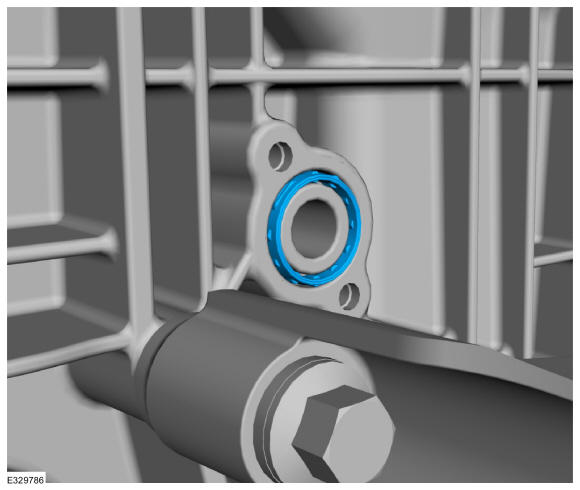

9. Install a new TC oil return tube-to-engine block gasket.

   Courtesy of FORD MOTOR COMPANY

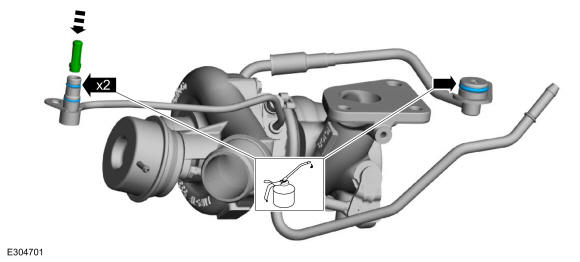

10. 1. Install new TC oil supply tube O-ring seals and a new TC oil supply tube oil filter. Lubricate the new TC oil supply tube O-ring seals with clean engine oil.
    2. Install a new TC coolant supply tube O-ring seal. Lubricate the new TC coolant supply tube O-ring seal with clean engine coolant.

    Courtesy of FORD MOTOR COMPANY

11. 1. NOTE: Install the coolant supply tube and the oil supply tube to the engine block while installing the TC.

       Install the TC and loosely install the new fasteners.

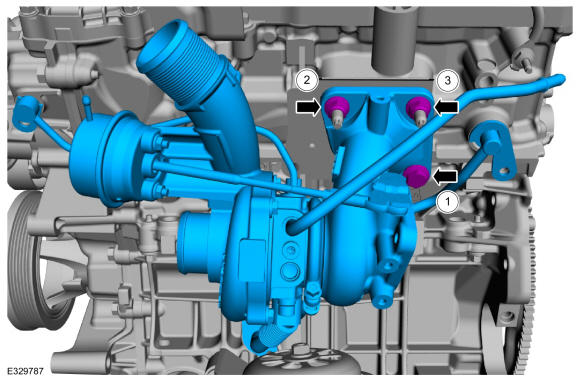

    2. Tighten the fasteners in sequence.

       Torque: Fastener 1: 44 lb. ft (60 Nm) Fastener 2: 44 lb. ft (60 Nm) Fastener 3: 27 lb. ft (37 Nm) Re-tighten fastener 1: 44 lb. ft (60 Nm) Re-tighten fastener 2: 44 lb. ft (60 Nm) Re-tighten fastener 3: 27 lb. ft (37 Nm)

    Courtesy of FORD MOTOR COMPANY

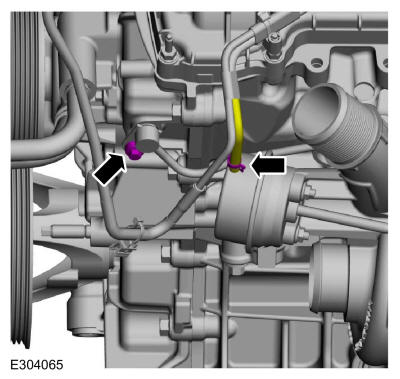

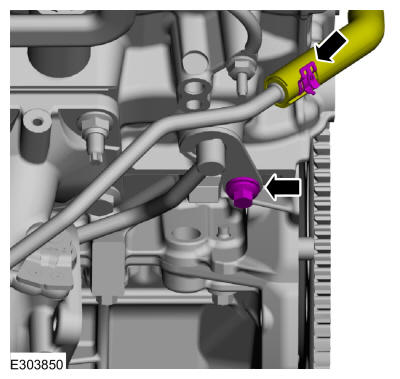

12. • Install the TC oil supply tube bolt.

      Torque: 18 lb. ft (24 Nm)

    • Connect the vacuum hose and clamp.

    Courtesy of FORD MOTOR COMPANY

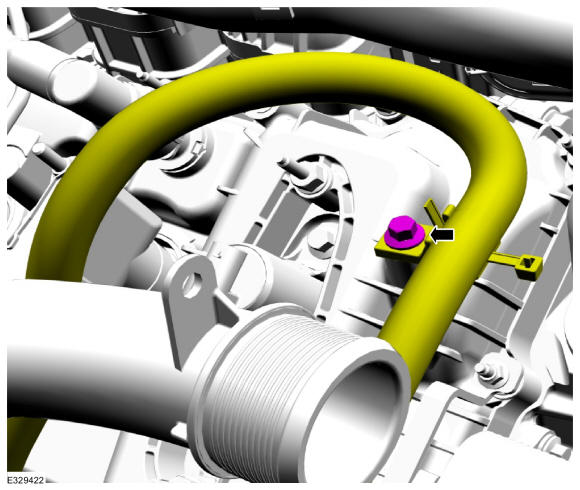

13. • Install the TC coolant supply tube bolt.

      Torque: 89 lb. in (10 Nm)

    • Connect the TC coolant return hose and clamp.

    Courtesy of FORD MOTOR COMPANY

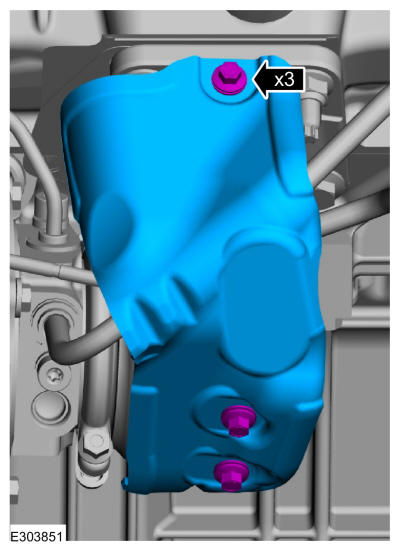

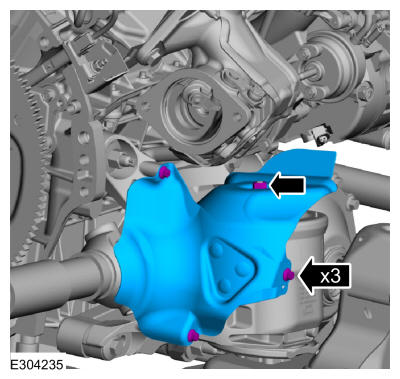

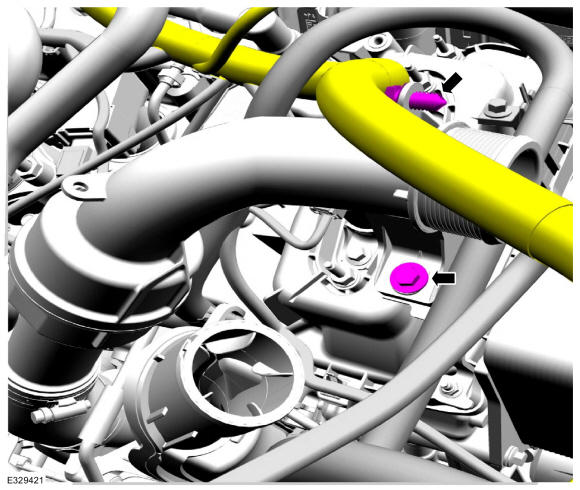

14. Install the heat shield and the bolts.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

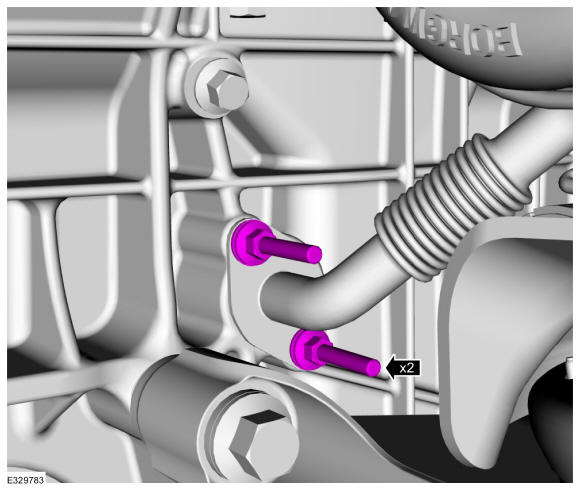

15. Install the TC oil return tube fasteners.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

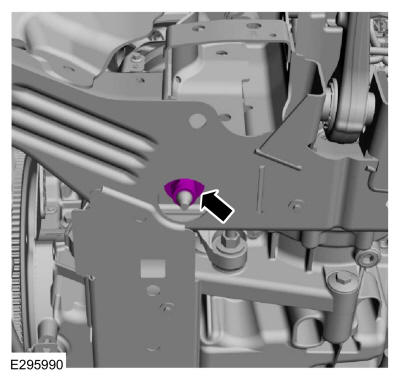

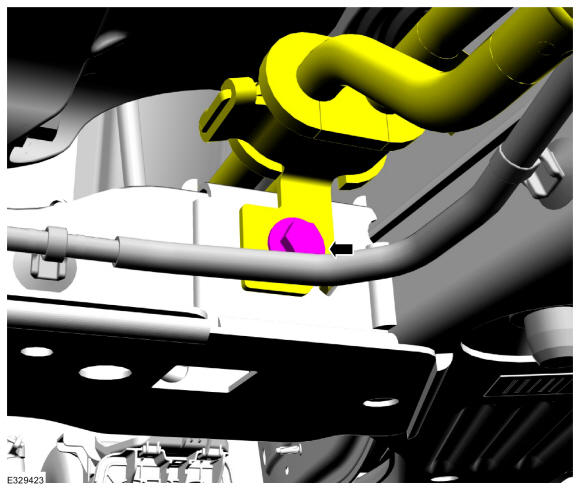

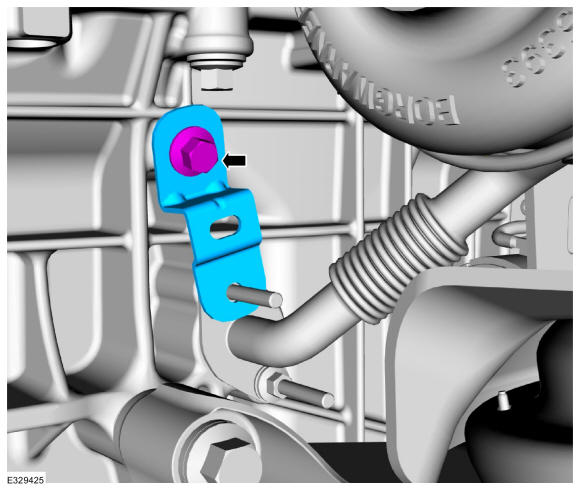

16. Install the bracket and the bolt.

    Torque: 106 lb. in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

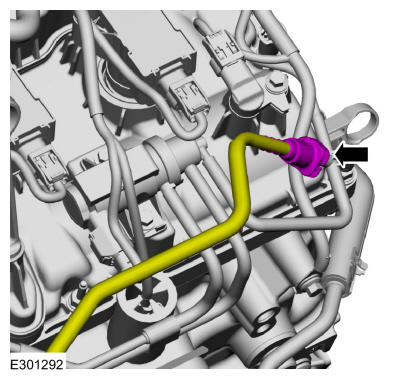

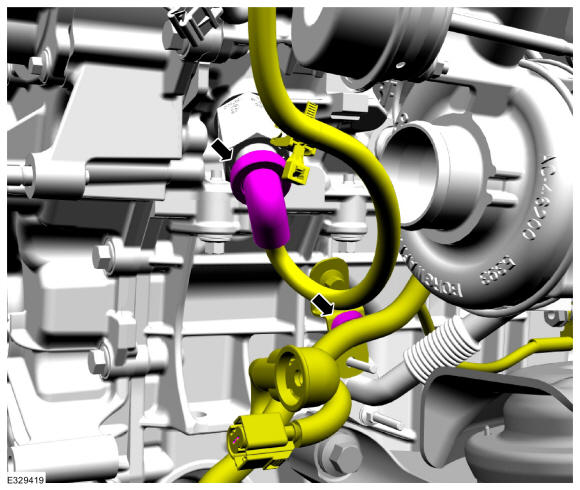

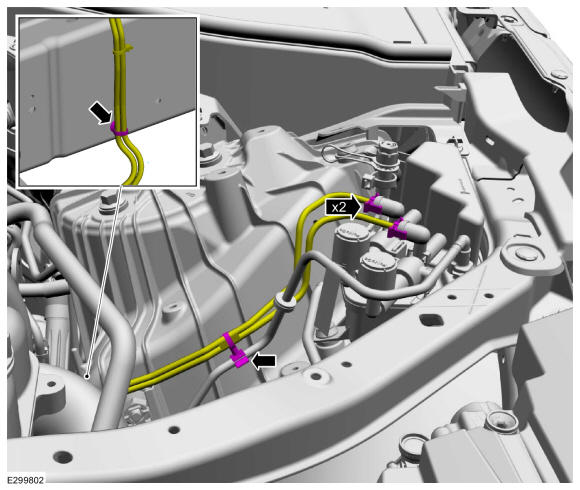

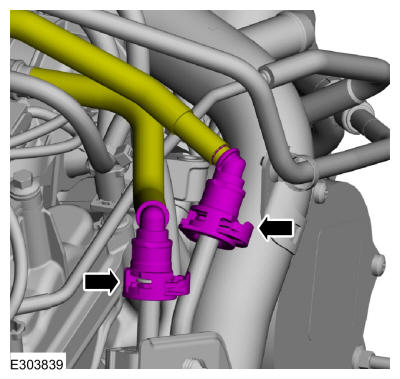

17. NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

    If equipped, connect the vacuum tube(s).

    Courtesy of FORD MOTOR COMPANY

18. NOTE: Single vacuum tube system shown, dual vacuum tube system similar.

    If equipped, connect the vacuum tube(s).

    Courtesy of FORD MOTOR COMPANY

    LHD AWD

19. NOTE: Make sure that a new component is installed.
    NOTE: Make sure that the O-ring is seated correctly.

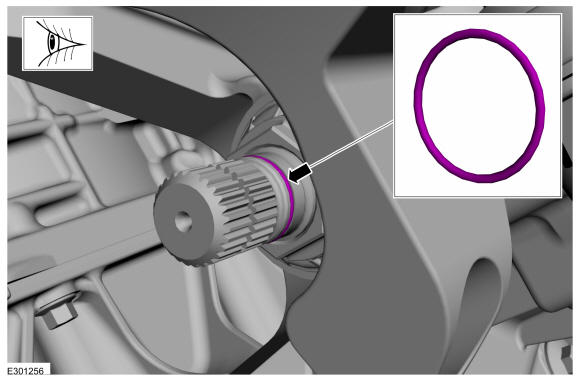

    Install a new front axle pinion stem O-ring.

    Courtesy of FORD MOTOR COMPANY

20. NOTE: Make sure that a new component is installed.

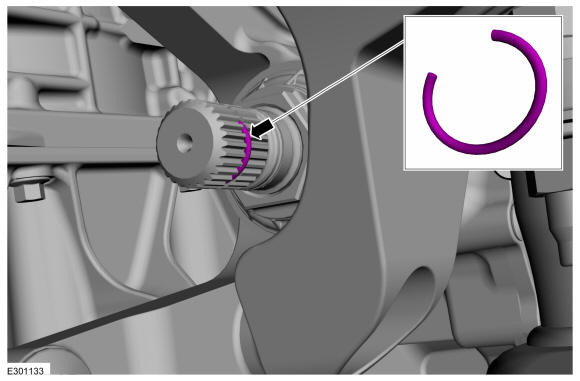

    Install the new front axle pinion stem circlip.

    Courtesy of FORD MOTOR COMPANY

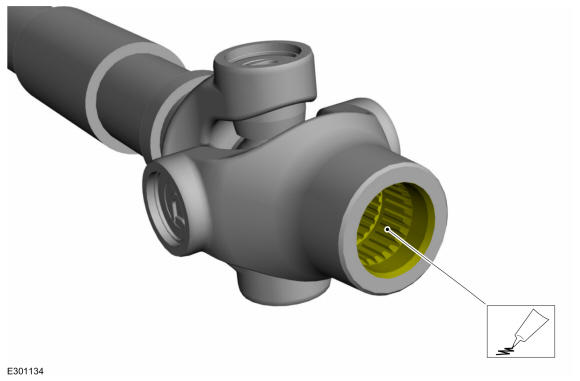

21. NOTE: Do not over-lubricate the driveshaft components. Using excessive grease may damage the driveshaft components.
    NOTE: Wipe off any excess grease.

    Lubricate the front drive axle splines with grease.

    Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

    Courtesy of FORD MOTOR COMPANY

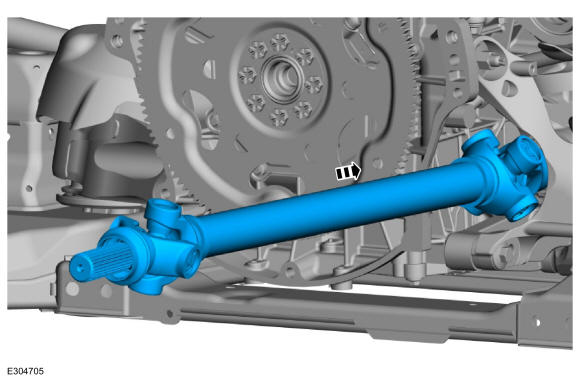

22. Install the front drive shaft.

    Courtesy of FORD MOTOR COMPANY

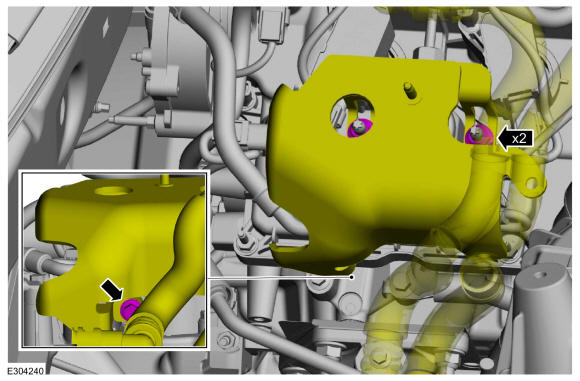

23. Install the heat shield and the fasteners.

    Torque: 89 lb. in (10 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

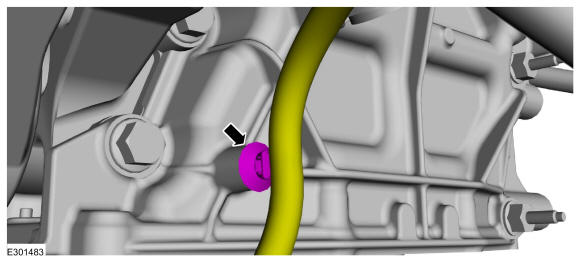

24. • If removed, install new studs.

      Torque: 18 lb. ft (25 Nm)

    • Install the new gasket.

    Courtesy of FORD MOTOR COMPANY

25. NOTE: AWD shown, RWD similar.

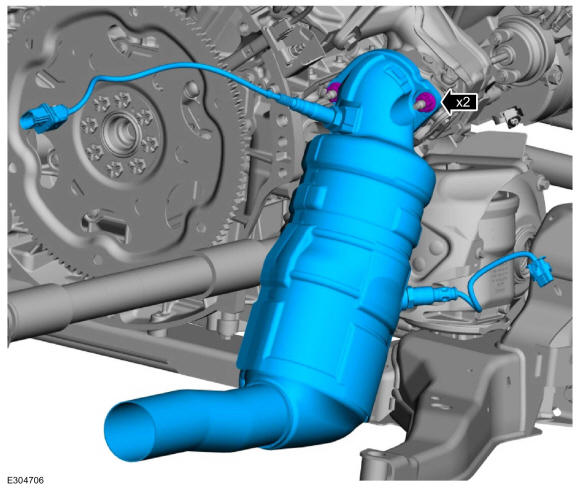

    Install the RH catalytic converter and the new nuts.

    Torque: 35 lb. ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

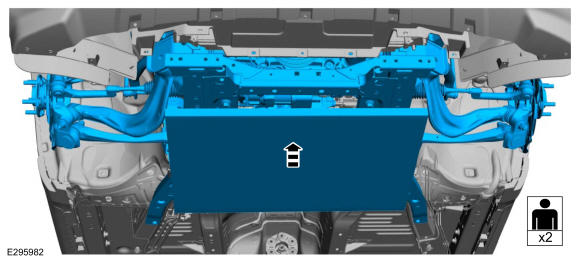

26. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe as an assembly 25. 4 mm (1 in) from the frame.

    Courtesy of FORD MOTOR COMPANY

27. 1. With the aid of an assistant and using the powertrain jack, position the powertrain and subframe forwards 50. 8 mm (2 in).
    2. With the aid of an assistant and using the powertrain jack, raise the powertrain and subframe 25. 4 mm (1 in).

    Courtesy of FORD MOTOR COMPANY

28. NOTE: The original bolts will be installed at this point to support the subframe, new bolts will be installed after the LH catalytic converter is installed.

    Install the original rear subframe bolts.

    Courtesy of FORD MOTOR COMPANY

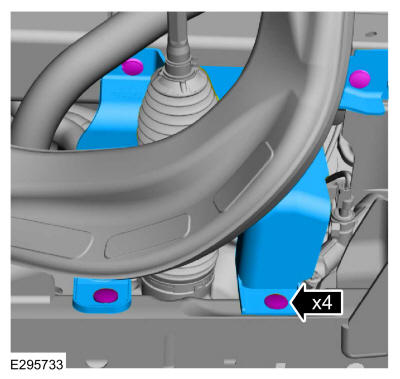

29. Install the new front subframe bolts finger tight.

    Courtesy of FORD MOTOR COMPANY

30. NOTE: The original bolts will be installed at this point to support the subframe, new bolts will be installed after the LH catalytic converter is installed.

    Install the original middle subframe bolts.

    Courtesy of FORD MOTOR COMPANY

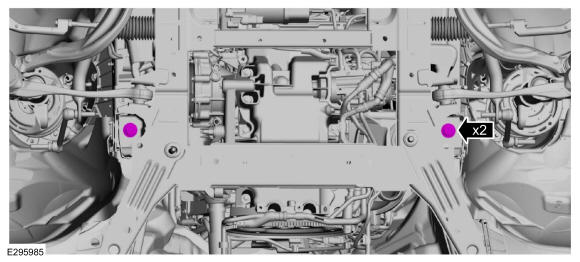

31. Tighten the front subframe bolts.

    Torque: 195 lb. ft (265 Nm)

    Courtesy of FORD MOTOR COMPANY

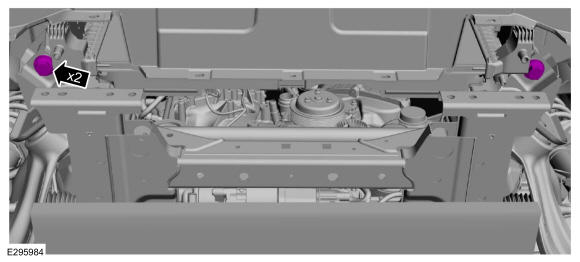

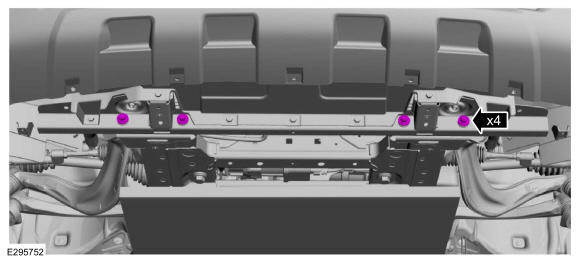

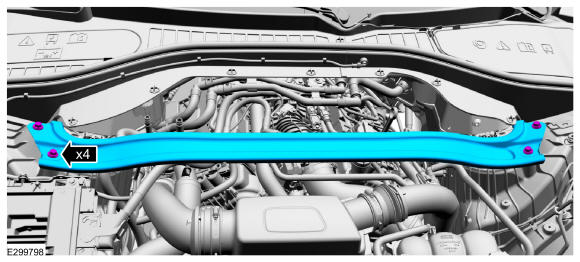

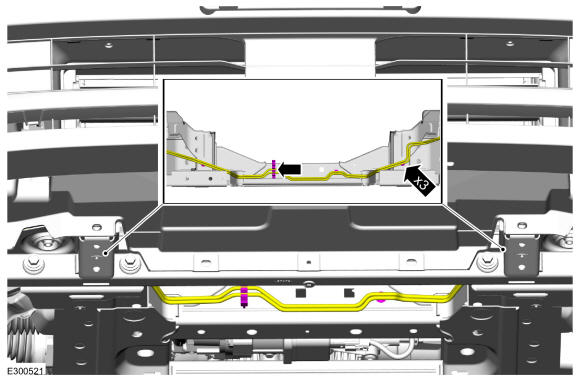

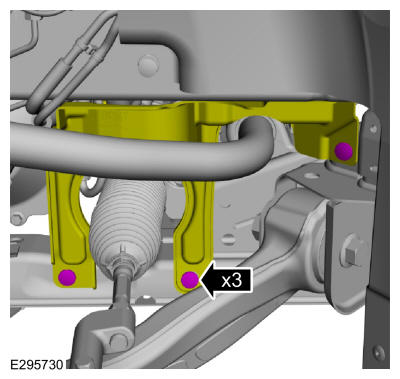

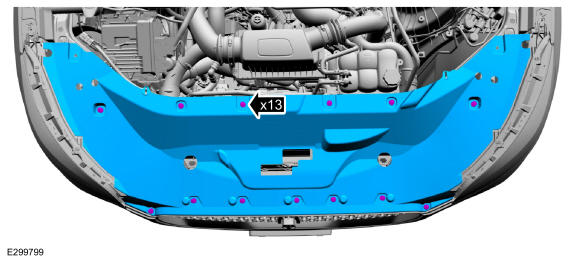

32. Install the front radiator support bar bolts.

    Torque: 46 lb. ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

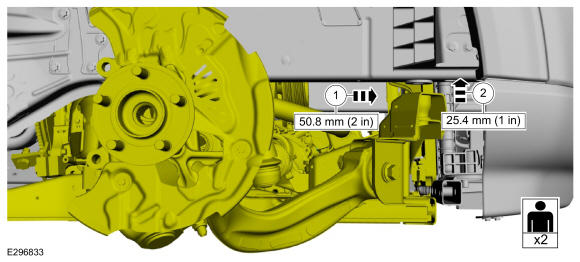

33. Remove. Use the General Equipment: Adjustable Mounting Arm

    Courtesy of FORD MOTOR COMPANY

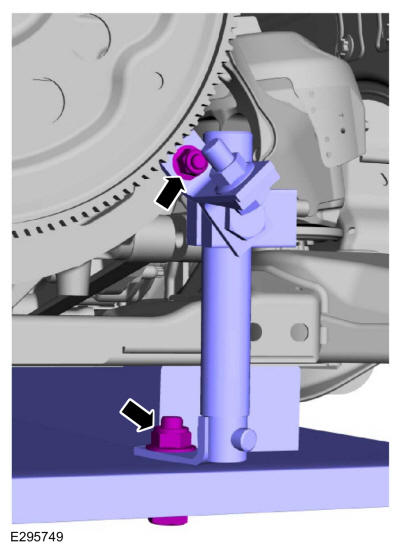

34. Remove the powertrain jack and wooden blocks Use the General Equipment: Wooden Block

    Courtesy of FORD MOTOR COMPANY

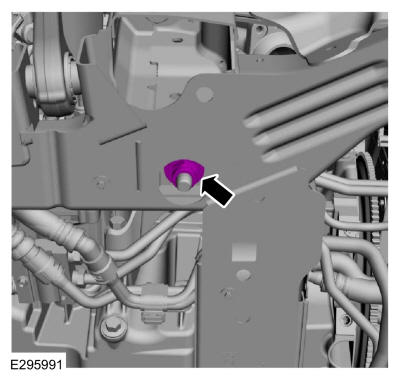

35. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new RH engine mount nut.

    Torque: 184 lb. ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

36. NOTE: Only use hand tools when removing the engine mount nuts or damage to the engine mount can occur.

    Install the new LH engine mount nut.

    Torque: 184 lb. ft (250 Nm)

    Courtesy of FORD MOTOR COMPANY

37. NOTE: AWD shown, RWD similar.

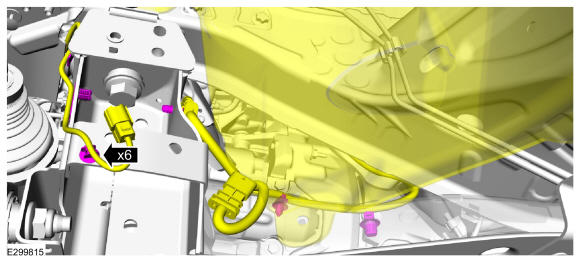

    • Connect the HO2S and catalyst monitor sensor electrical connectors.
    • Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

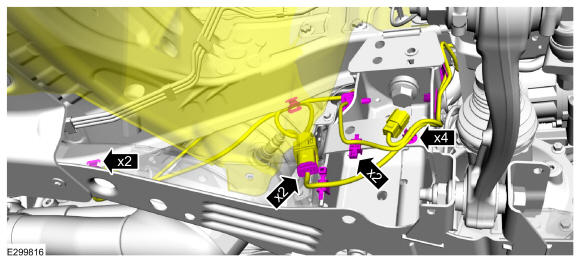

38. NOTE: AWD shown, RWD similar.

    Attach the HO2S wiring harness retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

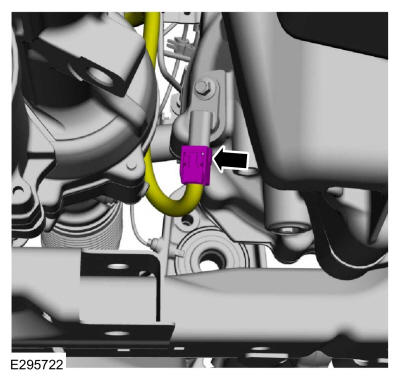

39. Install the vent hose(s) and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

40. Install the following items:
    1. Refer to: Transmission - 3. 0L EcoBoost .
    2. RH side. Refer to: Exhaust Flexible Pipe .

    LHD AWD

41. Install the RH and LH halfshafts. Refer to: Halfshaft .

    LHD RWD

42. NOTE: On both sides.

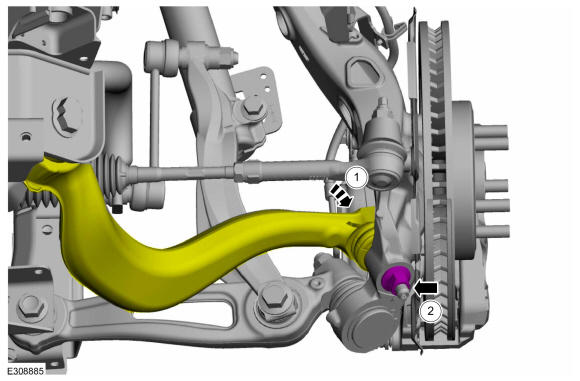

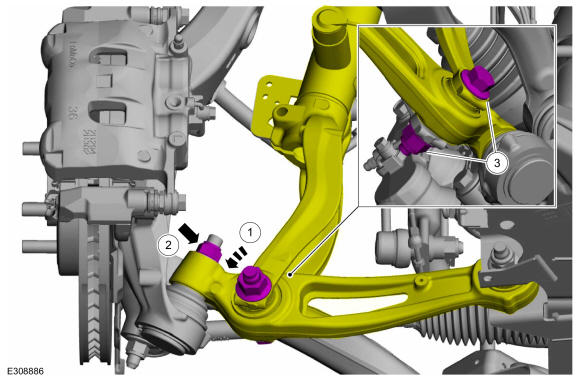

    1. Install the lower arm onto the knuckle.
    2. NOTE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.
       NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.

       Install the new nut.

       Torque: 136 lb. ft (185 Nm)

    3. Install the nut and bolt.

       Torque: 210 lb. ft (285 Nm)

    Courtesy of FORD MOTOR COMPANY

43. NOTE: Do not use power tools to remove or install the lower arm outboard nut. Damage to the ball joint or ball joint seal may occur.
    NOTE: Use the TORX PLUS® holding feature to prevent the ball stud from turning while removing or installing the lower arm outboard nut. Torx® and TORX PLUS® is a reg. tm of Acument Intellectual Properties, LLC.
    NOTE: On both sides.
    1. Install the front lower arm into the knuckle.
    2. Install the new nut.

       Torque: 66 lb. ft (90 Nm)

    Courtesy of FORD MOTOR COMPANY

44. NOTE: On both sides.

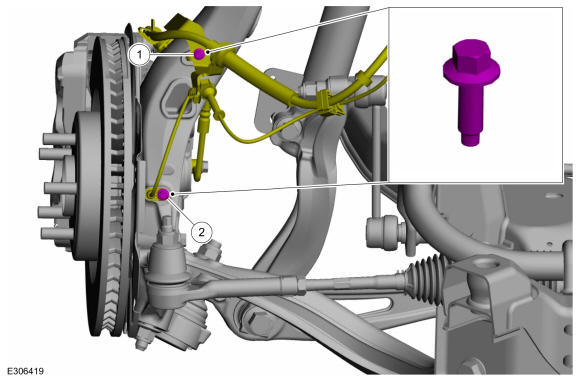

    1. Install the retainer bracket and the bolt.

       Torque: 106 lb. in (12 Nm)

    2. Install the front wheel speed sensor and bolt.

       Torque: 159 lb. in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

45. NOTE: On both sides.

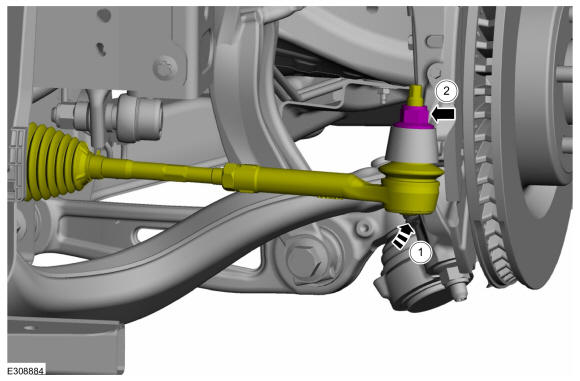

    1. Install the tie rod end into the wheel knuckle.
    2. Install the new nut.

       Torque: 52 lb. ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

    LHD AWD/LHD RWD

46. NOTE: Use the internal or external hex-holding feature to prevent the ball and stud from turning while removing or installing the stabilizer bar link nuts. The link boot seal must not be allowed to twist while tightening the link nuts or damage to the boot seal will occur.
    NOTE: On both sides.

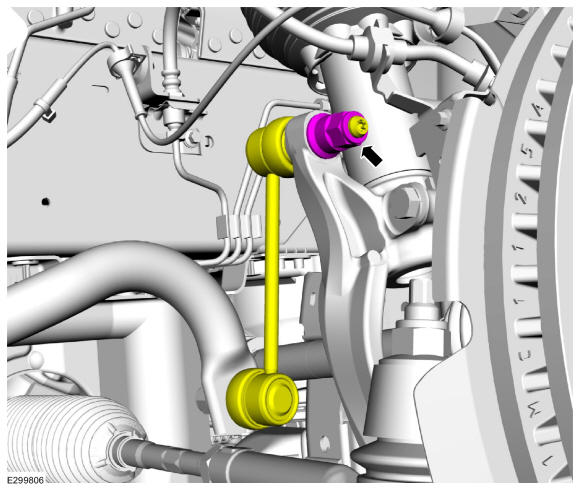

    Position the sway bar link and install the new nut.

    Torque: 129 lb. ft (175 Nm)

    Courtesy of FORD MOTOR COMPANY

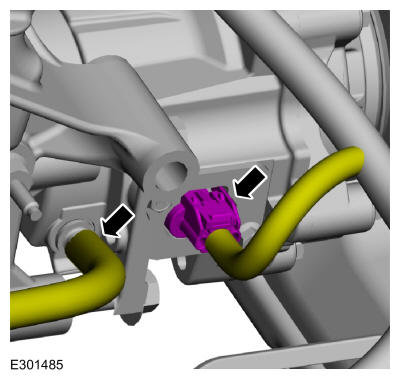

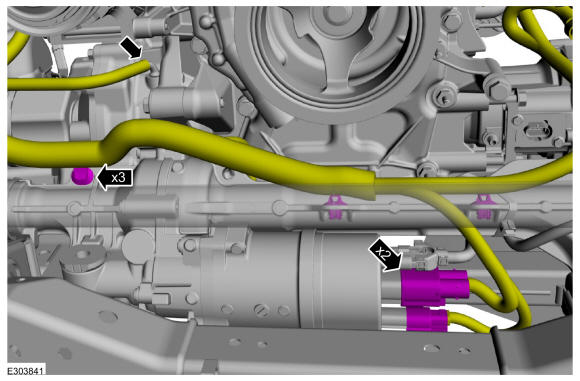

47. • If equipped, connect the RH transfer case vent hose.
    • Connect the steering gear wiring harness electrical connectors and attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

48. If equipped, attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

49. If equipped, connect the wiring harness electrical connector to the RH transfer case.

    Courtesy of FORD MOTOR COMPANY

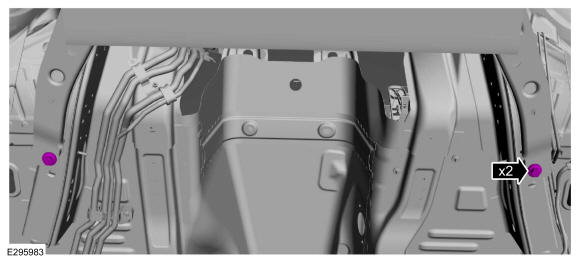

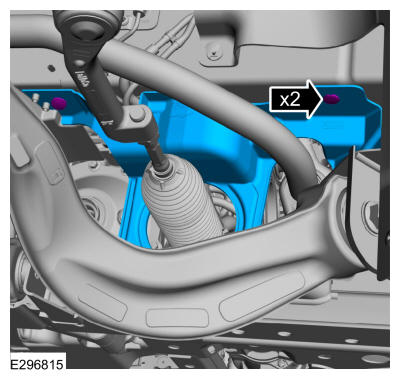

50. Install the splash shield pin-type retainer to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

51. Install the steering shield and the pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

52. Install the steering shield pin-type retainers to the RH subframe.

    Courtesy of FORD MOTOR COMPANY

53. If equipped, attach the air suspension tube retainers.

    Courtesy of FORD MOTOR COMPANY

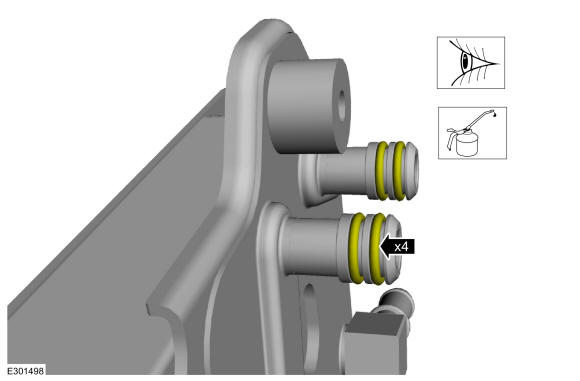

54. Inspect the O-ring seals and install new O-ring seals if necessary. Lubricate the O-ring seals before installing the transmission fluid cooler.

    Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A,) (MERCON® ULV)

    Courtesy of FORD MOTOR COMPANY

55. NOTE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

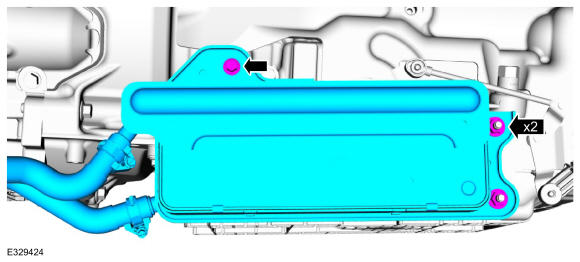

    Install the transmission fluid cooler and loosely install the bolt and the nuts by hand.

    Courtesy of FORD MOTOR COMPANY

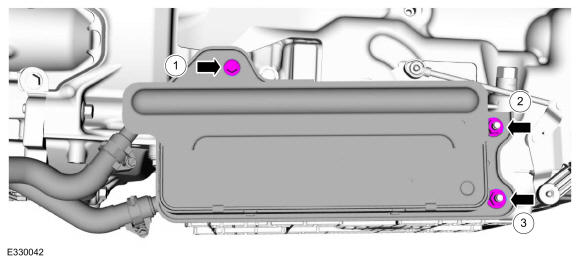

56. NOTE: Make sure the oil cooler is completely installed against the transmission before tightening, or damage to the cooler could result.

    Tighten the bolt and nuts in the sequence shown.

    Torque: 18 lb. ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

57. Position the bracket and install the bolt.

    Torque: 71 lb. in (8 Nm)

    Courtesy of FORD MOTOR COMPANY

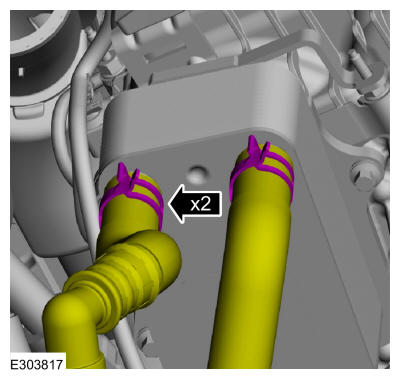

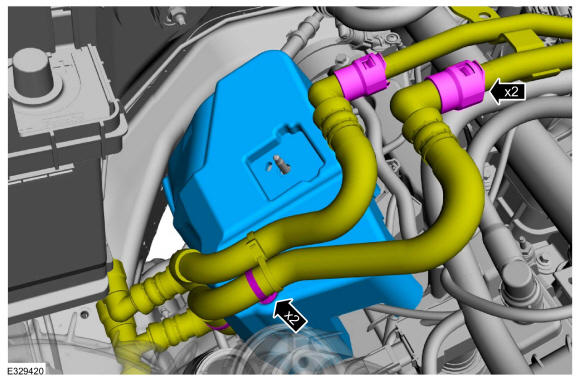

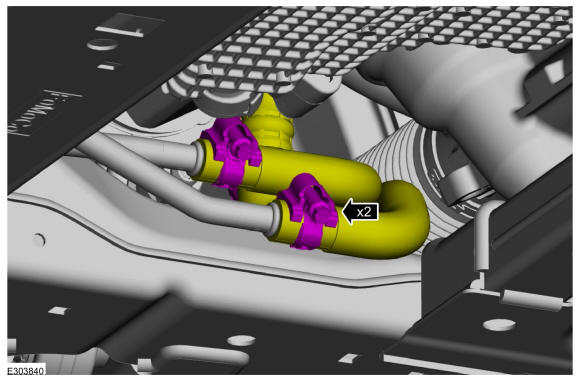

58. Connect the coolant hoses and tighten the clamps.

    Torque: 33 lb. in (3. 7 Nm)

    Courtesy of FORD MOTOR COMPANY

59. NOTE: If equipped with AWD.
    • Connect the vent hose.
    • Connect the wiring harness electrical connector.

    Courtesy of FORD MOTOR COMPANY

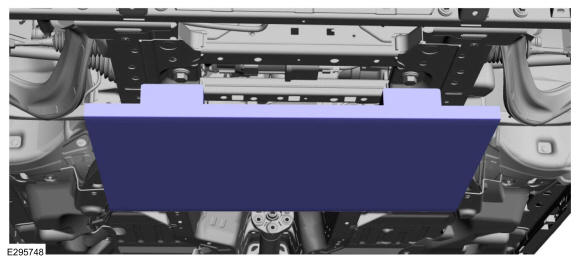

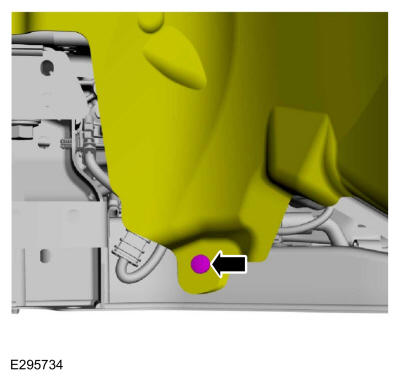

60. Position the splash shield and install the pin-type retainer to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

61. Install the steering shield and the pin-type retainers to the LH subframe.

    Courtesy of FORD MOTOR COMPANY

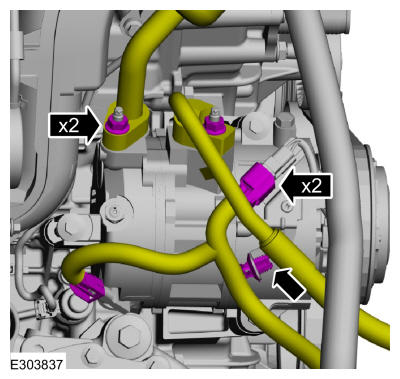

62. • Connect the A/C wiring harness electrical connectors.
    • Attach the wiring harness retainer.
    • Install a new O-ring seal.
    • Connect the A/C lines to A/C compressor and install the nuts.

      Torque: 159 lb. in (18 Nm)

    Courtesy of FORD MOTOR COMPANY

63. If equipped, install the front suspension height sensors. Refer to: Front Suspension Height Sensor .
64. • Connect the fuel supply tube quick release coupling. Refer to: Quick Release Coupling .
    • Connect the EVAP supply tube quick release coupling. Refer to: Quick Release Coupling .

    Courtesy of FORD MOTOR COMPANY

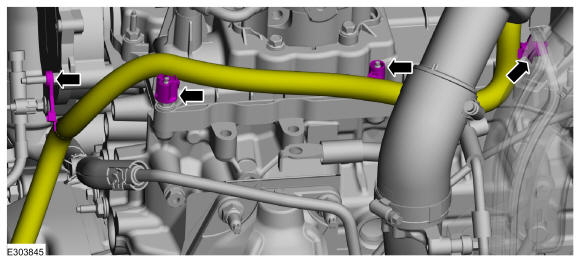

65. Attach the wiring harness retainers.

    Courtesy of FORD MOTOR COMPANY

66. Position the wiring harness and install the bolt.

    Torque: 97 lb. in (11 Nm)

    Courtesy of FORD MOTOR COMPANY

67. Install the ground cable and the bolt.

    Torque: 106 lb. in (12 Nm)

    Courtesy of FORD MOTOR COMPANY

68. 1. Position the high-pressure fuel pump shield.
    2. Connect the high-pressure fuel pump fuel feed spring lock coupling. Refer to: Spring Lock Couplings .

    Courtesy of FORD MOTOR COMPANY

69. Install the high-pressure fuel pump shield, the nuts and the bolt.

    Torque: 18 lb. ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

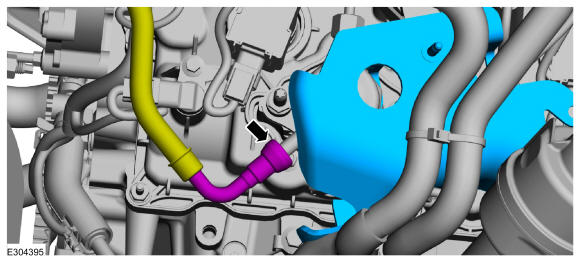

70. NOTE: When removing or installing the fuel injection pump noise insulator, spreading the openings will reduce the risk of damage.
    1. Install the fuel injection pump noise insulator.
    2. Attach the coolant hose retainers.
    3. Connect the coolant hoses.

    Courtesy of FORD MOTOR COMPANY

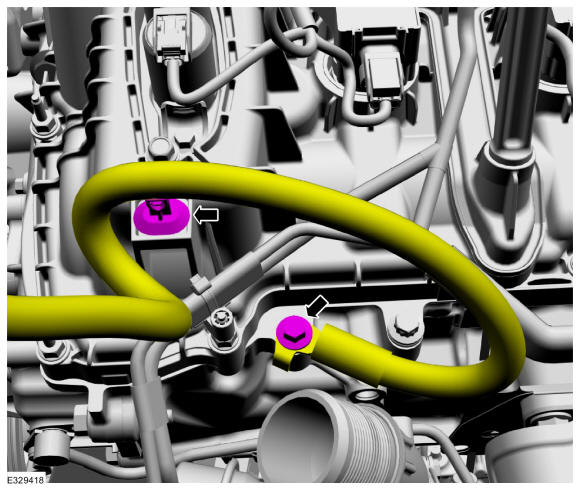

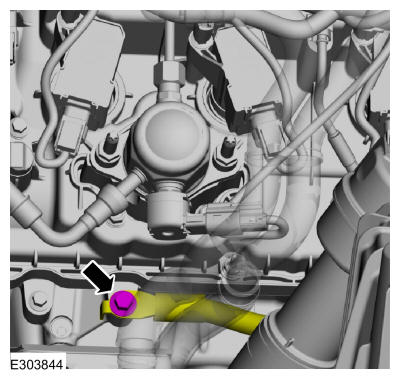

71. 1. Install the bolt.

       Torque: 106 lb. in (12 Nm)

    2. Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

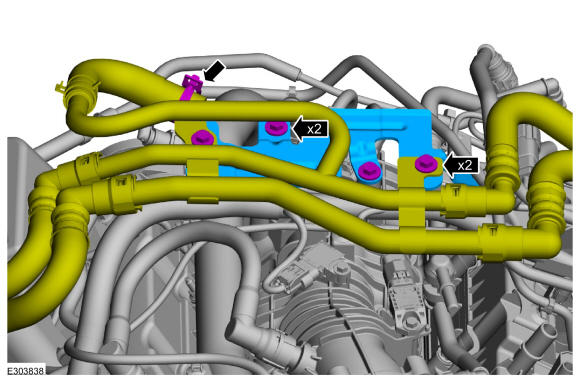

72. • Install the intake manifold bracket and the bolts.

      Torque: 97 lb. in (11 Nm)

    • Position the heater hose brackets and install the bolts.

      Torque: 97 lb. in (11 Nm)

    • Connect the heater hose and clamp.

    Courtesy of FORD MOTOR COMPANY

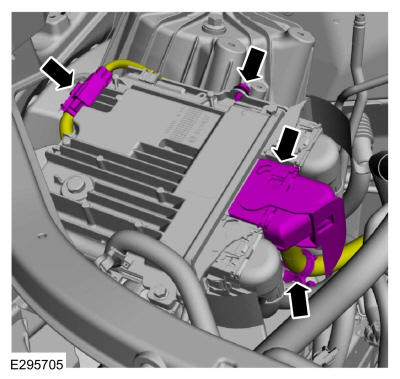

73. • Connect the center PCM electrical connector and attach the wiring harness retainer.
    • Connect the engine harness electrical connector, and attach the retainer.

    Courtesy of FORD MOTOR COMPANY

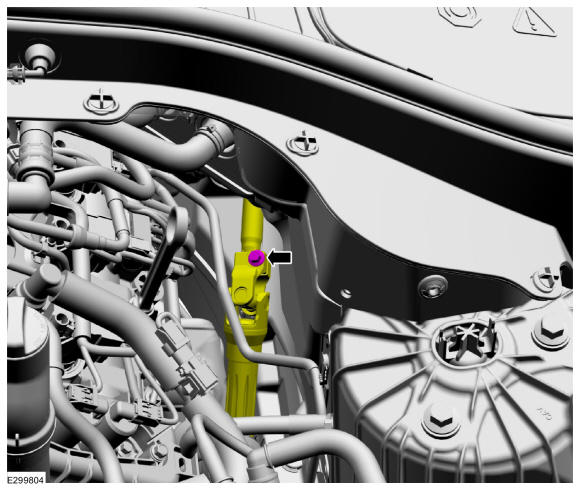

74. Install the new steering shaft bolt.

    Torque: 22 lb. ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

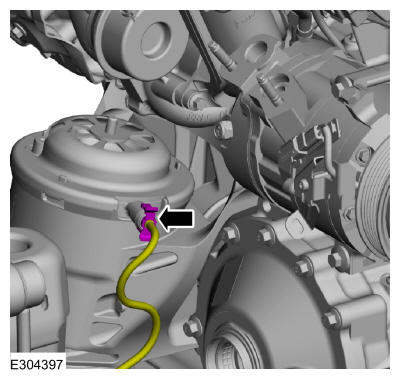

75. • Attach the wiring harness retainer.
    • If equipped, connect the block heater electrical connector.

    Courtesy of FORD MOTOR COMPANY

76. Install the generator. Refer to: Generator - 3. 0L EcoBoost .

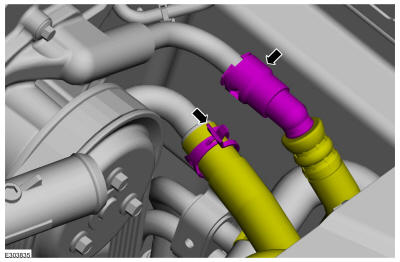

77. • Position the ground cable and install the bolt.

      Torque: 106 lb. in (12 Nm)

    • Attach the wiring harness retainer.

    Courtesy of FORD MOTOR COMPANY

78. Connect the oil cooler hoses and the clamps.

    Courtesy of FORD MOTOR COMPANY

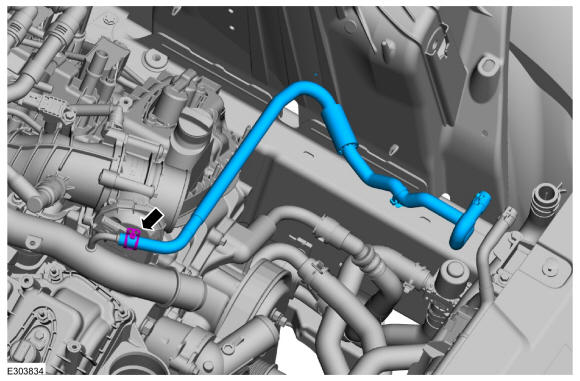

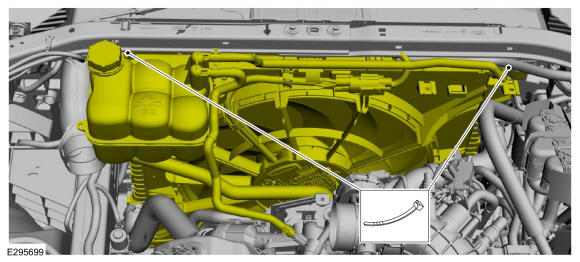

79. • Connect the coolant hose quick release coupling.
    • Connect the coolant hose and the clamp.

    Courtesy of FORD MOTOR COMPANY

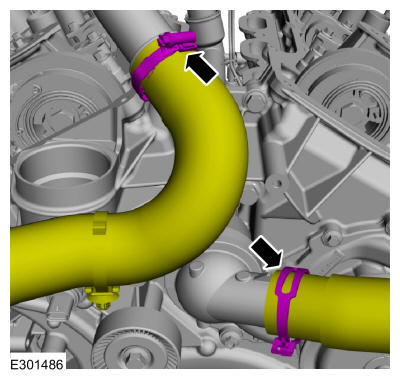

80. • Connect the upper radiator hose and the clamp.
    • Connect the lower radiator hose and the clamp.

      Torque: 48 lb. in (5. 4 Nm)

    Courtesy of FORD MOTOR COMPANY

81. 1. Install the air cleaner outlet pipe and the clamp.

       Torque: 42 lb. in (4. 8 Nm)

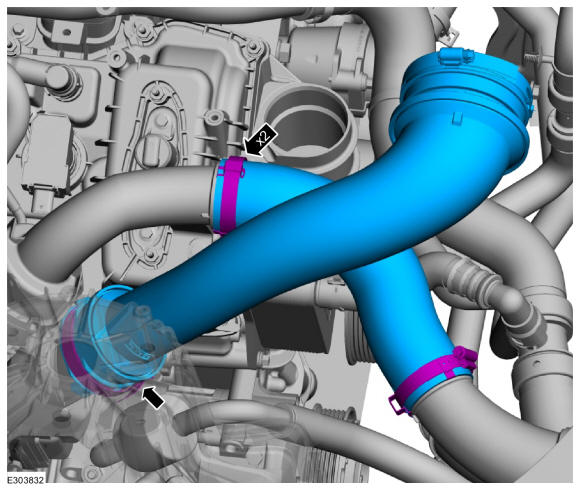

    2. Install the CAC inlet pipe and the clamps.

       Torque: 42 lb. in (4. 8 Nm)

    Courtesy of FORD MOTOR COMPANY

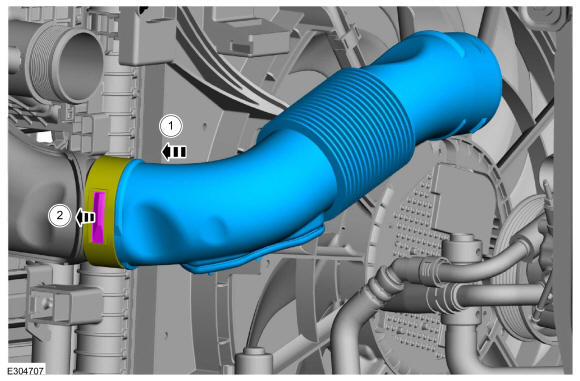

82. 1. Install the air cleaner inlet pipe.
    2. Verify the raised area of the pipe is fully engaged.

    Courtesy of FORD MOTOR COMPANY

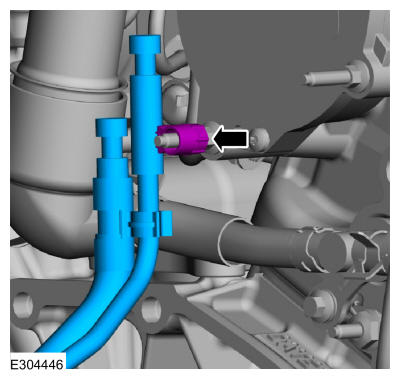

83. Install the coolant hose and the clamp.

    Courtesy of FORD MOTOR COMPANY

84. If equipped, connect the vacuum tube quick release coupling.

    Courtesy of FORD MOTOR COMPANY

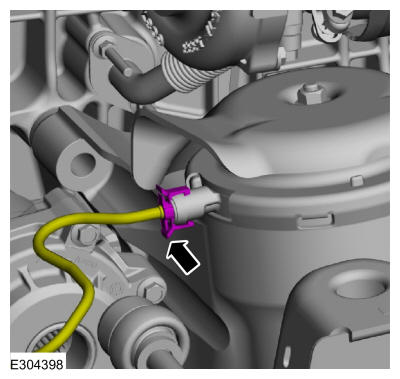

85. • If equipped, connect the vacuum tubes.
    • If equipped, attach the retainer.

    Courtesy of FORD MOTOR COMPANY

86. Install the following items:
    1. LH side. Refer to: Charge Air Cooler (CAC) Intake Pipe .
    2. Refer to: Charge Air Cooler (CAC) Outlet Pipe .
    3. Refer to: Air Cleaner .
    4. Refer to: Degas Bottle .
    5. Refer to: Cowl Panel .

87. Install a new oil filter and fill the engine with clean engine oil. Refer to: Engine Oil Draining and Filling .

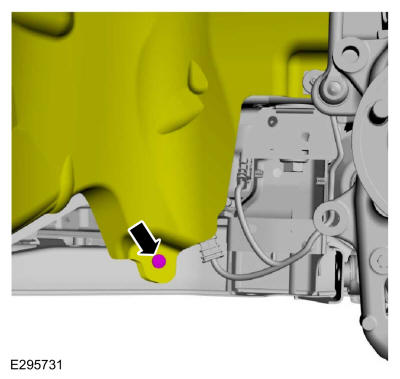

88. Install the suspension support bar and the bolts.

    Torque: 22 lb. ft (30 Nm)

    Courtesy of FORD MOTOR COMPANY

89. Remove the radiator support cable ties or mechanics wire.

    Courtesy of FORD MOTOR COMPANY

90. Install the upper radiator panel and the retainers.

    Courtesy of FORD MOTOR COMPANY

91. Install the RH engine compartment cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

92. Install the LH engine compartment cover and the retainers.

    Courtesy of FORD MOTOR COMPANY

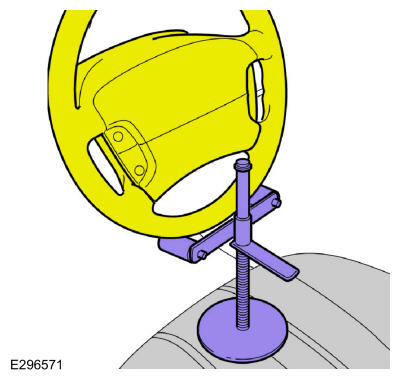

93. Remove the holding device.

    Courtesy of FORD MOTOR COMPANY

94. Connect the battery ground cable. Refer to: Battery Disconnect and Connect .
95. Pressurize the fuel system. Refer to: Fuel System Pressure Release .
96. Fill the cooling system. Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding .
97. Check the front transfer case fluid level. Refer to: Transfer Case Fluid Level Check .
98. Check the transmission fluid. Refer to: Transmission Fluid Level Check .
99. Charge the A/C system. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R1234YF Refrigerant .
100. Start and check the exhaust system for leaks.
101. Use the Powertrain Control Module (PCM) Misfire Monitor Profile Correction routine in the diagnostic scan tool.
