Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
A/C-Heater Blower Motor Circuit Breaker Under left side of dash, in fuse block.
Fuse Block

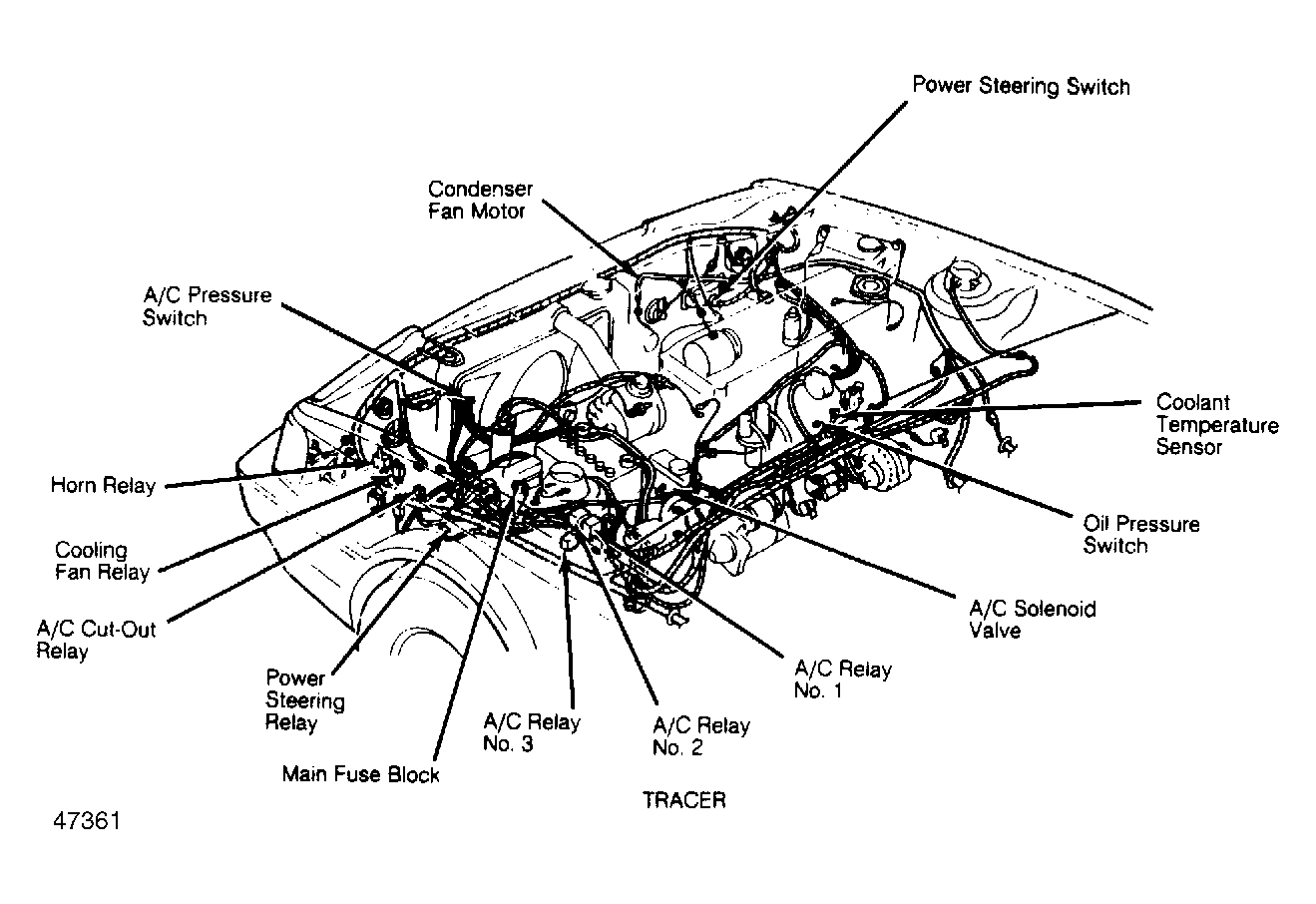

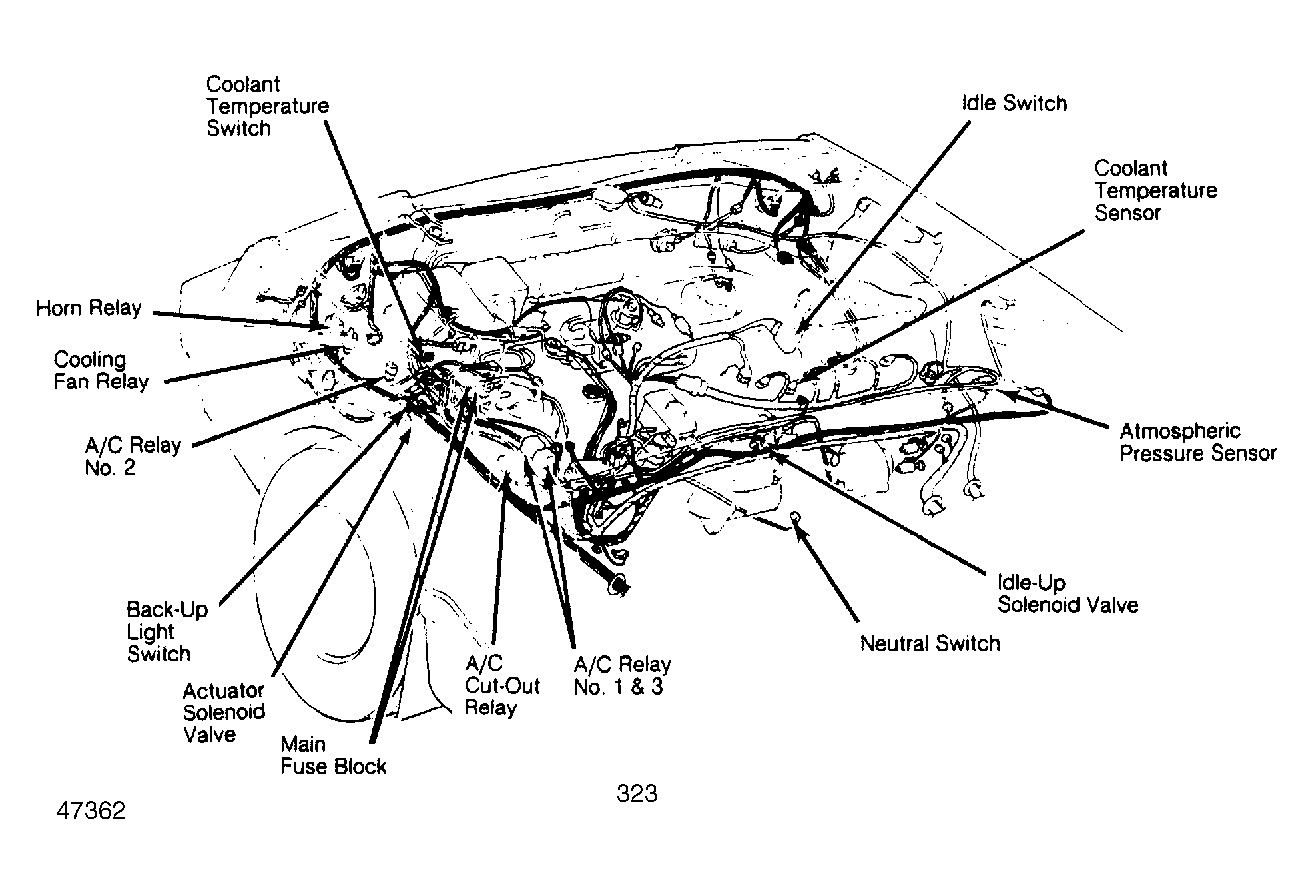

Engine Compartment On left fender apron. See Figure & Figure .
Passenger Compartment Under left side of dash, on driver's kick panel.
Fusible Link Near battery.
