Anti-Lock Brake System: Description

The Anti-Lock Brake System (ABS) control unit senses reductions in rear wheel speed and modulates hydraulic pressure to the brakes to prevent rear wheel lock-up. The anti-lock brake system consists of ABS control unit, hydraulic unit, speed sensor, sensor rotor, pressure differential switch and a check connector. See Fig 1 or Fig 2 . MPV is also equipped with an ABS relay. On all models, an ABS warning light is located on the instrument panel.

NOTE: For more information on brake system, see BRAKE SYSTEM article in the BRAKES Section.

NOTE: Illustration of ABS component locations for Navajo is not available from manufacturer.

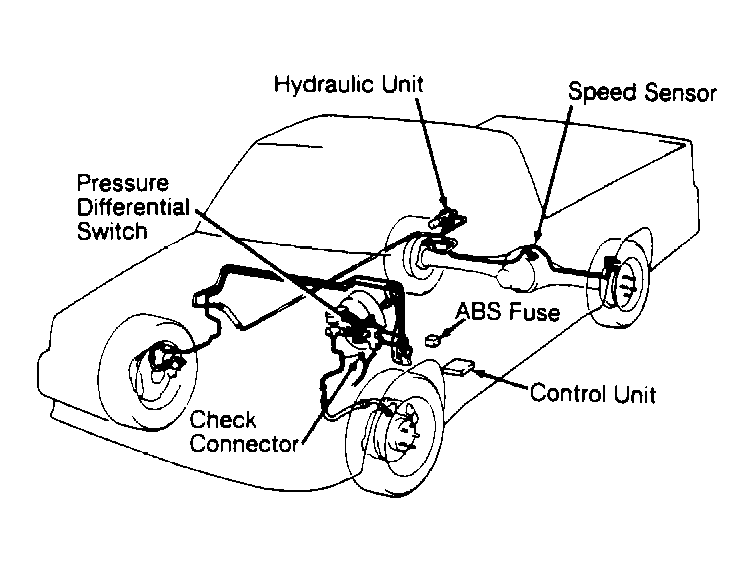

Fig 1: Locating Rear Wheel ABS Components (B2200 & B2600i)

Courtesy of MAZDA MOTORS CORP.

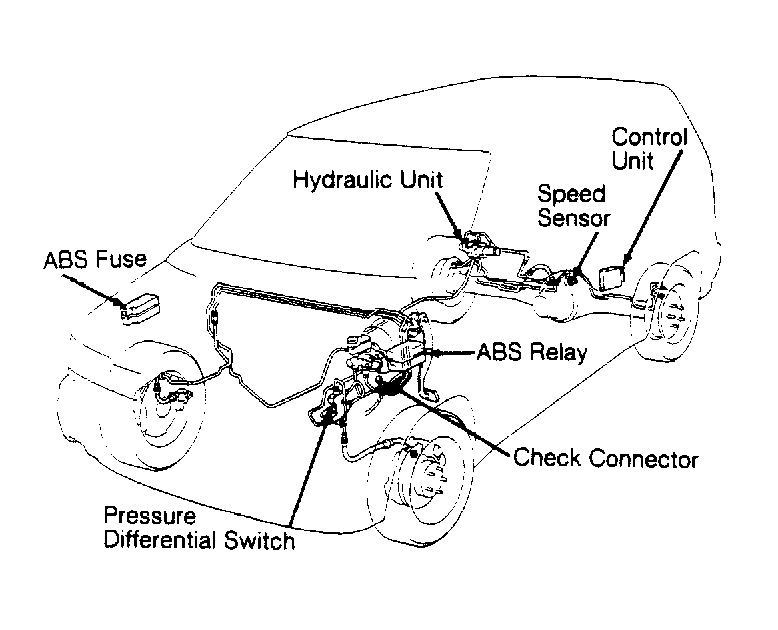

Fig 2: Locating Rear Wheel ABS Components (MPV)

Courtesy of MAZDA MOTORS CORP.
