Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

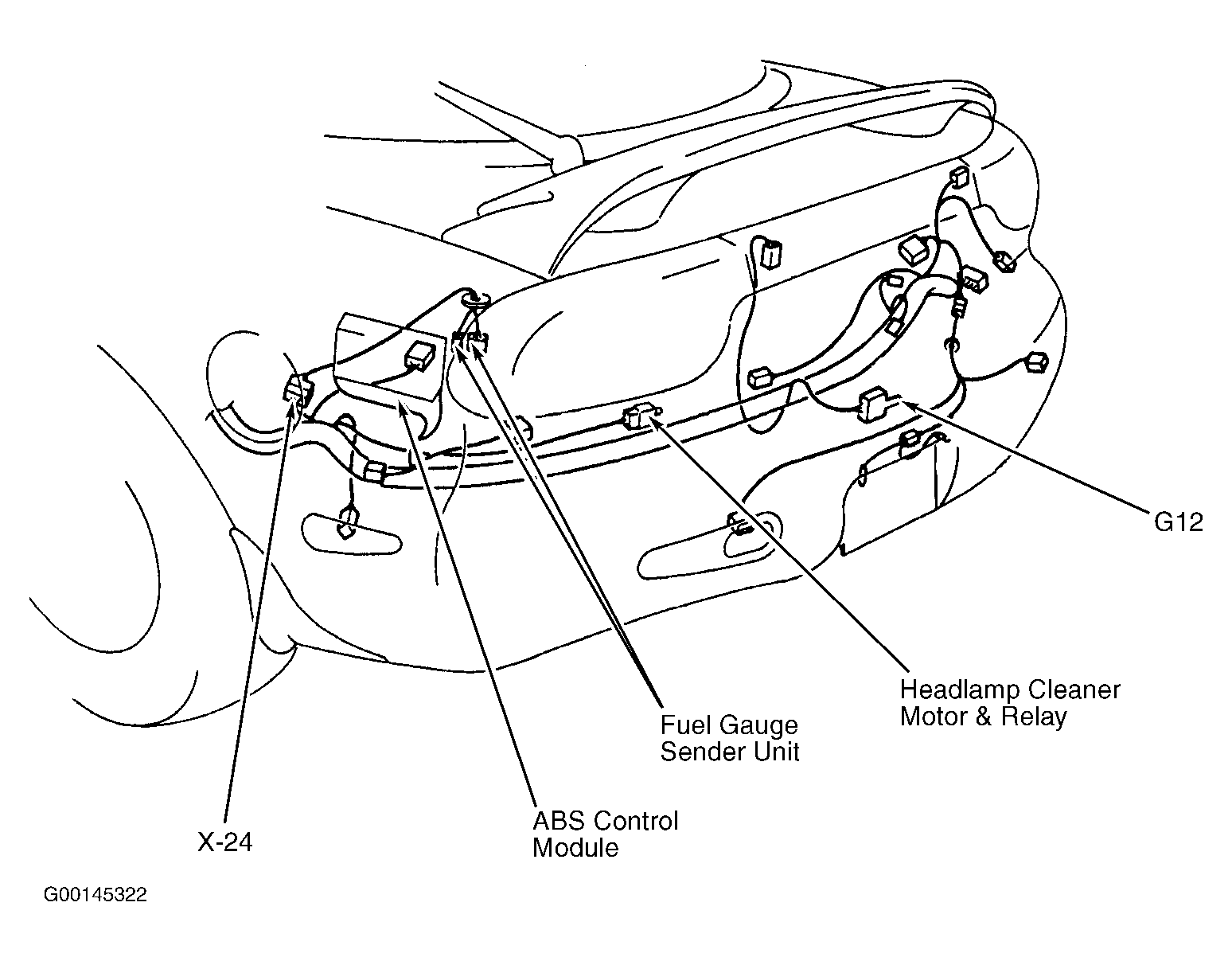

| ABS Control Module | On left side of luggage compartment, behind trim panel. See Figure . |

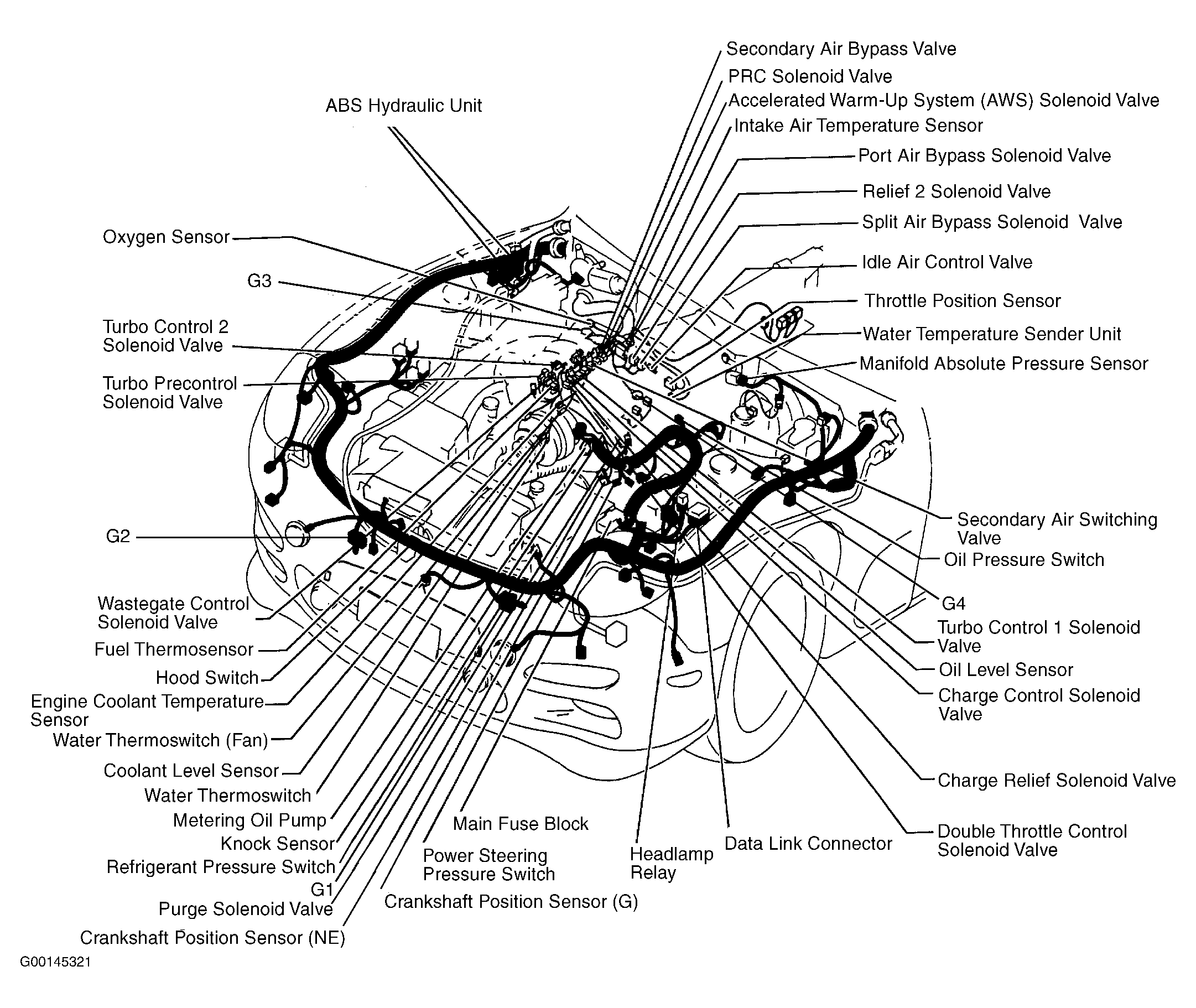

| ABS Hydraulic Unit | On right rear corner of engine compartment. See Figure . |
| Center Speaker Amplifier | Under console. |
| Central Processing Unit No. 1 (CPU No. 1) | In joint box. |

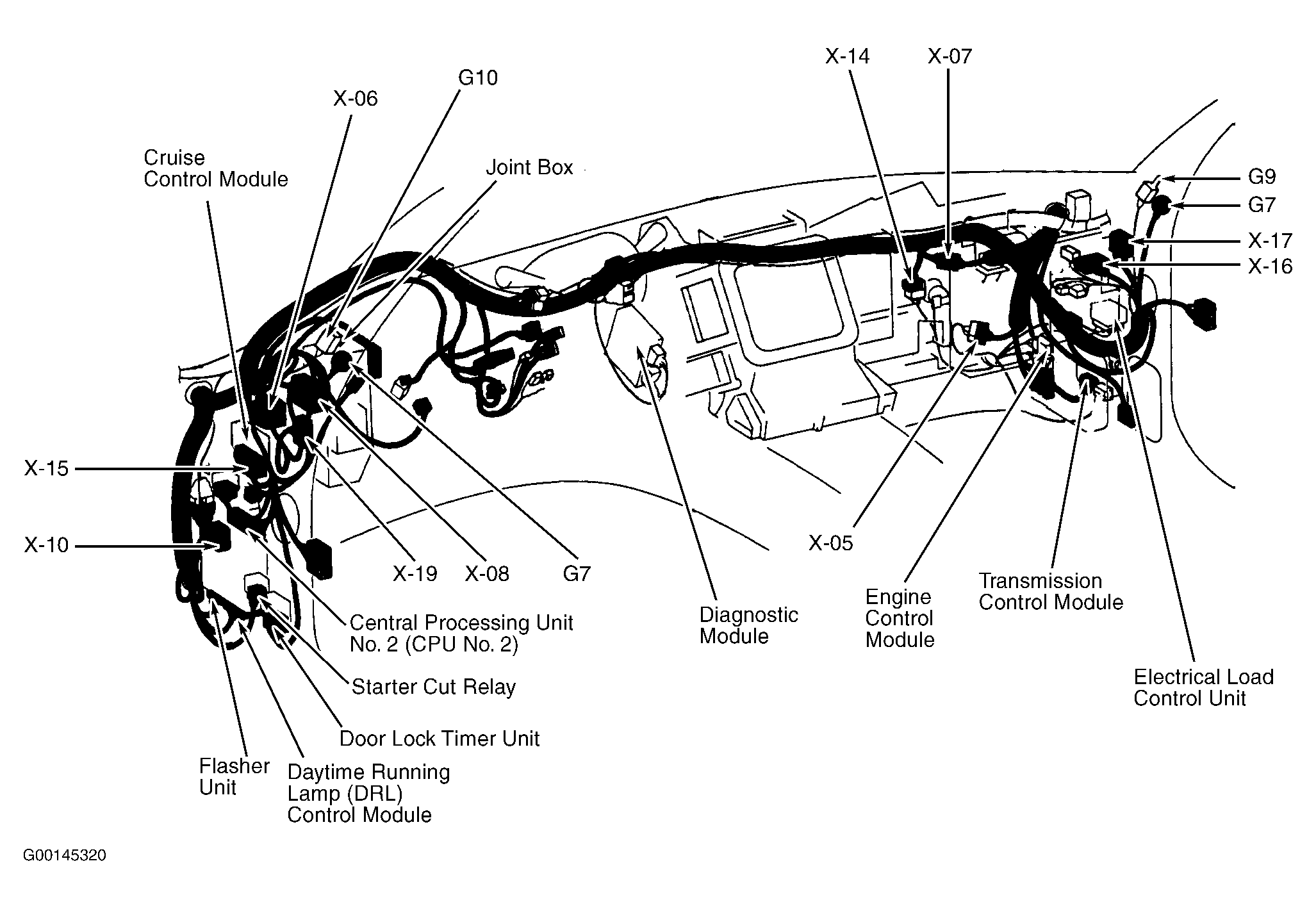

| Central Processing Unit No. 2 (CPU No. 2) | Behind left kick panel. See Figure . |
| Cruise Control Module | Behind left kick panel. See Figure . |
| Daytime Running Lamp (DRL) Control Module | Behind left kick panel. See Figure . |
| Diagnostic Module | Behind left center of dash. See Figure . |
| Electrical Load Control Unit | Behind right kick panel, above ECM. See Figure . |
| Engine Control Module (ECM) | Behind right kick panel. See Figure . |
| Heater Control Unit (Amplifier) | Behind center of dash. |
| Ignition Control Module | On left rear of engine compartment. |
| Shift Lock Control Module | Under console, forward of shift lever. |
| Transmission Control Module | Behind right side of dash. See Figure . |
