Power Steering Pump: Installation

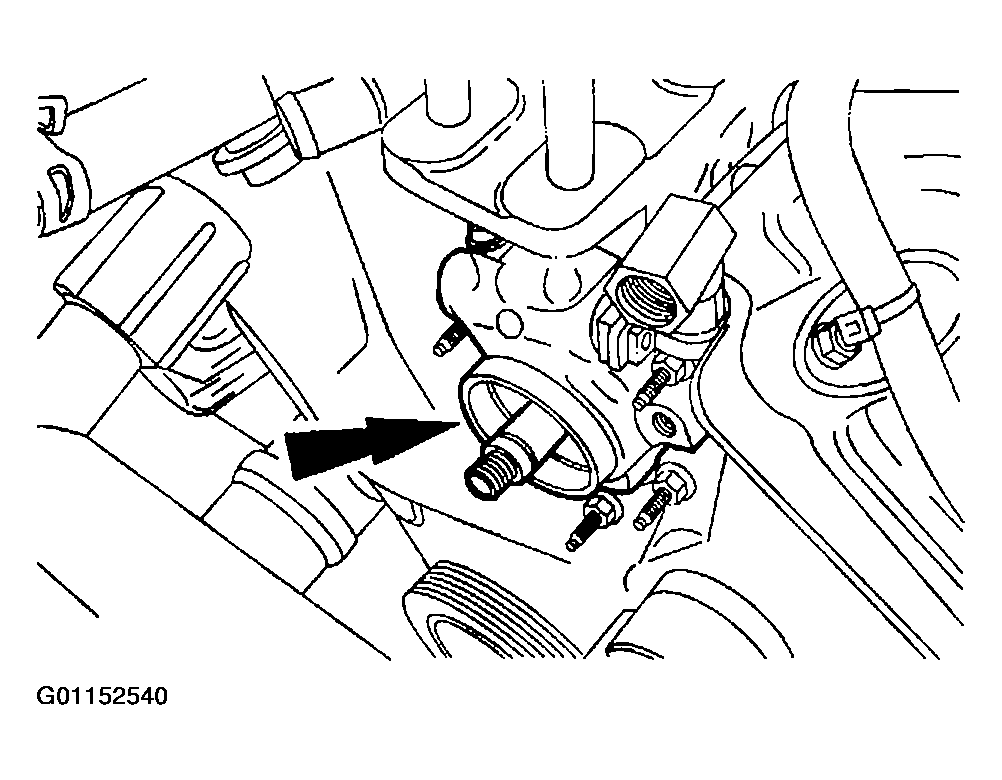

  1. Position the power steering pump.
    Fig 1: Positioning Power Steering Pump
    G01152540Courtesy of MAZDA MOTORS CORP.

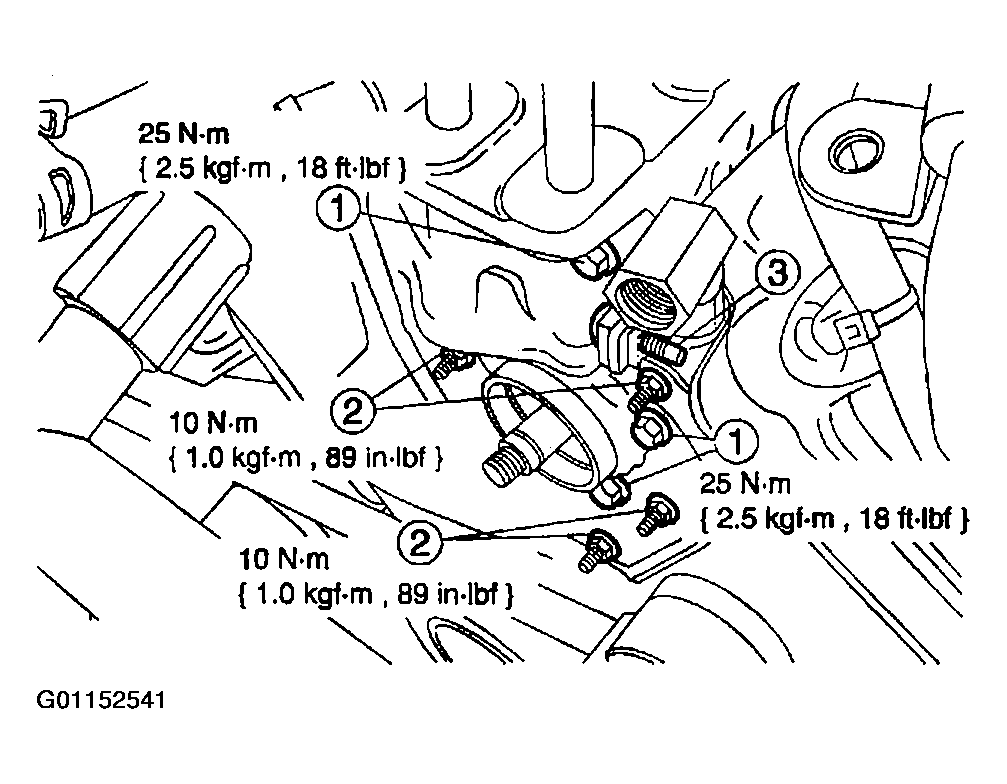

  2. Install the power steering pump bracket.
    1. Install the five bolts.
    2. Install the six nuts.
    3. Install the pressure line bracket screw.
      Fig 2: Installing Power Steering Pump Bracket
      G01152541Courtesy of MAZDA MOTORS CORP.
    3. NOTE: The engine isolator bracket is shown removed for clarity.

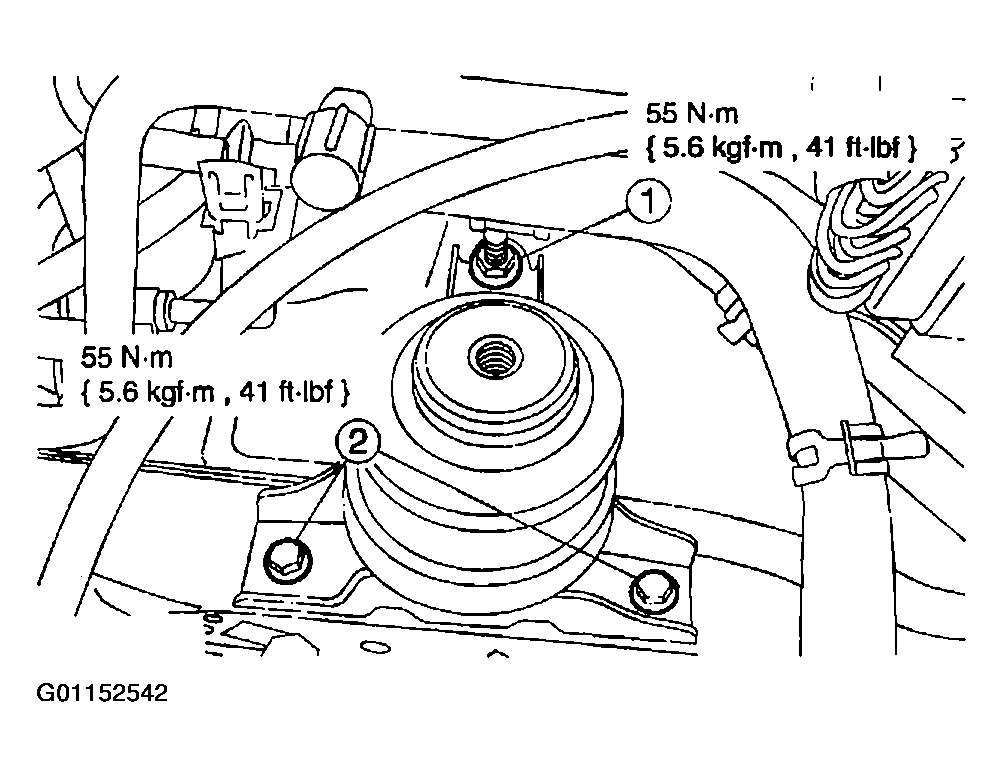

  3. Install the engine insulator.
    1. Install the bolts.
    2. Install the nut.
      Fig 3: Installing Engine Insulator
      G01152542Courtesy of MAZDA MOTORS CORP.

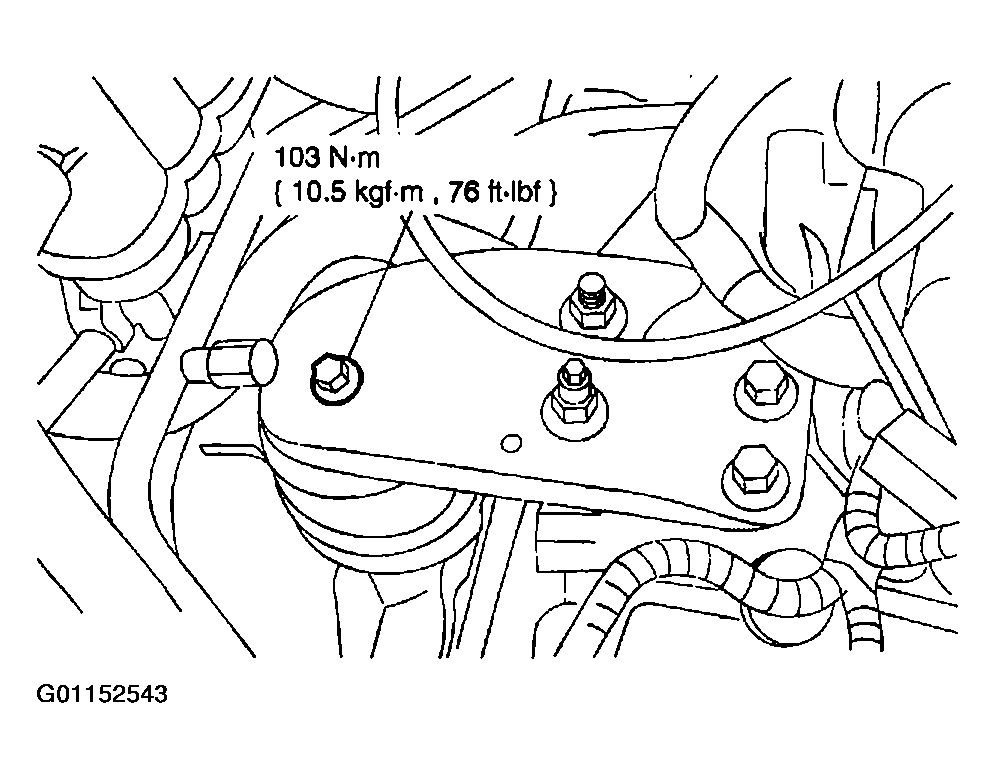

  4. Install the upper engine insulator bracket bolt.
    Fig 4: Installing Upper Engine Insulator Bracket Bolt
    G01152543Courtesy of MAZDA MOTORS CORP.

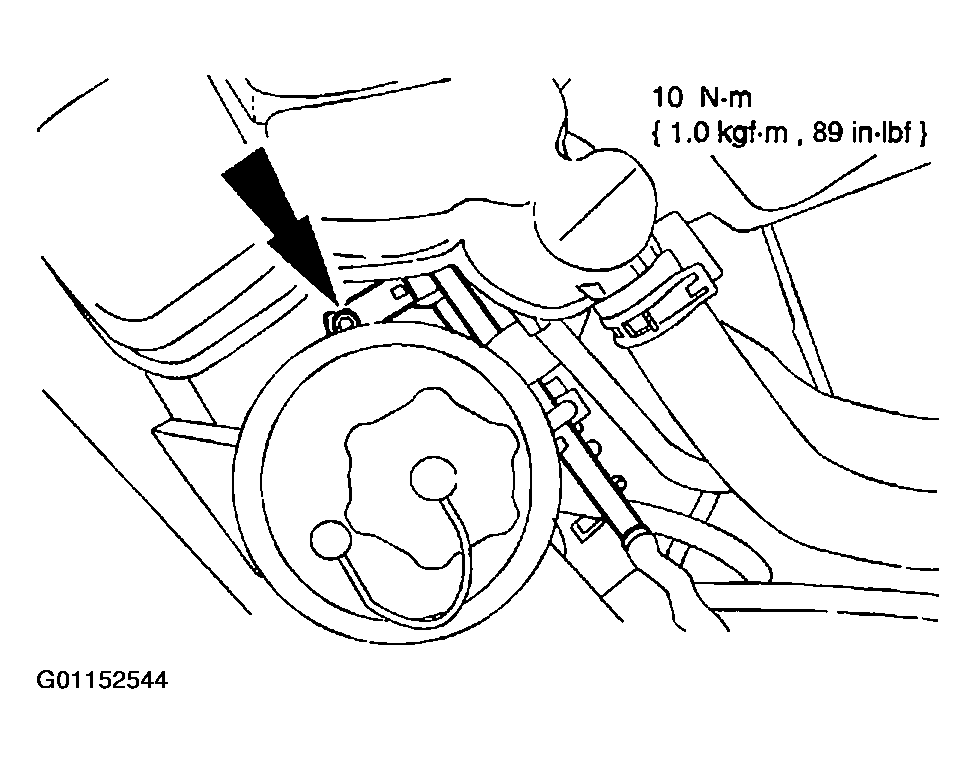

  5. Position the A/C line support and install the nut.
    Fig 5: Installing A/C Line Support
    G01152544Courtesy of MAZDA MOTORS CORP.

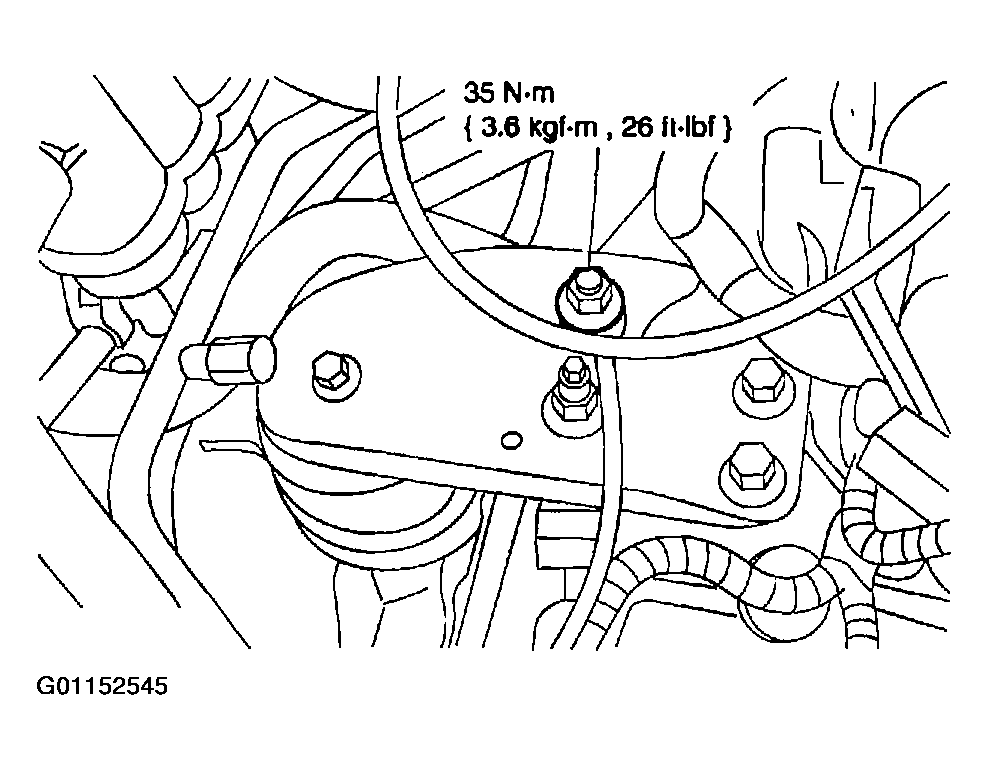

  6. Install the ground cable and nut.
    Fig 6: Installing Ground Cable
    G01152545Courtesy of MAZDA MOTORS CORP.
  7. Using the special tool, install a new seal on the power steering pressure hose fitting.
    • Remove and discard the original seal.
    • Stretch the seal over the special tool and slide it onto the tube nut.
      Fig 7: Installing Power Steering Pressure Hose Fitting Seal
      G01152546Courtesy of MAZDA MOTORS CORP.
  8. Connect the power steering pressure hose.
    1. Connect the power steering pressure hose to the pump.
    2. Connect the electrical connector.
    3. Install the power steering pressure line bracket bolt.

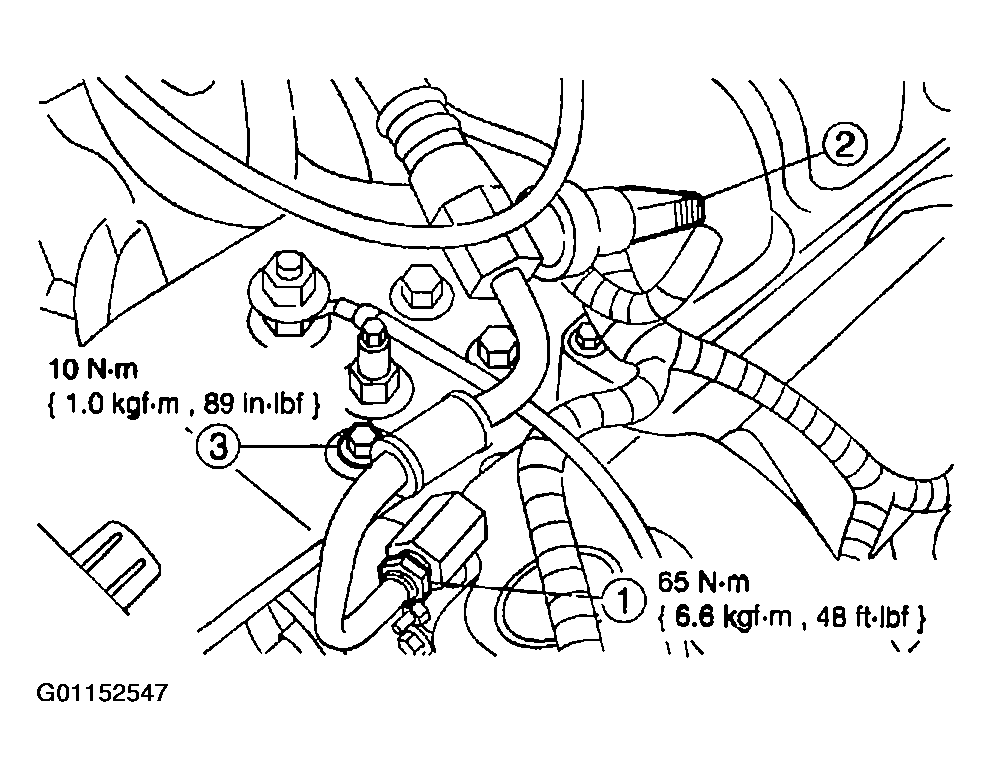

      Fig 8: Connecting Power Steering Pressure Hose
      G01152547Courtesy of MAZDA MOTORS CORP.

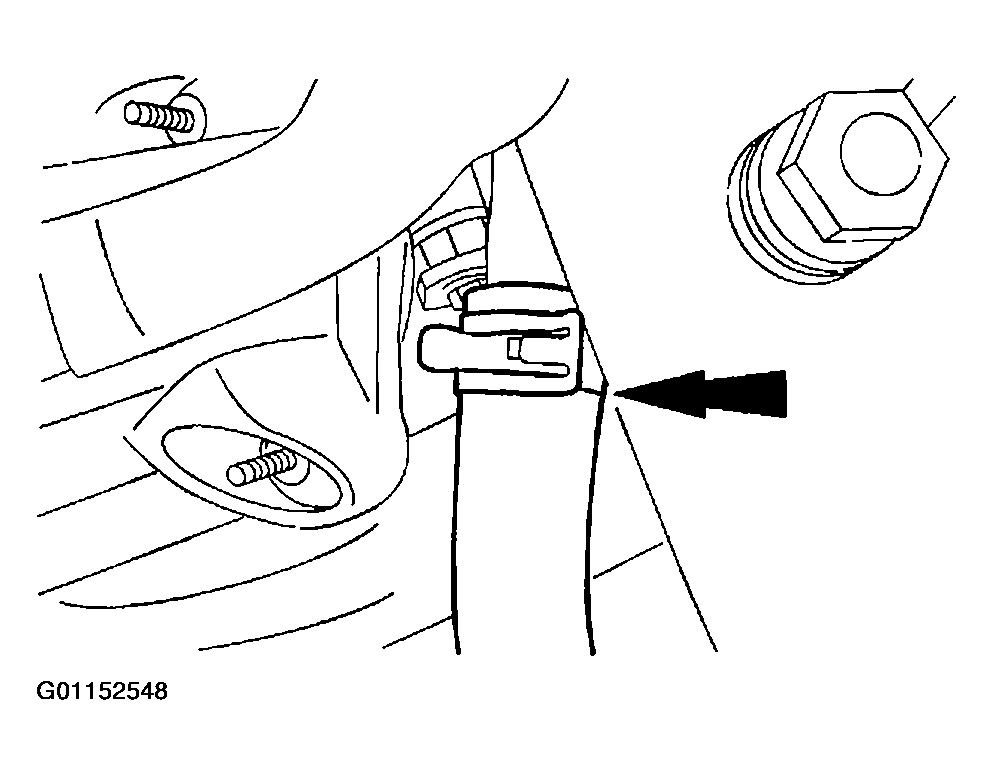

  9. Connect the power steering low pressure hose.
    Fig 9: Connecting Power Steering Low Pressure Hose
    G01152548Courtesy of MAZDA MOTORS CORP.
  10. Install the power steering pump pulley and bolt.

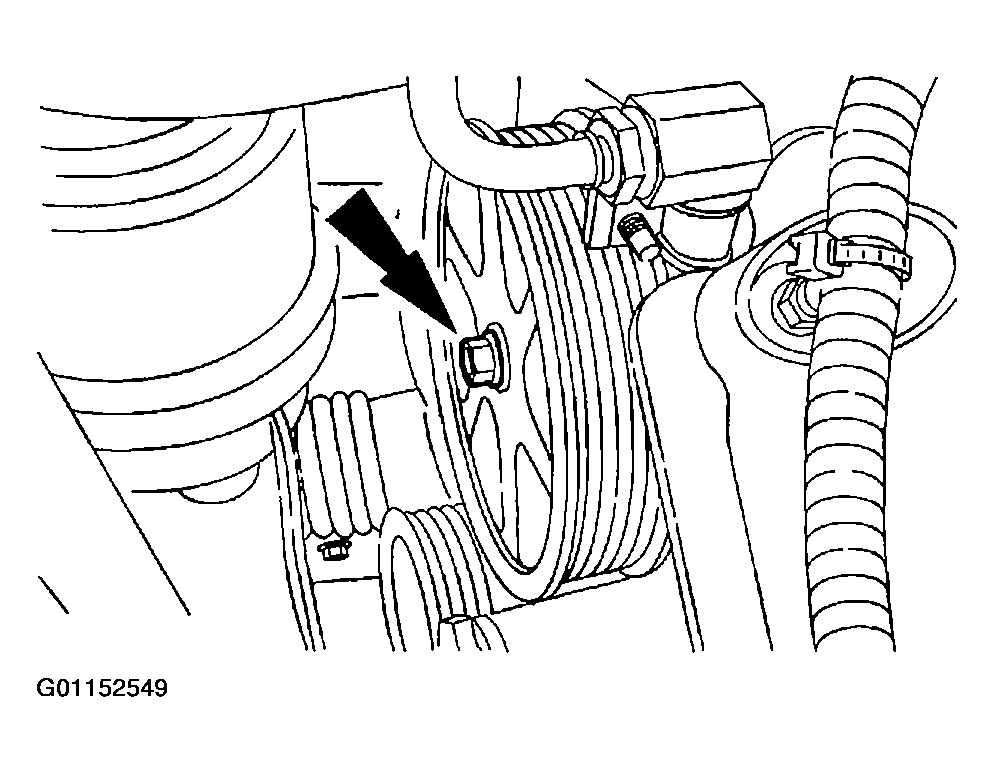

    Fig 10: Installing Power Steering Pump Pulley
    G01152549Courtesy of MAZDA MOTORS CORP.
  11. Install the drive belt. Refer to ACCESSORY DRIVE BELT .

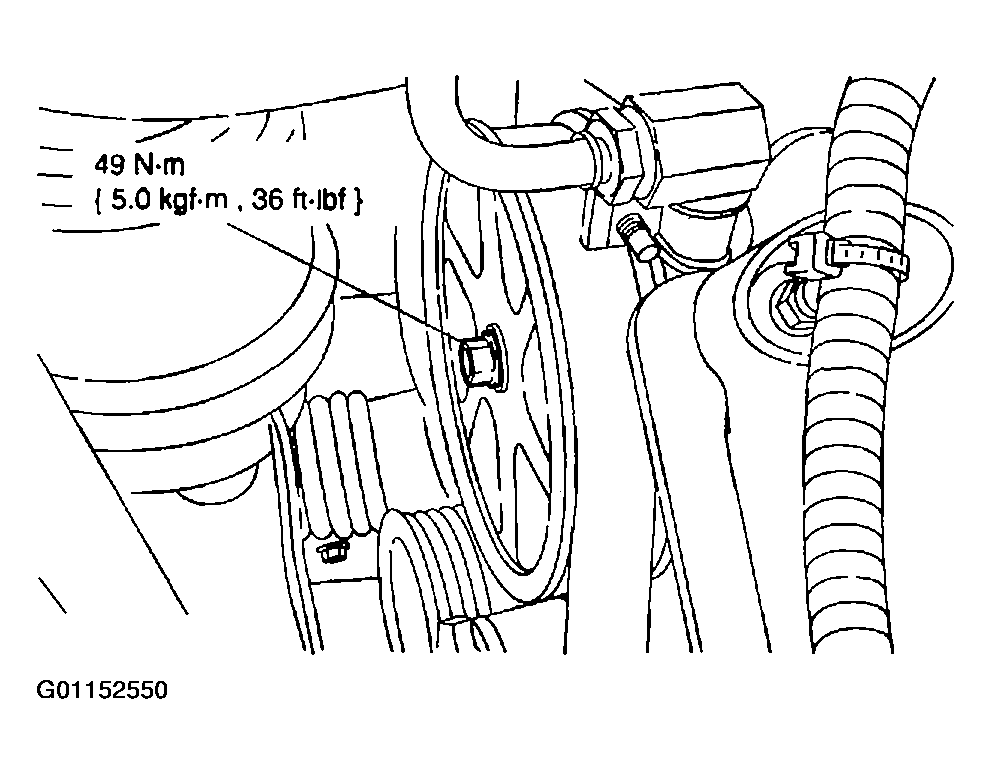

  12. Tighten the power steering pump pulley bolt.
    Fig 11: Tightening Power Steering Pump Pulley Bolt
    G01152550Courtesy of MAZDA MOTORS CORP.
  13. Lower the vehicle and remove the special tools.

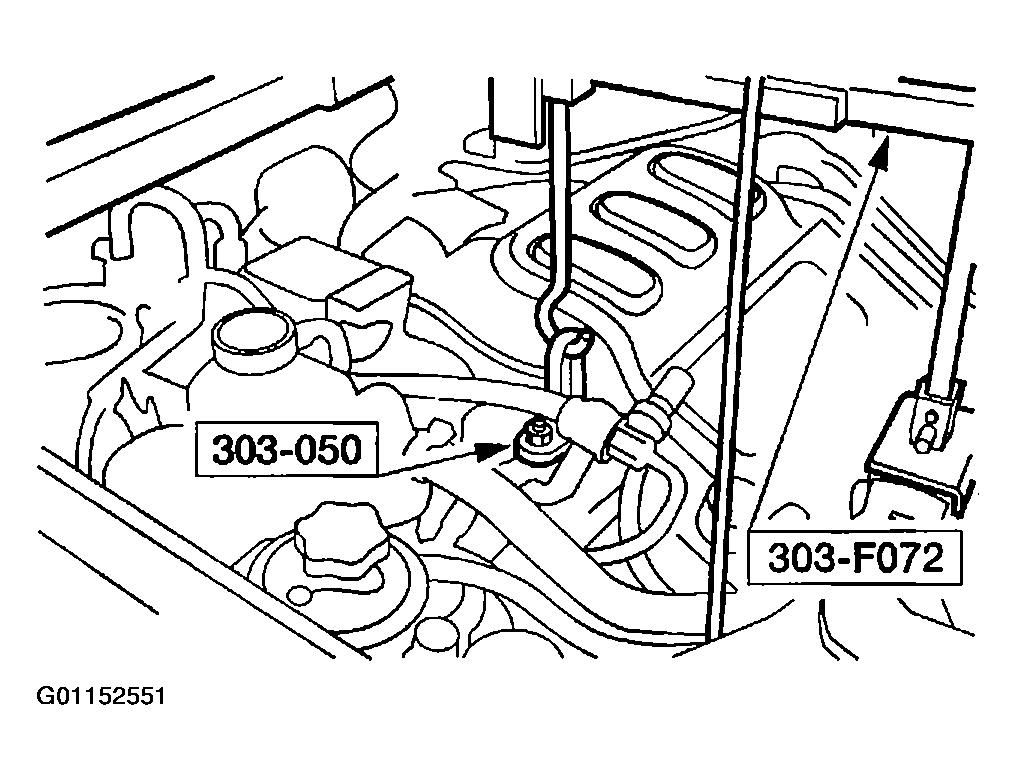

    Fig 12: Removing Special Tools
    G01152551Courtesy of MAZDA MOTORS CORP.
  14. Fill, bleed and leak check the power steering system. Refer to FILL  .
