Control Units

CONTROL UNITS LOCATION

Component Component Location
ABS/TCS Hydraulic Unit Control Module At right front corner of engine compartment.
Auto Light-Off Control Module Behind left side of dash. See Figure.
Door Lock Control Module Behind right side of dash.

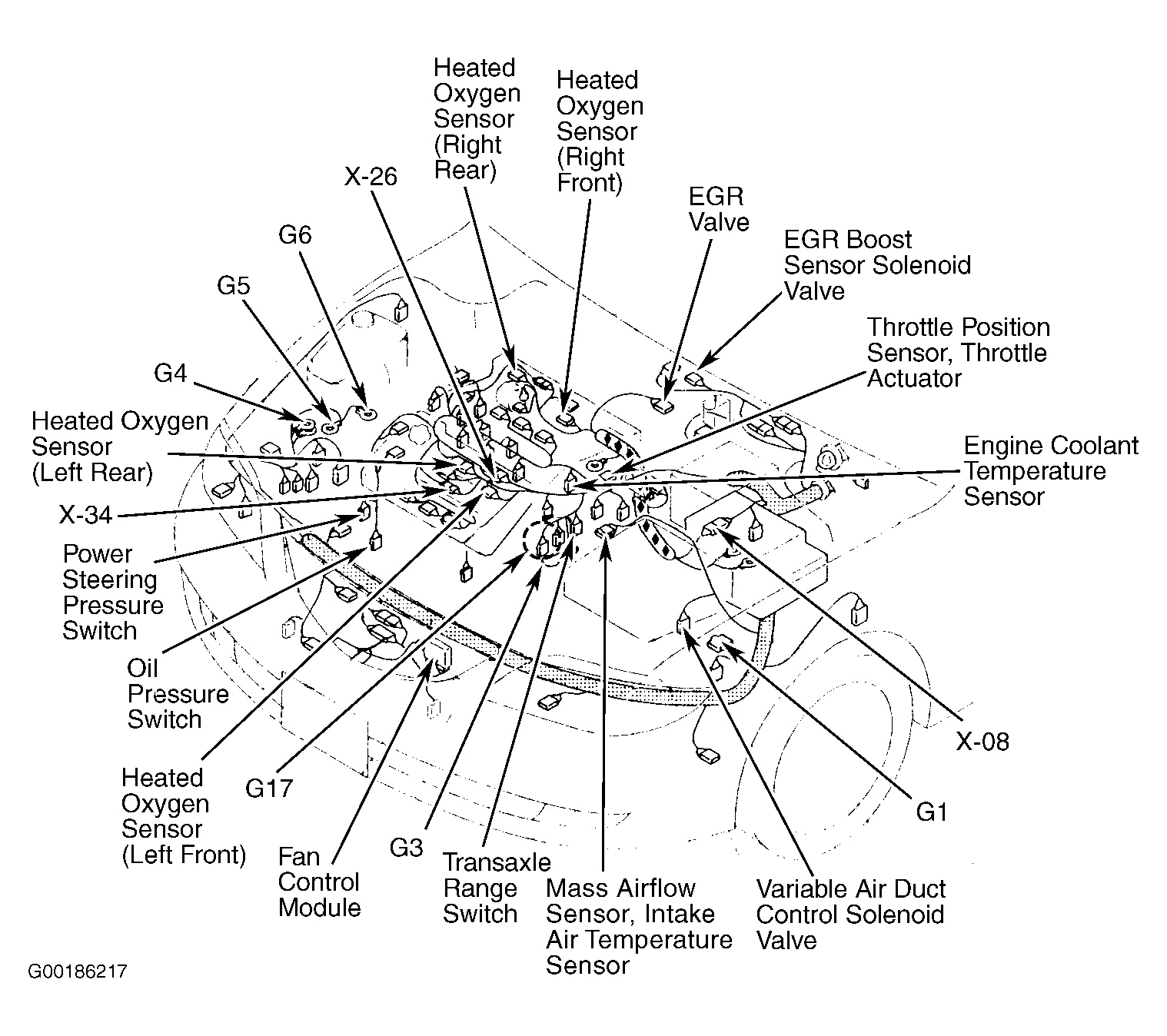

Fan Control Module At left front of engine compartment. See Figure.

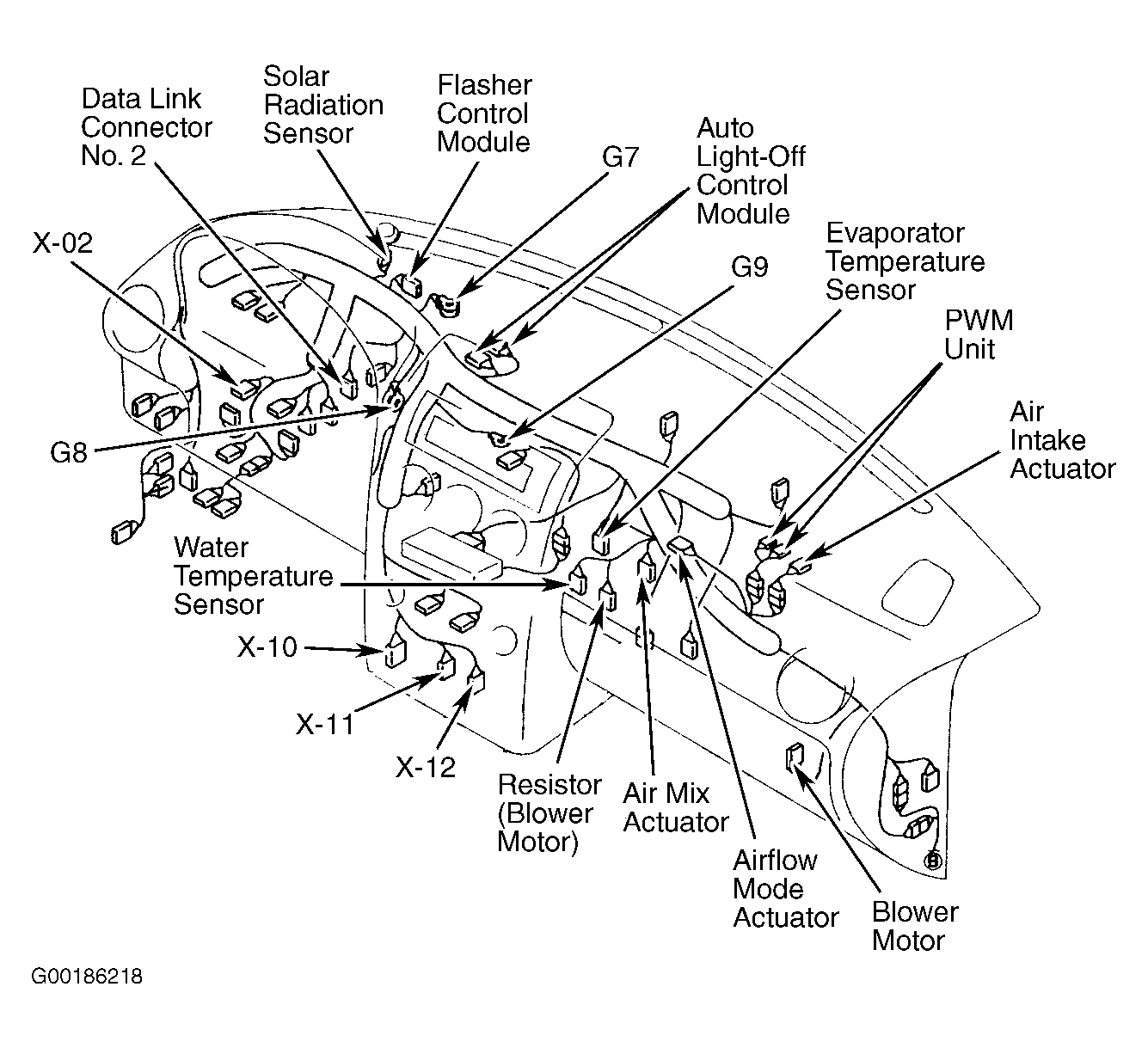

Flasher Control Module Behind left side of dash. See Figure.

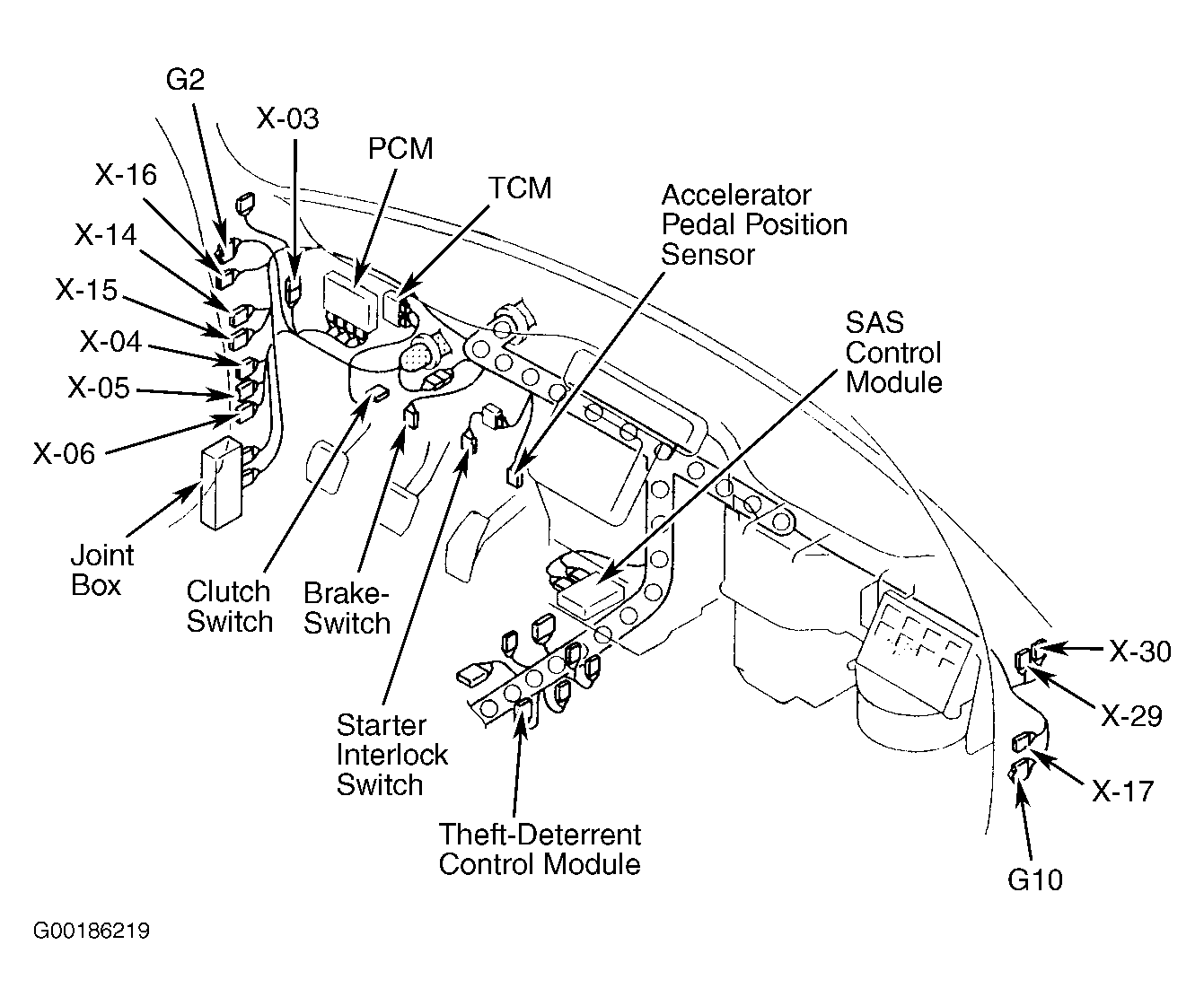

PCM Behind left side of dash. See Figure.
PWM Unit Behind right side of dash. See Figure.
SAS Control Module Behind lower center of dash. See Figure.
Sun Roof Control Module At center front of roof.
TCM Behind left side of dash. See Figure.
Theft-Deterrent Control Module Under front of center console. See Figure.
