Cruise Control Main Switch Inspection

  1. Remove the cruise control main switch. (See CRUISE CONTROL MAIN SWITCH REMOVAL/INSTALLATION  .)
  2. Inspect for continuity between the cruise control main switch terminals using an ohmmeter.
    • If not as specified, replace the cruise control main switch.

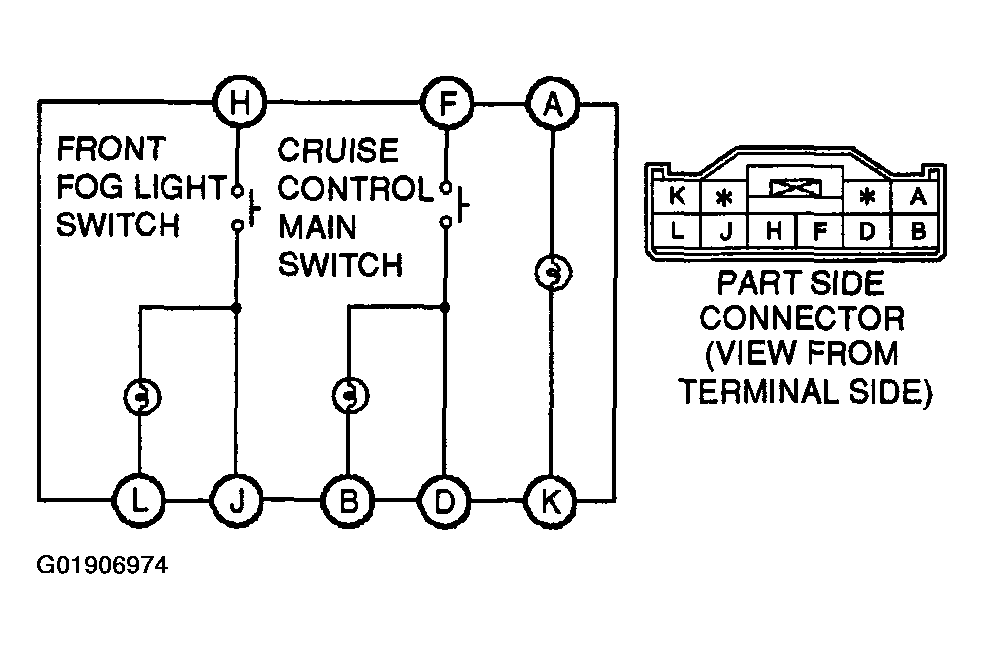

    Fig 1: Cruise Control Main Switch Terminal Identification & Connector Views
    G01906974Courtesy of MAZDA MOTORS CORP.

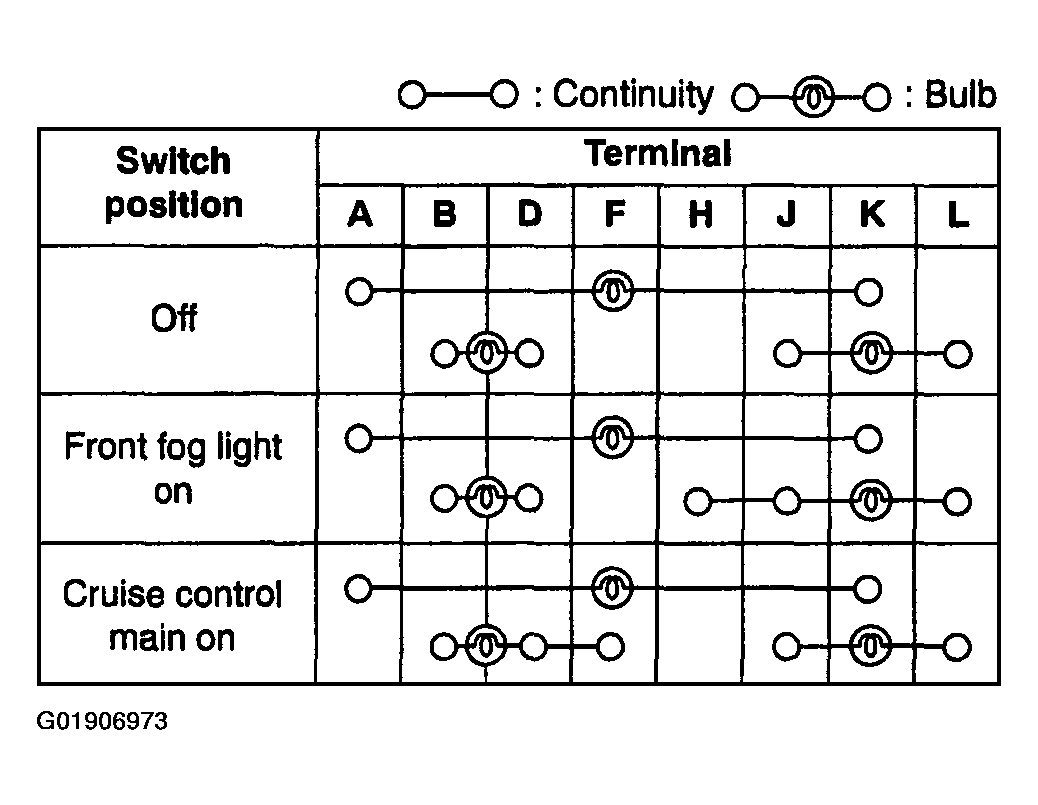

    Fig 2: Cruise Control Main Switch Continuity Table
    G01906973Courtesy of MAZDA MOTORS CORP.
