Control Units
CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| ABS Control Module | On left rear side of engine compartment. |

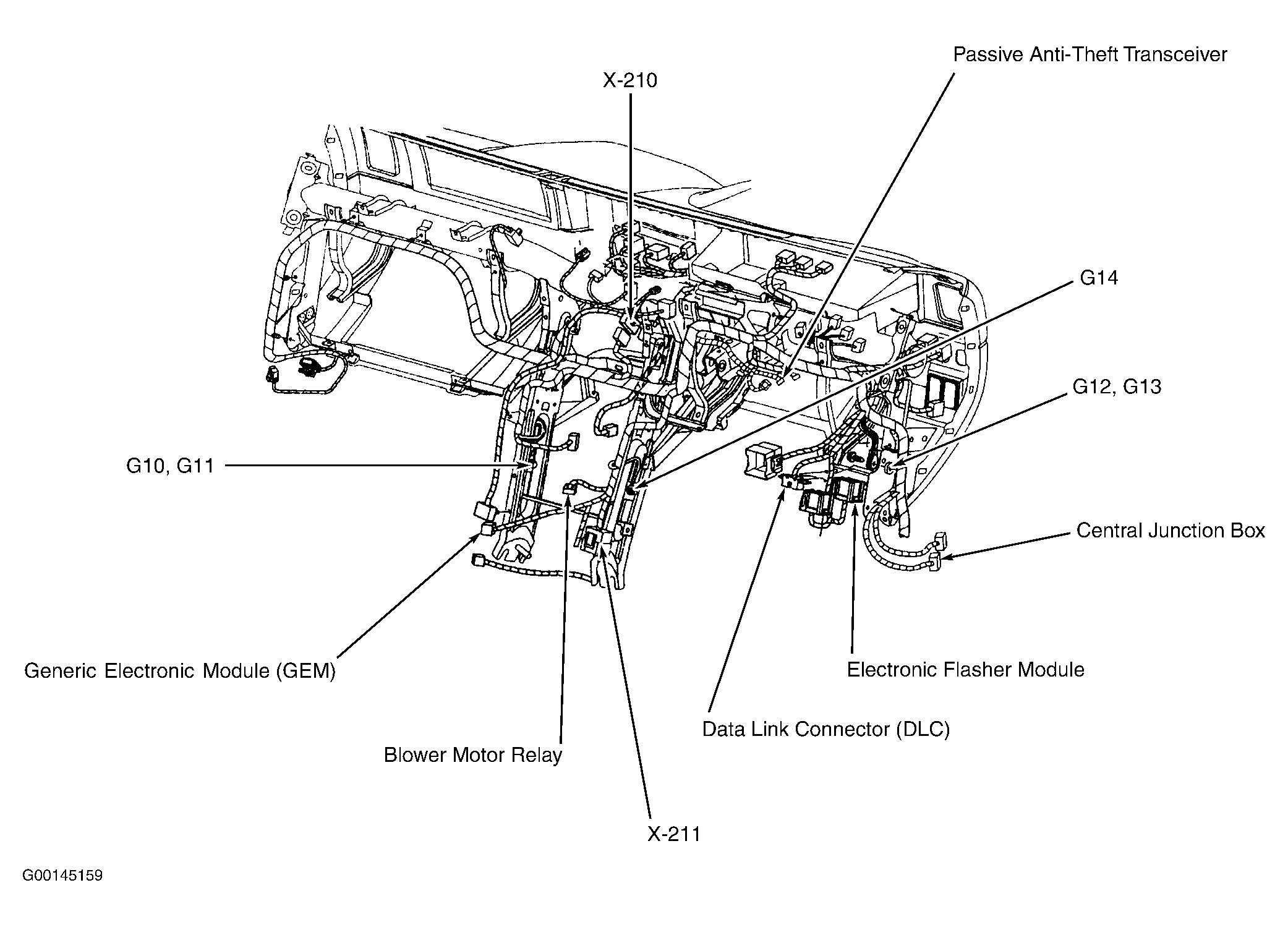

| Electronic Flasher Module | Behind lower left end of dash. See Figure. |
| Front Heated Seat Module (Driver/Passenger Side) | Under respective front seats. |
| Generic Electronic Module (GEM) | Behind lower center of dash. See Figure. |
| Moon Roof Module | At front center of roof, behind trim. |
| Passive Anti-Theft Transceiver | Behind lower left side of dash, near steering column. See Figure. |

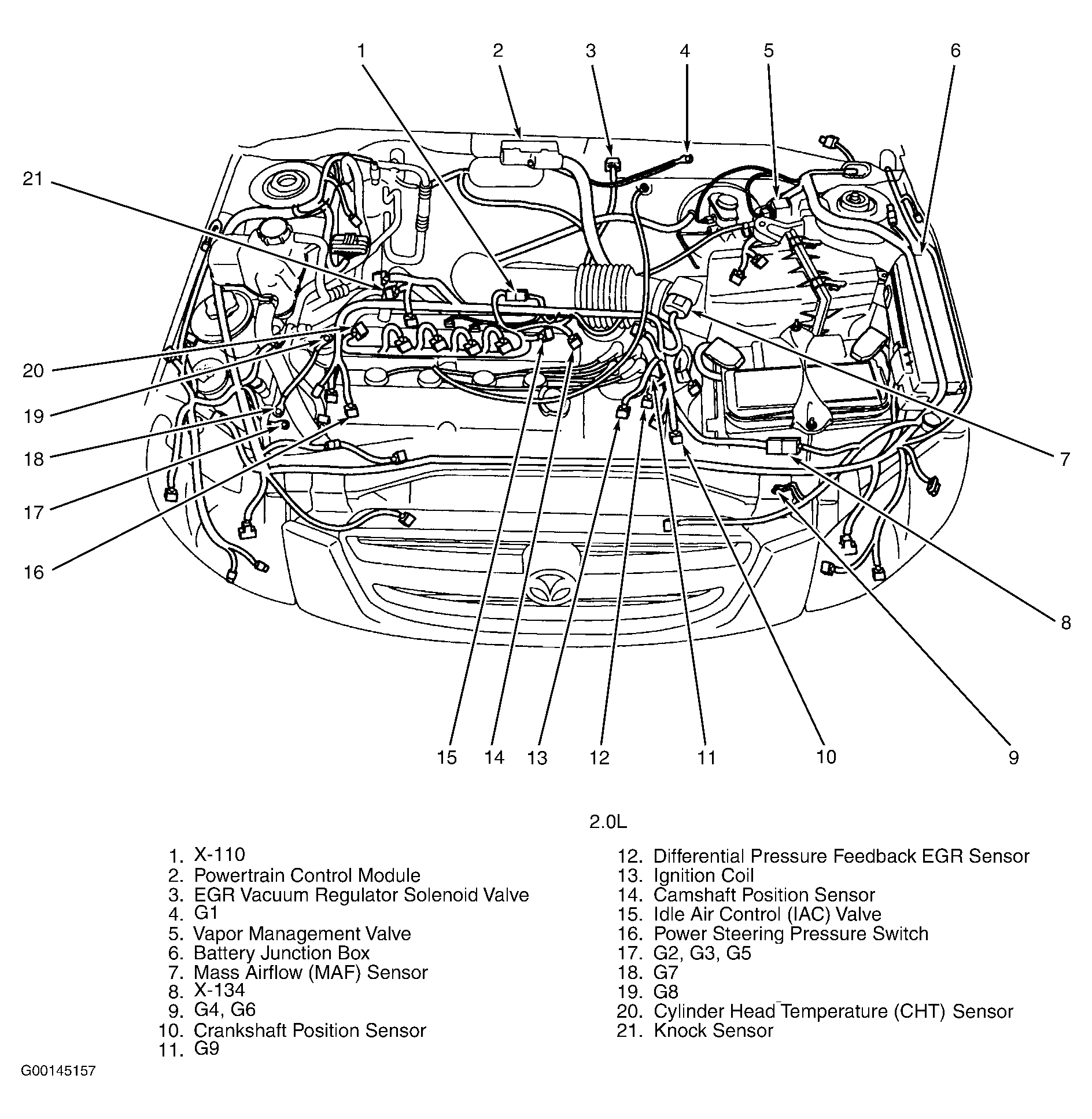

| Powertrain Control Module (2.0L) | In recess on upper center of firewall. See Figure. |

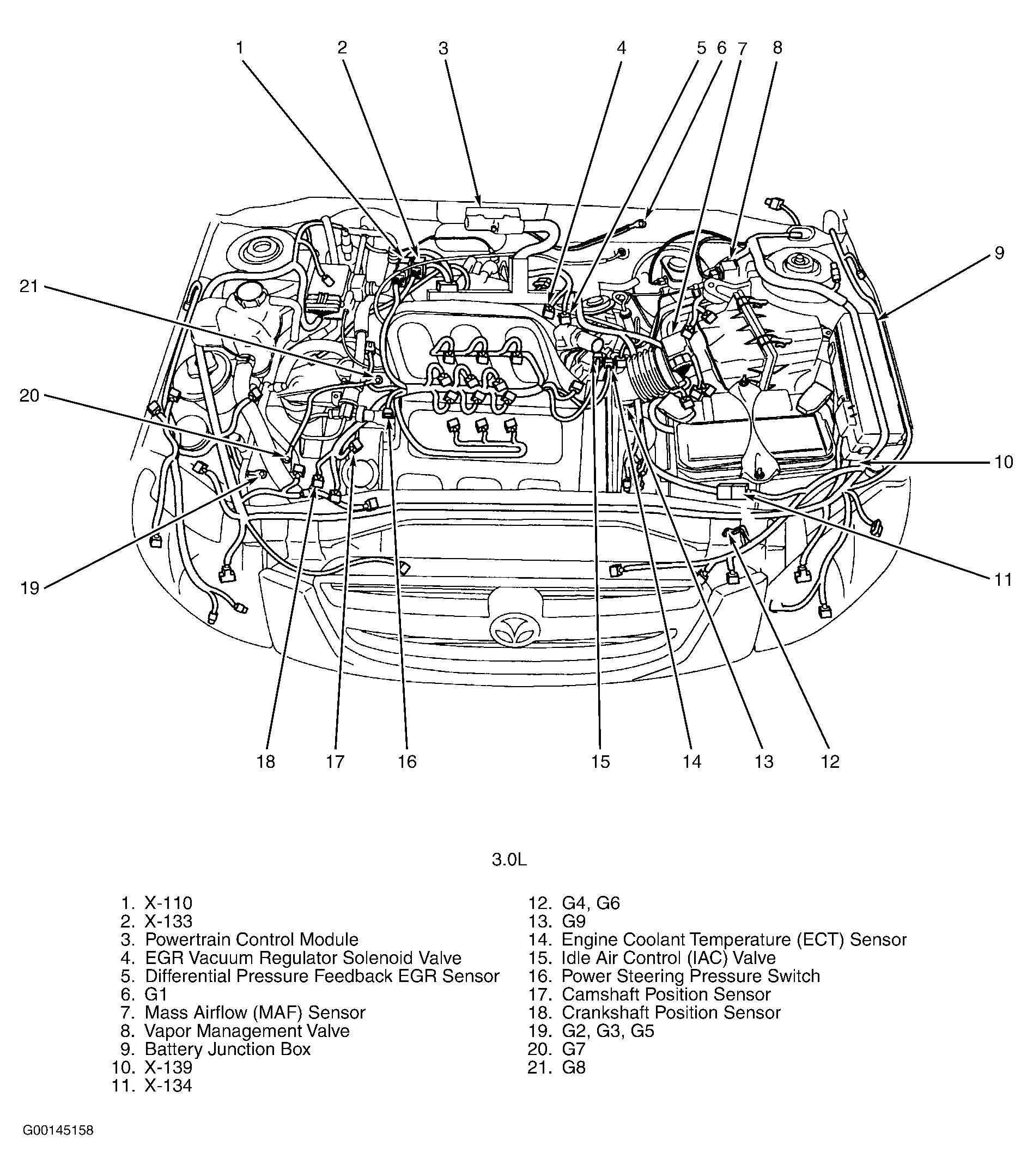

| Powertrain Control Module (3.0L) | In recess on upper center of firewall. See Figure. |
| Restraints Control Module | Under lower center of dash, on transmission tunnel. |
