Cruise Control Switch Removal/Installation
- Remove the steering wheel. See STEERING WHEEL REMOVAL/INSTALLATION .
- Remove the two screws and steering wheel rear cover.
- Remove the ribbon harness from the clips.

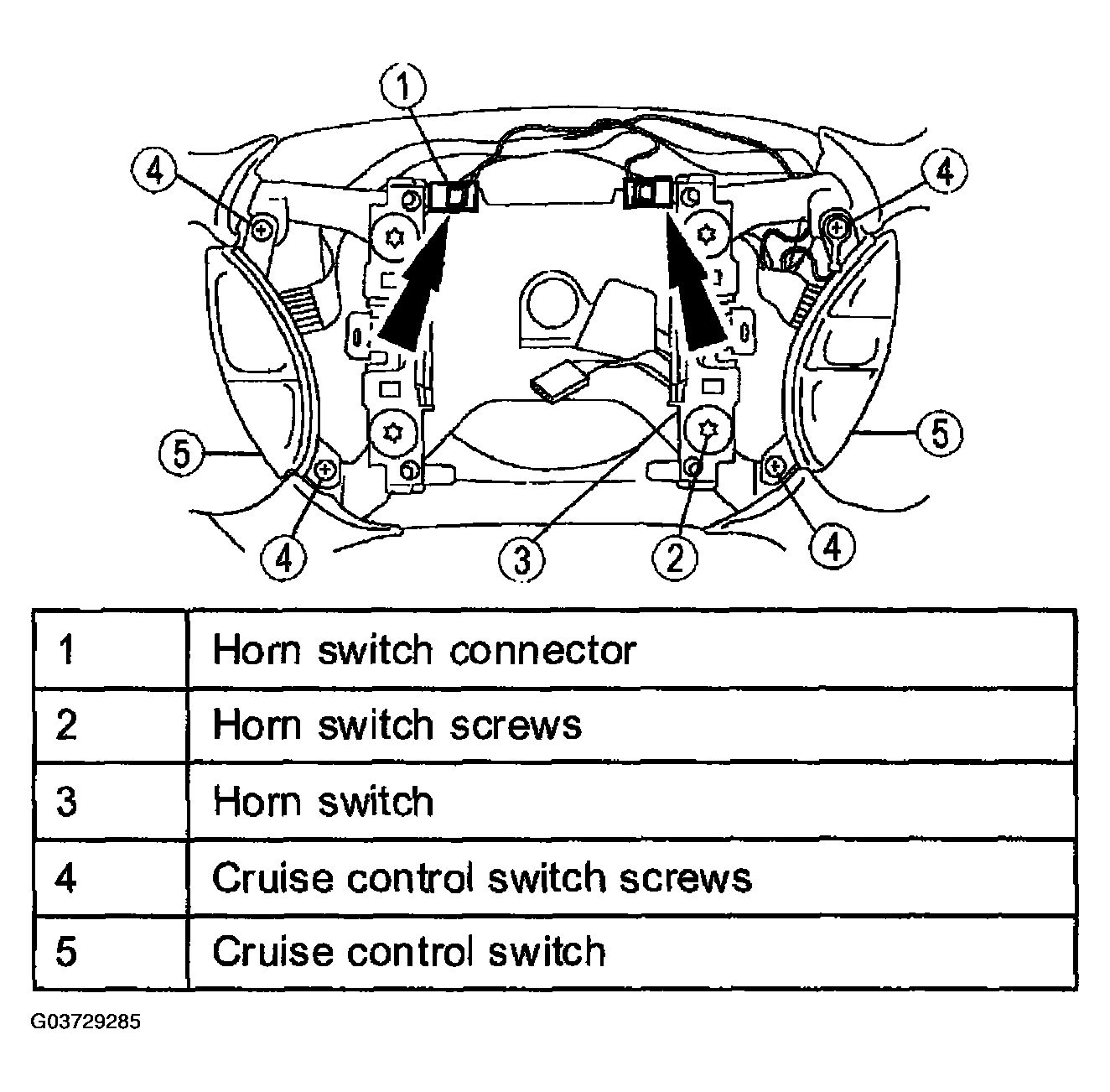

- Remove in order shown in Fig 1.
- Install in reverse order of removal.NOTE:
- Install ground eyelet under upper screw on right-hand switch. Position switch(es) on steering wheel and install four Phillips-head attaching screws.
Tightening torque: Horn switch screws 6.5-7.5 N.m {0.66-0.76 kgf.m, 4.8-5.5 ft.lbf}
- Install ground eyelet under upper screw on right-hand switch. Position switch(es) on steering wheel and install four Phillips-head attaching screws.
