Steering Wheel And Column Removal/Installation: Notes

WARNING:

Handling the air bag module improperly can accidentally deploy the air bag module, which may seriously injure you. Read AIR BAG SYSTEM WARNINGS before handling the air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS .) (See AIR BAG SYSTEM SERVICE CAUTIONS .)

Remove in the order indicated in Fig 1.
Install in the reverse order of removal.
If the steering lock component of a vehicle equipped with the advanced keyless system is replaced, perform the following procedure after installation.
- Without immobilizer system
  - Steering lock unit programming (See STEERING LOCK UNIT ID CODE REGISTRATION [WITH ADVANCED KEYLESS SYSTEM] .)
- With immobilizer system
  - Immobilizer system resetting (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [WITH ADVANCED KEYLESS SYSTEM] .)

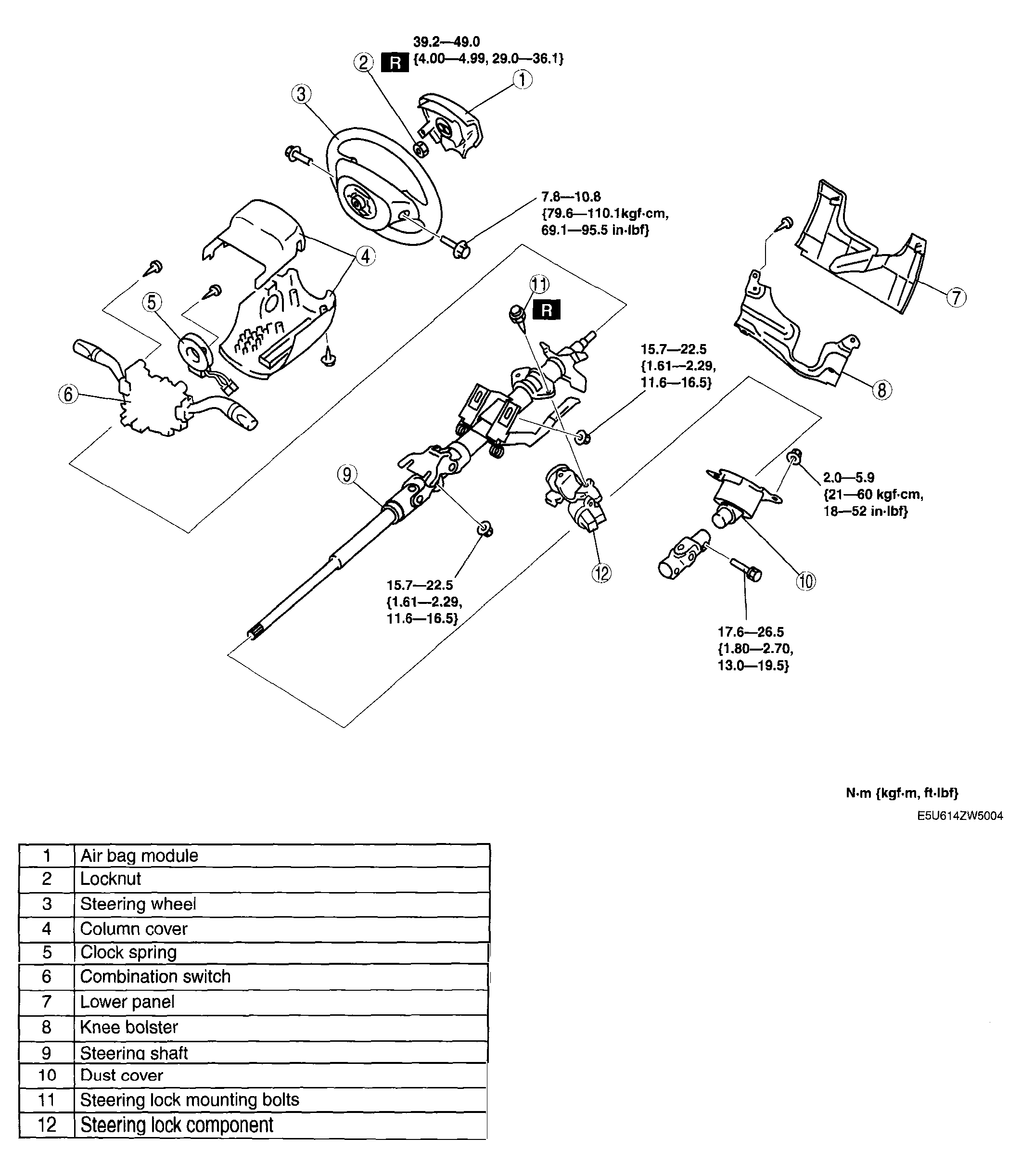

Fig 1: Steering Wheel And Column Components With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
