Request Switch Removal/Installation[Advanced Keyless System]: Deiver-side/passenger-side

WARNING: This page is about a different car, the 2007 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [LF] .)
  2. Remove the door trim. (See DOOR TRIM REMOVAL/INSTALLATION .)
  3. Remove the outer handle. (See OUTER HANDLE REMOVAL/INSTALLATION[ADVANCED KEYLESS SYSTEM] .)
  4. Remove the screws A, then remove the handle seat and plate.
  5. Remove screw B, then remove the request switch.
  6. Install in the reverse order of removal.

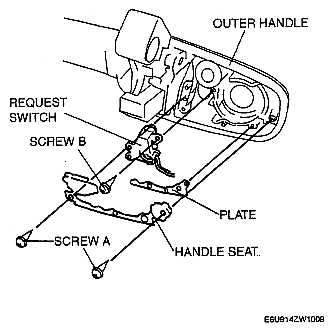

Fig 1: Identifying Request Switch Remove/Install Components (Driver-Side/Passenger-Side)
G04931359Courtesy of MAZDA MOTORS CORP.
