Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

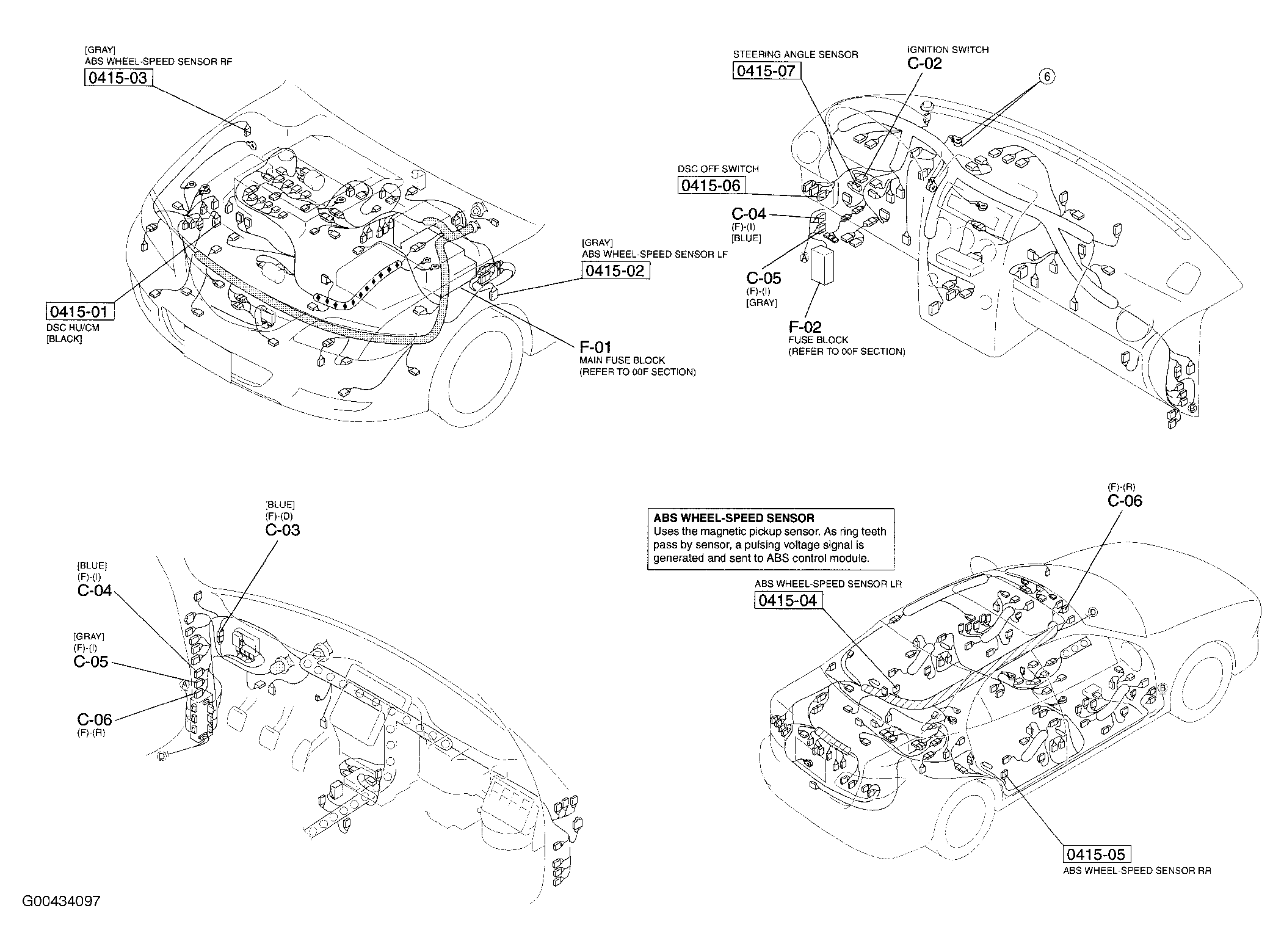

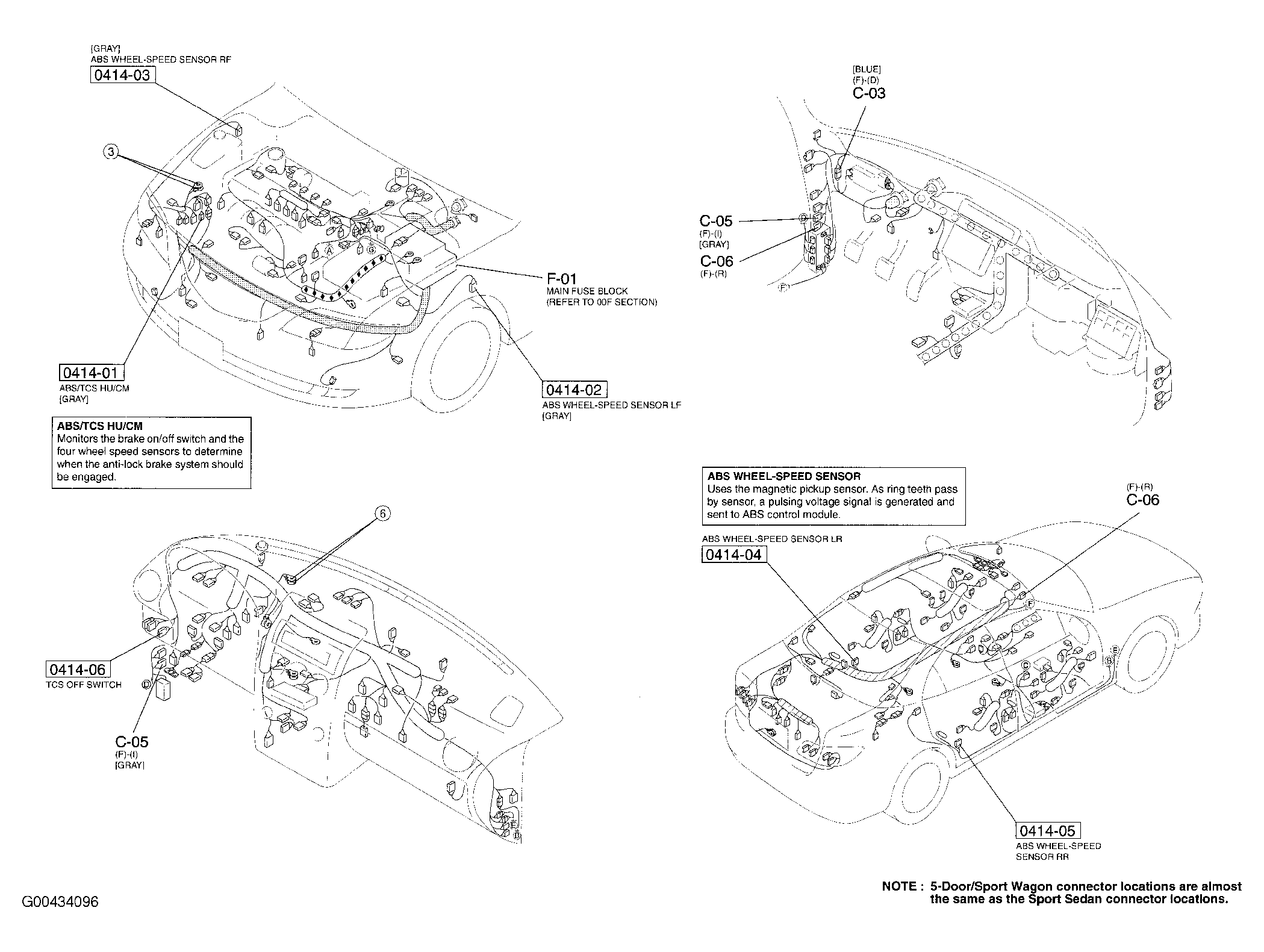

| ABS/TCS HU/CM | Right front corner of engine compartment. See Figure. |

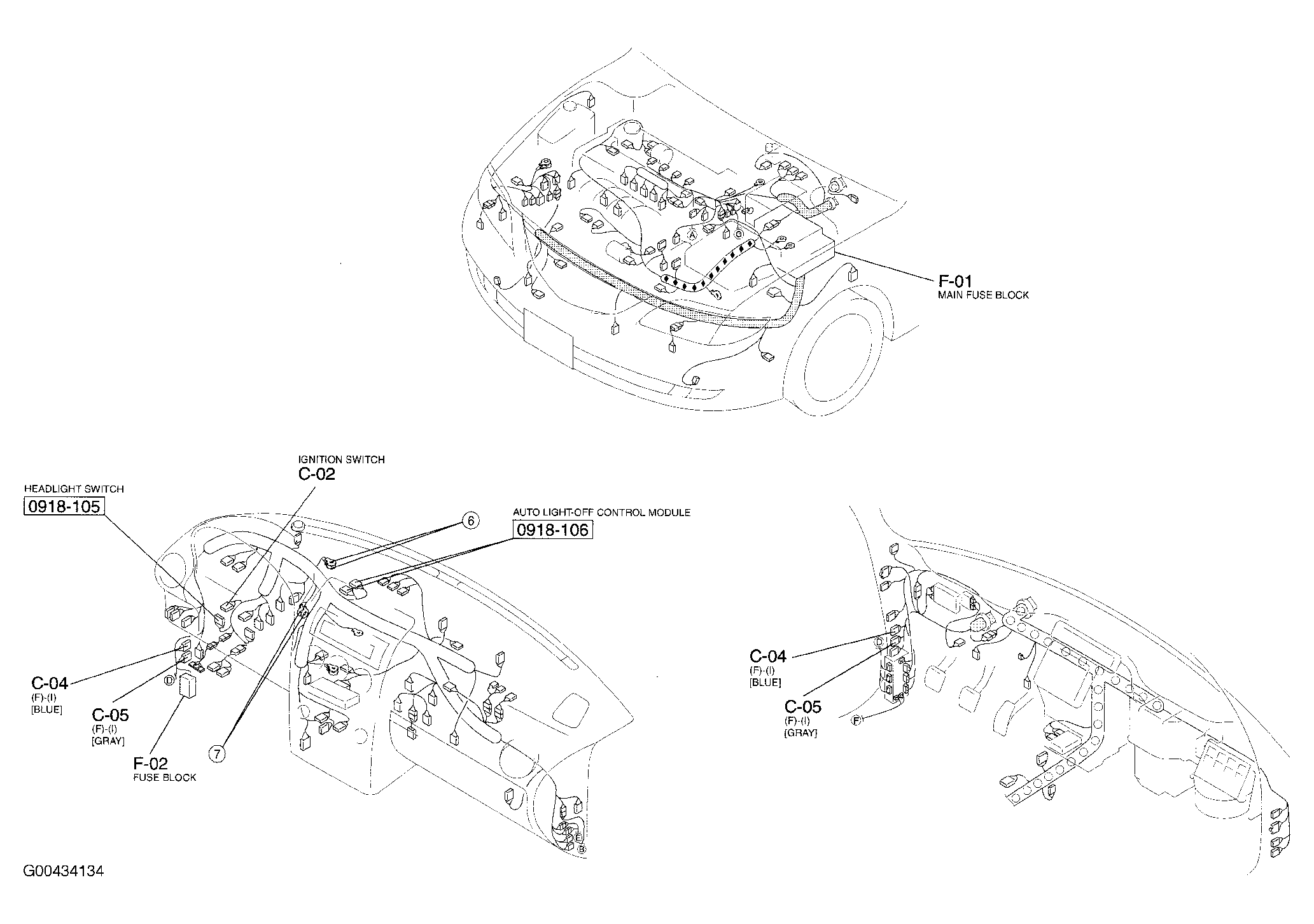

| Auto Light-Off Control Module | Behind left side of dash. See Figure. |

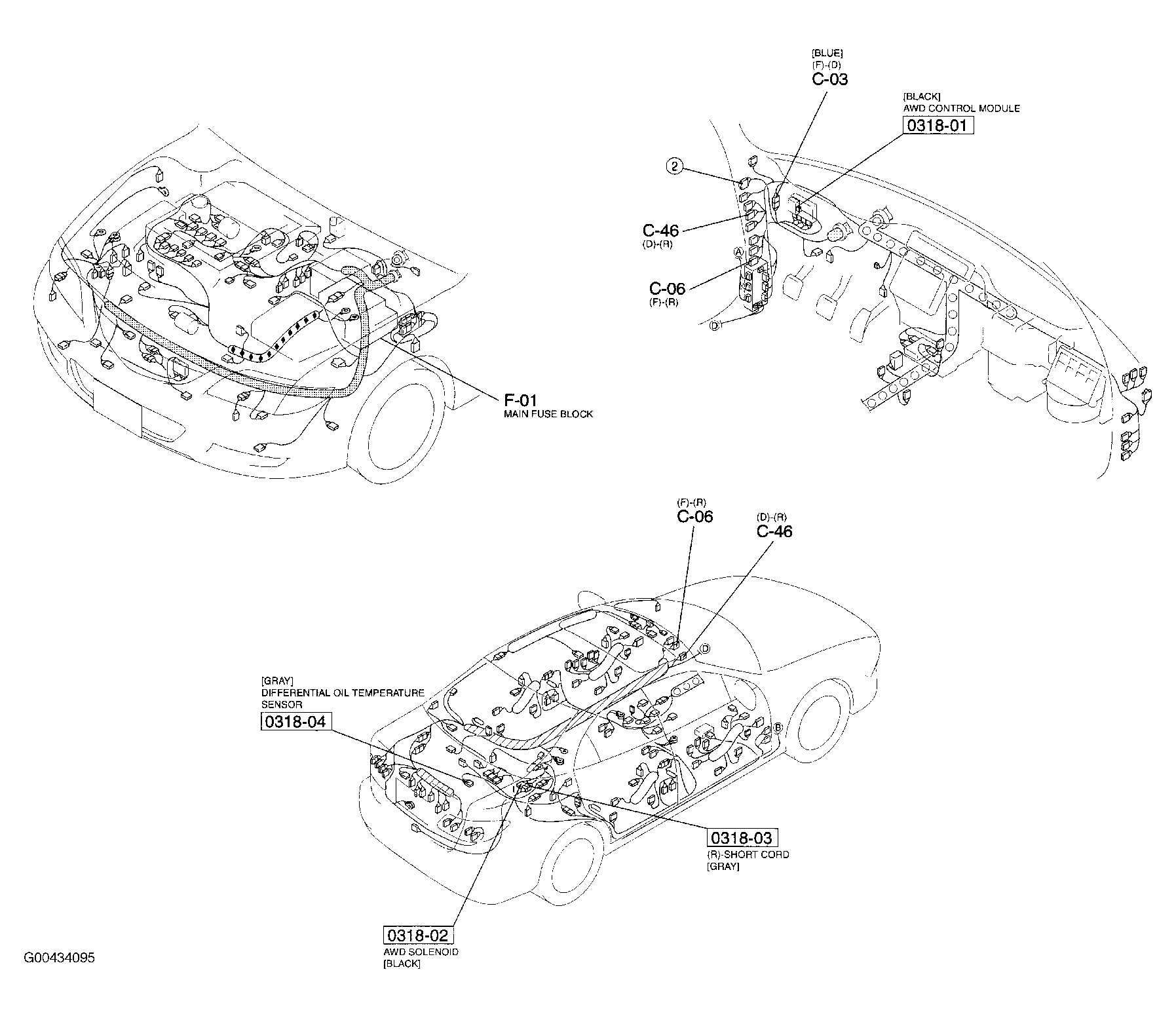

| AWD Control Module | Behind left end of dash. See Figure. |

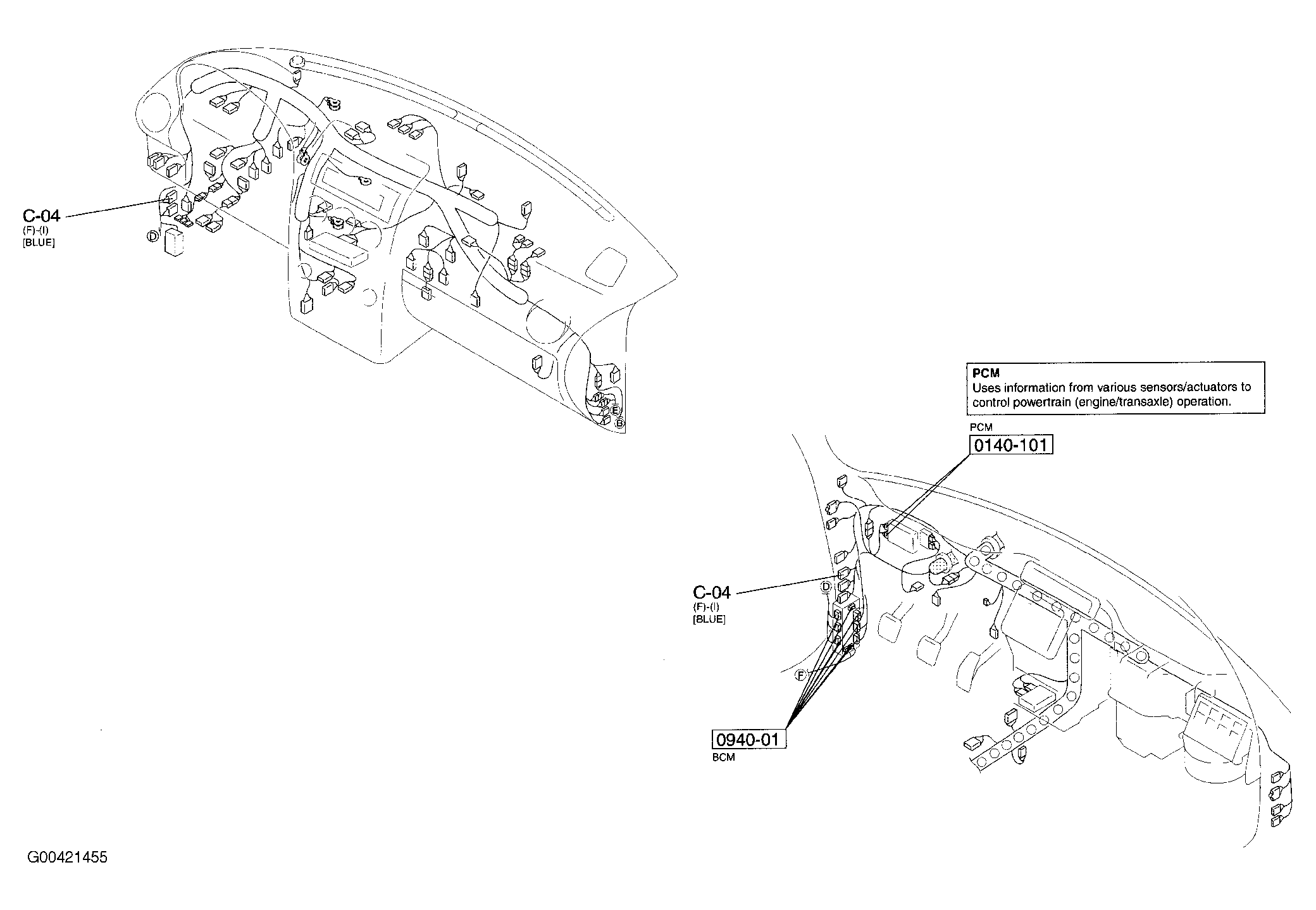

| BCM | Behind left kick panel. See Figure. |

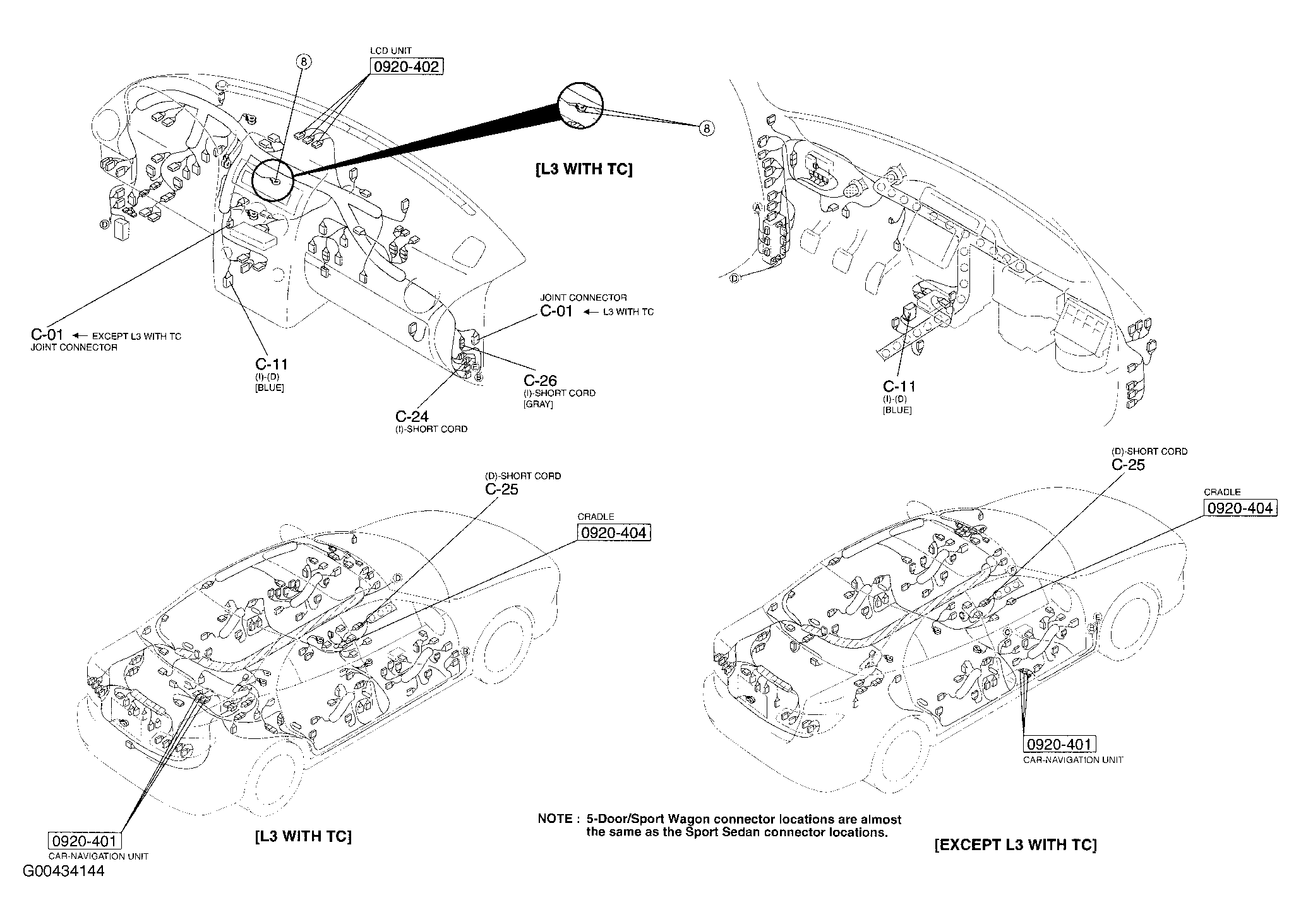

| Car-Navigation Unit (Except Sedan) | Under front passenger's seat. See Figure. |
| Car-Navigation Unit (Sedan) | Center front of luggage compartment. See Figure. |

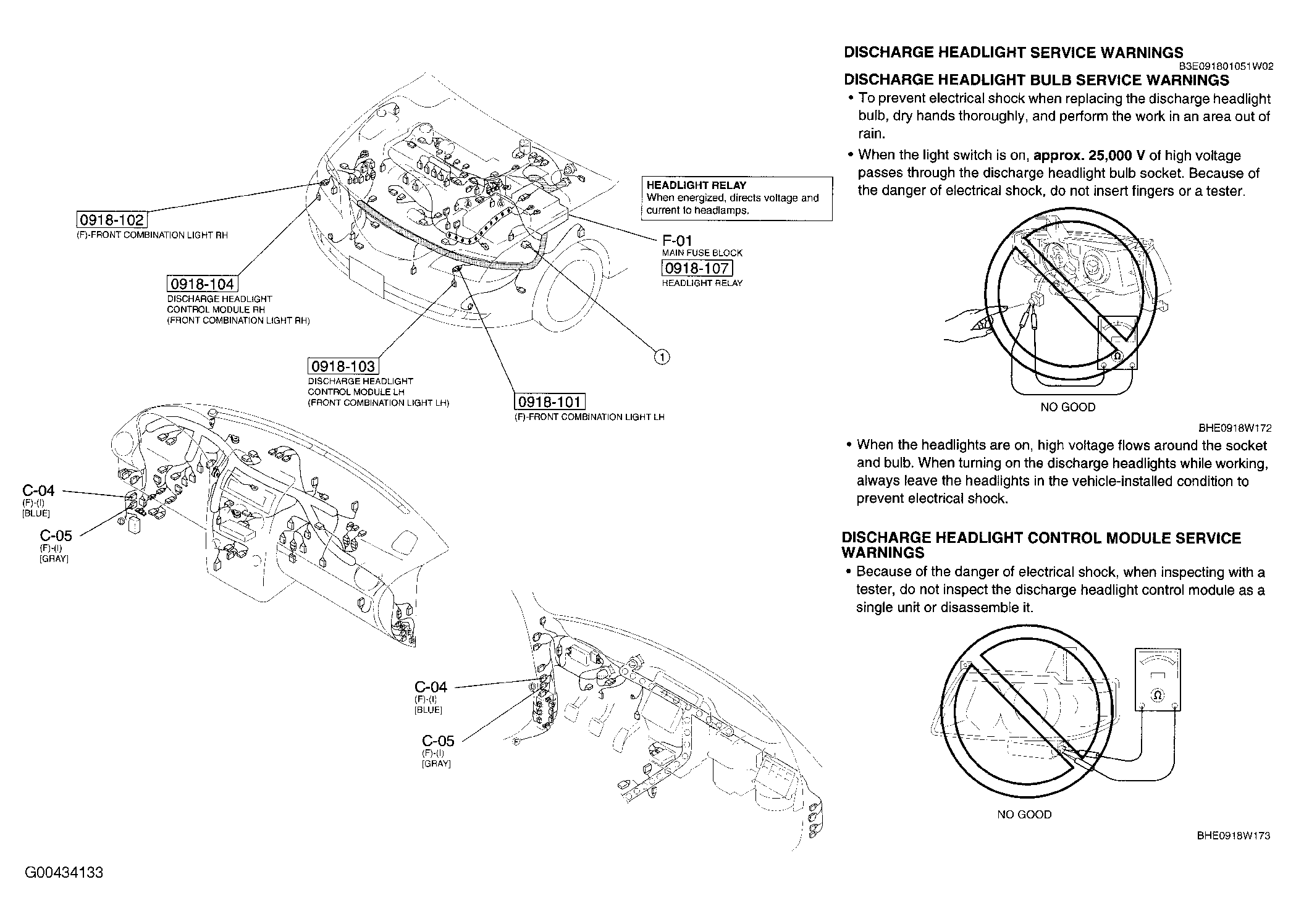

| Discharge Headlight Control Module (Left/Right) | Behind respective headlight assembly. See Figure. |
| DSC HU/CM | Right front corner of engine compartment. See Figure. |

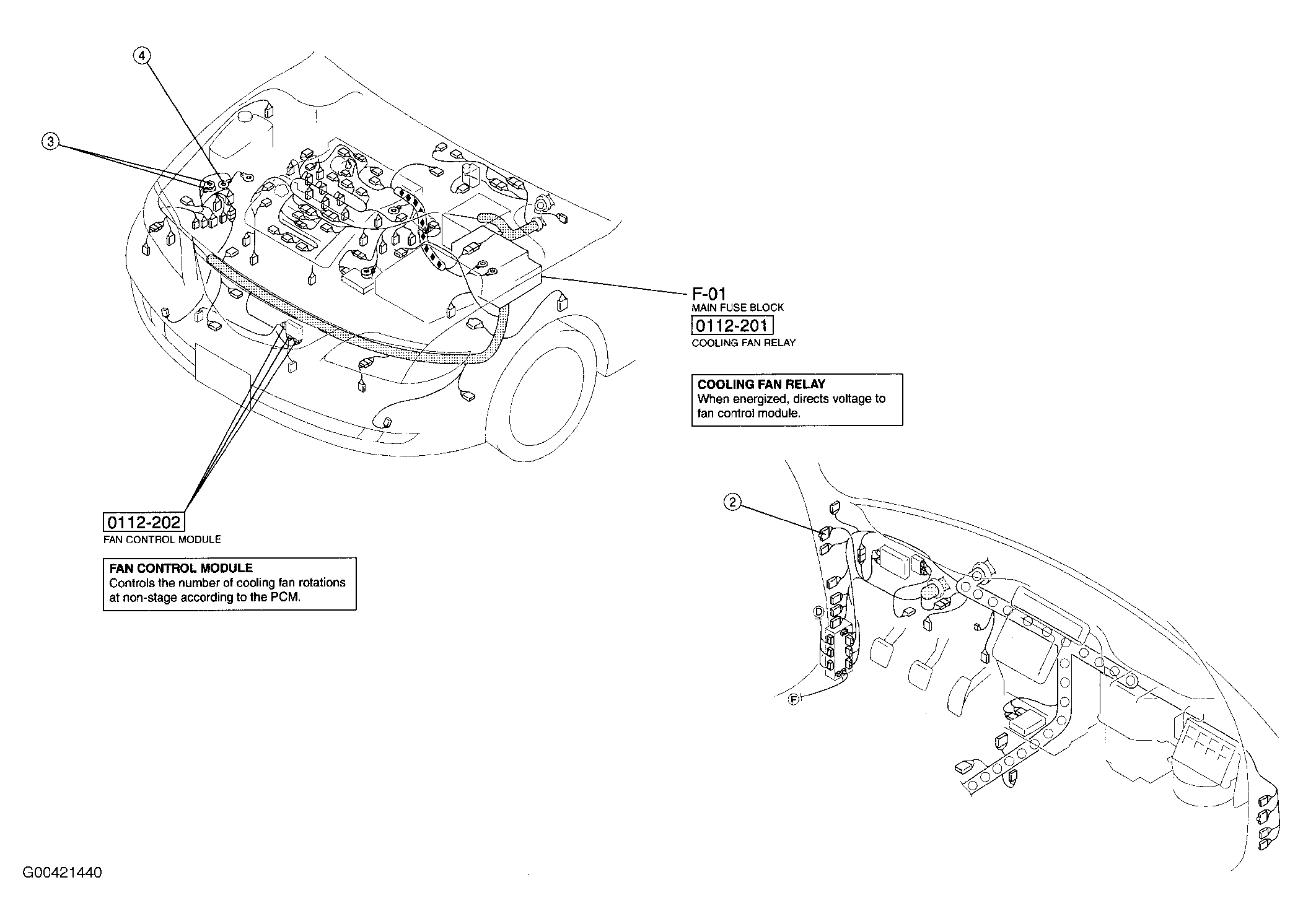

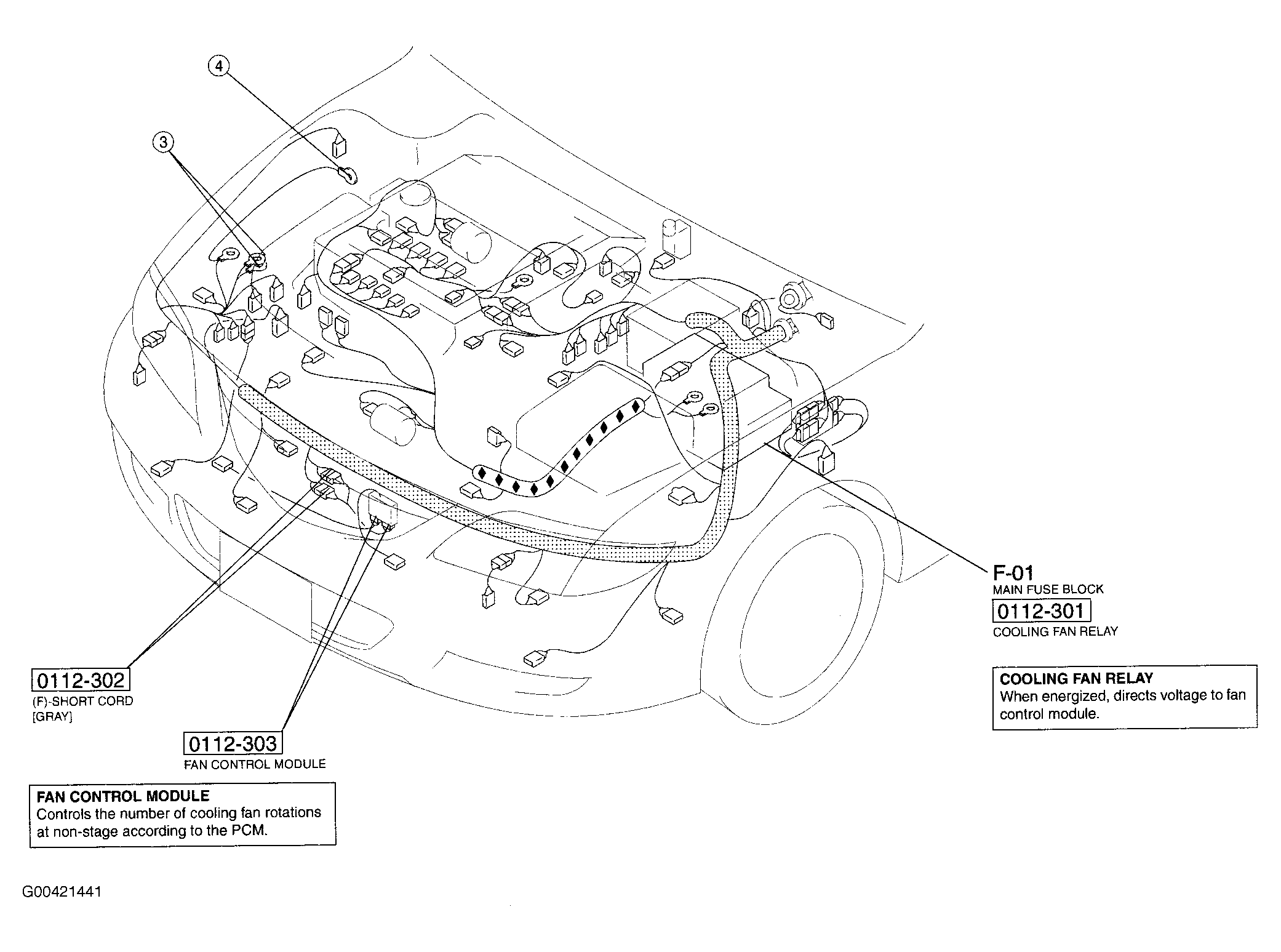

| Fan Control Module (2.3L Turbo) | Behind left side of front grille. See Figure. |
| Fan Control Module (3.0L) | Behind left side of front grille. See Figure. |

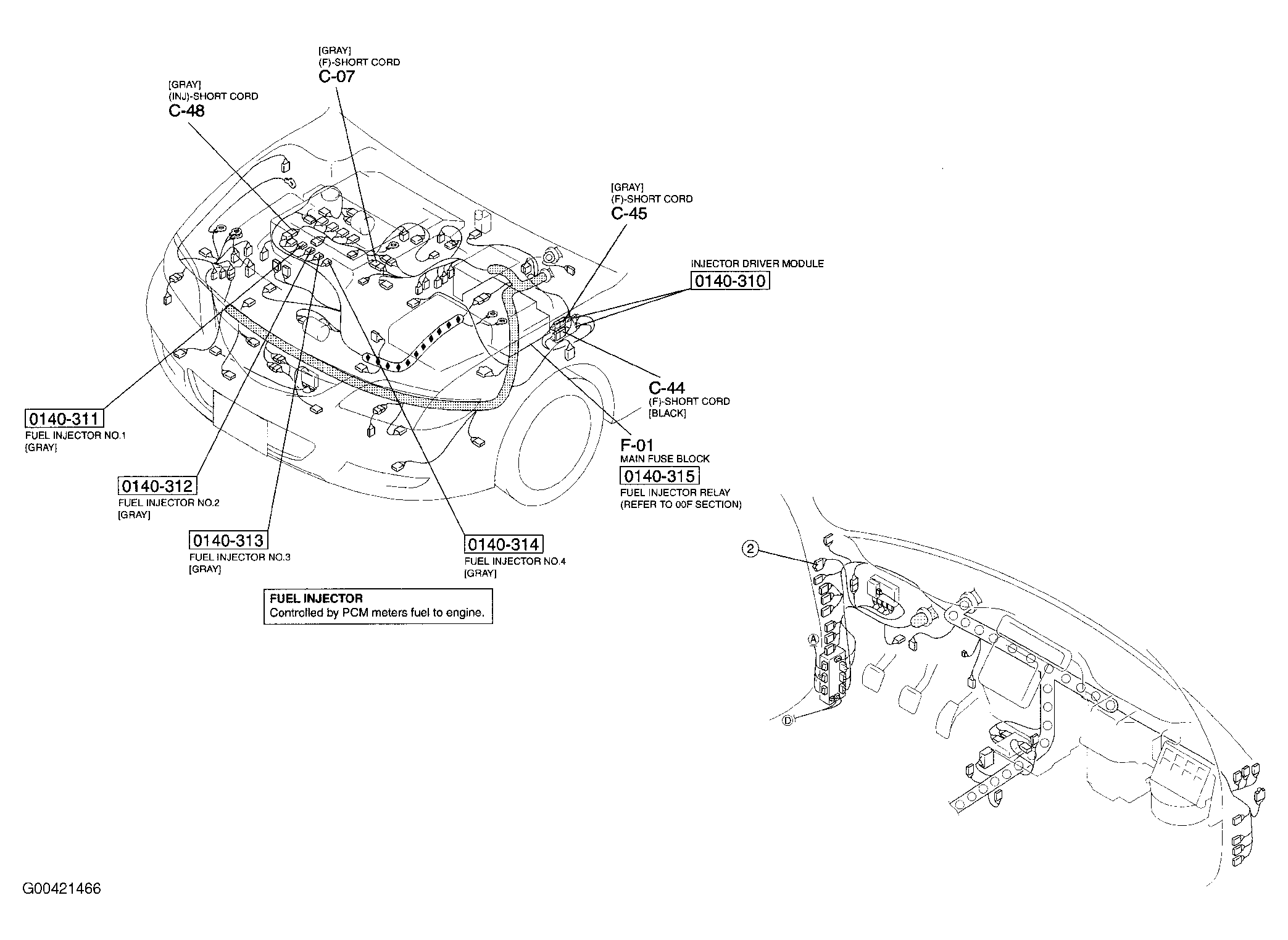

| Injector Driver Module (2.3L Turbo) | Left rear of engine compartment. See Figure. |

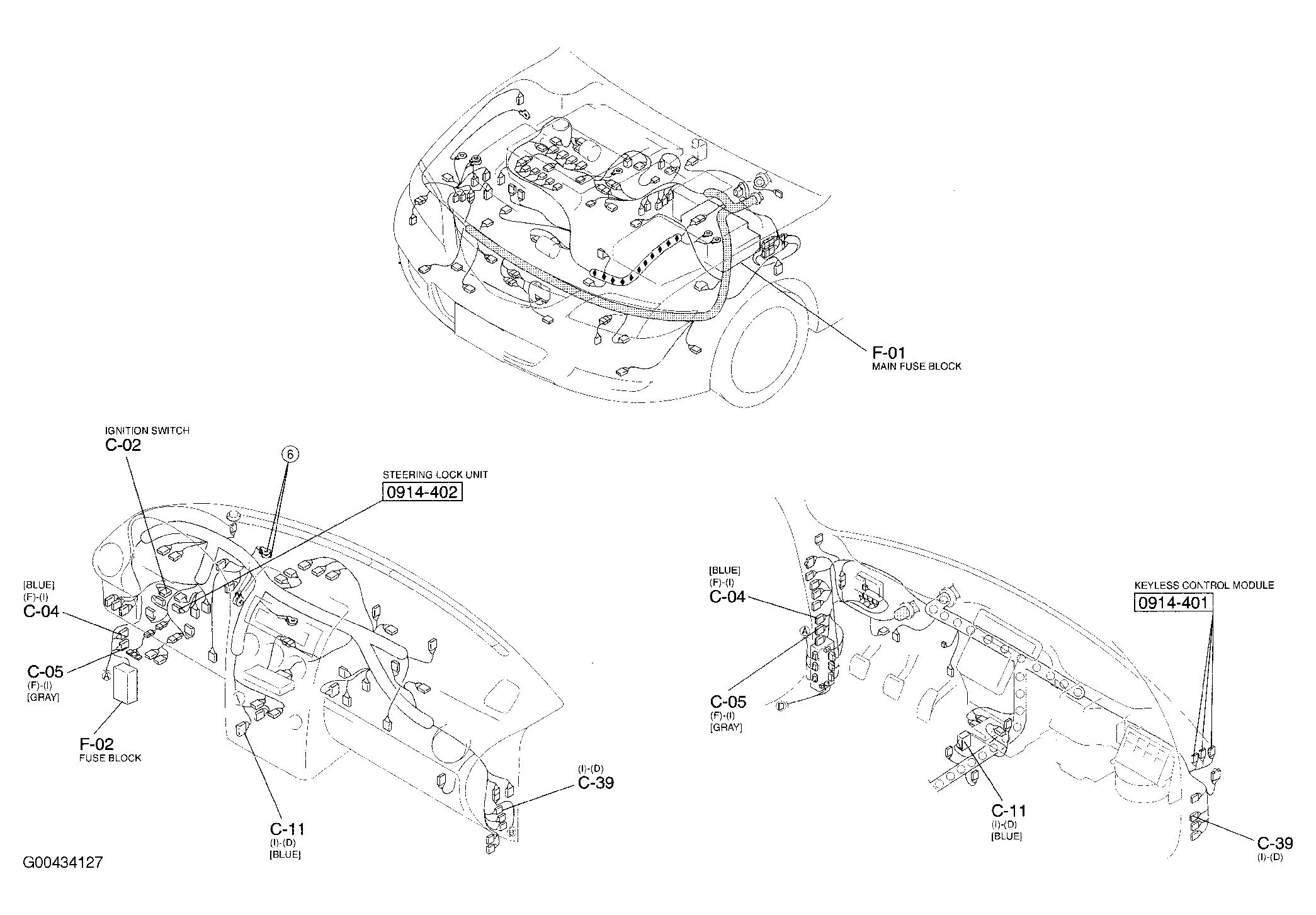

| Keyless Control Module | Behind right end of dash. See Figure. |

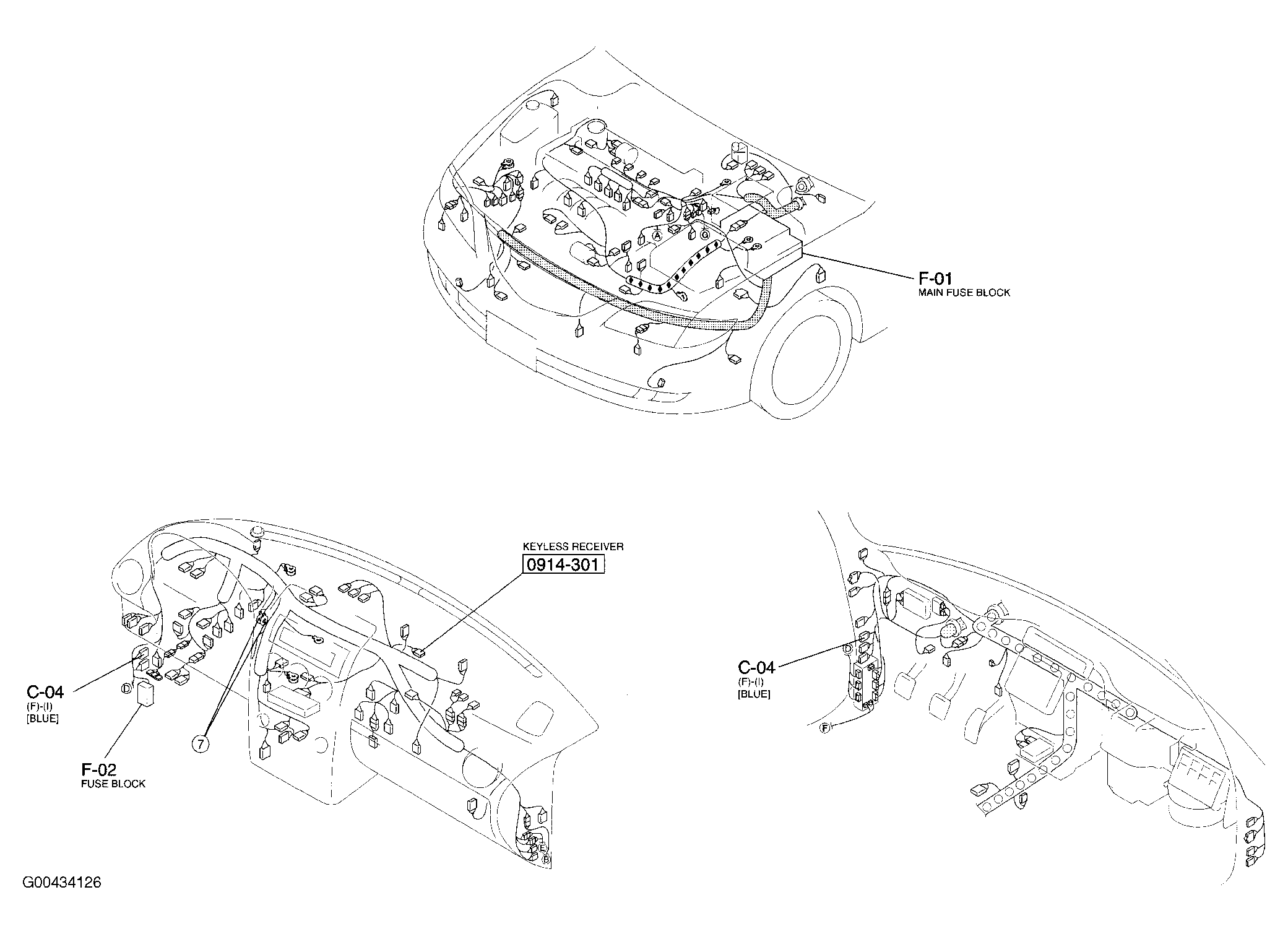

| Keyless Receiver | Behind center of dash. See Figure. |
| PCM | Behind left side of dash. See Figure. |

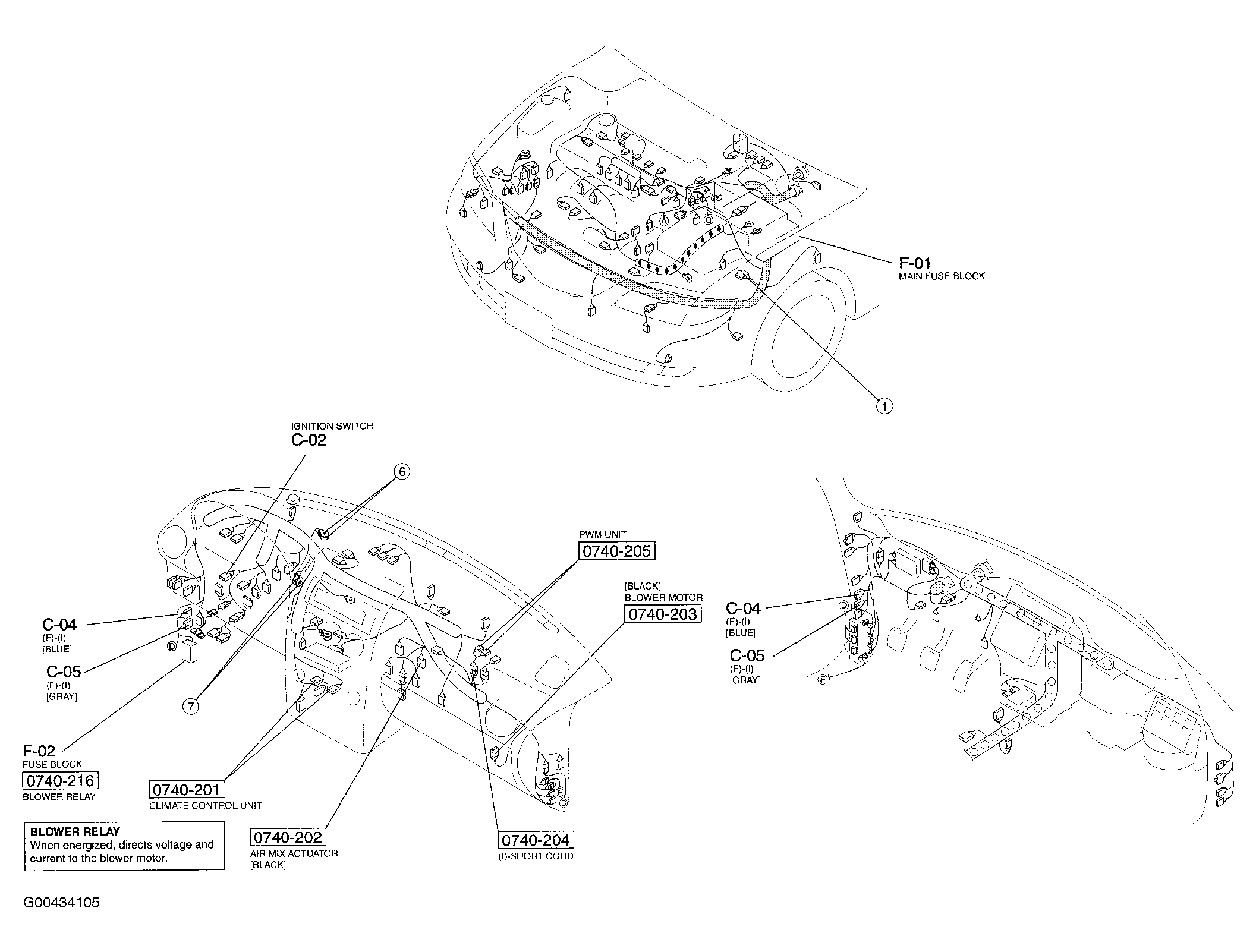

| PWM Unit | Behind right side of dash. See Figure. |

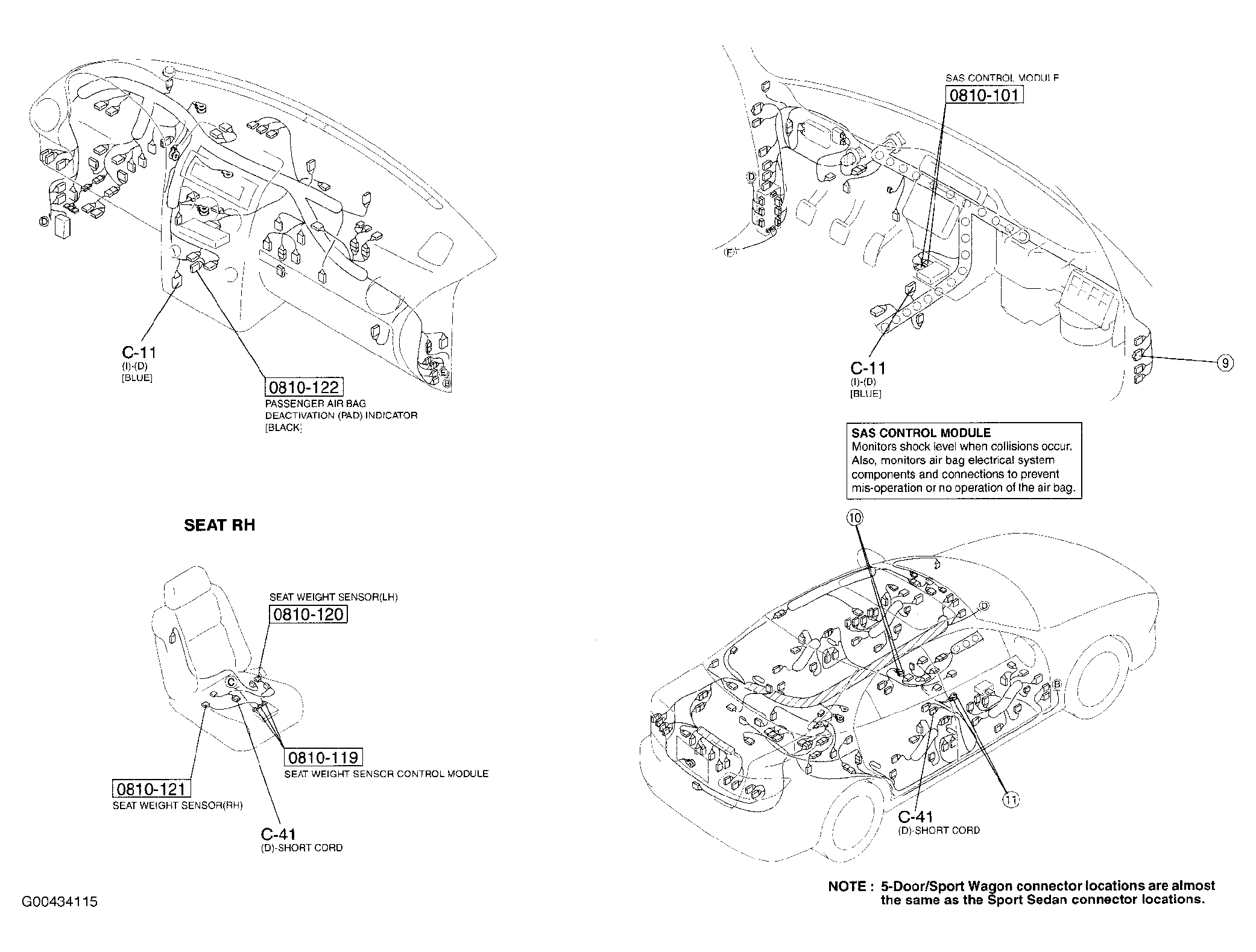

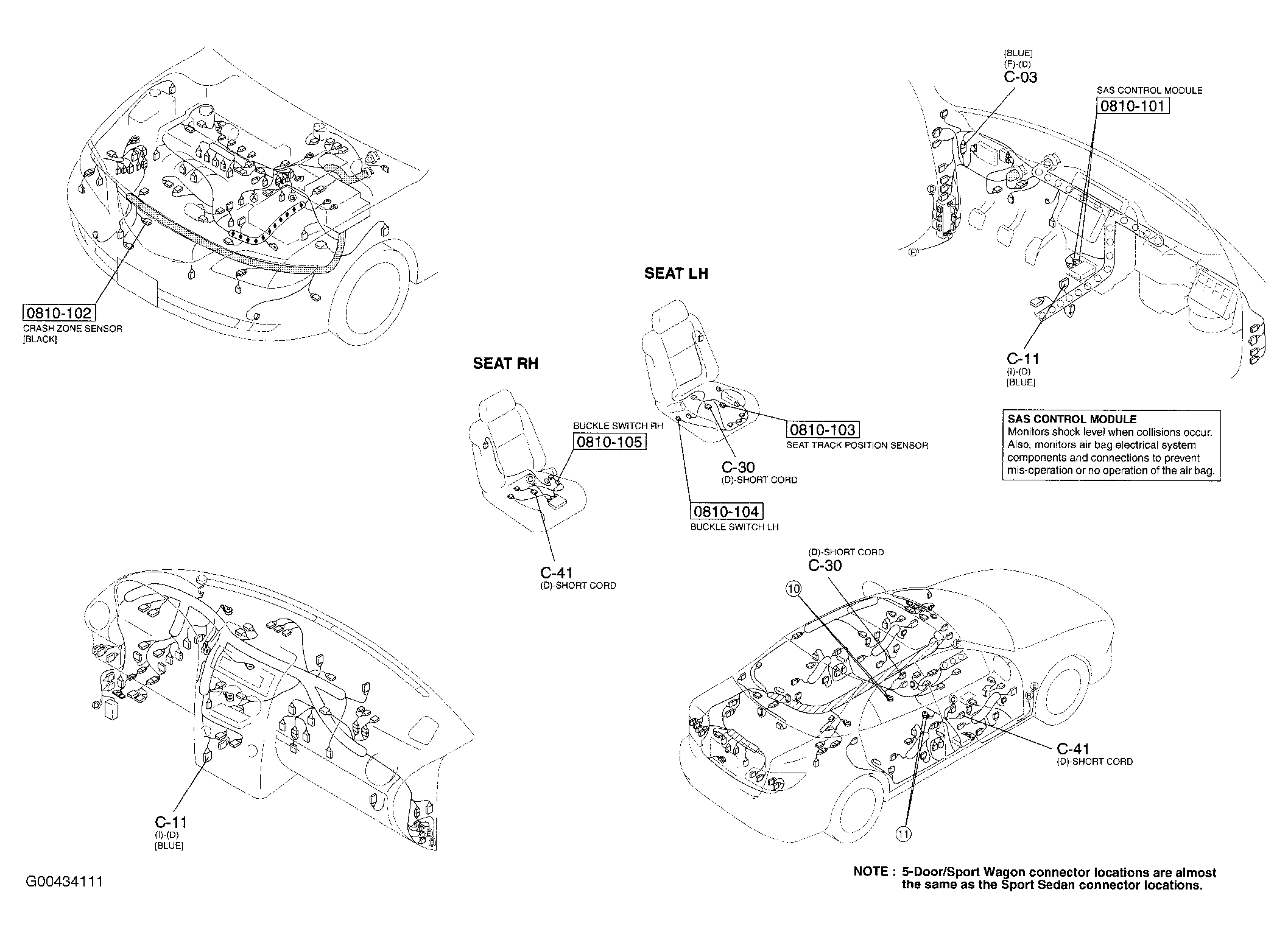

| SAS Control Module | Under front of center console. See Figure. |
| Seat Weight Sensor Control Module | Under front passenger's seat. See Figure. |

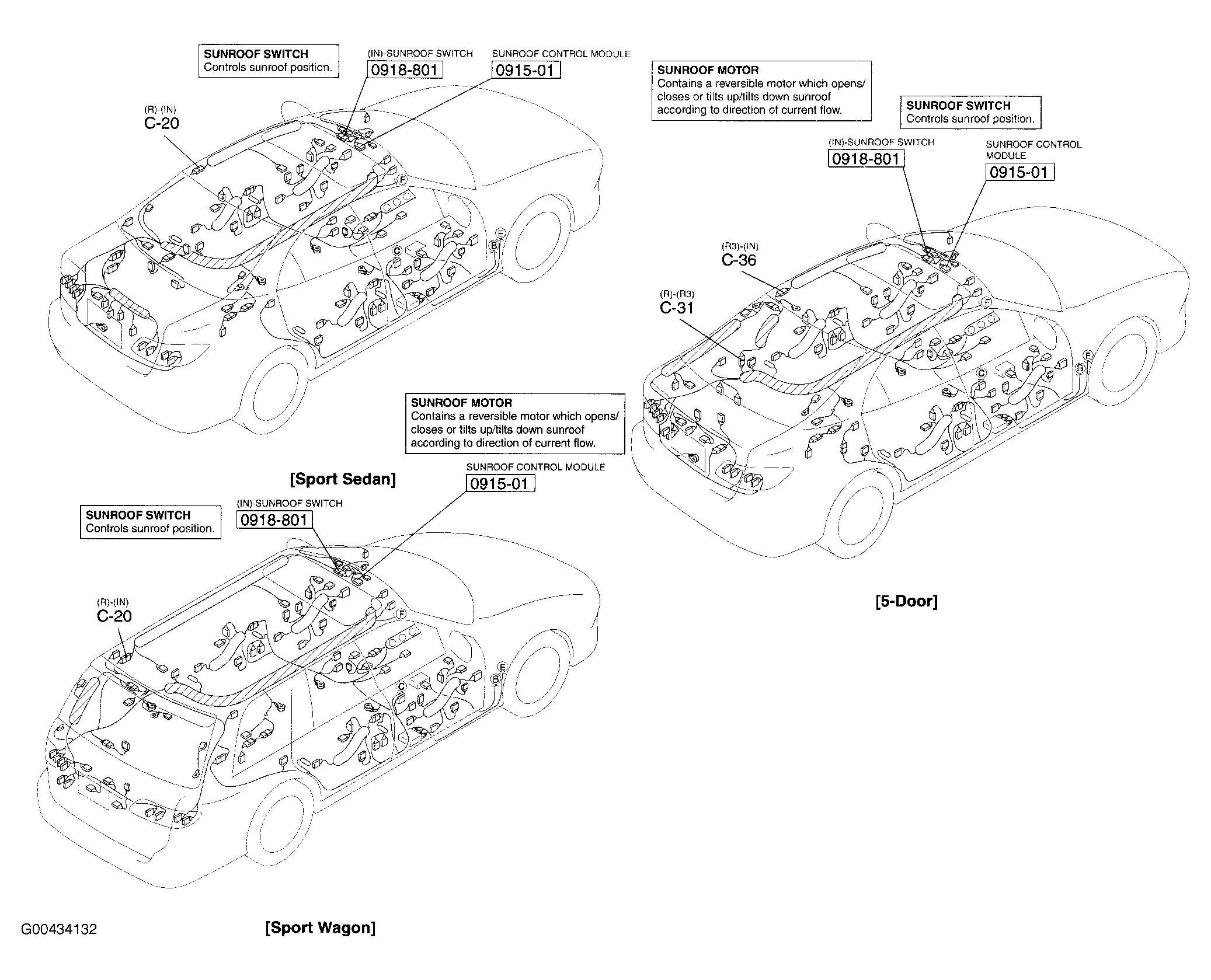

| Sunroof Control Module | Center front of roof. See Figure. |

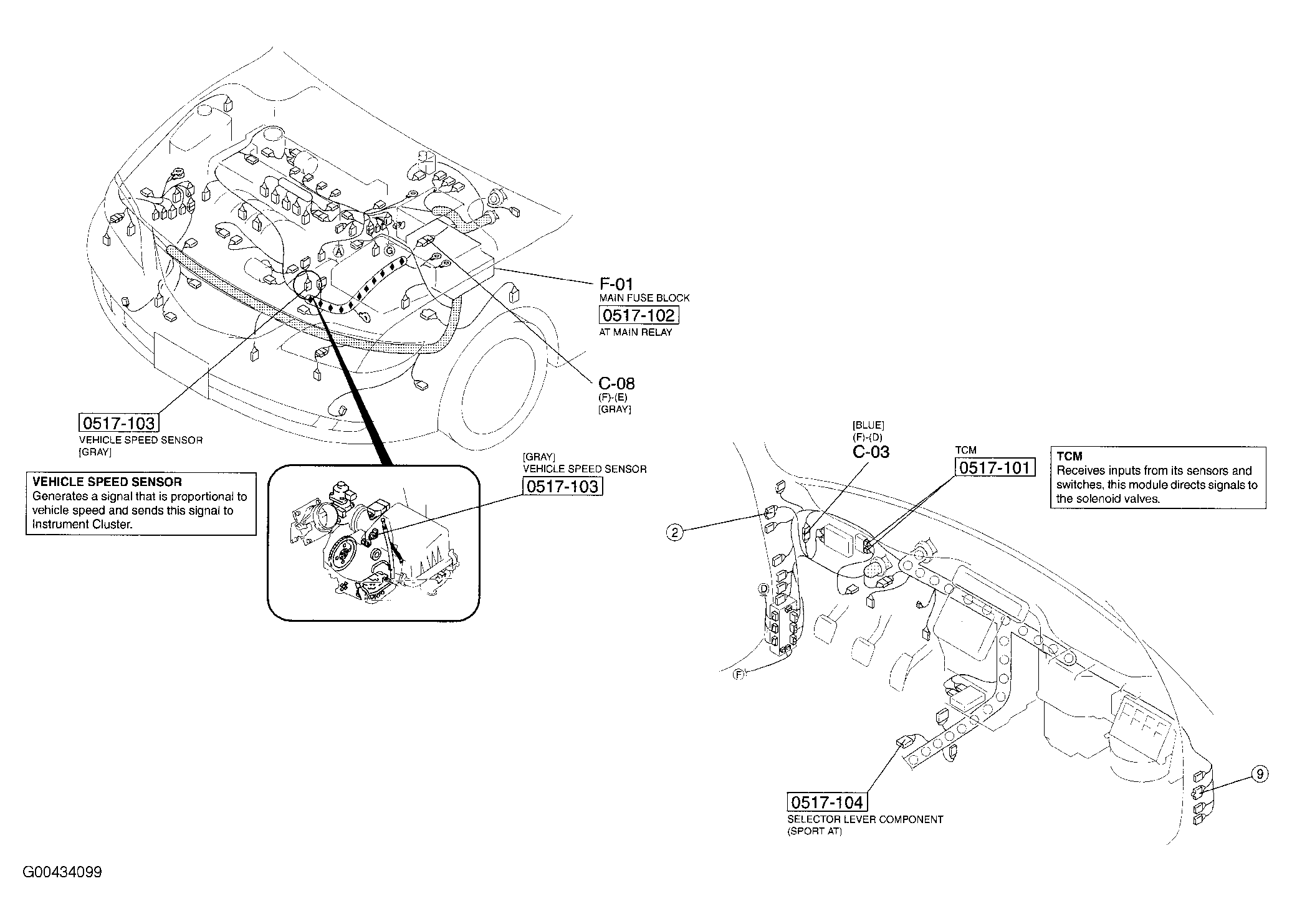

| TCM | Behind left side of dash. See Figure. |
