Continuity Inspection

Verify that the continuity between SSV switch terminals A and B is as indicated in MEASUREMENT CONDITION AND CONTINUITY CHART .
- If there is no malfunction, perform the "CIRCUIT OPEN/SHORT INSPECTION ".
- If there is any malfunction, replace the SSV switch. (See SECONDARY SHUTTER VALVE (SSV) SWITCH REMOVAL/INSTALLATION ).

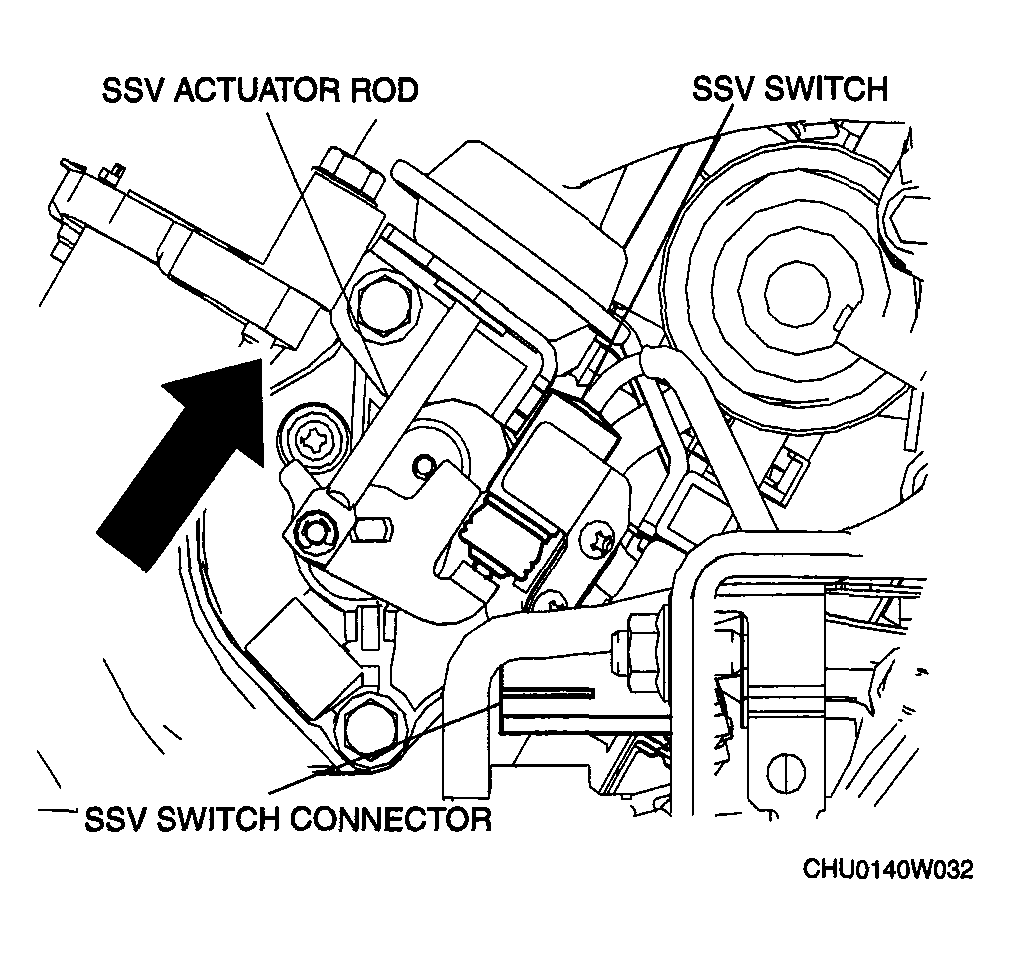

  Fig 1: Identifying SSV Actuator Rod, Switch, & Switch Connector
  Courtesy of MAZDA MOTORS CORP.

MEASUREMENT CONDITION AND CONTINUITY CHART

Measurement condition	Continuity
Push the rod.	No continuity
Except above	Continuity detected
