DTC B10E7:12 [Advanced Keyless Entry And Push Button Start System]

DESCRIPTION	Short to power supply in IG1 relay circuit
DETECTION CONDITION	IG1 relay output monitor is on for 0.5 s when the ignition switch is off.

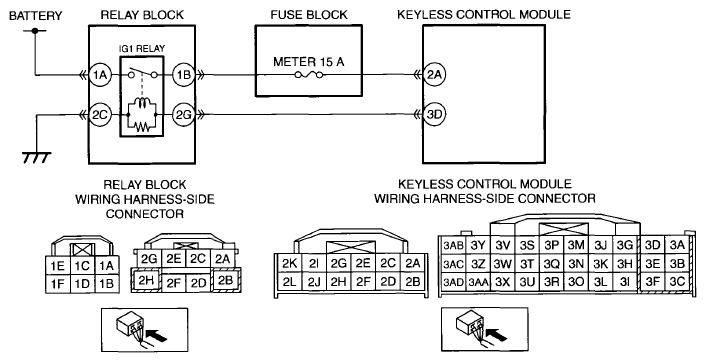

POSSIBLE CAUSE	Relay block connector or terminals malfunction Keyless control module connector or terminals malfunction Short to power supply in wiring harness between the following terminals: Relay block terminal 2G-Keyless control module terminal 3D Relay block malfunction Keyless control module malfunction

DIAGNOSTIC PROCEDURE

Step	Inspection		Action
1	INSPECT RELAY BLOCK CONNECTOR AND TERMINALS Switch the ignition to off. Disconnect the negative battery cable. Disconnect the relay block connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
1		No	Go to the next step.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS Disconnect the keyless control module connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
2		No	Go to the next step.
3	INSPECT IG1 RELAY OUTPUT CIRCUIT FOR SHORT TO POWER SUPPLY Relay block and keyless control module connectors are disconnected. Reconnect the negative battery cable. Measure the voltage at the following terminal (wiring harness-side): Relay block terminal 2G Is there any voltage?	Yes	Repair or replace the wiring harness for a possible short to power supply, then go to Step 5.
3		No	Go to the next step.
4	INSPECT RELAY BLOCK Inspect the relay block. (See RELAY BLOCK INSPECTION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Is there any malfunction?	Yes	Replace the relay block, then go to the next step. (See RELAY BLOCK REMOVAL/INSTALLATION [WITH ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
4		No	Go to the next step.
5	VERIFY TROUBLESHOOTING COMPLETED Make sure to reconnect the disconnected connectors. Reconnect the negative battery cable. Switch the ignition to off using the advanced key. Clear the DTC from the keyless control module using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Switch the ignition to off using the advanced key. Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Is the same DTC present?	Yes	Replace the keyless control module, then go to the next step. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION ).
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
6		No	DTC troubleshooting completed.
