DTC P0615:13 [Advanced Keyless Entry And Push Button Start System]

DESCRIPTION	Open circuit in starter relay circuit
DETECTION CONDITION	Starter relay input voltage less than threshold and a starter monitor input voltage which exceeds threshold is detected for 0.075 s.

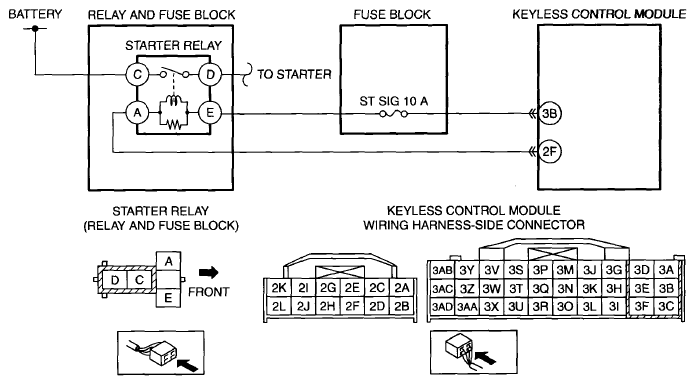

POSSIBLE CAUSE	Starter relay malfunction Keyless control module connector or terminals malfunction Open circuit in starter relay circuit Open circuit in wiring harness between keyless control module terminal 3B and starter relay terminal E ST SIG 10 A fuse malfunction Open circuit in wiring harness between the following terminals: Starter relay terminal A-Keyless control module terminal 2F Keyless control module malfunction

DIAGNOSTIC PROCEDURE

STEP	INSPECTION		ACTION
1	INSPECT RELAY Switch the ignition to off. Disconnect the negative battery cable. Remove the starter relay. Inspect the starter relay. (See RELAY INSPECTION ). Is there any malfunction?	Yes	Replace the relay, then go to Step 5.
1		No	Go to the next step.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR Disconnect the keyless control module connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
2		No	Go to the next step.
3	INSPECT STARTER RELAY CIRCUIT FOR OPEN CIRCUIT Starter relay is removed. Keyless control module connector is disconnected. Inspect for continuity between the following terminals (wiring harness-side): Keyless control module terminal 3B-Starter relay terminal E Is there continuity?	Yes	Go to the next step.
3		No	Inspect the ST SIG 10 A fuse. If the fuse is deterioration: Replace the fuse. If the fuse is normal: Repair or replace the wiring harness for a possible open circuit. Go to Step 5.
4	INSPECT STARTER RELAY CIRCUIT FOR OPEN CIRCUIT Starter relay is removed. Keyless control module connector is disconnected. Inspect for continuity between the following terminals (wiring harness-side): Starter relay terminal A-Keyless control module terminal 2F Is there continuity?	Yes	Go to the next step.
4		No	Repair or replace the wiring harness for a possible open circuit, then go to the next step.
5	VERIFY TROUBLESHOOTING COMPLETED Make sure to reconnect the disconnected connectors. Reconnect the negative battery cable. Switch the ignition to off using the advanced key. Clear the DTC from the keyless control module using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Switch the ignition to off using the advanced key. Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Is the same DTC present?	Yes	Replace the keyless control module, then go to the next step. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION ).
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
6		No	DTC troubleshooting completed.
