DTC U201F:11 [Advanced Keyless Entry And Push Button Start System]

DESCRIPTION	Short to ground in keyless receiver circuit
DETECTION CONDITION	Keyless receiver power supply monitor voltage is less than 7.5 V for 0.5 s.

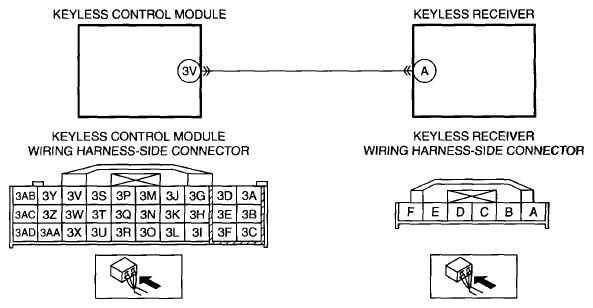

POSSIBLE CAUSE	Keyless receiver connector or terminals malfunction Keyless control module connector or terminals malfunction Short to ground in the wiring harness between the following terminals: Keyless receiver terminal A-Keyless control module terminal 3V Keyless receiver malfunction Keyless control module malfunction

DIAGNOSTIC PROCEDURE

Step	Inspection		Action
1	INSPECT KEYLESS RECEIVER CONNECTOR AND TERMINALS Switch the ignition to off. Disconnect the negative battery cable. Disconnect the keyless receiver connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
1		No	Go to the next step.
2	INSPECT KEYLESS CONTROL MODULE CONNECTOR AND TERMINALS Disconnect the keyless control module connector. Inspect the connector and terminals (corrosion, damage, pin disconnection). Is there any malfunction?	Yes	Repair or replace the connector or terminals, then go to Step 5.
2		No	Go to the next step.
3	INSPECT KEYLESS RECEIVER POWER SUPPLY CIRCUIT FOR SHORT TO GROUND Keyless receiver and keyless control module connectors are disconnected. Inspect for continuity between the following terminal (wiring harness-side) and body ground: Keyless receiver terminal A Is there continuity?	Yes	Repair or replace the wiring harness for a possible short to ground, then go to Step 5.
3		No	Go to the next step.
4	INSPECT KEYLESS RECEIVER Reconnect the keyless receiver and the keyless control module connectors. Inspect the keyless receiver. (See KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Is there any malfunction?	Yes	Replace the keyless receiver, then go to the next step. (See KEYLESS RECEIVER REMOVAL/INSTALLATION ).
4		No	Go to the next step.
5	VERIFY TROUBLESHOOTING COMPLETED Make sure to reconnect the disconnected connectors. Reconnect the negative battery cable. Operate the advanced key to activate the keyless control module. Clear the DTC from the keyless control module using the M-MDS. (See CLEARING DTC [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Operate the advanced key to activate the keyless control module. Perform the advanced keyless entry and push button start system DTC inspection using the M-MDS. (See DTC INSPECTION [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ). Is the same DTC present?	Yes	Replace the keyless control module, then go to the next step. (See KEYLESS CONTROL MODULE REMOVAL/INSTALLATION ).
5		No	Go to the next step.
6	VERIFY THAT NO OTHER DTCs ARE PRESENT Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] ).
6		No	DTC troubleshooting completed.
