Glass/Windows/Mirrors Location Index

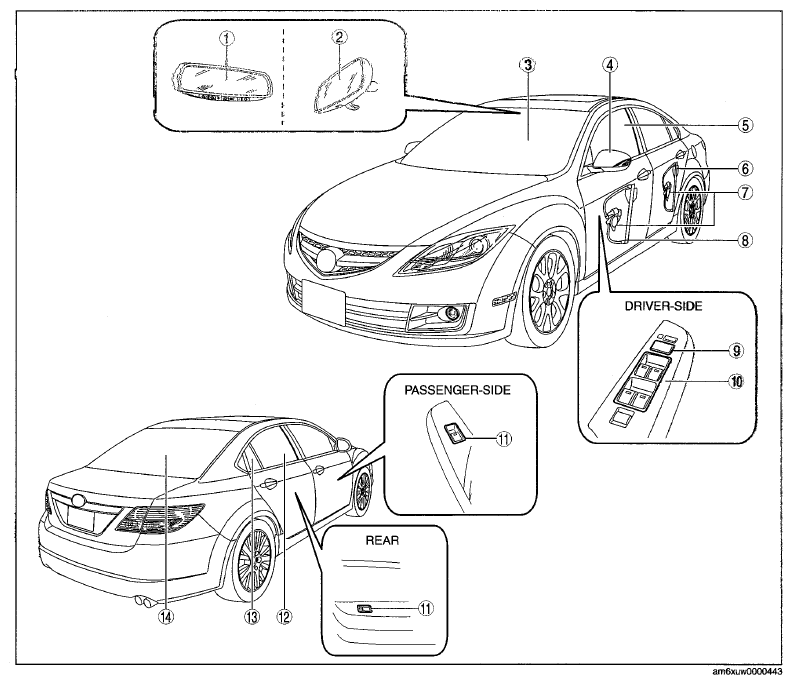

Fig 1: Glass/Windows/Mirrors Components Location

Courtesy of MAZDA MOTORS CORP.

GLASS/WINDOWS/MIRRORS LOCATION INDEX

1	Auto-dimming mirror (See AUTO-DIMMING MIRROR REMOVAL .) (See AUTO-DIMMING MIRROR INSTALLATION .) (See AUTO-DIMMING MIRROR INSPECTION .)
2	Rearview mirror (See REARVIEW MIRROR REMOVAL .) (See REARVIEW MIRROR INSTALLATION .) (See MIRROR BASE REMOVAL .) (See MIRROR BASE INSTALLATION .)
3	Windshield (See WINDSHIELD REMOVAL .) (See WINDSHIELD INSTALLATION .)
4	Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .) (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .) (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR INSPECTION .)
5	Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
6	Rear power window regulator (See REAR POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
7	Power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .) (See POWER WINDOW MOTOR INSPECTION .)
8	Front power window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION .)
9	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION .) (See POWER OUTER MIRROR SWITCH INSPECTION .)
10	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW MAIN SWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .) (See PERSONALIZATION FEATURES SETTING PROCEDURE .)
11	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .) (See POWER WINDOW SUBSWITCH INSPECTION .) (See POWER WINDOW SYSTEM INITIALIZATION PROCEDURE .)
12	Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
13	Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
14	Rear window glass (See REAR WINDOW GLASS REMOVAL .) (See REAR WINDOW GLASS INSTALLATION .) (See FILAMENT INSPECTION .) (See FILAMENT REPAIR .)
