Auto Light/Wiper Control Module Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- When replacing the auto light/wiper control module, the configuration procedure must be performed before removing the auto light/wiper control module. Replacing the auto light/wiper control module without performing the configuration procedure will result in system malfunction.
NOTE:
- Auto light-off system are integrated with the auto light/wiper control module.
- Perform the auto light/wiper control module configuration when replacing it. (See AUTO LIGHT/WIPER CONTROL MODULE CONFIGURATION )
- Disconnect the negative battery cable.
- Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION

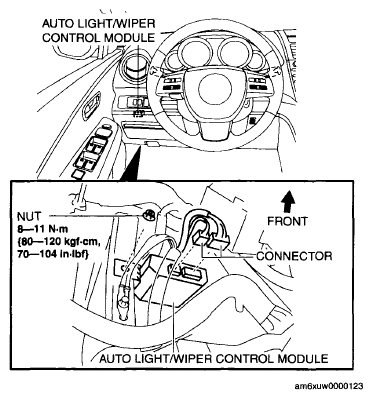

- Remove the nut.
- Disconnect the connectors.
- Remove the auto light/wiper control module.
- Install in the reverse order of removal.
