Pcm Removal/Installation: Notes
- Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)
- Remove the following items: (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO]
.)
- Battery
- PCM cover No.1
- Disconnect the PCM connector. (See PCM CONNECTOR CONNECTION NOTE .)
- Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION [MZR 2.3 DISI TURBO] .)

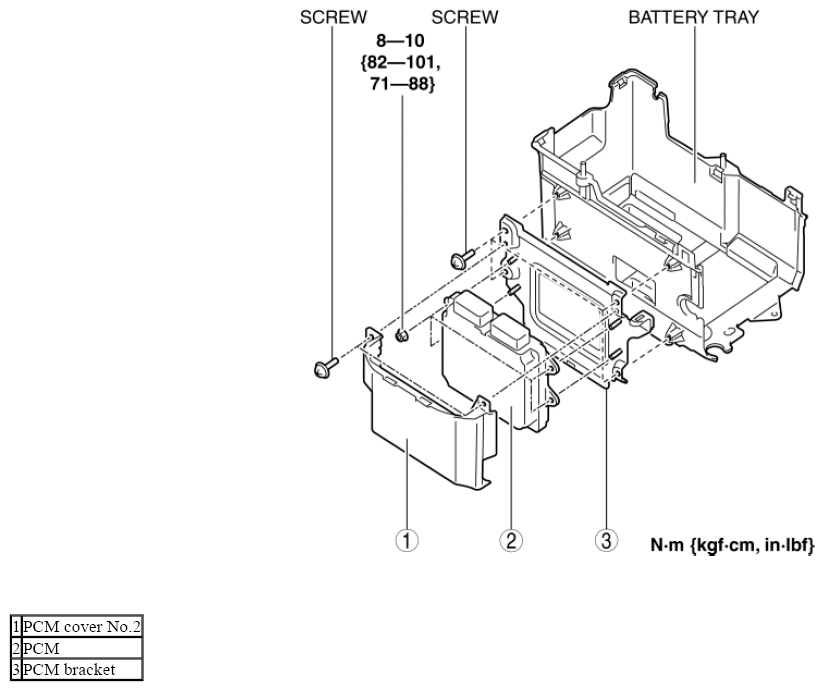

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- When replacing the PCM on the vehicles, perform the following:
- PCM configuration (See PCM CONFIGURATION .)
- Immobilizer system-related parts programming (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [KEYLESS ENTRY SYSTEM] .) (See IMMOBILIZER SYSTEM-RELATED PARTS PROGRAMMING [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM] .)
