A/C Compressor Removal/Installation: Notes
WARNING: This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
- Discharge the refrigerant. (See REFRIGERANT CHARGING .)
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)
- Remove the drive belt. (See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5] .)

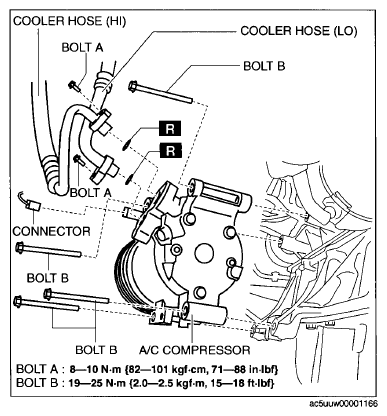

- Disconnect the connector.
- Remove bolts A.CAUTION:
- If moisture or foreign matter enters the refrigeration cycle, cooling ability will be lowered and abnormal noise or other malfunctions could occur. Always plug open fittings immediately after removing any refrigeration cycle parts.
- Remove the cooler hose (LO). (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
- Remove the cooler hose (HI). (See REFRIGERANT LINE REMOVAL/INSTALLATION .)
- Remove bolts B.
- Remove the A/C compressor. Do not allow compressor oil to spill. (See A/C COMPRESSOR INSTALLATION NOTE .)
- Install in the reverse order of removal.
- Perform the refrigerant system performance test. (See REFRIGERANT SYSTEM PERFORMANCE TEST .)
