Steering Shift Switch Removal/Installation: Notes

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove in the order indicated in the table.

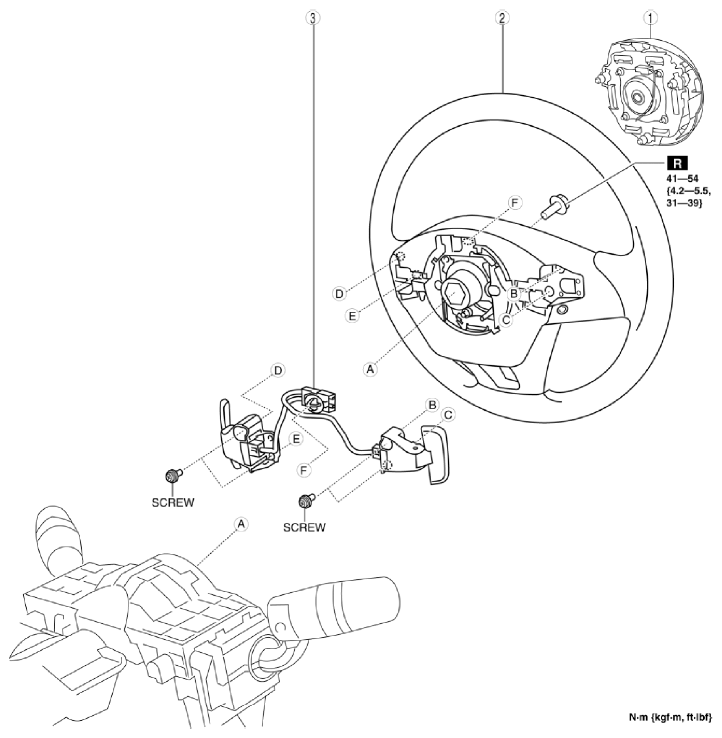

    Fig 1: Steering Shift Switch Components With Torque Specifications
    G10986247Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Driver-side air bag module
    (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
    (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
    2 Steering wheel
    (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
    3 Steering shift switch component
    (See Steering Shift Switch Component Removal Note .)
  3. Install in the reverse order of removal.
