Rearview Mirror Removal/Installation

  1. Remove the sensor cover. (with sensor cover) (See SENSOR COVER REMOVAL/INSTALLATION .)
  2. Loosen the screw.

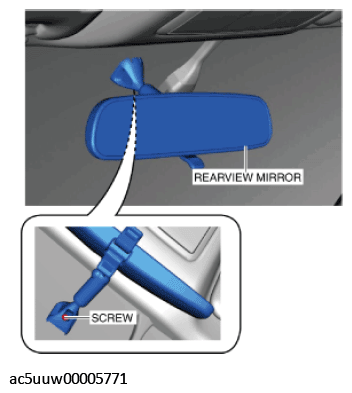

    Fig 1: Loosening Rearview Mirror Screw
    G11427742Courtesy of MAZDA MOTORS CORP.
  3. Pull the rearview mirror in the direction of the arrow shown in the figure.

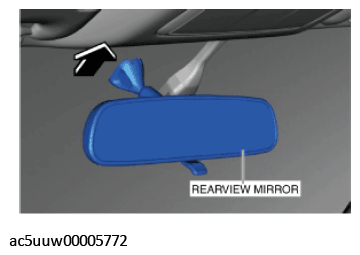

    Fig 2: Pulling Rearview Mirror
    G11427743Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
