Sunroof Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

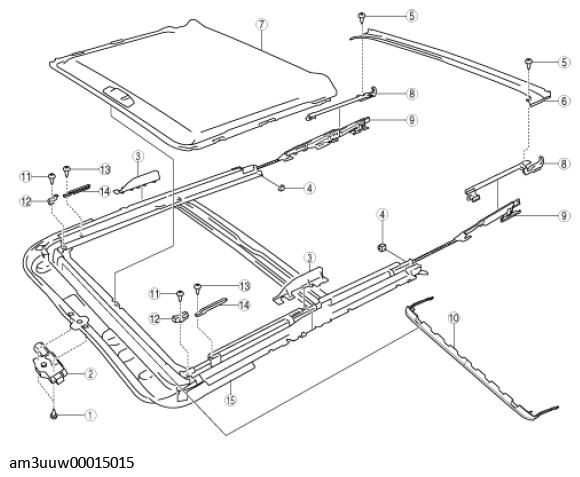

Fig 1: Locating Different Components For Sunroof Unit Disassembly

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Screw
2	Sunroof motor
3	Screen
4	Rear stopper
5	Screw
6	Drip rail
7	Sunshade (See Sunshade Disassembly Note .)
8	Front guide (See Front Guide Disassembly Note .)
9	Decoration link (See Decoration Link Assembly Note .)
10	Deflector
11	Screw
12	Front stopper
13	Screw
14	Set plate
15	Sunroof frame

Assemble in the reverse order of disassembly.
