Front Turn Light Removal/Installation

WARNING: This page is about a different car, the 2017 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition ON (engine off or on).
  2. Fully turn the steering wheel in the opposite direction of the side the front turn light is being removed.
  3. Switch the ignition off.
  4. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  5. Partially peel back the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION .)
  6. Remove the front fog light and the bracket as a single unit. (with front fog light) (See FRONT FOG LIGHT REMOVAL/INSTALLATION .)
  7. Remove the screws. (without front fog light)

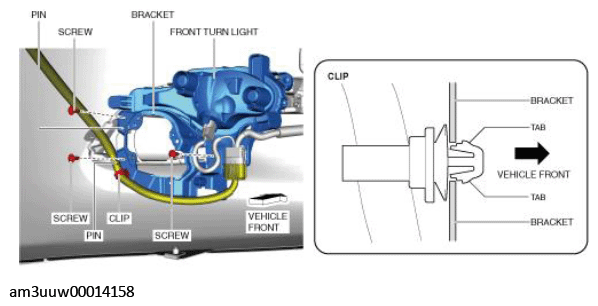

    Fig 1: Removing Front Turn Light Screws
    G11449519Courtesy of MAZDA MOTORS CORP.
  8. Remove the clip. (without front fog light)
  9. Remove the bracket. (without front fog light)
  10. Disconnect the connector.

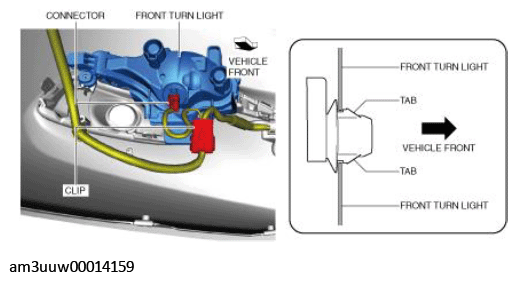

    Fig 2: Locating Front Turn Light Connector
    G11449520Courtesy of MAZDA MOTORS CORP.
  11. Remove the clip.
  12. Remove the screw.
    Fig 3: Removing Front Turn Light Screws
    G11449521Courtesy of MAZDA MOTORS CORP.
  13. Remove the front turn light.
  14. Install in the reverse order of removal.
