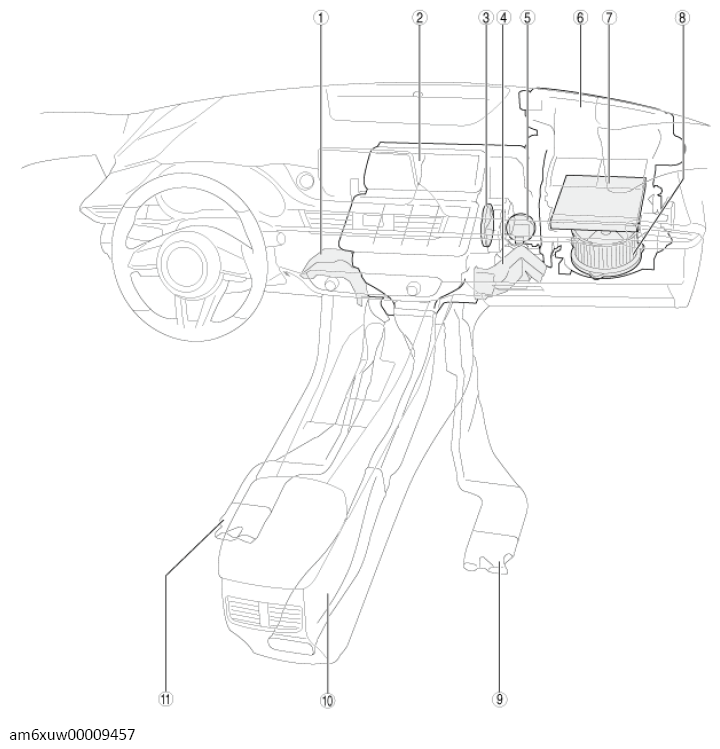

Structural View
PARTS DESCRIPTION
| 1 | Driver-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 2 | A/C unit (See A/C UNIT REMOVAL/INSTALLATION .) (See A/C UNIT DISASSEMBLY/ASSEMBLY .) |
| 3 | Airflow mode main link (See AIRFLOW MODE MAIN LINK REMOVAL .) (See AIRFLOW MODE MAIN LINK INSTALLATION .) |
| 4 | Passenger-side front heat duct (See FRONT HEAT DUCT REMOVAL/INSTALLATION .) |
| 5 | Blower fan controller (See BLOWER FAN CONTROLLER REMOVAL/INSTALLATION .) (See BLOWER FAN CONTROLLER INSPECTION .) |
| 6 | Blower unit (See BLOWER UNIT REMOVAL/INSTALLATION .) (See BLOWER UNIT DISASSEMBLY/ASSEMBLY .) |
| 7 | Air filter (See AIR FILTER REMOVAL/INSTALLATION .) (See AIR FILTER INSPECTION .) |
| 8 | Blower motor (See BLOWER MOTOR REMOVAL/INSTALLATION .) (See BLOWER MOTOR INSPECTION .) |
| 9 | Passenger-side rear heat duct (See REAR HEAT DUCT REMOVAL/INSTALLATION .) |
