Front Shock Absorber And Coil Spring Disassembly/Assembly: Notes
WARNING:
- If the coil spring flies off while removing/installing the coil spring, it may cause serious injury or death, or vehicle damage. When removing/installing the coil spring, always use the SST and be careful not to allow the coil spring to fly off.
- Remove the front shock absorber and coil spring. (See FRONT SHOCK ABSORBER AND COIL SPRING REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
Courtesy of MAZDA MOTORS CORP.

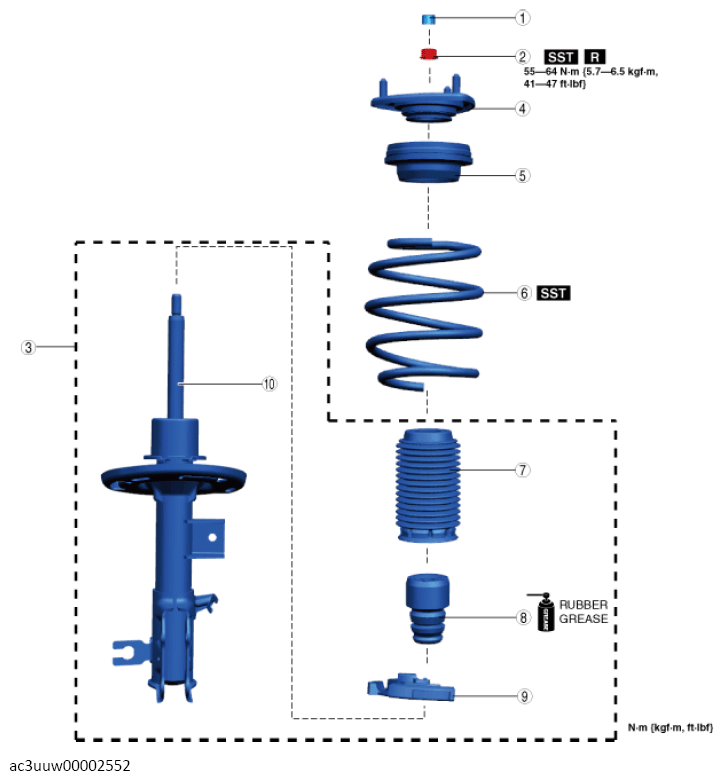

COMPONENT DESCRIPTION1 Cap 2 Piston rod nut
(See Piston Rod Nut Removal Note .)3 Front shock absorber assembly 4 Mounting rubber
(See Mounting Rubber Installation Note .)5 Bearing 6 Coil spring
(See Coil Spring Installation Note .)7 Dust boot 8 Bound stopper 9 Lower spring seat 10 Front shock absorber
