HVAC Control System Location Index
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT DESCRIPTION

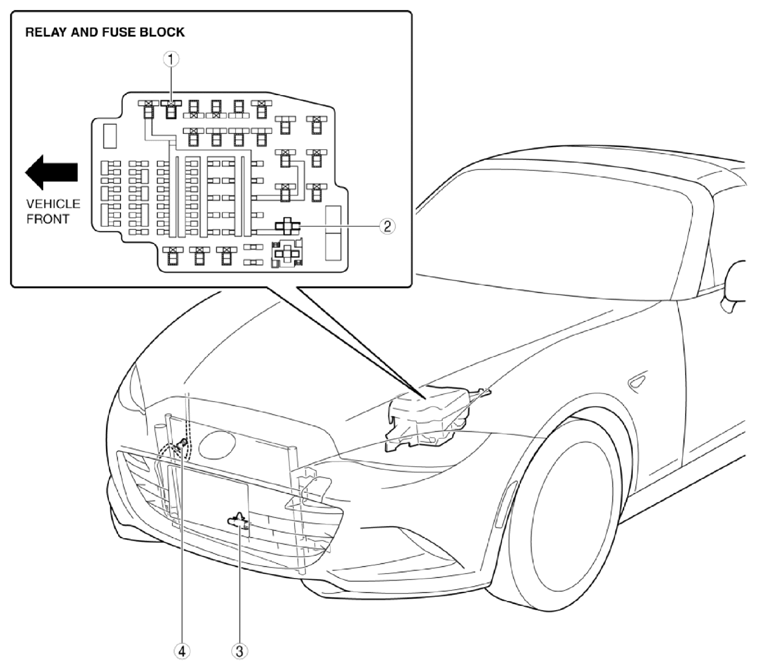

| 1 | A/C relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 2 | Blower relay (See RELAY LOCATION .) (See RELAY INSPECTION .) |
| 3 | Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See AMBIENT TEMPERATURE SENSOR INSPECTION .) |
| 4 | Refrigerant pressure sensor (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION .) (See REFRIGERANT PRESSURE SENSOR INSPECTION .) |
COMPONENT DESCRIPTION

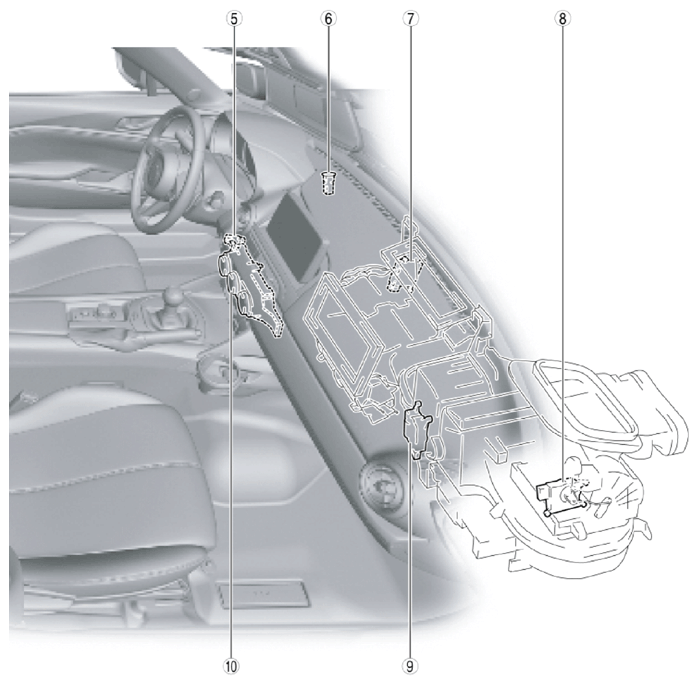

| 5 | Passenger compartment temperature sensor (See PASSENGER COMPARTMENT TEMPERATURE SENSOR REMOVAL/INSTALLATION .) (See PASSENGER COMPARTMENT TEMPERATURE SENSOR INSPECTION .) |
| 6 | Solar radiation sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION .) (See SOLAR RADIATION SENSOR INSPECTION .) |
| 7 | Airflow mode actuator (See AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION .) (See AIRFLOW MODE ACTUATOR INSPECTION .) |
| 8 | Air intake actuator (See AIR INTAKE ACTUATOR REMOVAL/INSTALLATION .) (See AIR INTAKE ACTUATOR INSPECTION .) |
| 9 | Air mix actuator (See AIR MIX ACTUATOR REMOVAL/INSTALLATION .) (See AIR MIX ACTUATOR INSPECTION .) |
| 10 | Climate control unit (See CLIMATE CONTROL UNIT REMOVAL/INSTALLATION .) (See CLIMATE CONTROL UNIT INSPECTION .) |
