Rear Console Disassembly/Assembly: Notes
WARNING: This page is about a different car, the 2021 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

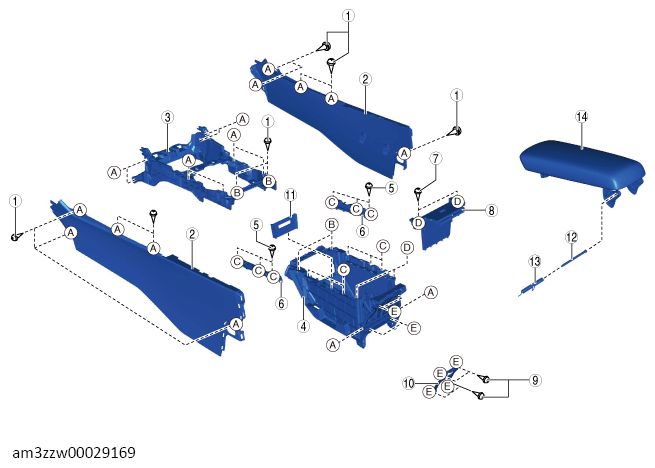

- Disassemble in the order indicated in the table.PARTS DESCRIPTION
1 Screw 2 Console panel
(See CONSOLE PANEL REMOVAL NOTE .)3 Rear console bracket (front) 4 Rear console box 5 Screw 6 Bracket cover 7 Screw 8 Rear console parts 9 Screw 10 Rear console bracket (rear) 11 Plate 12 Pin 13 Spring 14 Rear console lid - Assemble in the reverse order of disassembly.
