Front Combination Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2021 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Fogging or condensation on the inside of the front combination lights may occur due to a natural phenomenon occurring as a result of a temperature difference between the interior and exterior of the combination lights. However, it has no effect on the light performance because the temperature inside the front combination lights rises after illuminating the headlights or a period of time has elapsed.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION .)
  3. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
    CAUTION:
    • When removing the front combination light from the body, it could interfere with the body and cause scratching or damage to the body. When removing the front combination light from the body, apply protective tape to the body.

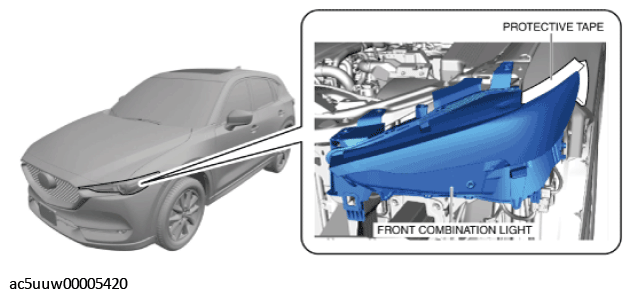

  4. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    G11428087Courtesy of MAZDA MOTORS CORP.

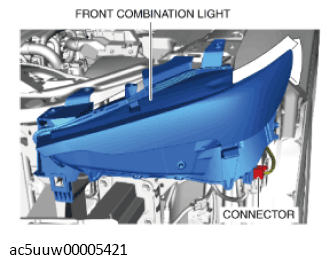

  5. Disconnect the connector.
    G11428088Courtesy of MAZDA MOTORS CORP.

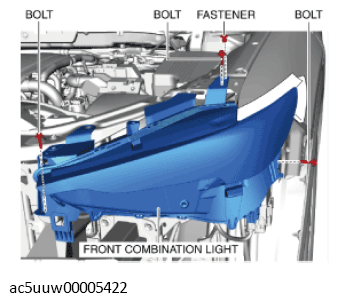

  6. Remove the bolts. (See Bolt Installation Note .)
    G11428089Courtesy of MAZDA MOTORS CORP.
  7. Remove the fastener.
    CAUTION:
    • When removing the front combination light from the body, the front combination light may fall off and be damaged. Remove the front combination light from the body while holding the front combination light on the lens side by hand.

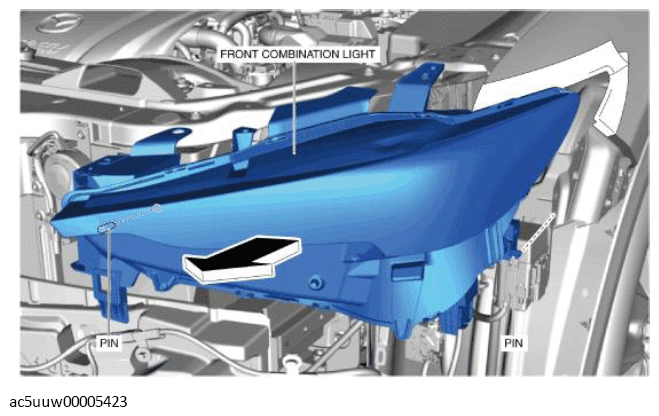

  8. Pull the front combination light in the direction of the arrow shown in the figure and remove the front combination light.
    G11428090Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When replacing the front combination light, refer to the [FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY] and verify that all of the parts have been assembled. If a part has not been assembled correctly, it could cause water leakage or a malfunction such as fogging in the housing. (See FRONT COMBINATION LIGHT DISASSEMBLY/ASSEMBLY .)
  9. Install in the reverse order of removal.
  10. Adjust the headlight aiming. (See HEADLIGHT AIMING .)
