Starter Interlock Switch Removal/Installation: Notes

Replacement Part

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

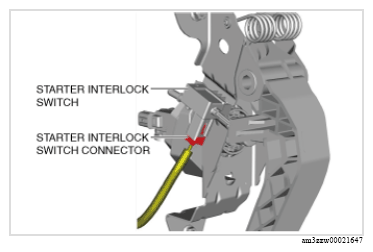

2. Disconnect the starter interlock switch connector.

   Courtesy of MAZDA MOTORS CORP.

3. Remove the starter interlock switch using the following procedure. (See STARTER INTERLOCK SWITCH INSTALLATION NOTE .)

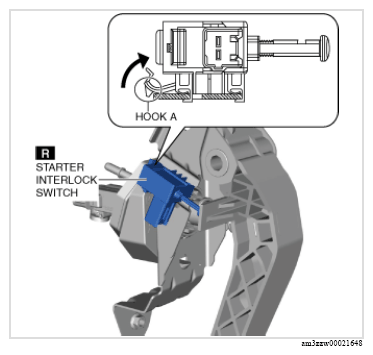

   1. Detach hook A in the direction of the arrow shown in the figure below.

      Courtesy of MAZDA MOTORS CORP.

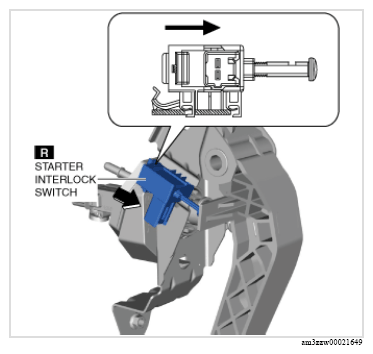

   2. Slide the starter interlock switch in the direction of the arrow shown in the figure below.

      Courtesy of MAZDA MOTORS CORP.

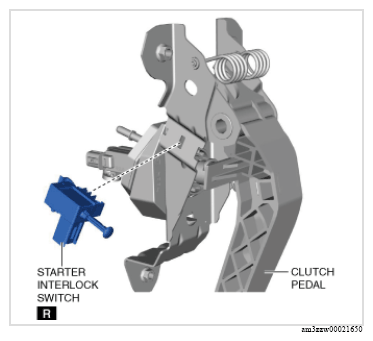

   3. Remove the starter interlock switch from the clutch pedal.

      Courtesy of MAZDA MOTORS CORP.

4. Install in the reverse order of removal.
5. Fully depress the clutch pedal, and verify that the engine starts.
