Open Capsule Cover: Notes

Open in the order indicated in the table.

Courtesy of MAZDA MOTORS CORP.

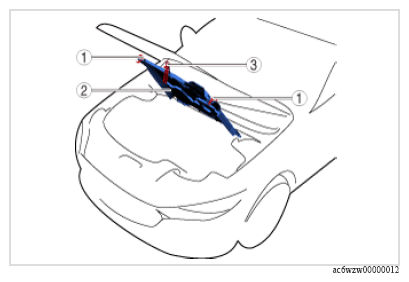

PART NAME DESCRIPTION

Step	Part name
1	Rotating fastener (See OPENING CAPSULE COVER NOTE ) (See CLOSING CAPSULE COVER NOTE )
2	Capsule cover (See OPENING CAPSULE COVER NOTE ) (See CLOSING CAPSULE COVER NOTE )
3	Clip (See OPENING CAPSULE COVER NOTE ) (See CLOSING CAPSULE COVER NOTE )
