Ventilation system, function - GF83.10-P-2000Q
MODEL 209.3 /4

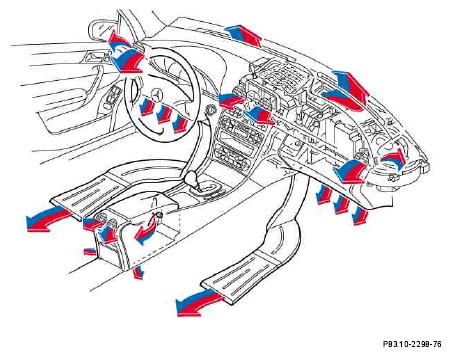

Shown on model 209.3
Function
The ventilation prevents windows from fogging up, provides fresh air to the occupants and ensures that uniform and pleasant temperatures in the interior are reached quickly.
In normal operation, when the vehicle is stationary or to increase the air quantity, through-ventilation is achieved with the assistance of the blower motor. Fresh air is drawn into the air conditioner housing via the air inlet in the engine hood and via the fresh air/air recirculation flap (fresh air position).
Depending on the preselection on the AAC [KLA] control and operating unit (without code (581) Comfort automatic air conditioning) or on the comfort AAC [KLA] control and operating unit (with code (581) Comfort automatic air conditioning), the air is directed through the air ducts to the air outlets in the interior compartment.
In recirculated air operation, air is drawn out of the vehicle interior through the fresh/recirculated air flap (recirculated air position) by the blower motor and delivered to the air conditioner housing. When the ignition is switched off, the fresh air/air recirculation flap is automatically moved into a 50 % fresh air and 50 % recirculated air position.
This achieves a significant reduction in the flap closing forces. Air flows into the trunk through ventilation slots below the rear shelf and flows out of the vehicle again through the rear ventilation.
On model 209.4, when driving with the soft top open, the fresh air/air recirculation flap is set to the 100 % fresh air position; for air distribution in automatic mode, fixed values apply for the defroster vents and the center level. The footwell flaps are regulated in the same way as for driving with the soft top closed.
| Air ducting, location/task/function | GF83.10-P-2182Q | ||
| Blower motor location/task/design/function | GF83.10-P-2170Q | ||
| Blower regulator, location/task/function | GF83.10-P-2141Q | ||
| Rear blower motor, location/task/function | On vehicles with code (581) Comfort automatic air conditioning | GF83.10-P-2168P | |
| Control unit for rear blower motor, location/ task/design/function | On vehicles with code (581) Comfort automatic air conditioning | GF83.10-P-2169P | |
| Combination filter, location/task/design/function | Model 209.3 with engine 612, 642, 646 and without code (581) Comfort automatic air conditioning up to 31.5.07 Model 209.4 with engine 642 and without code (581) Comfort automatic air conditioning up to 31.5.07 Model 209.3/4 as of 1.6.07 |
GF83.10-P-2128Q | |
| Dust filter, location/task/function | Model 209.3/4 with engine 112, 113, 271, 272, 273, 156 up to 31.5.07 Model 209.3 with engine 612, 642, 646 and with code (581) Comfort automatic air conditioning up to 31.5.07 Model 209.4 with engine 642 and with code (581) Comfort automatic air conditioning up to 31.5.07 |
GF83.10-P-2142P | |
| Activated-carbon filter, location/task/function | with code (581) Comfort automatic air conditioning | GF83.30-P-2118P | |
| Actuator motors for automatic air conditioning, location/task/function | Without code (581) Comfort automatic air conditioning | GF83.40-P-2182Q | |
| Actuator motors for comfort automatic air conditioning, location/task/function | with code (581) Comfort automatic air conditioning | GF83.40-P-2183Q | |
| Control and operating unit for automatic air conditioning, location/task | Model 209.3 without code (581) Comfort automatic air conditioning | GF83.40-P-2180Q | |
| Model 209.4 without code (581) Comfort automatic air conditioning | GF83.40-P-2180QA | ||
| Comfort automatic air conditioning control and operating unit, location/task | Model 209.3 with code (581) Comfort automatic air conditioning | GF83.40-P-2181Q | |
| Model 209.4 with code (581) Comfort automatic air conditioning | GF83.40-P-2181QA | ||
| Air conditioner housing, location/task/design/function | Without code (581) Comfort automatic air conditioning | GF83.40-P-2105Q | |
| Convenience air conditioner housing, location/task/design/function | with code (581) Comfort automatic air conditioning | GF83.40-P-2170Q | |
| Air humidity sensor, location/task/design/ function | Up to 28.6.06 without code (581) Comfort automatic air conditioning | GF83.30-P-2125Q | |
| Multifunction sensor location/task/function | with code (581) Comfort automatic air conditioning | GF83.10-P-2148Q |
